      6ED1052-1HB08-0BA1

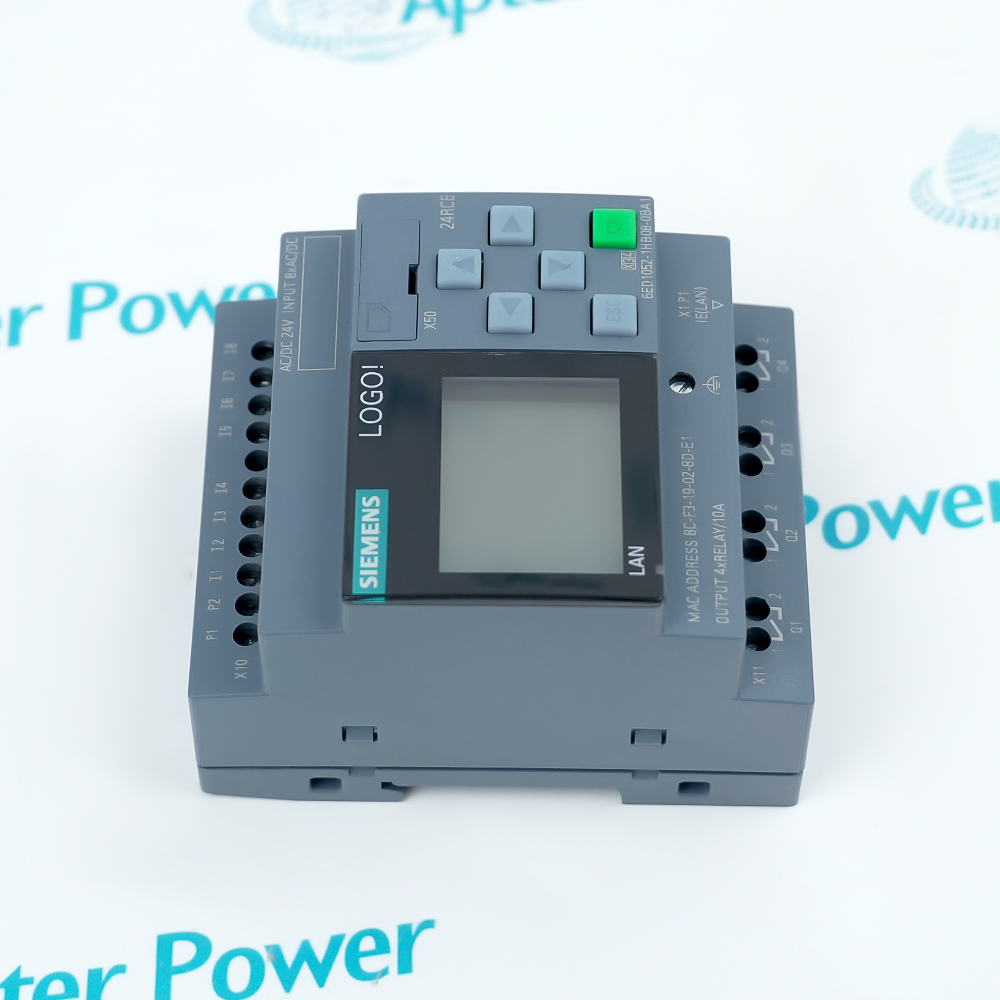

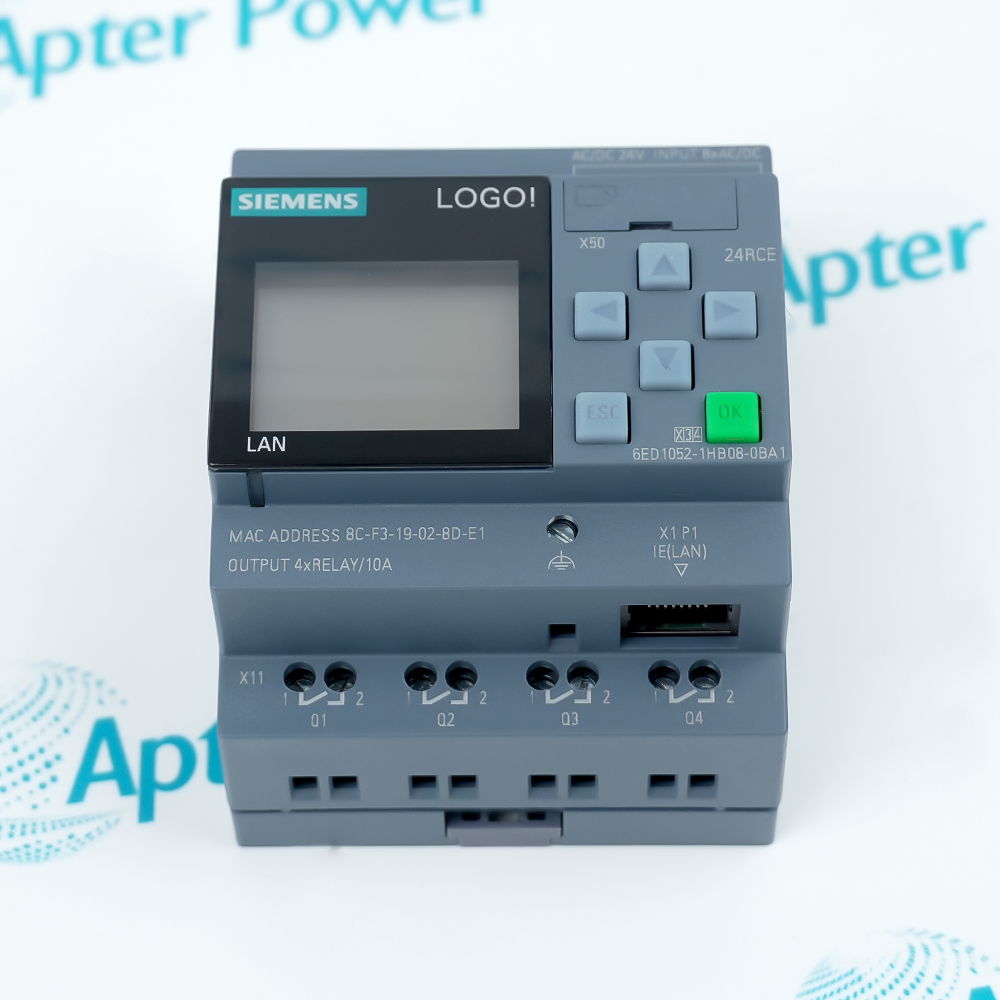

      LOGO! 24RCE Logic Module with Display
      In Stock
      Ships by Sunday, September 13
      Fast Shipping Available

      Product Describe：

      Siemens 6ED1052-1HB08-0BA1 is a LOGO! 24RCE logic module with display, Ethernet, eight digital inputs and four relay outputs. It executes compact control logic and exchanges project data through the configured LOGO! network.

      Ask our team:

      Get a quick price for： 6ED1052-1HB08-0BA1
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 6ED1052-1HB08-0BA1

      Technical specifications for 6ED1052-1HB08-0BA1

      • Manufacturer:
        Siemens
      • Product Category:
        General Automation
      • Spare Part Number:
        6ED1052-1HB08-0BA1
      • Estimated shipping dimensions:
        9x7.1x6cm
      • Weight:
        0.2 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Product designation:
        LOGO! 24RCE
      • Supply:
        24 V AC/DC
      • Digital inputs:
        8
      • Relay outputs:
        4
      • Program capacity:
        400 blocks
      • Ethernet interface:
        Integrated
      • Web server:
        Integrated
      • Memory card:
        Standard microSD
      • Programming software:
        LOGO! Soft Comfort V8.3 or higher
      • Mounting:
        35 mm DIN rail
      • Rated DC supply:
        24 V DC
      • Permissible DC range:
        20.4 to 28.8 V DC
      • Rated AC supply:
        24 V AC, 47 to 63 Hz
      • Relay load, resistive:
        10 A maximum
      • Relay load, inductive:
        3 A maximum
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      6ED1052-1HB08-0BA1 combines compact logic execution, local display, Ethernet communication and relay outputs in a LOGO! 24RCE base module.
      • Executes programs containing up to 400 function blocks
      • Provides eight digital inputs and four relay outputs
      • Integrates Ethernet networking and a web server
      • Supports standard microSD project and data handling

      The module is installed on DIN rail and can be expanded using released LOGO! modules. Commissioning includes supply verification, input reference checks, relay-load review, project download, Ethernet and web-server configuration, time functions and controlled I/O testing.

      Important Notice: Confirm 6ED1052-1HB08-0BA1, LOGO! 24RCE hardware version, 24 V AC/DC supply, eight input and four relay circuits, DIN-rail mounting, expansion modules, microSD card, LOGO! Soft Comfort V8.3 project, Ethernet/web-server settings, grounding and controlled functional-test results before commissioning.

      Apter Power 6ED1052-1HB08-0BA1 Manuals and Guides

      The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

      Compact machine sequencing
      Executes interlocks, timers and relay commands for small automated equipment.
      Building-services control
      Coordinates scheduled switching and local status functions through LOGO! logic.
      Panel modernization
      Replaces a documented LOGO! 24RCE position while preserving field wiring and project logic.
      Networked utility control
      Shares status and commands through the configured Ethernet interface and web server.
      Read the applicable Siemens installation instructions before work. Verify 6ED1052-1HB08-0BA1, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm the complete 6ED1052-1HB08-0BA1 article and installed LOGO! hardware version.
      2
      Back up the LOGO! Soft Comfort project, web pages and Ethernet configuration.
      3
      Isolate the 24 V AC/DC supply and every switched relay circuit.
      4
      Label eight input circuits, four relay outputs, commons and network cable.
      5
      Mount the replacement on 35 mm DIN rail and verify expansion-module alignment.
      6
      Keep relay loads within the documented resistive and inductive limits.
      7
      Restore the approved project, clock, network, web-server and microSD settings.
      8
      Test all inputs, relays, interlocks and communications before automatic operation.

      Technical notes

      Technical notes

      Mount 6ED1052-1HB08-0BA1 on a 35 mm DIN rail, isolate the 24 V AC/DC supply and record all eight input and four relay-output circuits before replacement. Restore the approved LOGO! Soft Comfort project, Ethernet settings and microSD data, then test every input, relay and programmed interlock.

      FAQS

      • What exact function does 6ED1052-1HB08-0BA1 perform as a LOGO! 24RCE Logic Module with Display?
        It executes compact LOGO! control logic and operates the documented input, relay-output and Ethernet interfaces.
      • Which host system must be confirmed before installing 6ED1052-1HB08-0BA1?
        Confirm the documented Siemens LOGO! 8 modular logic system host and the complete 6ED1052-1HB08-0BA1 marking before work.
      • Which connection checks are required for 6ED1052-1HB08-0BA1?
        Verify 24 V AC/DC supply, field commons, relay load isolation and the Ethernet connection.
      • How should the installed configuration for 6ED1052-1HB08-0BA1 be preserved?
        Restore the approved LOGO! Soft Comfort V8.3-or-later project, clock, web-server and network settings.
      • Which diagnostic evidence should be reviewed for 6ED1052-1HB08-0BA1?
        Review module status, input states, relay commands, communication state and application interlocks.
      • What must be recorded before replacing 6ED1052-1HB08-0BA1?
        Record the article, hardware revision, project file, I/O map, microSD content and network settings.
      • How should 6ED1052-1HB08-0BA1 be commissioned after installation?
        Power up with relay loads controlled, verify the project and test every I/O point and network function.
      • Which model-specific limitation applies to 6ED1052-1HB08-0BA1?
        Relay contacts must remain within the documented 10 A resistive and 3 A inductive limits.
