      Schneider Electric PC-E984-685
      Schneider Electric PC-E984-685
      Schneider Electric PC-E984-685
      Schneider Electric PC-E984-685
      Schneider Electric PC-E984-685
      Schneider Electric PC-E984-685
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      PC-E984-685

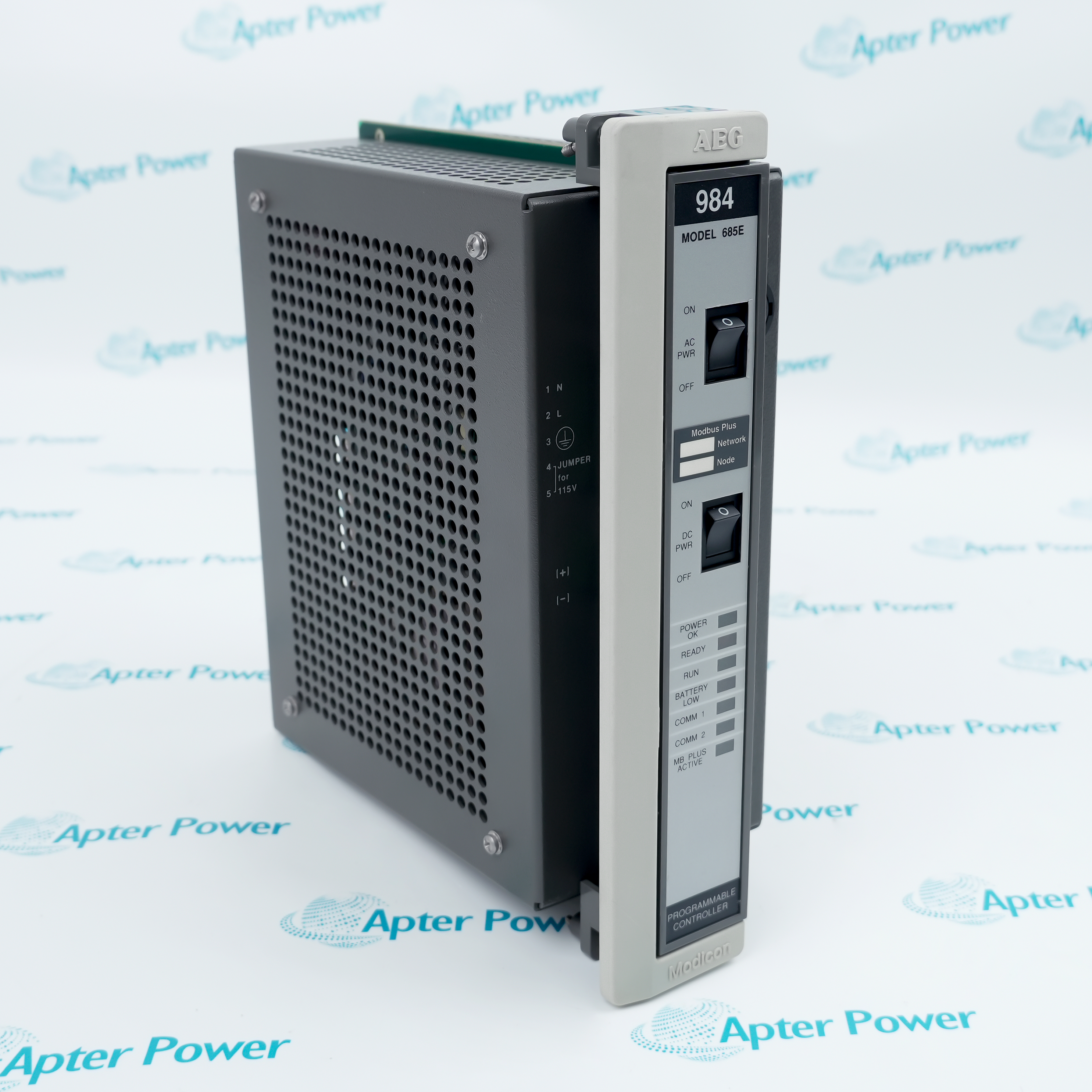

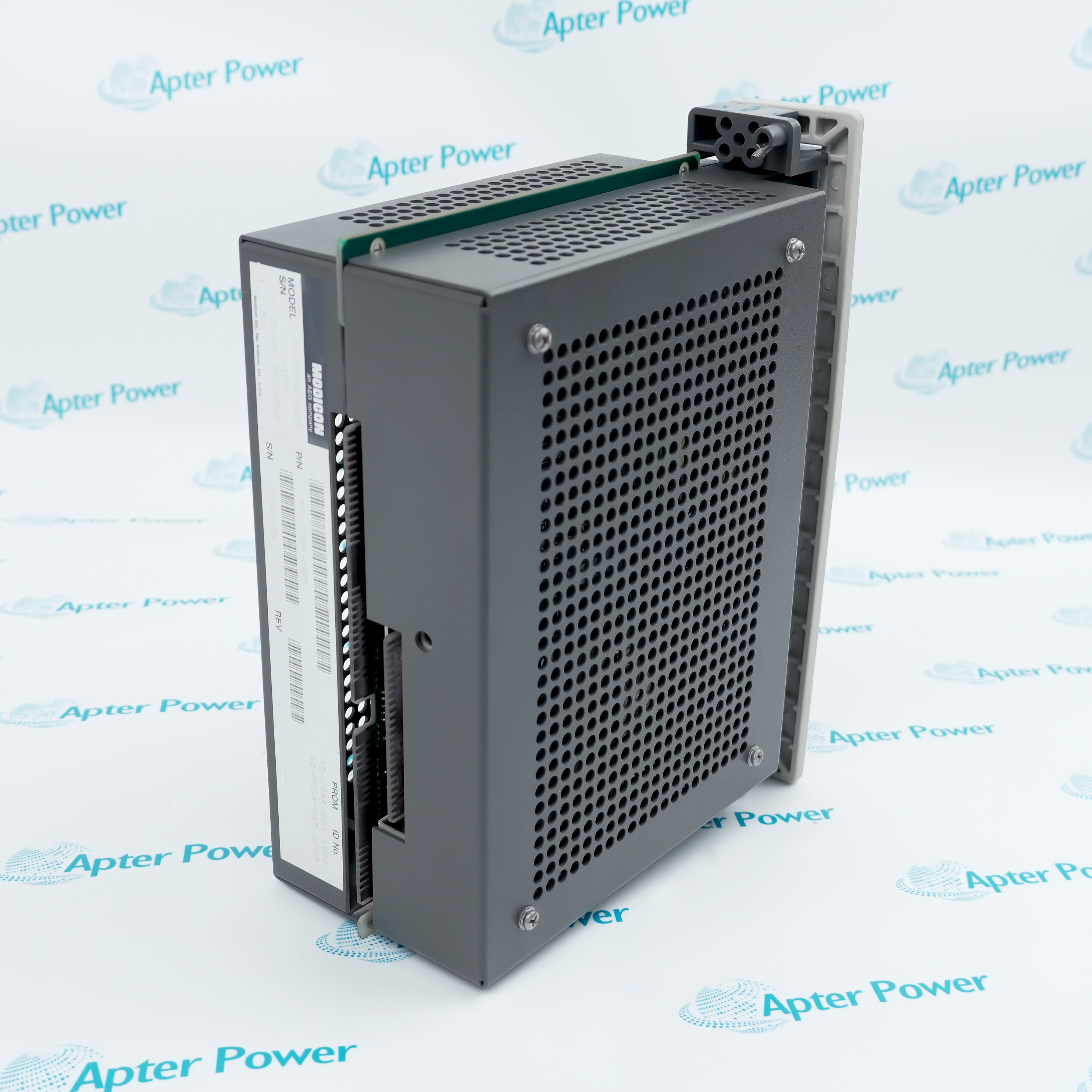

      Modicon 984-685 Programmable Controller
      In Stock
      Ships by Sunday, September 20
      Fast Shipping Available

      Product Describe：

      Schneider Electric PC-E984-685 is a Modicon 984 slot-mounted programmable controller. It executes the installed ladder-logic application and coordinates local and remote 800-series I/O through the configured controller system.

      Ask our team:

      Get a quick price for： PC-E984-685
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for PC-E984-685

      Technical specifications for PC-E984-685

      • Manufacturer:
        Schneider Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        PC-E984-685
      • Estimated shipping dimensions:
        8x12x14cm
      • Weight:
        0.52 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        France
      • Controller model:
        984-685
      • User logic:
        8 K to 16 K
      • State RAM registers:
        1920
      • Local I/O capacity:
        Up to 1024 discrete points
      • Total discrete I/O:
        Up to 2048 points
      • Remote I/O drops:
        Up to 31
      • Programming software:
        Modsoft
      • Network:
        Modbus Plus
      • Optional remote I/O:
        S908
      • Battery:
        Lithium backup
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      PC-E984-685 provides program execution, communications and local/remote I/O coordination for a documented Modicon 984 control installation.
      • Executes the installed Modicon 984 ladder-logic application
      • Coordinates documented local and remote I/O assignments
      • Exchanges controller data through the configured Modbus Plus network
      • Maintains application memory through the installed backup battery

      The controller is used with the installed 984 housing, power supply, 800-series I/O interfaces and the approved Modbus Plus or S908 network arrangement. Commissioning requires a matched project backup, node settings, I/O map, battery condition and full application diagnostics.

      Important Notice: Confirm PC-E984-685, 984 housing and power supply, hardware revision, Modsoft project, battery, Modbus Plus node, S908 interface when fitted, 800-series local and remote I/O map, field wiring, grounding and controlled functional-test results before commissioning.

      Apter Power PC-E984-685 Manuals and Guides

      The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

      Legacy Modicon machine control
      Runs documented 984 logic for an existing machine or process unit.
      800-series I/O coordination
      Maintains the approved local and remote I/O map connected to the controller.
      Modbus Plus control networks
      Exchanges controller data with configured peer stations and engineering tools.
      984 system migration verification
      Provides the as-found controller reference needed for a controlled modernization study.
      Read the applicable Schneider Electric installation instructions before work. Verify PC-E984-685, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm the complete PC-E984-685 marking, controller revision and housing position.
      2
      Place the controlled process and all driven equipment in the approved maintenance state.
      3
      Back up the complete Modsoft program, configuration, node address and register data.
      4
      Isolate controller and field power according to the installed wiring drawings.
      5
      Record local 800-series I/O interfaces, Modbus Plus cabling and any S908 remote-I/O path.
      6
      Inspect the battery, housing connectors, keying and protective grounding before installation.
      7
      Restore the approved project and verify every configured I/O drop and communication node.
      8
      Complete diagnostics, interlock tests and a controlled application sequence before automatic operation.

      Technical notes

      Technical notes

      Install PC-E984-685 in the documented 984 controller housing and record every Modbus Plus, S908 remote-I/O and 800-series local-I/O assignment before replacement. Restore the approved Modsoft project and verify communications, I/O health, memory retention and a controlled machine sequence before release.

      FAQS

      • What identity details must be checked before PC-E984-685 is removed?
        Confirm PC-E984-685, 984 housing and power supply, hardware revision, Modsoft project, battery, Modbus Plus node, S908 interface when fitted, 800-series local and remote I/O map, field wiring, grounding and controlled functional-test results before commissioning.
      • How does PC-E984-685 perform its documented modicon 984-685 programmable controller role?
        Executes the installed Modicon 984 ladder-logic application. It executes the installed ladder-logic application and coordinates local and remote 800-series I/O through the configured controller system.
      • Which Modicon 984 programmable controller system interfaces must be recorded for PC-E984-685?
        The controller is used with the installed 984 housing, power supply, 800-series I/O interfaces and the approved Modbus Plus or S908 network arrangement. Commissioning requires a matched project backup, node settings, I/O map, battery condition and full application diagnostics.
      • What isolation and ESD controls apply while handling PC-E984-685?
        Place the controlled process and all driven equipment in the approved maintenance state. Back up the complete Modsoft program, configuration, node address and register data.
      • How should the installed configuration be restored after fitting PC-E984-685?
        Inspect the battery, housing connectors, keying and protective grounding before installation.
      • Which diagnostic evidence confirms that PC-E984-685 is recognized correctly?
        Restore the approved project and verify every configured I/O drop and communication node.
      • What replacement records should be retained for PC-E984-685?
        Confirm the complete PC-E984-685 marking, controller revision and housing position. Record local 800-series I/O interfaces, Modbus Plus cabling and any S908 remote-I/O path.
      • What final acceptance test is required before PC-E984-685 returns to service?
        Complete diagnostics, interlock tests and a controlled application sequence before automatic operation.
