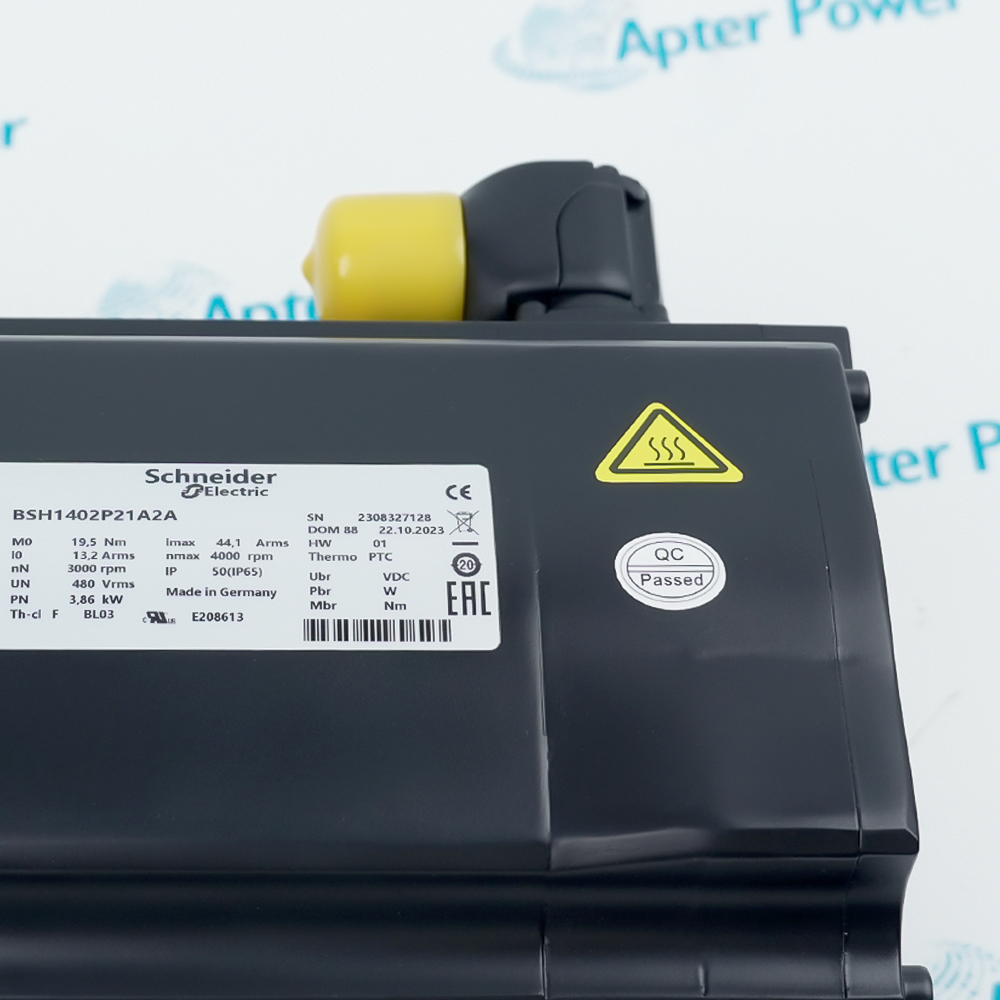

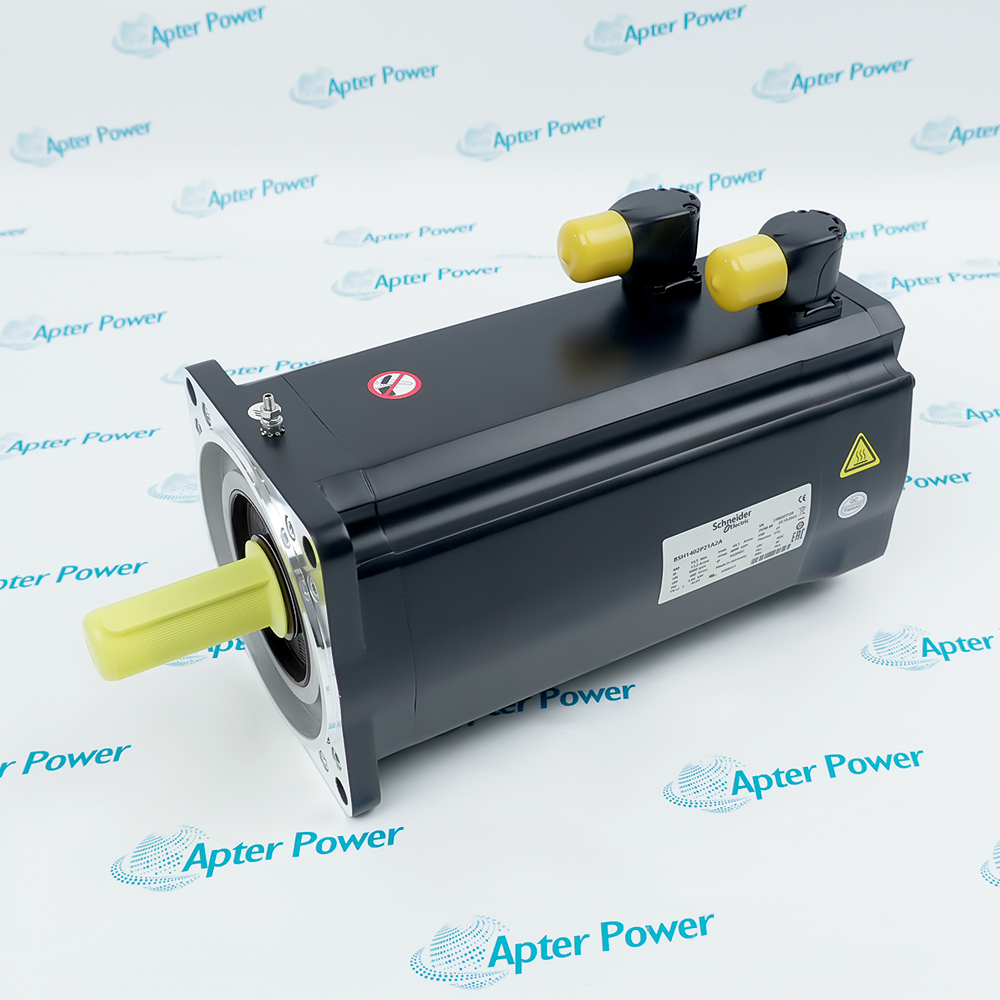

The BSH1402P21A2A is a 3-phase AC synchronous servo motor within the Lexium BSH product series. It operates with a rated torque of 14.9 Nm and a speed of 4000 rpm, utilizing a 140 mm mounting flange along with rotatable right-angled dual M23 connectors for electrical connection.
Delivers 14.9 Nm torque in a 140 mm flange. Low-inertia rotor enables fast acceleration and shorter cycle times
90° rotatable dual M23 connectors simplify routing. Seamlessly matches Lexium drives with auto-parameter identification for fast commissioning
For the power transmission end, it features a smooth, untapped drive shaft with a 24 mm diameter, contains no internal holding brake, and conforms to the IP50 enclosure protection rating. This model contains an integrated SinCos Hiperface single-turn absolute encoder that connects to Lexium 05 or Lexium 15 servo drives via standard cables for material handling, packaging lines, and product positioning in industrial factory automation. The stator windings of this motor are wound for 400V-class industrial 3-phase power, matching the high-frequency inverter current output of the drive during operation.
The housing is constructed from a metal-coated material with an integrated rear encoder chamber, and the internal rotor consists of high-temperature resistant permanent magnets to maintain magnetic field stability during continuous high-speed rotation. The bearing system utilizes a double-row ball bearing structure to sustain axial and radial loads, and the shaft end is equipped with a dedicated dust seal ring.
This product complies with multiple international industrial standards, including CE, UL, and CSA, and its 140 mm square flange features four symmetrical mounting holes, allowing direct integration into standard mechanical gearboxes or transmission interfaces of automation lines.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Schneider BSH1402P21A2A AC Servo Motor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Packaging Machinery Industry
Controls high-speed material feeding axes, film cross-cutter axes in flow wrappers, and multi-lane sachet filling synchronization.
Printing and Converting Industry
Controls web tension rollers in label printing presses or drives high-speed flying knives in rotary die cutters for carton forming.
Lithium-ion Battery Manufacturing Industry
Used for high-speed cutter axes in electrode slitting machines, horizontal reciprocating axes in stacking manipulators, and main drive shafts in winding machines.
Electronics Manufacturing
Realizes rapid start-stop control for heavy substrate conveyors in large PCB drilling, dispensing, or high-speed pick-and-place machines.
Pharmaceutical Machinery Industry
Used for precise index control of capsule filling tables, vial pushing mechanisms in filling lines, and reciprocating sealing axes in blister packers.
Plastics and Rubber Processing Industry
Drives high-speed reciprocating motion of stretch rods in blow molding machines or controls auxiliary ejection and take-out robots in all-electric injection molders.
When using the Schneider BSH1402P21A2A servo motor, note that an external brake is required for vertical axes due to its no-holding-brake configuration to prevent drops during power failure. As it has an untapped smooth shaft, use a high-precision coupling and never strike the shaft end to avoid damaging the internal Hiperface encoder. Maintain its IP50 rating by keeping the environment dry and dust-free, and always use original shielded cables with proper grounding to eliminate interference.
The Schneider BSH1402P21A2A is a Lexium BSH series 3-phase AC servo motor. It features a 14.9 Nm rated torque and a 4000 rpm speed, configured with an untapped smooth shaft and no holding brake under an IP50 rating. Equipped with a high-resolution absolute encoder, it is used for high-dynamic and precise position control in packaging and material handling automation.
The BSH1402P21A2A is an industrial AC servo motor from Schneider Electric's Lexium series, primarily used to provide high-precision position, speed, and torque output in automation control systems.
What are the main industrial application industries for BSH1402P21A2A?
This motor is widely applied in material handling, packaging machinery, metal processing, printing and packaging equipment, textile machinery, and heavy-duty three-axis gantry modules.
How to use BSH1402P21A2A in an industrial automation system?
It needs to be fixed to the mechanical transmission mechanism via its flange and a coupling, connected to a servo drive (such as the LXM32 series) using a dedicated heavy-duty power cable, and plugged into an encoder feedback cable to form closed-loop control.
What software does BSH1402P21A2A rely on for configuration and commissioning?
The motor itself does not require software programming, but its matching Schneider servo drive utilizes SoMove software for motor parameter configuration, auto-identification, gain tuning, and motion path inspection.
What type of feedback sensor is used inside BSH1402P21A2A?
It features a built-in high-precision multi-turn SinCos Hiperface encoder, which retains position information after power-off and provides high-resolution shaft position feedback to the drive.
