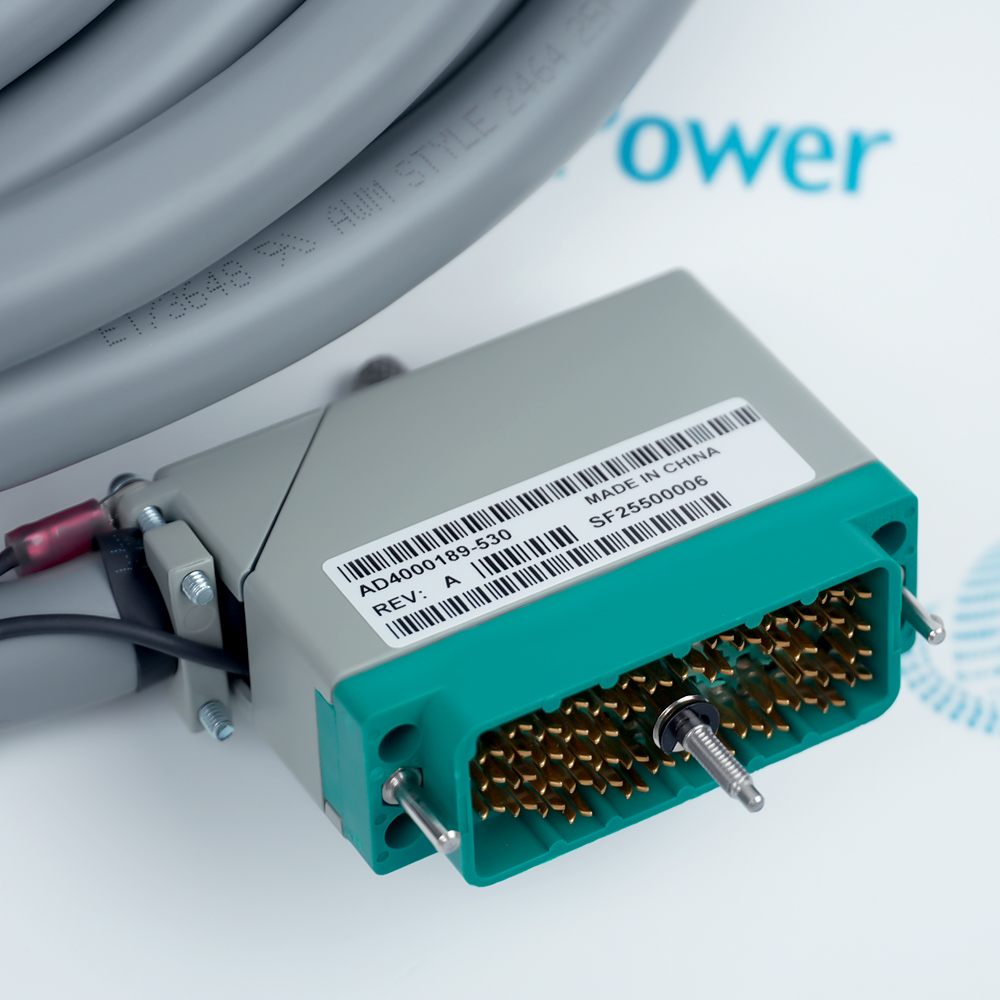

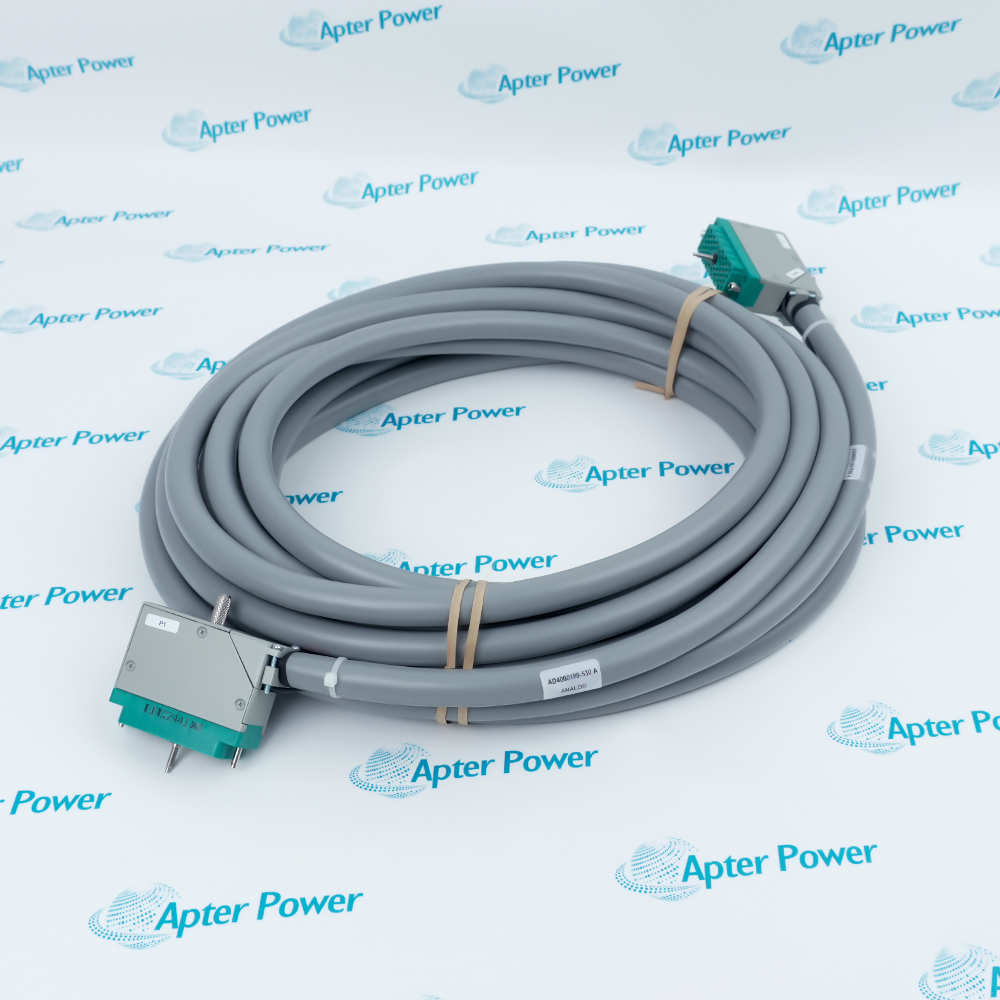

AD4000189-530

FAQS

• Which identifiers must be recorded before replacing AD4000189-530?
  Record the complete AD4000189-530 marking, both endpoint designations, connector orientation and keying, cable tags, route, supports, shield termination and the as-found diagnostic state.
• How should engineers confirm endpoint compatibility for AD4000189-530?
  Compare each connector shell, key, contact arrangement, latch or fastener and destination designation with the removed assembly and the approved cabinet wiring drawings before connection.
• What isolation is required before disconnecting AD4000189-530?
  Place the associated control or safety function in its approved maintenance state, isolate all electrical and process energy that can reach either endpoint, and prove the work area safe.
• How should AD4000189-530 be routed inside the cabinet?
  Follow the documented route and support points, keep the assembly free from sharp edges and hot surfaces, and avoid tensile load, crushing or bend stress at the connector exits.
• Which electrical checks should be completed on AD4000189-530 before energization?
  Use the approved test method to verify point-to-point continuity, absence of shorts or cross-connections, insulation condition, shield continuity and grounding without exposing connected electronics to an unsafe test voltage.
• How should shields and grounding be handled when installing AD4000189-530?
  Restore every shield, drain, connector shell and cabinet-bonding connection to the same documented endpoint and termination method; do not invent a new grounding arrangement during replacement.
• What should be checked if the system reports faults after fitting AD4000189-530?
  Recheck connector seating, fasteners, key orientation, point-to-point identity, shield and ground continuity, cable support, endpoint power state and system diagnostics before replacing additional hardware.
• What commissioning record should be retained for AD4000189-530?
  Retain the full part identity, as-found and as-left endpoint records, continuity and insulation results, routing photographs, final diagnostics, functional-test result and authorization to return the system to service.
