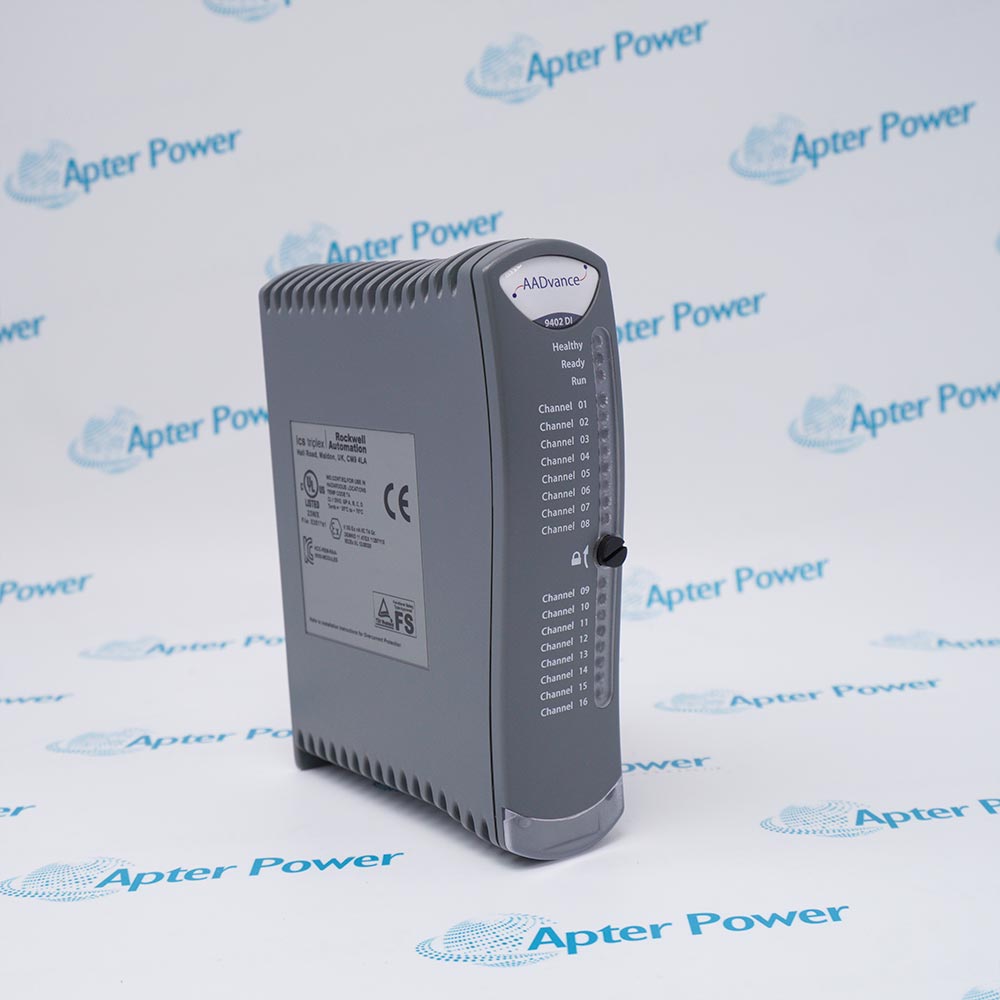

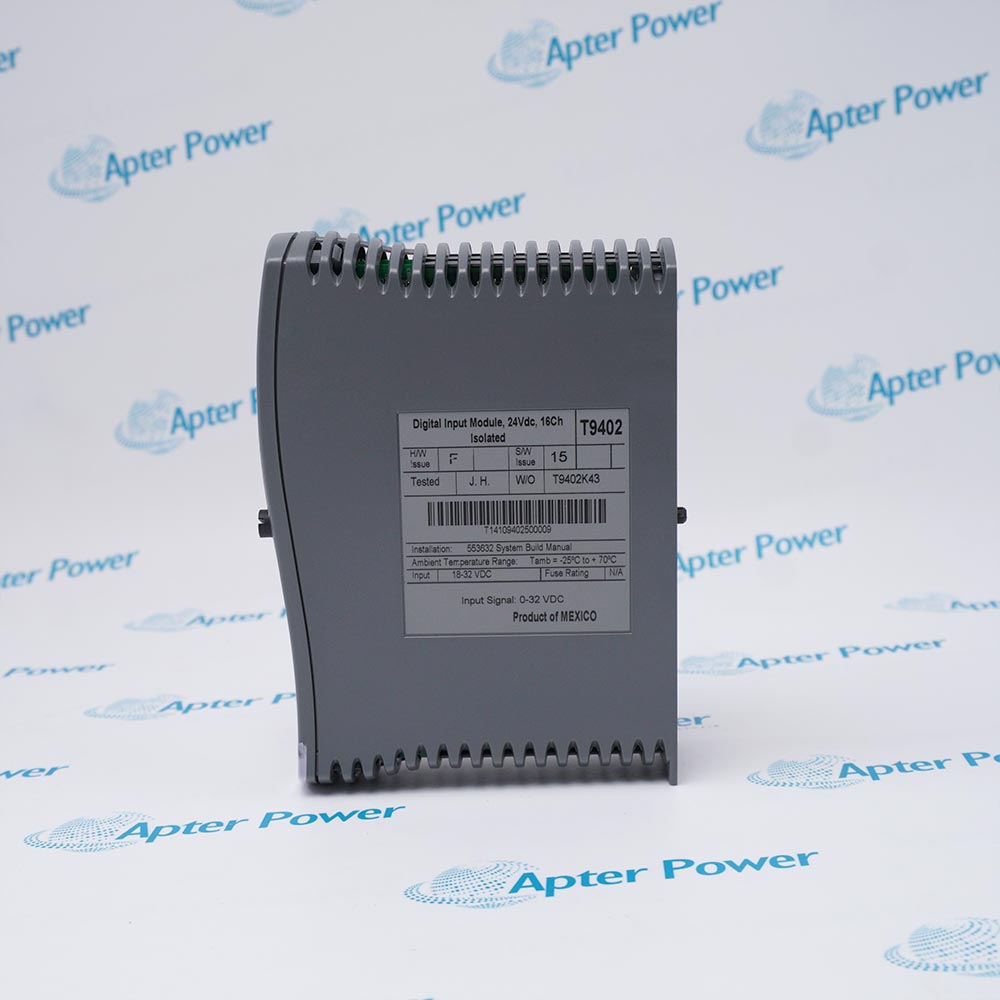

The T9402 is an ICS Triplex AADvance 16-Channel 24 Vdc Digital Input Module for the AADvance system.
- AADvance 16-Channel 24 Vdc Digital Input Module
- 16 isolated discrete input channels
- 24 Vdc contact or sensor states
- T9300 base with matched T9801, T9802 or T9803 termination
It accepts sixteen isolated discrete field states and supplies them to the AADvance safety application. It handles 24 Vdc discrete contact or sensor states through the matched termination assembly and operates with T9300 I/O base unit and T9801, T9802 or T9803 input termination architecture as engineered. Verify the exact hardware revision, matched termination and controlled application records before commissioning.
Important Notice: Use the complete T9402 code and verify the physical nameplate, current ICS Triplex / Rockwell Automation documentation, field wiring, project, and compatible system hardware before installation or replacement.
Apter Power T9402 Manuals and Guides
Important Notice: These are two separate Apter Power documents prepared from the manufacturer-published ICS Triplex / Rockwell Automation information named in each document. Confirm the physical nameplate, current ICS Triplex / Rockwell Automation documents, and host-system requirements before installation or replacement.
Shutdown pushbuttons
Uses the T9402 aadvance 16-channel 24 vdc digital input module in a model-appropriate AADvance control or protection function.
Valve position feedback
Handles system status and diagnostics under the official engineering limits.
Fire detector contacts
Uses the T9402 aadvance 16-channel 24 vdc digital input module in a model-appropriate AADvance control or protection function.
Package trip inputs
Handles system status and diagnostics under the official engineering limits.
Read Rockwell Automation ICSTT-RM448N-EN-P and the applicable system installation instructions before use. Verify the physical nameplate, revision, slot and matched termination hardware.
1
Verify the exact model, hardware revision, firmware and nameplate before substitution.
2
Install only with T9300 I/O base unit and T9801, T9802 or T9803 input termination architecture as engineered; do not mix unmatched termination or base hardware.
3
De-energize or follow the approved live-insertion procedure and site safety plan before removal.
4
Preserve module keying, slot assignment, wiring polarity, shields, grounding and field power limits.
5
Complete application download, diagnostics, proof testing and functional acceptance before return to service.
