      T9300

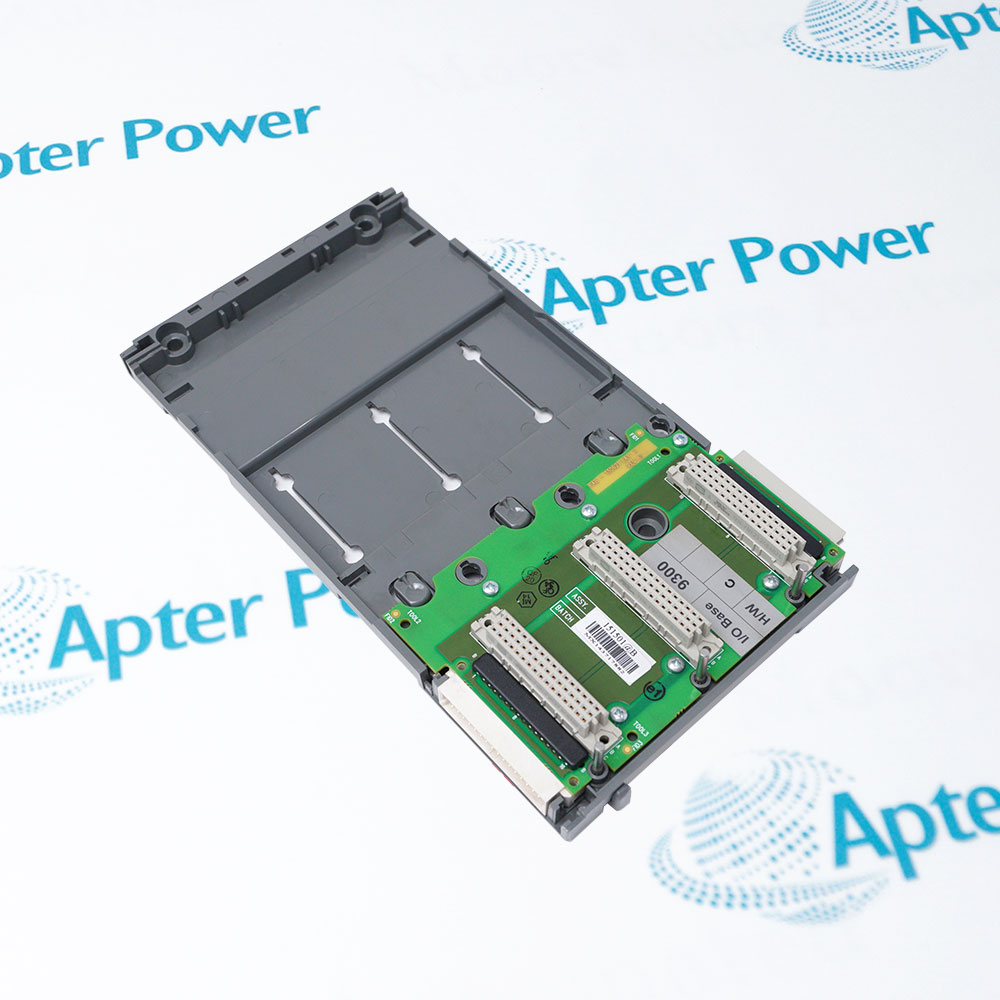

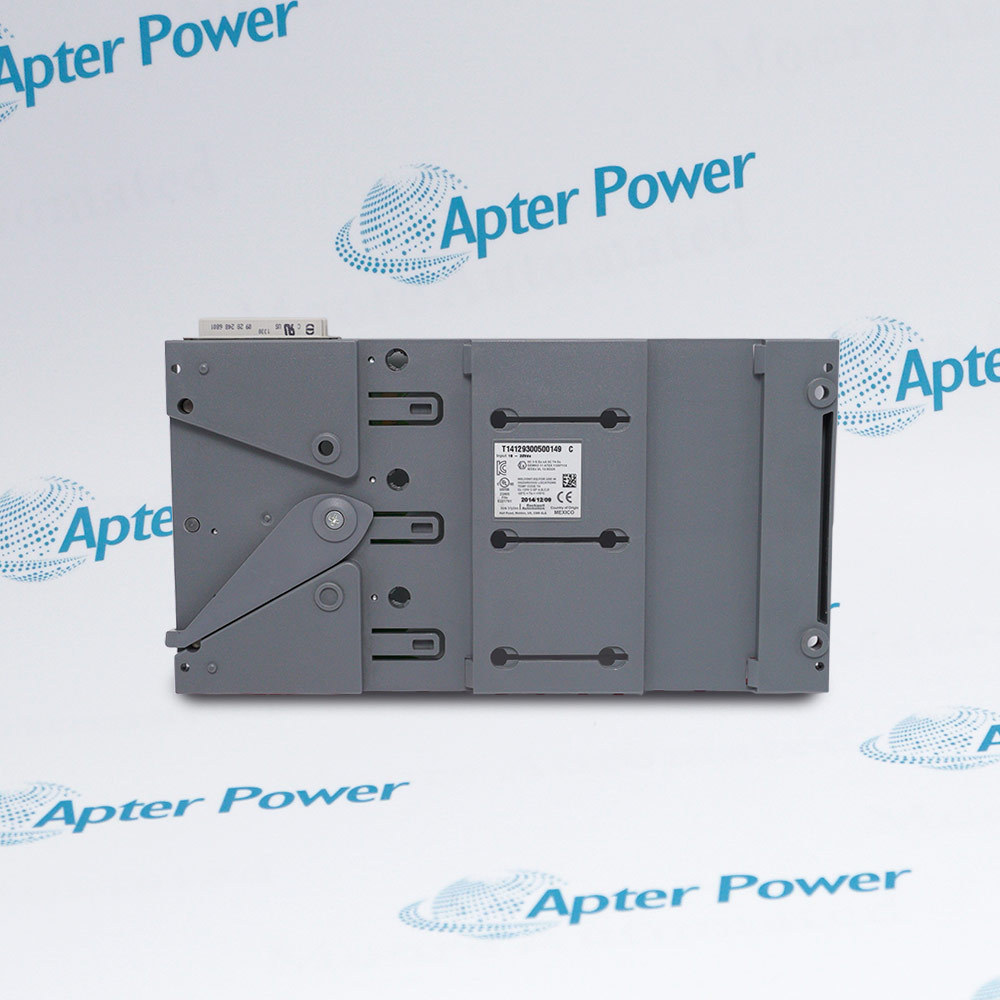

      AADvance Three-way I/O Base Unit
      In Stock
      Ships by Tuesday, September 22
      Fast Shipping Available

      Product Describe：

      ICS Triplex T9300 is a three-way AADvance I/O base unit. Its passive backplane carries system power plus command and response buses for up to three I/O modules and their termination assemblies.

      Ask our team:

      Get a quick price for： T9300
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for T9300

      Technical specifications for T9300

      • Manufacturer:
        ICS Triplex
      • Product Category:
        PLC Systems
      • Spare Part Number:
        T9300
      • Estimated shipping dimensions:
        23.6x13.2x3cm
      • Weight:
        0.22 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Base-unit type:
        3-way I/O
      • Supply:
        Redundant 24 Vdc nominal
      • Supply range:
        18 to 32 Vdc
      • I/O modules supported:
        1, 2 or 3
      • Command buses:
        1
      • Response buses:
        24
      • System I/O buses:
        2
      • Base units per bus:
        8
      • I/O modules per bus:
        24
      • Mounting:
        DIN rail or panel/wall
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      T9300 forms the modular I/O carrier of an AADvance controller row. It distributes passive backplane connections without adding configurable electronics of its own.
      • Carries up to three AADvance I/O modules
      • Accepts simplex, dual or triple termination arrangements
      • Extends command, response and system-power buses across a controller row
      • Supports direct DIN-rail or panel mounting

      A base unit connects to the T9100 processor base unit, another T9300, or a separate row through the T9310 expansion cable. Cabinet planning must cover module grouping, termination-assembly width, bus limits, enclosure temperature, grounding and online-update restrictions.

      Important Notice: Confirm T9300 identity, mounting method, T9100 processor-base connection, T9310 expansion cable where used, bus number, adjacent retaining clips, termination-assembly grouping, module order, Workbench release and full I/O recognition before commissioning.

      Apter Power T9300 Manuals and Guides

      The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

      AADvance local I/O rows
      Provides the modular carrier for input and output modules beside the processor base unit.
      Redundant I/O groups
      Supports termination assemblies that bridge adjacent base units for dual or triple module arrangements.
      Cabinet I/O expansion
      Adds module positions to an existing AADvance bus within the documented row limits.
      Separated I/O rows
      Connects to another base-unit row through the screened T9310 expansion cable assembly.
      Read the applicable ICS Triplex installation instructions before work. Verify T9300, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm T9300 and the planned three I/O positions before mounting.
      2
      Isolate controller power before joining or separating base units.
      3
      Verify DIN-rail or panel fixings and the plastic retaining clip.
      4
      Inspect left and right bus connectors for damage or contamination.
      5
      Plan termination-assembly widths and any bridging before inserting modules.
      6
      Confirm the T9100/T9310 connection path and bus number.
      7
      Update the AADvance Workbench hardware tree under the approved procedure.
      8
      Power up under control and verify recognition and diagnostics for every fitted module.

      Technical notes

      Technical notes

      Mount T9300 on the approved DIN rail or panel and clip adjacent base units together before fitting termination assemblies or I/O modules. Verify the left and right bus connectors, retaining clip, power path and Workbench hardware order before applying controller power.

      FAQS

      • What is the exact system role of T9300?
        It is the three-way passive I/O base unit that distributes AADvance command, response and system-power connections.
      • Which host, rack or carrier is required for T9300?
        Connect it to a T9100 processor base unit, an adjacent T9300 or a T9310 expansion-cable assembly within the approved bus limits.
      • What wiring or connector checks apply to T9300?
        Inspect the edge connectors, retaining clips, module sockets, termination positions and cabinet earth arrangement before assembly.
      • How is T9300 configured for service?
        Represent the exact base-unit order, I/O modules and termination groupings in the AADvance Workbench hardware configuration.
      • Which diagnostics should be reviewed for T9300?
        Review recognition of every fitted module, bus and response-path diagnostics, supply health and any online-update messages.
      • What must be preserved when replacing T9300?
        Preserve bus number, physical order, module and TA grouping, rail position, expansion connection and Workbench configuration.
      • How should T9300 be commissioned after installation?
        Apply power with modules secured, confirm hardware discovery, then validate every configured I/O channel and redundancy group.
      • What model-specific limitation must be checked for T9300?
        One T9300 supports no more than three I/O modules; bus and base-unit limits must also be observed.
