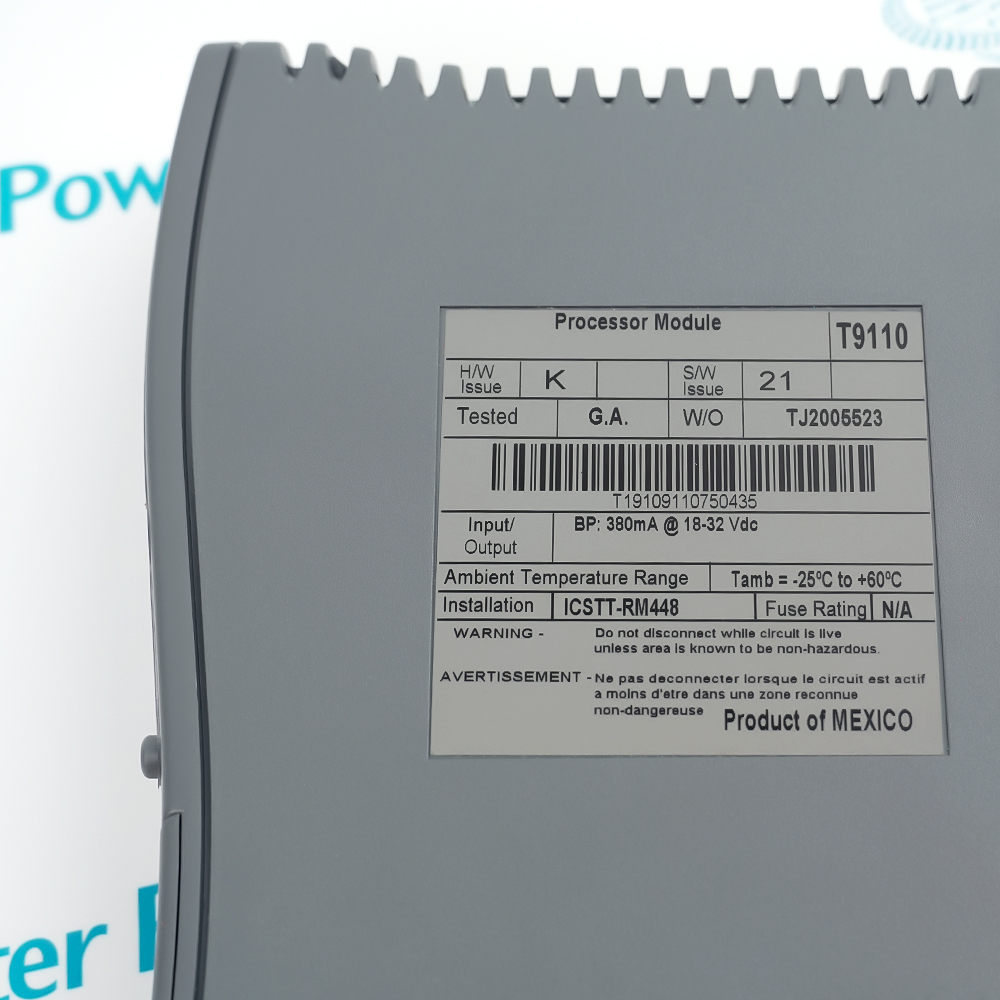

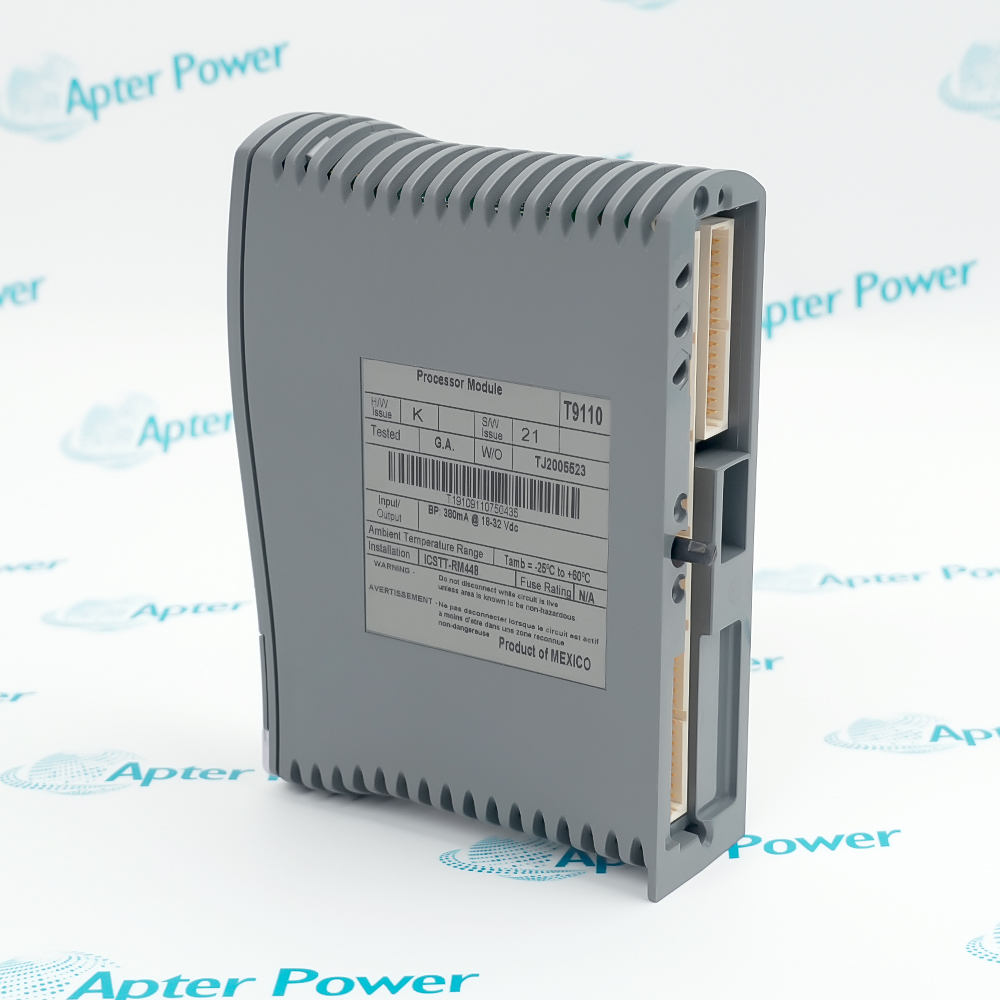

The ICS Triplex T9110 is an AADvance Processor Module that executes the safety application and coordinates I/O, diagnostics and controller communications.
- AADvance processor module
- Safety-application execution and I/O coordination
- Application, diagnostic and configured communications data
- Use with the approved AADvance controller base and system architecture
In an AADvance safety system, the T9110 processes the configured application, exchanges I/O data and manages controller diagnostics and communications. Verify the exact processor revision, controller base, firmware, application backup and engineered system configuration before commissioning or replacement.
Important Notice: Use the complete T9110 code and verify the physical nameplate, current ICS Triplex / Rockwell Automation documentation, field wiring, project, and compatible system hardware before installation or replacement.
Apter Power T9110 Manuals and Guides
Important Notice: These are two separate Apter Power documents prepared from the official ICS Triplex source named in each document. Confirm the physical nameplate, current Rockwell Automation documentation, and applicable installation instructions before installation or replacement.
Emergency shutdown controllers
Uses the T9110 aadvance processor module in a model-appropriate AADvance control or protection function.
Fire and gas systems
Handles system status and diagnostics under the official engineering limits.
Burner management
Uses the T9110 aadvance processor module in a model-appropriate AADvance control or protection function.
Machinery safety
Handles system status and diagnostics under the official engineering limits.
Read Rockwell Automation ICSTT-RM448N-EN-P and the applicable system installation instructions before use. Verify the physical nameplate, revision, slot and matched termination hardware.
1
Verify the exact model, hardware revision, firmware and nameplate before substitution.
2
Install only with T9100 processor base unit, AADvance Workbench or AADvance-Trusted SIS Workstation, T9300 I/O base units; do not mix unmatched termination or base hardware.
3
De-energize or follow the approved live-insertion procedure and site safety plan before removal.
4
Preserve module keying, slot assignment, wiring polarity, shields, grounding and field power limits.
5
Complete application download, diagnostics, proof testing and functional acceptance before return to service.
