      ICS Triplex T8461C
      ICS Triplex T8461C
      ICS Triplex T8461C
      ICS Triplex T8461C
      ICS Triplex T8461C
      ICS Triplex T8461C
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      T8461C

      Trusted TMR 24/48 Vdc Digital Output Module
      In Stock

      Product Describe：

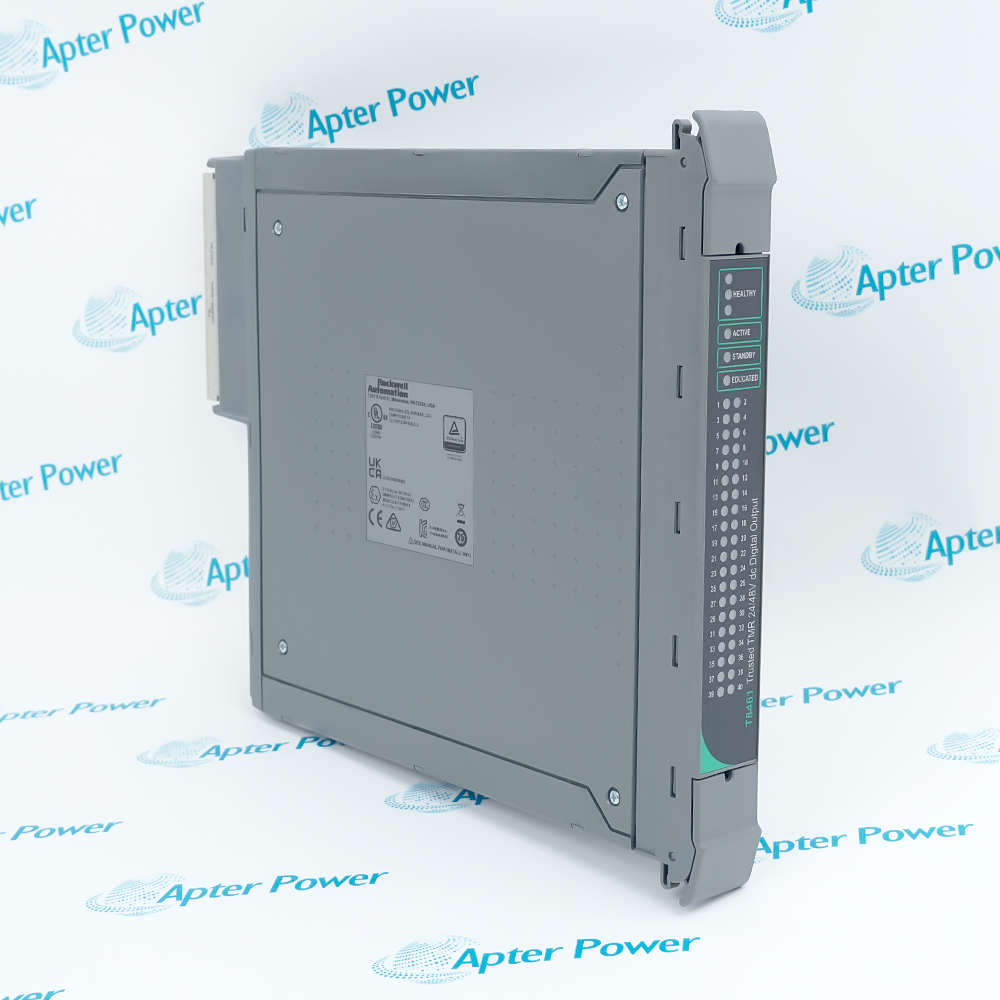

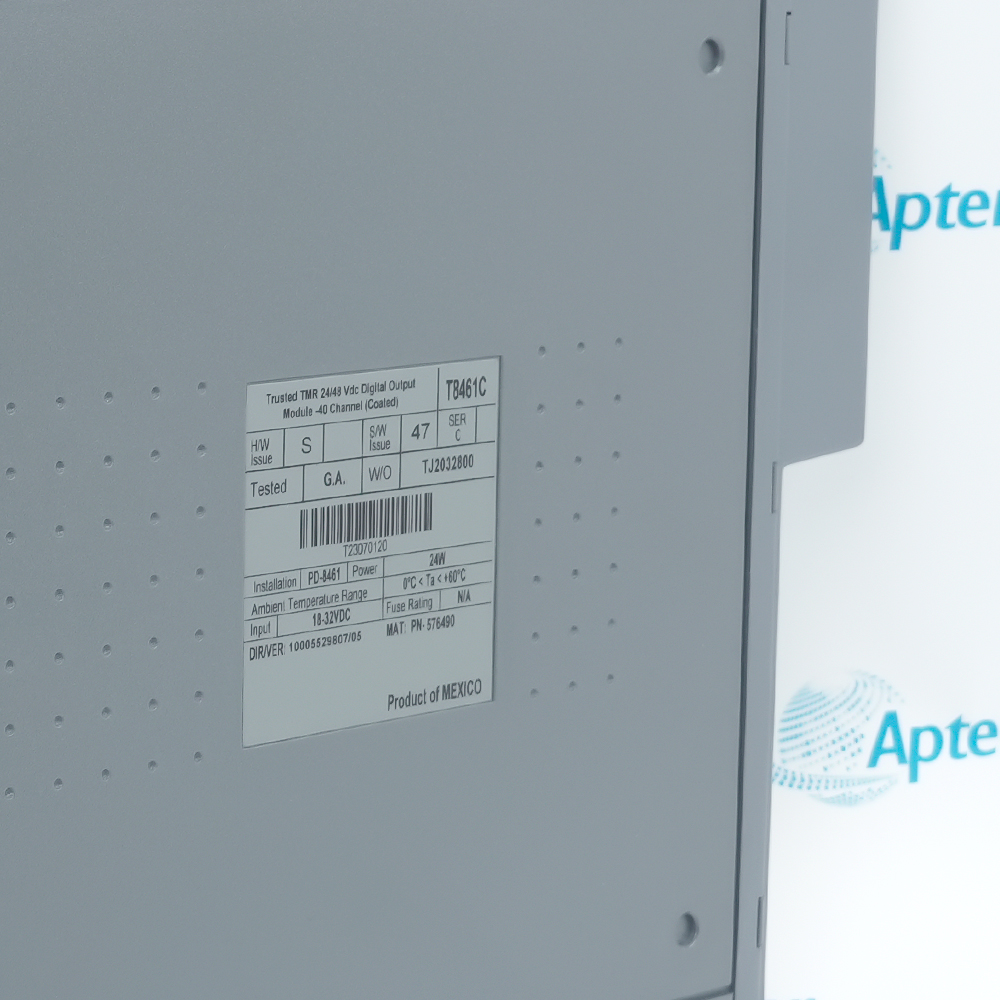

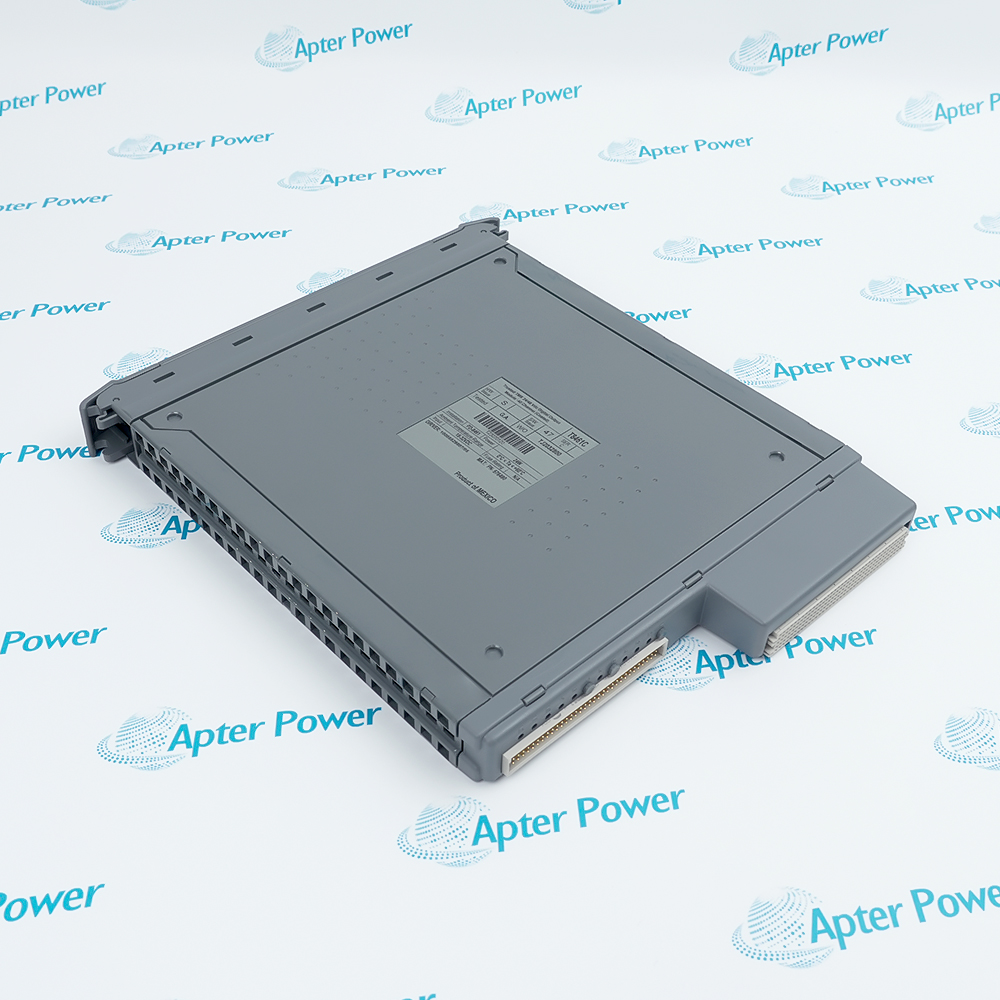

      ICS Triplex T8461C is a Trusted TMR 24/48 Vdc digital output module with 40 channels. It delivers monitored field outputs through five isolated power groups for safety and control functions.

      Ask our team:

      Get a quick price for： T8461C
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ More Details

      Technical specifications for T8461C

      Technical specifications for T8461C

      • Manufacturer:
        ICS Triplex
      • Product Category:
        PLC Systems
      • Spare Part Number:
        T8461C
      • Estimated shipping dimensions:
        3x30.3x26.5cm
      • Weight:
        1.32 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Backplane supply:
        20 to 32 Vdc
      • Backplane power:
        26 W
      • Field supply:
        18 to 58 Vdc
      • Field current:
        30 A maximum
      • Outputs:
        40
      • Power groups:
        5 groups of 8
      • On-state resistance:
        1.6 ohm
      • Channel current:
        0.75 A continuous
      • Minimum on-state load:
        25 mA
      • Current measurement:
        0 to 1.35 A
      • Voltage measurement:
        0 to 58 Vdc
      • Load capacitance:
        500 uF maximum
      • Short-circuit protection:
        Electronic latching
      • Operating temperature:
        0 to 60 deg C
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      T8461C switches forty higher-voltage DC field circuits while the Trusted platform monitors commanded and measured output behavior. Its five power groups isolate sections of the field architecture for controlled fault containment.
      • Controls forty monitored DC output channels
      • Separates field circuits into five protected power groups
      • Measures channel voltage and current for diagnostic comparison
      • Provides latching electronic short-circuit protection

      The module mates with a Trusted I/O slot and the specified termination hardware; no stand-alone physical configuration is required, but the IEC 61131 Toolset definition must match the hardware. Commission by checking supplies, group returns, channel mapping, diagnostics and final-element response.

      Important Notice: Confirm T8461C identity and revision, T8100/T8300 slot, termination assembly, five power-group supplies and returns, channel wiring, grounding, Toolset version, application mapping, protection reset and controlled final-element tests before commissioning.

      Apter Power T8461C Manuals and Guides

      The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

      48 Vdc trip circuits
      Drives higher-voltage protective outputs within the documented field-supply range.
      Safety solenoid banks
      Controls grouped DC final elements while monitoring output voltage and current.
      Redundant actuator commands
      Supports Trusted fault-tolerant output architectures with matched termination hardware.
      Process interlock outputs
      Executes discrete safety and sequence commands through independently powered channel groups.
      Read the applicable ICS Triplex installation instructions before work. Verify T8461C, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm T8461C, hardware revision and the assigned Trusted slot.
      2
      Place connected final elements in a safe maintenance state.
      3
      Isolate backplane and all five field-power groups before handling.
      4
      Record every channel, group return, shield and protective-earth connection.
      5
      Confirm the matched termination assembly and keying strips.
      6
      Restore the approved Toolset module definition and channel mapping.
      7
      Test latching short-circuit diagnostics and the approved recovery method.
      8
      Prove each output state, voltage/current indication and final-element action.

      Technical notes

      Technical notes

      Install T8461C only in a T8100 or T8300 I/O-module slot with the matched field termination assembly and application definition. Preserve the five power-group boundaries, then verify channel current, voltage diagnostics and electronic short-circuit reset behavior during commissioning.

      FAQS

      • What is the exact system role of T8461C?
        It is the 40-channel Trusted TMR 24/48 Vdc digital output module for monitored safety and control loads.
      • Which host, rack or carrier is required for T8461C?
        Install it in a T8100 or T8300 I/O-module slot with the approved field termination arrangement.
      • What wiring or connector checks apply to T8461C?
        Maintain five groups of eight channels, the corresponding field returns, protective earth and shielding shown in the project drawings.
      • How is T8461C configured for service?
        The Trusted application download automatically configures the module; the IEC 61131 Toolset definition and channel mapping must match the fitted hardware.
      • Which diagnostics should be reviewed for T8461C?
        Review commanded state, measured voltage and current, line faults, group supply condition, slice discrepancies and short-circuit latches.
      • What must be preserved when replacing T8461C?
        Preserve slot, hardware revision, termination type, group supply boundaries, channel map and application release.
      • How should T8461C be commissioned after installation?
        Energize groups in a controlled sequence, prove every final element and verify fault detection and recovery.
      • What model-specific limitation must be checked for T8461C?
        Apply the 0.75 A per-channel limit, 30 A total field current and 500 uF maximum load capacitance from the official specification.
