      T3480

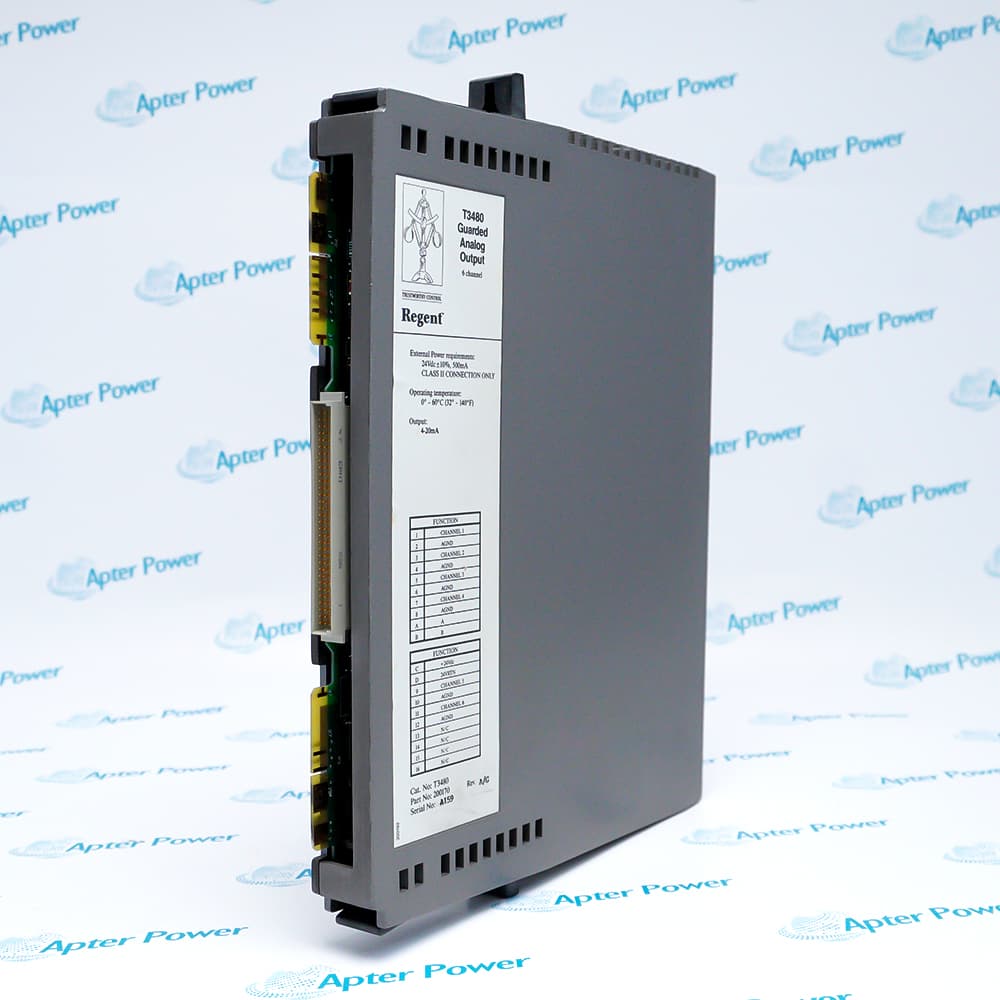

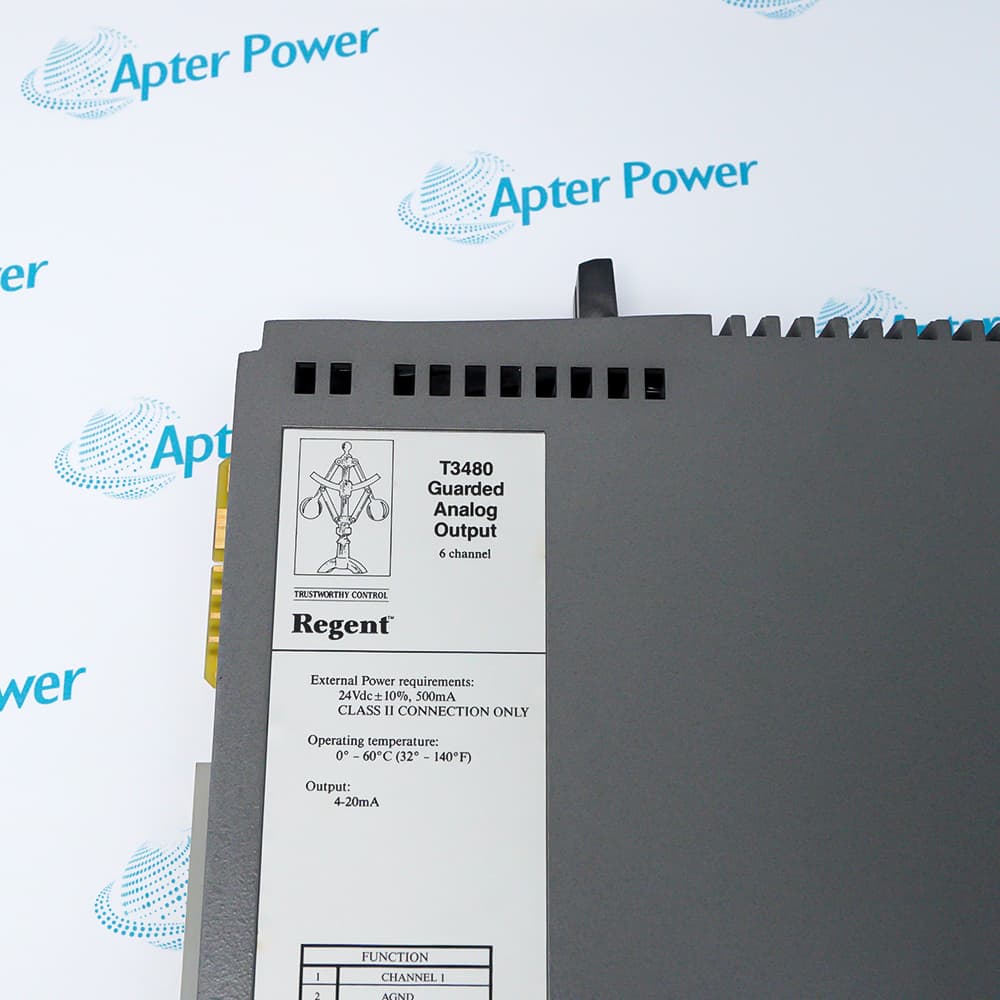

      Regent Regent Guarded Analogue Output Module
      In Stock
      Ships by Tuesday, September 22
      Fast Shipping Available

      Product Describe：

      ICS Triplex T3480 Regent Guarded Analogue Output Module for Regent control and safety applications.

      Ask our team:

      Get a quick price for： T3480
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for T3480

      Technical specifications for T3480

      • Manufacturer:
        ICS Triplex
      • Product Category:
        DCS System
      • Spare Part Number:
        T3480
      • Estimated shipping dimensions:
        3.3x26.5x35.5cm
      • Weight:
        1.68 kg
      • Tariff Code:
        8537101101
      • Counliy of origin:
        USA
      • Manufacturer:
        ICS Triplex (Rockwell Automation)
      • Product Type:
        Regent Guarded Analogue Output Module
      • System Family:
        Regent
      • Channel / Interface Summary:
        6 outputs; 4–20 mA; 12-bit resolution
      • Signal Role:
        six 4–20 mA current outputs into loads up to 400 Ω
      • Official Source:
        Rockwell Automation ICSTT-RM017-EN-P (PD-6026)
      View as PDF Ask for Quote

      Information

      Information

      Manuals Common Applications Product Precautions

      Apter Power T3480 Manuals and Guides

      Important Notice: These are two separate Apter Power documents prepared from the official ICS Triplex source named in each document. Confirm the physical nameplate, current Rockwell Automation documentation, and applicable installation instructions before installation or replacement.

      High-integrity valve positioning
      Uses the T3480 regent guarded analogue output module in a model-appropriate Regent control or protection function.
      Process setpoint output
      Handles system status and diagnostics under the official engineering limits.
      Combustion control demand
      Uses the T3480 regent guarded analogue output module in a model-appropriate Regent control or protection function.
      Analog actuator command
      Handles system status and diagnostics under the official engineering limits.
      Read Rockwell Automation ICSTT-RM017-EN-P (PD-6026) and the applicable system installation instructions before use. Verify the physical nameplate, revision, slot and matched termination hardware.
      1
      Verify the exact model, hardware revision, firmware and nameplate before substitution.
      2
      Install only with Regent I/O chassis, 24 Vdc field supply, terminal blocks and WINTERPRET configuration; do not mix unmatched termination or base hardware.
      3
      De-energize or follow the approved live-insertion procedure and site safety plan before removal.
      4
      Preserve module keying, slot assignment, wiring polarity, shields, grounding and field power limits.
      5
      Complete application download, diagnostics, proof testing and functional acceptance before return to service.

      Alternative Names

      Alternative Names

      T3480 ICS Triplex ICS Triplex T3480 Regent T3480

      Technical notes

      Technical notes

      Official source: Rockwell Automation ICSTT-RM017-EN-P (PD-6026). Verify the physical nameplate and current manufacturer record before replacement.

      FAQS

      • What is the ICS Triplex T3480?
        It is a Regent Guarded Analogue Output Module for the Regent system.
      • What does T3480 do?
        converts safety-system commands into six guarded 4–20 mA control signals using dual converters per output.
      • What signals or data does it handle?
        six 4–20 mA current outputs into loads up to 400 Ω.
      • Which components are compatible?
        Regent I/O chassis, 24 Vdc field supply, terminal blocks and WINTERPRET configuration.
      • Where is it commonly applied?
        High-integrity valve positioning, Process setpoint output, Combustion control demand, Analog actuator command, Redundant current-loop control.
      • What must be checked before replacement?
        Confirm the exact model, revision, slot keying, termination assembly, field wiring, configuration, firmware and current official manual before commissioning.
