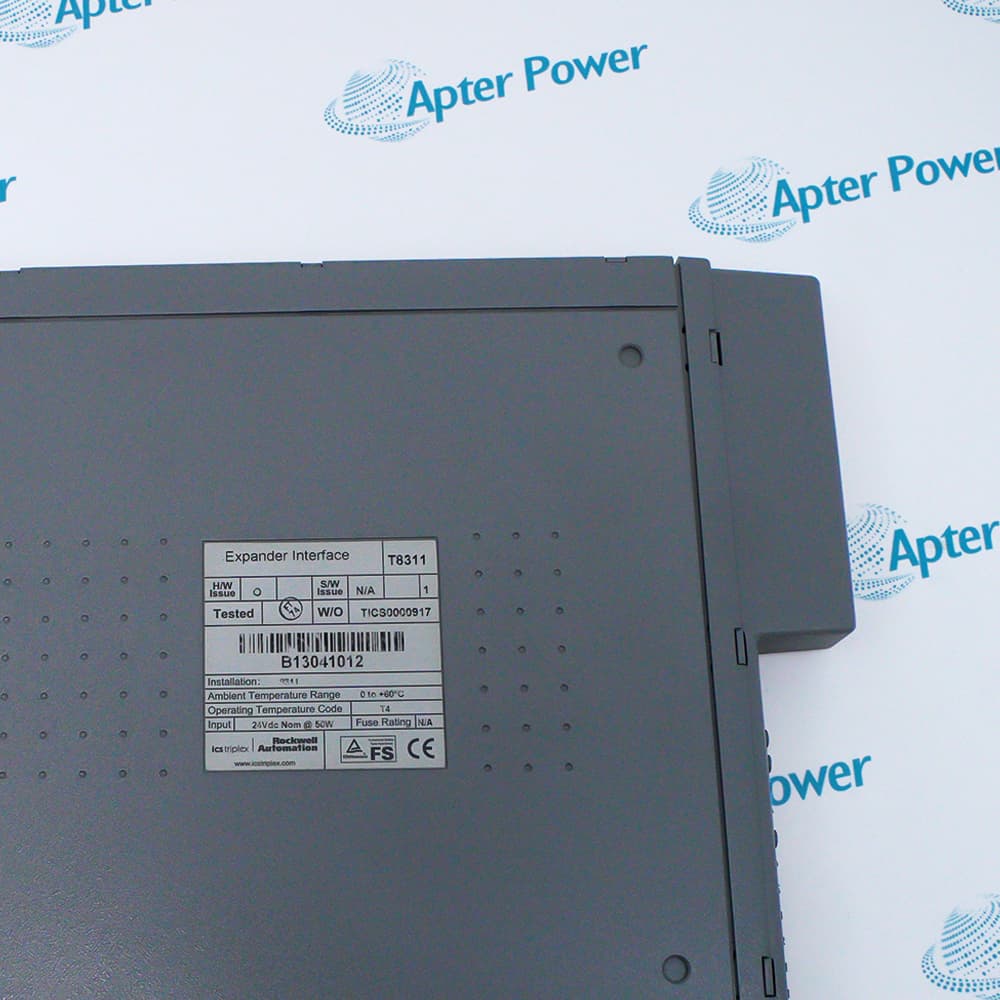

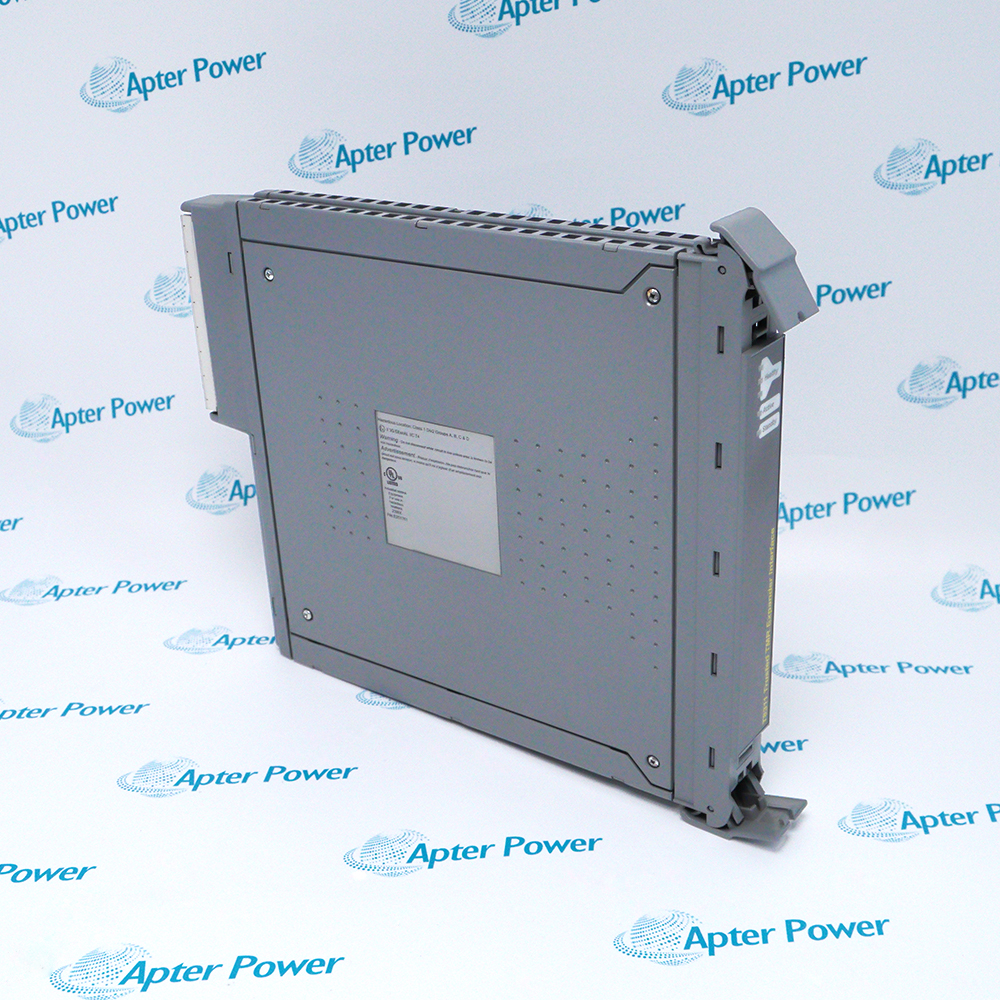

The T8311 is an ICS Triplex Trusted Expander Interface for the Trusted 8000 system.
- Trusted Expander Interface
- Interfaces an expansion chassis to the expander bus
- Passes I/O data, synchronization and diagnostics
- Use with T8310 and the approved expander hardware
It interfaces an expansion chassis to the Trusted expander bus and passes I/O traffic and diagnostics. It handles expander-bus data, synchronization and module status and operates with T8310 expander processor, Trusted chassis, approved cables and keyed interface positions. Verify the exact hardware revision, matched termination and controlled application records before commissioning.
Important Notice: Use the complete T8311 code and verify the physical nameplate, current ICS Triplex / Rockwell Automation documentation, field wiring, project, and compatible system hardware before installation or replacement.
Apter Power T8311 Manuals and Guides
Important Notice: These are two separate Apter Power documents prepared from the official ICS Triplex source named in each document. Confirm the physical nameplate, current Rockwell Automation documentation, and applicable installation instructions before installation or replacement.
Expansion chassis linking
Uses the T8311 trusted expander interface in a model-appropriate Trusted 8000 control or protection function.
Remote I/O cabinets
Handles system status and diagnostics under the official engineering limits.
Redundant expander paths
Uses the T8311 trusted expander interface in a model-appropriate Trusted 8000 control or protection function.
Safety-system capacity extension
Handles system status and diagnostics under the official engineering limits.
Read Rockwell Automation ICSTT-RM267K-EN-C and the applicable system installation instructions before use. Verify the physical nameplate, revision, slot and matched termination hardware.
1
Verify the exact model, hardware revision, firmware and nameplate before substitution.
2
Install only with T8310 expander processor, Trusted chassis, approved cables and keyed interface positions; do not mix unmatched termination or base hardware.
3
De-energize or follow the approved live-insertion procedure and site safety plan before removal.
4
Preserve module keying, slot assignment, wiring polarity, shields, grounding and field power limits.
5
Complete application download, diagnostics, proof testing and functional acceptance before return to service.
