Get a quick price for MC-TAOX52
For more information on how your data is processed and stored by Apterpower please read our privacy policy
Technical specifications for MC-TAOX52
-
Manufacturer:Honeywell
-
Product Category:DCS Systems
-
Spare Part Number:51304335-275
-
Estimated shipping dimensions:30.6x12x8cm
-
Weight:0.52 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Output channels:8
-
Terminal style:Screw
-
Connector style:Phone connector
-
Board coating:Conformal
Information
Overview
Manuals
Common Applications
Product Precautions

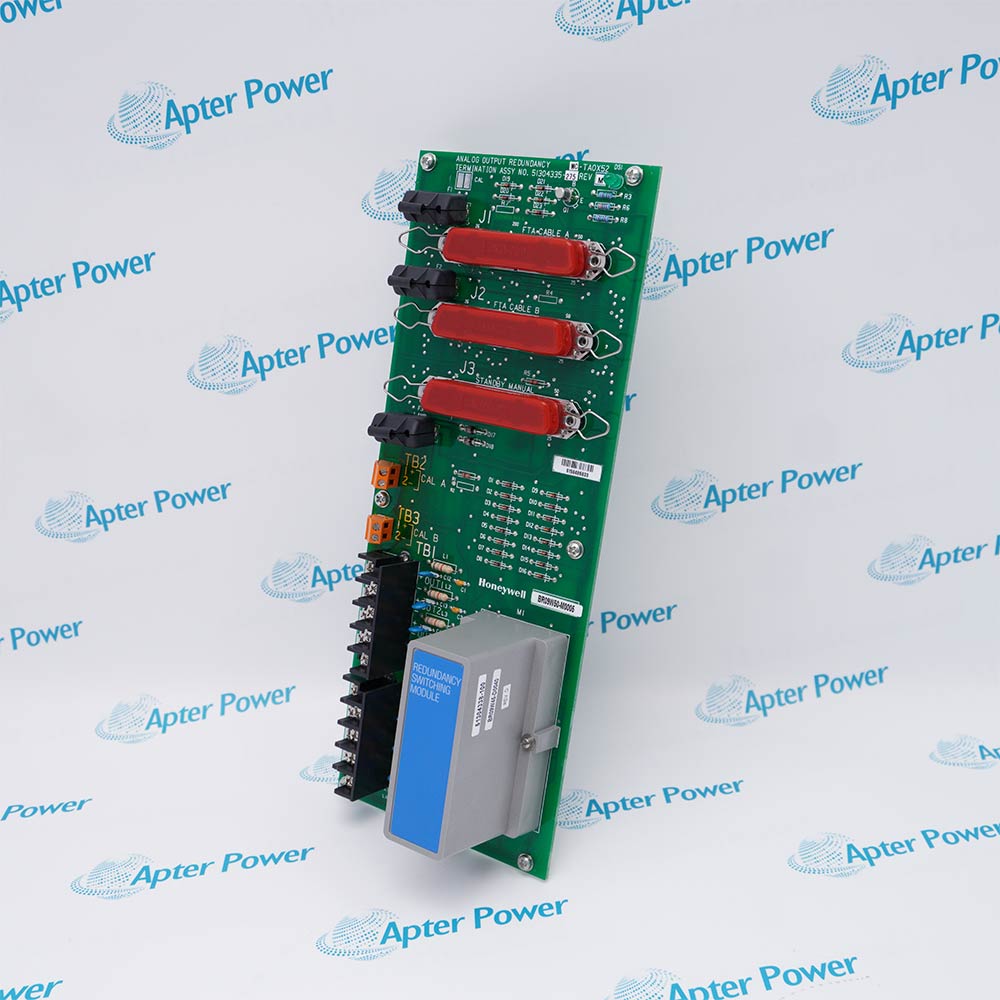

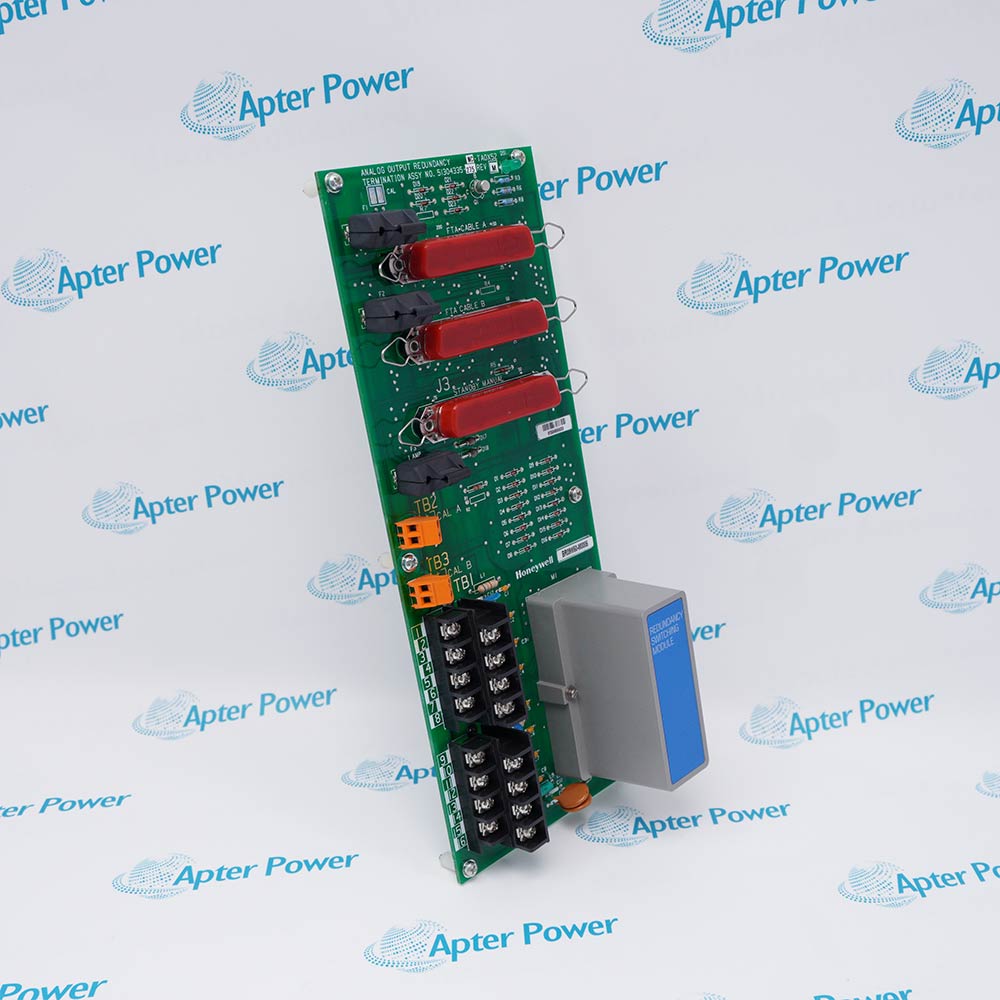

Honeywell MC-TAOX52 is a coated eight-channel analog output FTA with screw terminals. It connects Process Manager analog output processing to field current loops.
- Terminates analog output field loops
- Connects the analog output processor to field wiring
- Uses screw field terminals
- Supports single or redundant applications
MC-TAOX52 installs with Analog output processor, FTA I/O cable, Process Manager cabinet, Analog final elements in an engineered TPS Process Manager I/O configuration.
The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this eight-channel analog output fta.
Important Notice: Confirm the complete MC-TAOX52 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.
Apter Power MC-TAOX52 Manuals and Guides
Apter Power MC-TAOX52 Product Technical Reference PDFApter Power MC-TAOX52 Installation and Verification PDFThe first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
Control-valve output loopsTerminates analog output field loops
VFD speed referencesConnects the analog output processor to field wiring
Damper positioningUses screw field terminals
Chemical dosing commandsSupports single or redundant applications
Read the applicable Honeywell installation instructions before work. Verify MC-TAOX52 and the installed TPS Process Manager I/O configuration.
1Verify the complete MC-TAOX52 marking and the assigned TPS Process Manager I/O position before field work.
2Isolate the applicable power, network and field energy before disconnecting MC-TAOX52.
3Use ESD controls and protect the keyed connectors of MC-TAOX52 during handling.
4Record the installed wiring, jumpers, node or channel assignment before replacement.
5Confirm Analog output processor and FTA I/O cable against the approved system configuration.
6Restore MC-TAOX52 under controlled conditions and review the product-specific diagnostics.
7Complete a functional test for control-valve output loops before production release.
Technical notes
Secure final elements, match the FTA I/O cable and preserve loop polarity, then prove channel scaling with limited commands.
FAQ View All FAQ
-
What evidence should be retained after the MC-TAOX52 Eight-Channel Analog Output FTA returns to Chemical dosing commands service?Retain the physical identification, as-left wiring or configuration, final diagnostics and controlled functional-test result for MC-TAOX52.
-
Which Analog output processor identity must be verified before fitting the MC-TAOX52 Eight-Channel Analog Output FTA?Match the complete MC-TAOX52 marking, assigned TPS Process Manager I/O position and installed Analog output processor before work.
-
How should FTA I/O cable be isolated before disconnecting the MC-TAOX52 Eight-Channel Analog Output FTA?Place the affected process in its approved maintenance state, isolate applicable energy and prove FTA I/O cable safe before disconnection.
-
What as-found wiring record is required for the MC-TAOX52 Eight-Channel Analog Output FTA in Control-valve output loops?Record terminal identity, polarity, shields, jumpers, cable tags and the as-found diagnostic state for MC-TAOX52.
-
Which TPS Process Manager I/O configuration must be checked when commissioning the MC-TAOX52 Eight-Channel Analog Output FTA?Verify the assigned channel, slot, node or interface and compare it with the approved TPS Process Manager I/O configuration before enabling MC-TAOX52.
-
How can the MC-TAOX52 Eight-Channel Analog Output FTA be function-tested for VFD speed references without disturbing the process?Use a controlled stimulus or limited command, observe the expected system indication and confirm the intended response while normal interlocks remain effective.
-
Which diagnostics should be reviewed if the MC-TAOX52 Eight-Channel Analog Output FTA stops performing its assigned system function?Check seating, the matched Analog output processor, the condition of FTA I/O cable and the model-specific diagnostics before replacing more hardware.
-
Can the MC-TAOX52 Eight-Channel Analog Output FTA used for Damper positioning be transferred to another TPS Process Manager I/O position without engineering review?No. Confirm the hardware execution, connector scheme and approved TPS Process Manager I/O configuration before transferring MC-TAOX52 to a different duty.
