Get a quick price for CC-TSV211 51306665-175
For more information on how your data is processed and stored by Apterpower please read our privacy policy

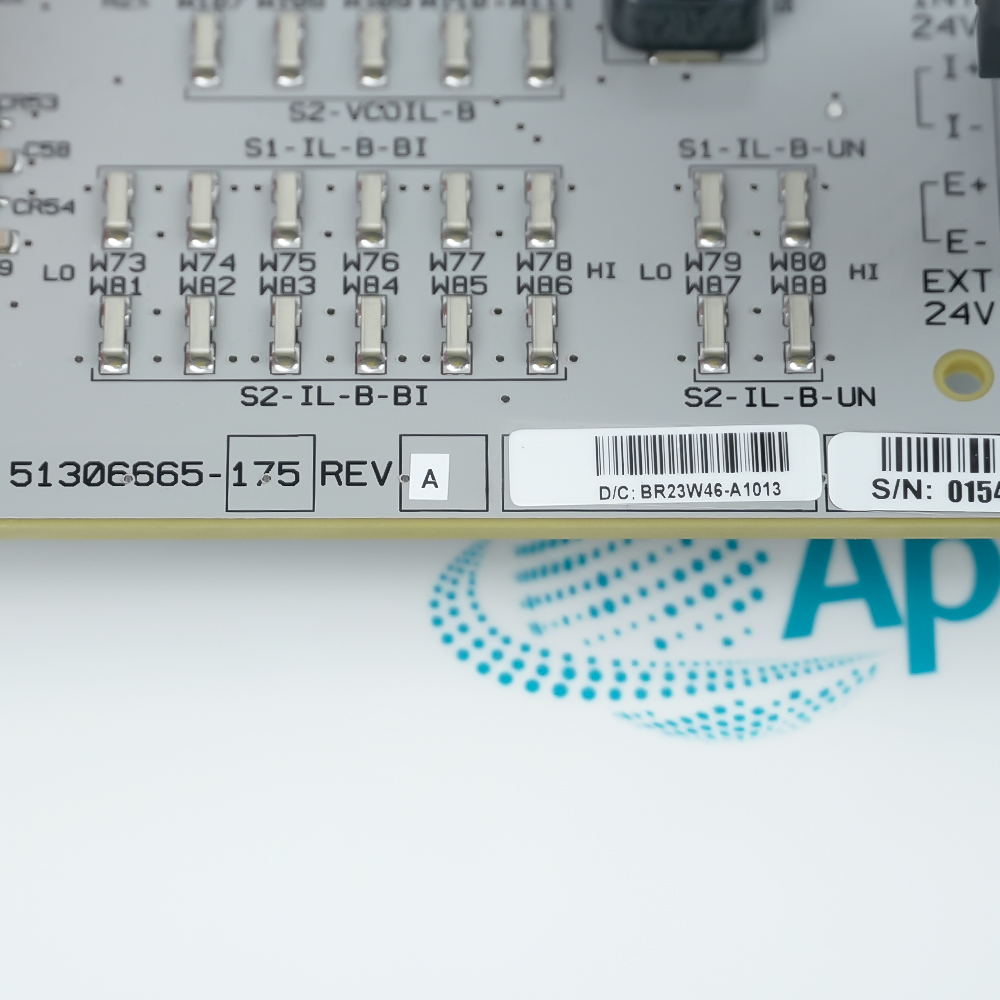

Technical specifications for CC-TSV211 51306665-175
-
Manufacturer:Honeywell
-
Product Category:DCS Systems
-
Spare Part Number:CC-TSV211 51306665-175
-
Estimated shipping dimensions:12x14.5x5.2cm
-
Weight:0.16 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Output Type:Bipolar current (Ranges: 10, 20, 40, 80, 160, 320 mA) Unipolar current (Ranges: 50, 300 mA)
-
Output Channels:2
-
Dither:0-10% of FS, 25-60 Hz
-
Output Temperature Drift:300 ppm per deg C
-
Output Current Linearity:0.325%
-
Resolution:16-bit DAC
-
Maximum Open Circuit Voltage:±14 V
-
Gap (0 mA) of Output to Field on Switchover:15 mS maximum
-
Input/Feedback:3/4/5/6 wires LVDT feedback signals, 8 V RMS max., 2.5-3.2 KHz
-
Excitation:8 V RMS max, 2.5-3.2 KHz (max. internal excitation is 50 mA)
-
Frequency Stability:2.5-3.2 KHz ±5 Hz from set value
Information
Overview
Manuals
Common Applications
Product Precautions

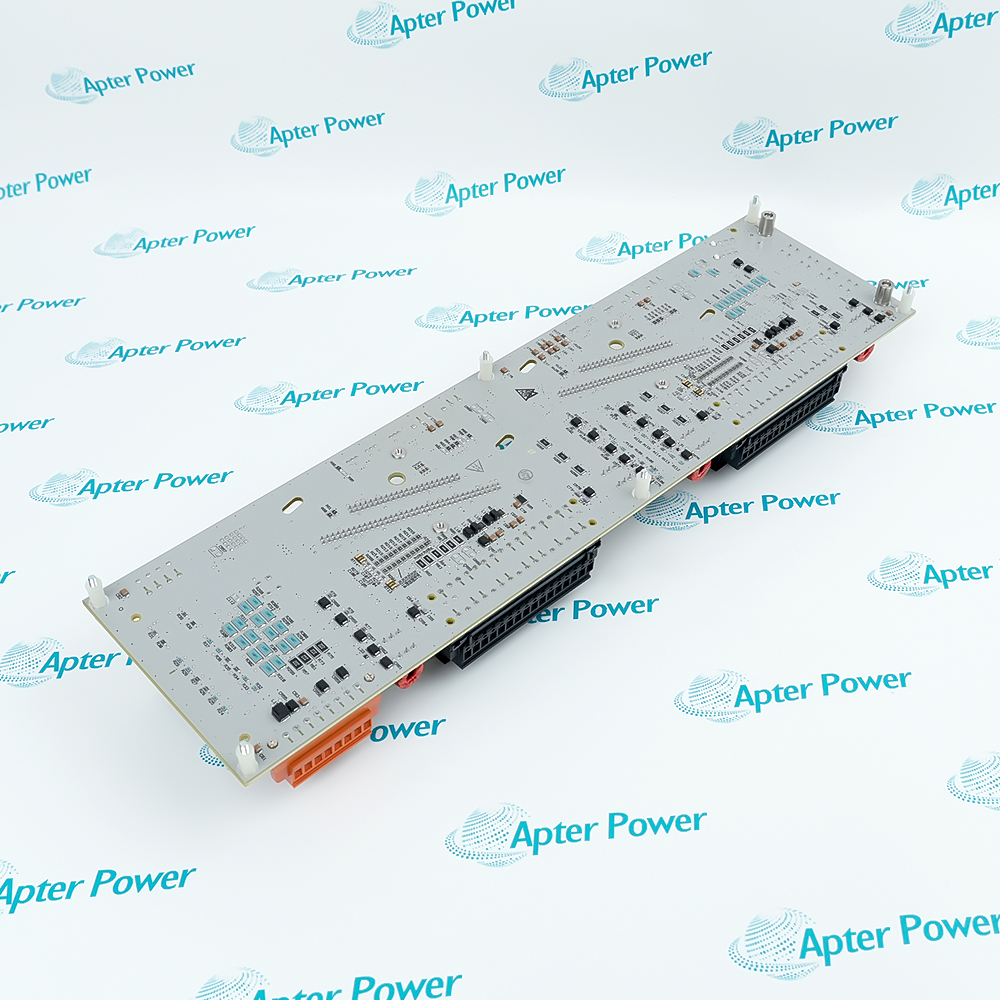

The CC-TSV211 51306665-175 is a high-performance servo valve positioner module in the Honeywell Experion PKS Series C system, specifically designed for precise control of turbine machinery.
- Excellent dynamic response and closed-loop control accuracy
- Seamless integration with Experion PKS Series C system
- Highly industrialized hardware reliability and redundancy support
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Honeywell CC-TSV211 51306665-175 Servo Valve Positioner Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Generation Industry
It converts weak electrical signals into powerful hydraulic force to maintain turbine speed and prevent overspeed during grid fluctuations or load rejection.
Oil & Gas Upstream
Drives recycle or blow-off valves in large centrifugal compressors. When abnormal flow is detected, it must trigger the servo valve within milliseconds to open the recycle loop, preventing the compressor from entering destructive "surge" conditions and protecting the shaft line.
Steel & Metallurgy Industry
Controlling hydraulic screw-down systems in hot rolling lines to ensure steel plate thickness accuracy.
Pulp & Paper Industry
Driving steam control valves for large drying cylinders to maintain constant drying temperature.
Marine & Shipbuilding
Control of Controllable Pitch Propellers in the propulsion systems of large cargo ships.
Mining & Heavy Machinery
Precision pressure regulation in hydraulic braking systems for large mine hoists.
At the hardware level,strict adherence to single-end grounding of shielded cables is essential to eliminate electromagnetic interference and prevent valve oscillations caused by signal noise. Unplugging or replugging while the circuit is powered on is strictly prohibited without verification. During commissioning,precise zero-point and full-scale calibrations must be completed before operation, and PID dynamic parameters should be carefully adjusted according to the actuator characteristics to avoid mechanical impacts. At the maintenance level,the hydraulic oil must be kept highly clean to prevent servo valve jamming that could trigger position deviation alarms. The cabinet ambient temperature and the synchronization status of redundant modules should be monitored regularly to ensure stable system response or seamless switching under extreme conditions.
FAQ View All FAQ
-
What is CC-TSV211 51306665-175?It is the servo valve positioner output module in the Honeywell Experion PKS Series C system. It is primarily used to drive and control hydraulic servo actuators on steam turbines or gas turbines.
-
What is the primary function of CC-TSV211 51306665-175?Its core function is to receive commands from the controller, output precise current signals (typically ±10mA to ±100mA) to drive the servo valve, and receive position feedback from the LVDT (Linear Variable Differential Transformer) to achieve closed-loop position control.
-
How to use and connect CC-TSV211 51306665-175?It is typically mounted on a matching IOTA terminal base and connected to the C300 controller via redundant I/O link cables, and configured using Experion PKS software.
-
Does CC-TSV211 51306665-175 support redundancy?Supported. In critical turbine control applications, redundant pairs are typically used to ensure uninterrupted system operation should a single module fail.
-
What are the common failures of CC-TSV211 51306665-175?Common problems include excessive channel output deviation, loss of feedback signal (LVDT failure), and aging and failure of module electronic components due to overheating.
