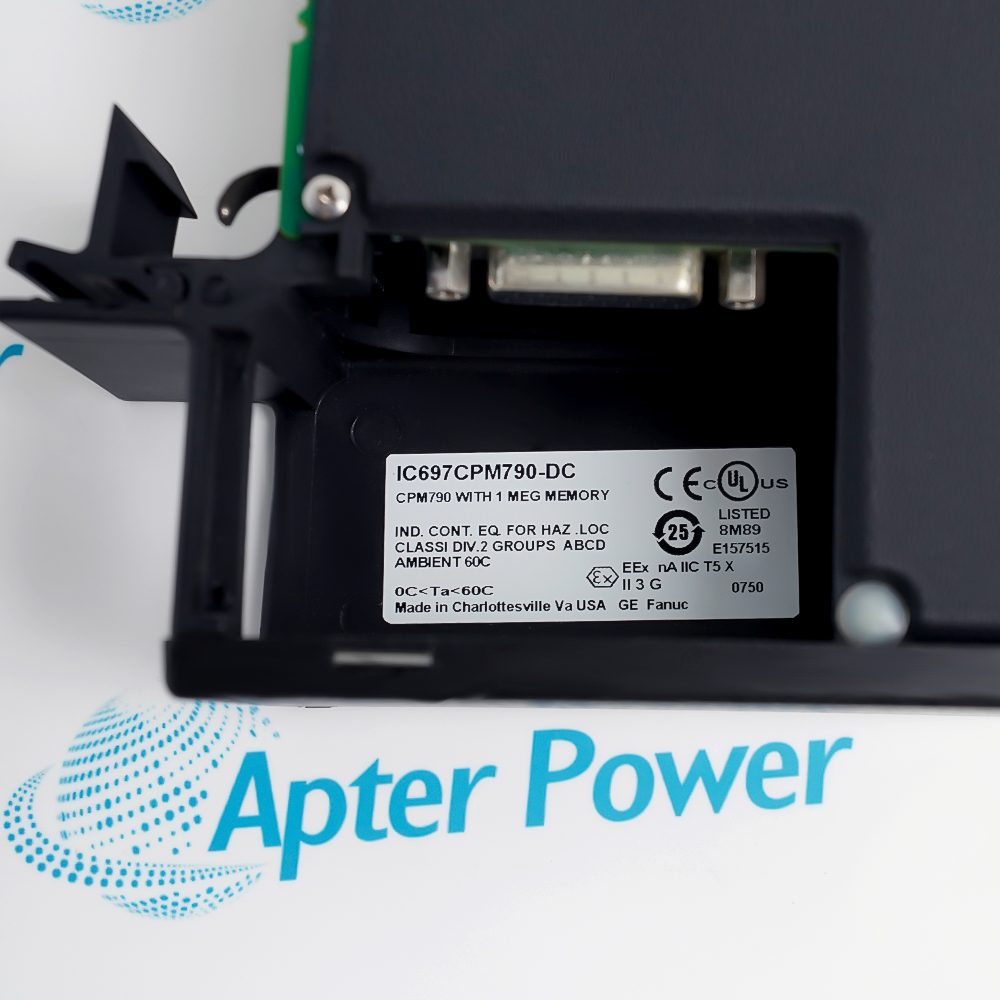

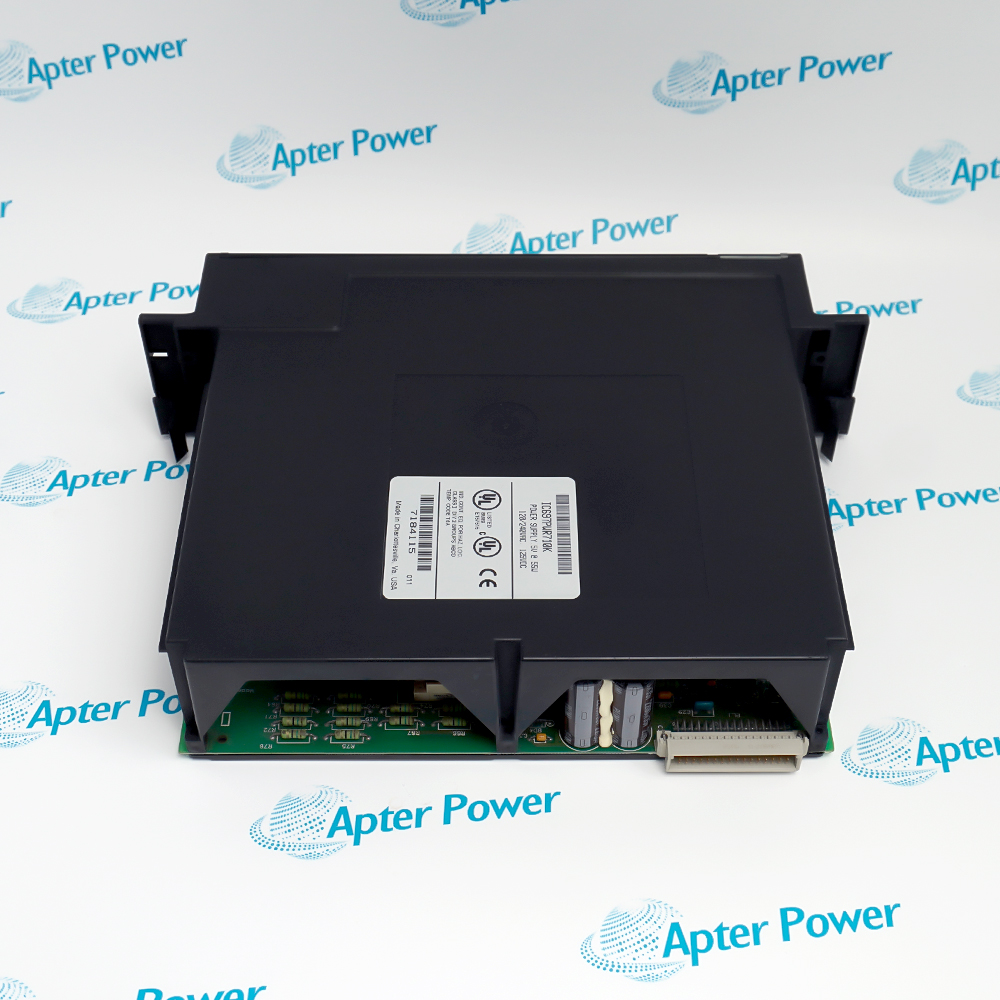

      General Electric IC697CPM790
      General Electric IC697CPM790
      General Electric IC697CPM790
      General Electric IC697CPM790
      General Electric IC697CPM790
      General Electric IC697CPM790
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      IC697CPM790

      GMR CPU
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      GE IC697CPM790 is a 64 MHz, 32-bit floating-point Series 90-70 CPU with 1 Mbyte of user memory for Genius Modular Redundancy systems. It operates with the documented Standalone C program and GMR software configuration.

      Ask our team:

      Get a quick price for： IC697CPM790
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for IC697CPM790

      Technical specifications for IC697CPM790

      • Manufacturer:
        General Electric
      • Product Category:
        PLC Systems
      • Spare Part Number:
        IC697CPM790
      • Estimated shipping dimensions:
        4x21.8x29.1cm
      • Weight:
        0.82 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Controller family:
        Series 90-70
      • Processor:
        64 MHz, 32-bit floating point
      • User memory:
        1 Mbyte
      • Control architecture:
        Genius Modular Redundancy / TMR
      • Module width:
        Single slot
      • Backplane:
        VME C.1 through the Series 90-70 rack
      • Operating requirement:
        Standalone C program with GMR operating and autotest routines
      • Status interface:
        Mode switch, memory protection and four status LEDs
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      GE IC697CPM790 is a 64 MHz, 32-bit floating-point Series 90-70 CPU with 1 Mbyte of user memory for Genius Modular Redundancy systems. It operates with the documented Standalone C program and GMR software configuration.
      • Executes 64 MHz floating-point control logic
      • Supports the documented GMR triple-modular-redundancy architecture
      • Provides 1 Mbyte of onboard user memory
      • Requires the approved Standalone C program and matched GMR software

      Apply GE IC697CPM790 only in the documented system position after checking its interfaces, companion hardware and configured values.

      Important Notice: Confirm the full IC697CPM790 marking, installed revision, compatible hardware and approved commissioning record before release.

      GE IC697CPM790 Manuals & Downloads
      GE IC697CPM790 Technical Reference (PDF)GE IC697CPM790 Installation & Commissioning Guide (PDF)

      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      GMR safety control
      Runs approved TMR logic in Series 90-70 Genius Modular Redundancy systems.
      Emergency shutdown
      Supports documented critical-control applications with voted I/O.
      Fire and gas control
      Executes validated control logic in a matched GMR configuration.
      Legacy system maintenance
      Replaces an identical CPM790 after firmware, software and rack compatibility checks.
      Read the applicable GE instructions before work. Verify GE IC697CPM790 and the installed system configuration before commissioning.
      1
      Verify the complete IC697CPM790 revision and installed firmware.
      2
      Use the module in the documented Series 90-70 rack position.
      3
      Back up application logic, configuration and GMR records before removal.
      4
      Confirm the required Standalone C program is included in the loaded application.
      5
      Match duplex or triplex CPU modules by model and approved revision.
      6
      Verify GMR software, Genius Bus Controller and programming-software compatibility.
      7
      Observe the mode switch, memory-protect switch and status LEDs during startup.
      8
      Complete voted-I/O diagnostics and the approved controlled functional test before release.

      Technical notes

      Technical notes

      Use only the complete GE IC697CPM790 identity and the current manufacturer documentation. Verify the installed revision, companion hardware, wiring and saved configuration before replacement or release.

      FAQS

      • What is GE IC697CPM790?
        It is a Series 90-70 GMR CPU with a 64 MHz 32-bit floating-point processor and 1 Mbyte of user memory.
      • Why does GE IC697CPM790 require a Standalone C program?
        The program provides the GMR operating and autotest routines required for the CPU to operate in the documented architecture.
      • Which control applications use GE IC697CPM790?
        The GE data sheet identifies emergency shutdown, fire and gas, and other critical-control applications.
      • Can GE IC697CPM790 be mixed with a different CPU model in a duplex or triplex set?
        No. The GMR system requires the CPUs in the redundant set to be the same model.
      • What must be backed up before replacing GE IC697CPM790?
        Back up logic, hardware configuration, GMR settings, reference data and the installed software/firmware record.
      • Which GE IC697CPM790 indications should be checked after startup?
        Check module OK, run, outputs enabled and memory-protect indications together with the mode switches.
      • What confirms successful commissioning of GE IC697CPM790?
        A matched redundant set, passed GMR diagnostics, correct voted-I/O operation and an approved functional test confirm release.
