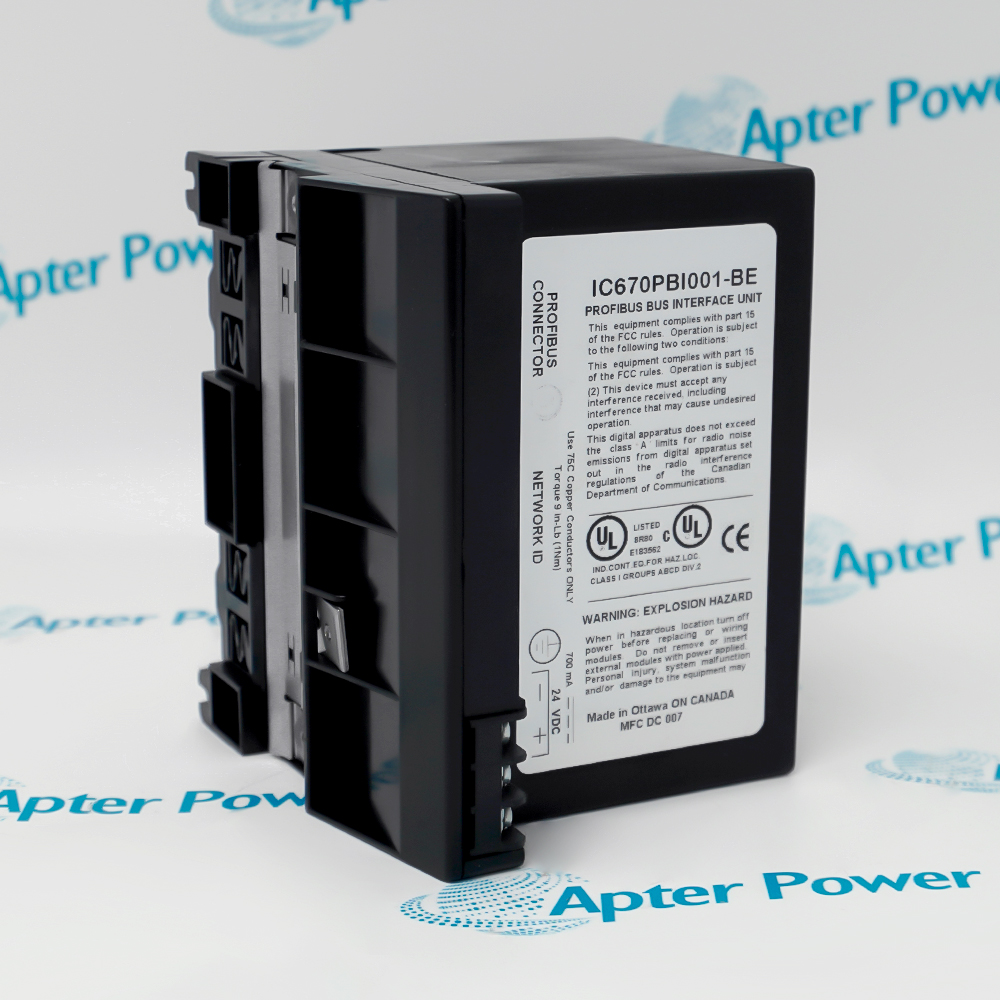

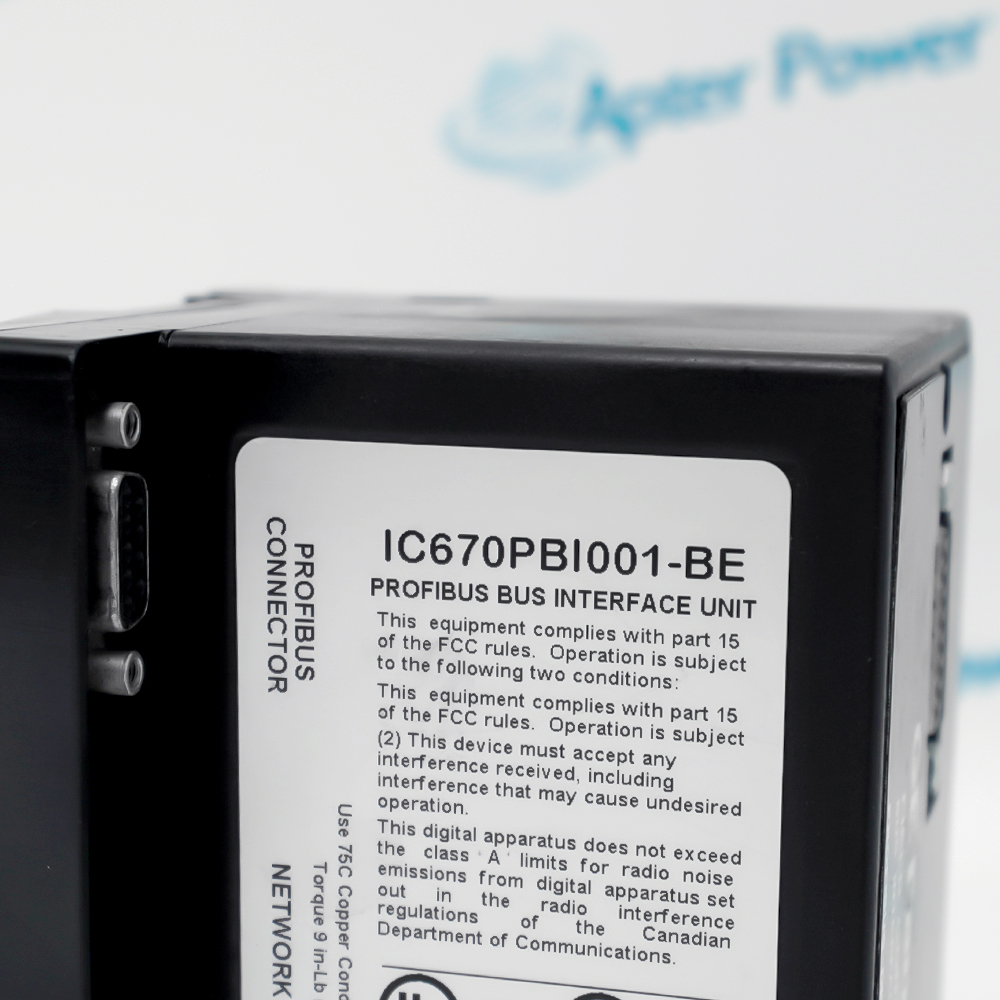

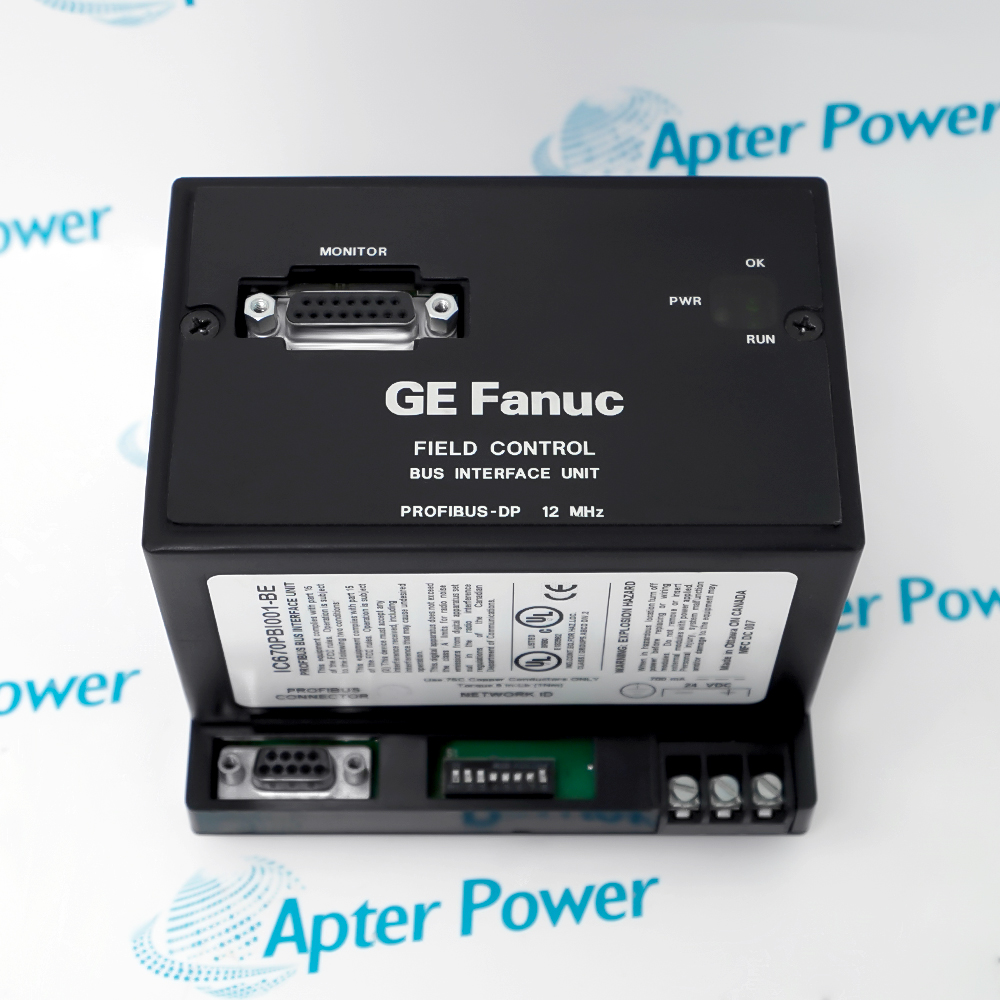

IC670PBI001

Profibus Bus Interface Unit
In Stock

Product Describe:

IC670PBI001

PROFIBUS BUS INTERFACE UNIT
Field Control

DP 12M BAUD

UP TO 8 I/O MODULES

Ask our team:

Get a quick price for: IC670PBI001
Quantity*
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy.

Technical specifications for IC670PBI001

Technical specifications for IC670PBI001

  • Manufacturer:
    General Electric
  • Product Category:
    Gas turbine control
  • Spare Part Number:
    IC670PBI001
  • Estimated shipping dimensions:
    10.2x17.8x12.7cm
  • Weight:
    0.2 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Rated Input Voltage:
    24 Volts DC
  • Input Power:
    7.7 watts
  • Nominal Rated Voltage:
    115V AC, 125V DC
  • Supply Voltage Range:
    18-30 VDC
  • Power Consumption:
    16.8 Watts
  • Output Frequency:
    50 kHz
  • Current Output to Modules:
    1.4 A

Revisions

Revisions

Revision Part #

Also known as

IC670PBI001BD
IC670PBI001-BD, Series BD, Rev BD
IC670PBI001BE
IC670PBI001-BE, Series BE, Rev BE
IC670PBI001BF
IC670PBI001-BF, Series BF, Rev BF
IC670PBI001CG
IC670PBI001-CG, Series CG, Rev CG
IC670PBI001DG
IC670PBI001-DG, Series DG, Rev DG
IC670PBI001EG
IC670PBI001-EG, Series EG, Rev EG

FAQS

  • What is the supported industrial protocol by the IC670PBI001?
    The IC670PBI001 supports Profibus communication protocol.
  • What are the data transmission speeds supported by the IC670PBI001?
    The IC670PBI001 supports 9.6, 19.2, 93.75, 187.5, 500, 1500 Kbits, 3 Mbits, 6 Mbits, and 12 Mbits.
  • How many Profibus ports does the IC670PBI001 have?
    The IC670PBI001 only has One (1) Profibus interface port.
  • How does the IC670PBI001 differ from other interface units in the VersaMax series?
    It provides dedicated Profibus DP communication, distinguishing it from Ethernet or serial interface modules in the same series.
  • What is the housing material and environmental rating of the IC670PBI001?
    It features a plastic industrial housing suitable for DIN‑rail mounting with IP20 environmental protection.
