      General Electric IC200ALG230
      General Electric IC200ALG230
      General Electric IC200ALG230
      General Electric IC200ALG230
      General Electric IC200ALG230
      General Electric IC200ALG230
      Product image is representative; revision or series may vary. Contact us to request a specific version.

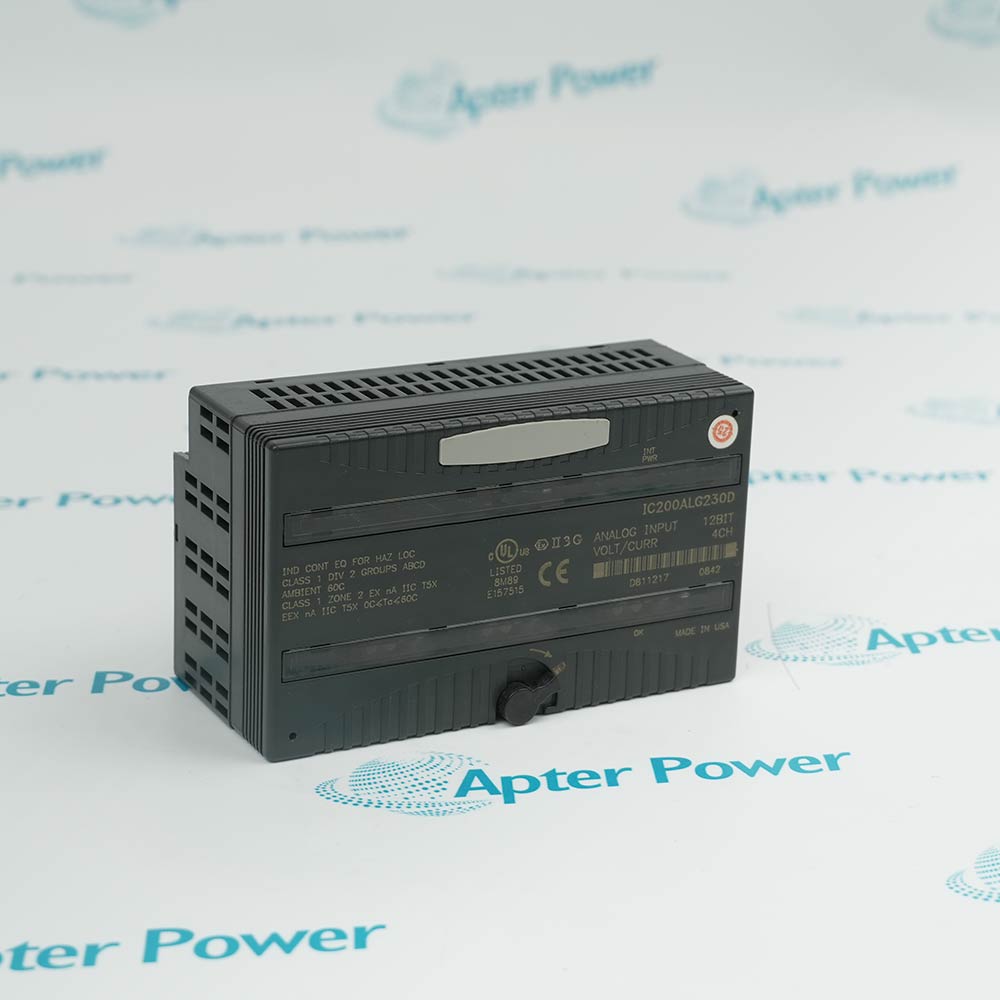

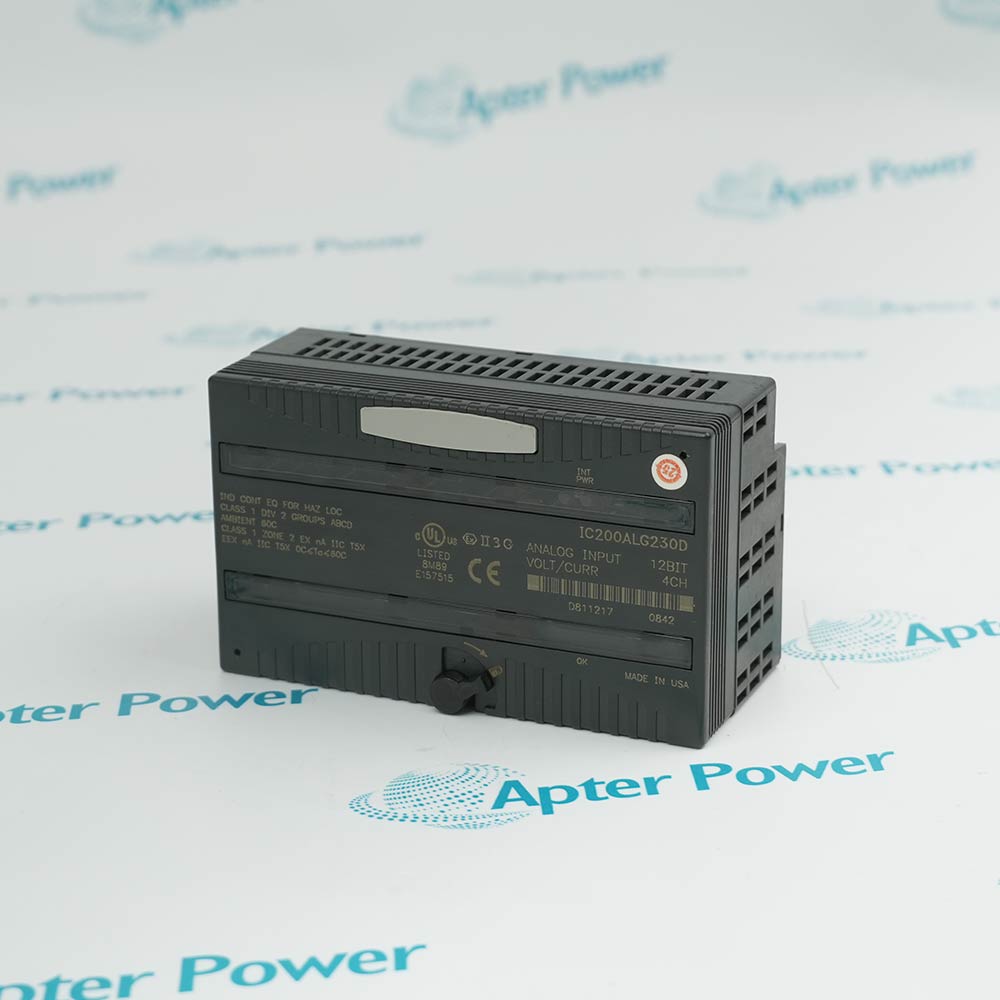

      IC200ALG230

      Analog Input Module
      In Stock

      Product Describe：

      IC200ALG230
      Analog Input Module

      125mA from +5V bus

      VersaMax SERIES

      Ask our team:

      Get a quick price for： IC200ALG230
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications FAQ

      Technical specifications for IC200ALG230

      Technical specifications for IC200ALG230

      • Manufacturer:
        General Electric
      • Product Category:
        Gas turbine control
      • Spare Part Number:
        IC200ALG230
      • Estimated shipping dimensions:
        11x5.8x6.5cm
      • Weight:
        0.14 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • No. of channels:
        4 single ended, one group
      • Voltage Range:
        -10 to +10 volts DC
      • Current Range:
        4 - 20 mA
      • Update Rate:
        0.4 ms
      • Input Filter Response:
        5.0 ms
      Ask for Quote

      FAQS

      • What is IC200ALG230?
        It is an analog input module developed by GE under VersaMax series.
      • How is the module powered?
        The module receives power from an embedded power supply in the backplane of the VersaMax system. It does not require an external power supply for its operation, but external devices like transceivers may need separate power.
      • What are the power consumption specifications of the module?
        The module consumes 5 volts and up to 125 milliamps of current from the backplane power supply.
