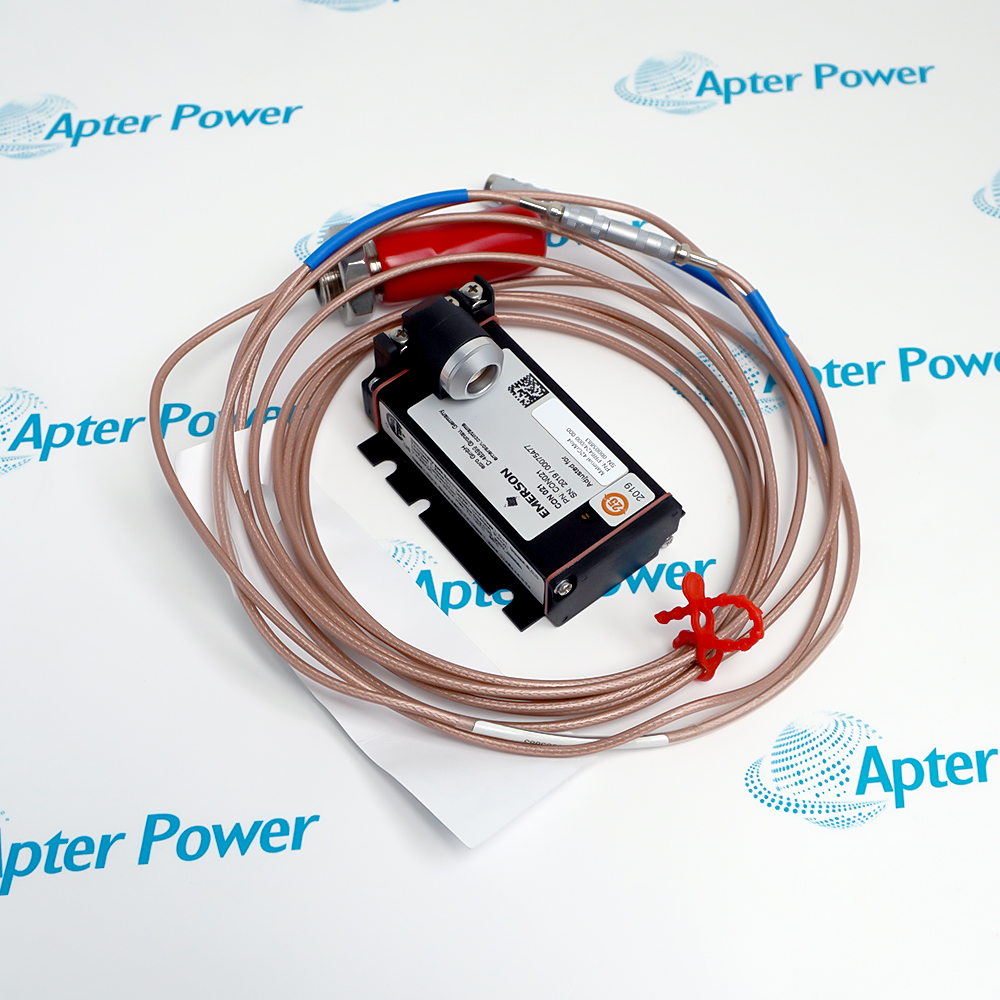

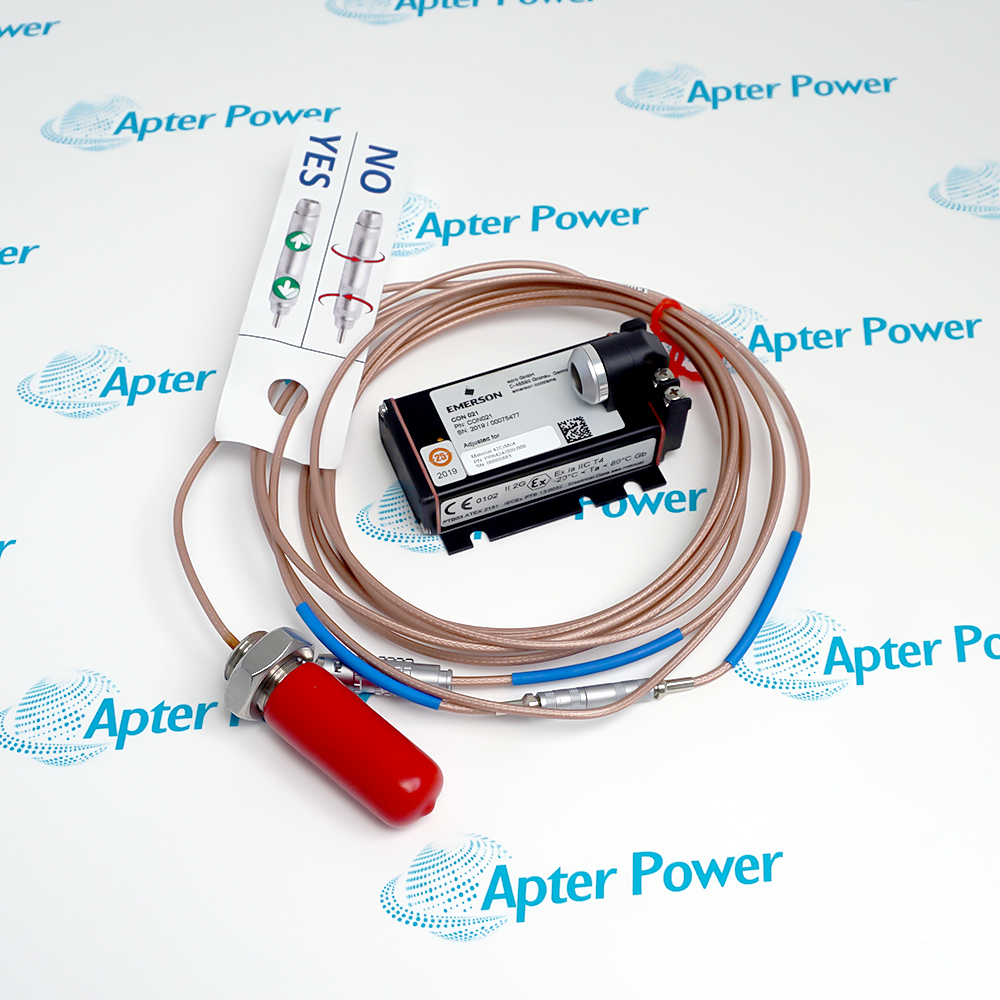

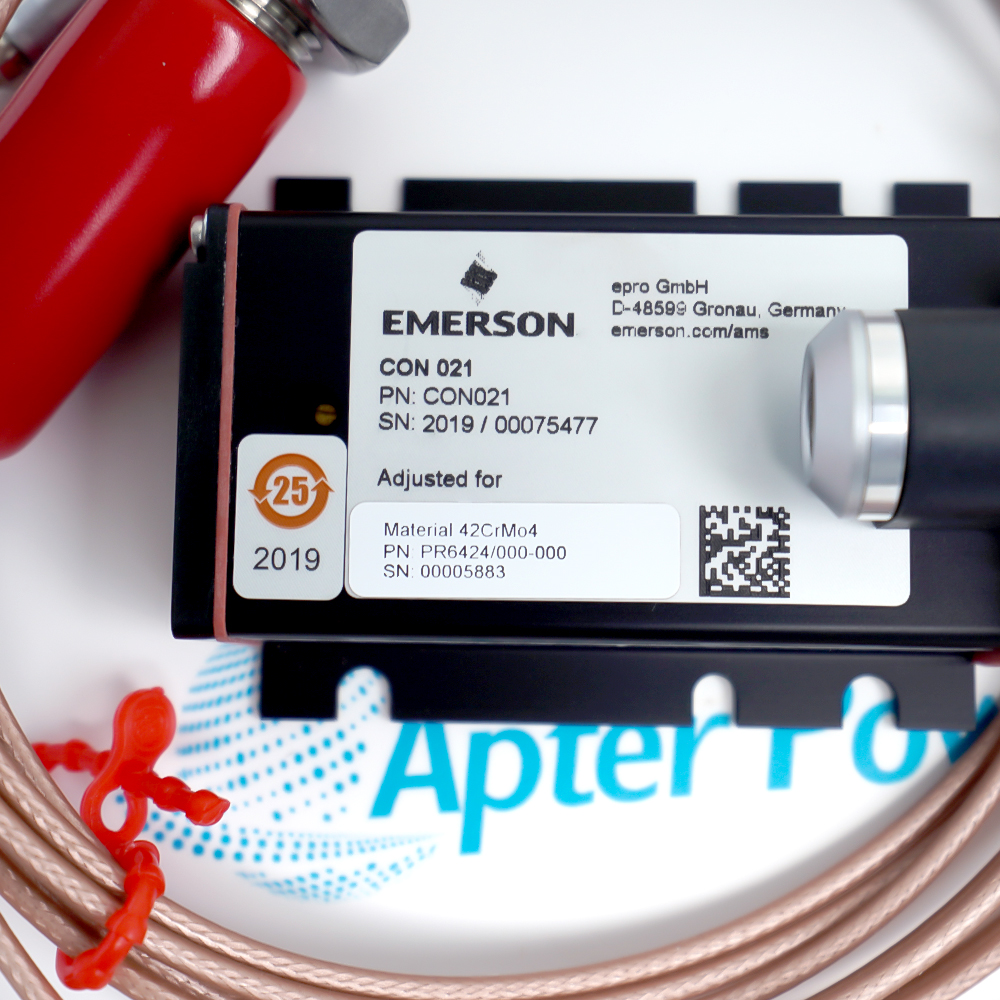

      Epro PR6424-000-000-CON21
      Epro PR6424-000-000-CON21
      Epro PR6424-000-000-CON21
      Epro PR6424-000-000-CON21
      Epro PR6424-000-000-CON21
      Epro PR6424-000-000-CON21
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      PR6424-000-000-CON21

      Eddy Current Sensor
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Epro PR6424-000-000-CON21 is a eddy current sensor for the PR6424 16 mm eddy-current transducer system. It combines a PR6424 16 mm sensor identity with the CON021 signal-converter arrangement for non-contacting machinery measurements.

      Ask our team:

      Get a quick price for： PR6424-000-000-CON21
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for PR6424-000-000-CON21

      Technical specifications for PR6424-000-000-CON21

      • Manufacturer:
        Epro
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        PR6424-000-000-CON21
      • Estimated shipping dimensions:
        29x22x4cm
      • Weight:
        0.75 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Germany
      • Product family:
        PR6424 16 mm eddy-current transducer system
      • Sensor family:
        PR6424, 16 mm
      • Converter identity:
        CON021
      • Nominal sensitivity:
        4 V/mm
      • Static range:
        approximately ±2 mm
      • Dynamic range:
        0 to 1000 µm
      • Nominal air gap:
        approximately 2.7 mm
      • Target reference:
        Ferromagnetic steel, 42CrMo4 reference
      • Minimum shaft diameter:
        80 mm
      • Measurement roles:
        Radial/axial displacement, position, eccentricity and speed reference
      • Cable construction:
        PTFE-insulated sensor and extension cable
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      EPRO PR6424-000-000-CON21 combines a PR6424 16 mm sensor identity with the CON021 signal-converter arrangement for non-contacting machinery measurements.
      • Uses a 16 mm eddy-current sensing head
      • Provides a 4 V/mm nominal sensitivity
      • Supports large-shaft displacement measurements
      • Pairs with the documented CON021 converter

      PR6424-000-000-CON21 operates with its documented companion hardware and configured system interfaces.

      Engineered applications include Shaft radial displacement, Axial position, Eccentricity monitoring, Speed and phase reference.

      Important Notice: Treat PR6424-000-000 and CON021 as a matched installed identity. Verify system length, target material, mounting, gap and monitor scale before service.

      Epro PR6424-000-000-CON21 Manuals & Downloads
      Epro PR6424-000-000-CON21 Technical Reference (PDF)Epro PR6424-000-000-CON21 Installation & Commissioning Guide (PDF)
      The first document presents model-specific technical and system data. The second provides a separate installation, connection, commissioning and acceptance workflow.
      Shaft radial displacement
      Measures non-contacting radial motion on large rotating shafts.
      Axial position
      Tracks thrust or axial position in the engineered probe geometry.
      Eccentricity monitoring
      Observes low-speed shaft eccentricity with the matched system.
      Speed and phase reference
      Provides the proximity signal used by the configured monitoring channel.
      Read the applicable Epro instructions before work. Verify PR6424-000-000-CON21, the installed system and every configured interface before isolation, wiring or commissioning.
      1
      Confirm the complete PR6424-000-000-CON21 marking and installed eddy-current position before work.
      2
      Place the connected process in the approved maintenance state.
      3
      Isolate every applicable power and field circuit before disconnection.
      4
      Record connector, terminal, address, slot and companion-hardware identities.
      5
      Use grounded ESD controls and protect keyed interfaces from damage.
      6
      Preserve documented polarity, shielding, grounding and cable routing.
      7
      Restore power in the approved sequence and review diagnostics.
      8
      Prove the intended input, output or communications response and retain the acceptance record.

      Alternative Names

      Alternative Names

      PR6424-000-000-CON21 PR6424000000CON21 Epro PR6424-000-000-CON21

      Technical notes

      Technical notes

      Treat PR6424-000-000 and CON021 as a matched installed identity. Verify system length, target material, mounting, gap and monitor scale before service.

      FAQS

      • What wiring check follows from the sensor family on PR6424-000-000-CON21?
        Sensor family: PR6424, 16 mm. Retain it in the controlled replacement record.
      • Which converter identity belongs to PR6424-000-000-CON21?
        Converter identity: CON021. Compare it with the existing terminal and companion-hardware assignment.
      • Which installed-system decision depends on the nominal sensitivity of PR6424-000-000-CON21?
        Nominal sensitivity: 4 V/mm. Apply it during the pre-energization wiring review.
      • What static range should be verified before PR6424-000-000-CON21 is installed?
        Static range: approximately ±2 mm. Confirm the installed system can support this value before startup.
      • How should the dynamic range be matched for this eddy current sensor?
        Dynamic range: 0 to 1000 µm. Do not replace it with a neighboring family value.
      • How can the nominal air gap prevent an incorrect PR6424-000-000-CON21 substitution?
        Nominal air gap: approximately 2.7 mm. Record the as-found condition and verify it after commissioning.
      • Why must technicians record the target reference before removing PR6424-000-000-CON21?
        Target reference: Ferromagnetic steel, 42CrMo4 reference. Use it to select the correct host, cable or rack arrangement.
      • When servicing PR6424-000-000-CON21, how should the minimum shaft diameter be confirmed?
        Minimum shaft diameter: 80 mm. Check this item before reconnecting field power.
