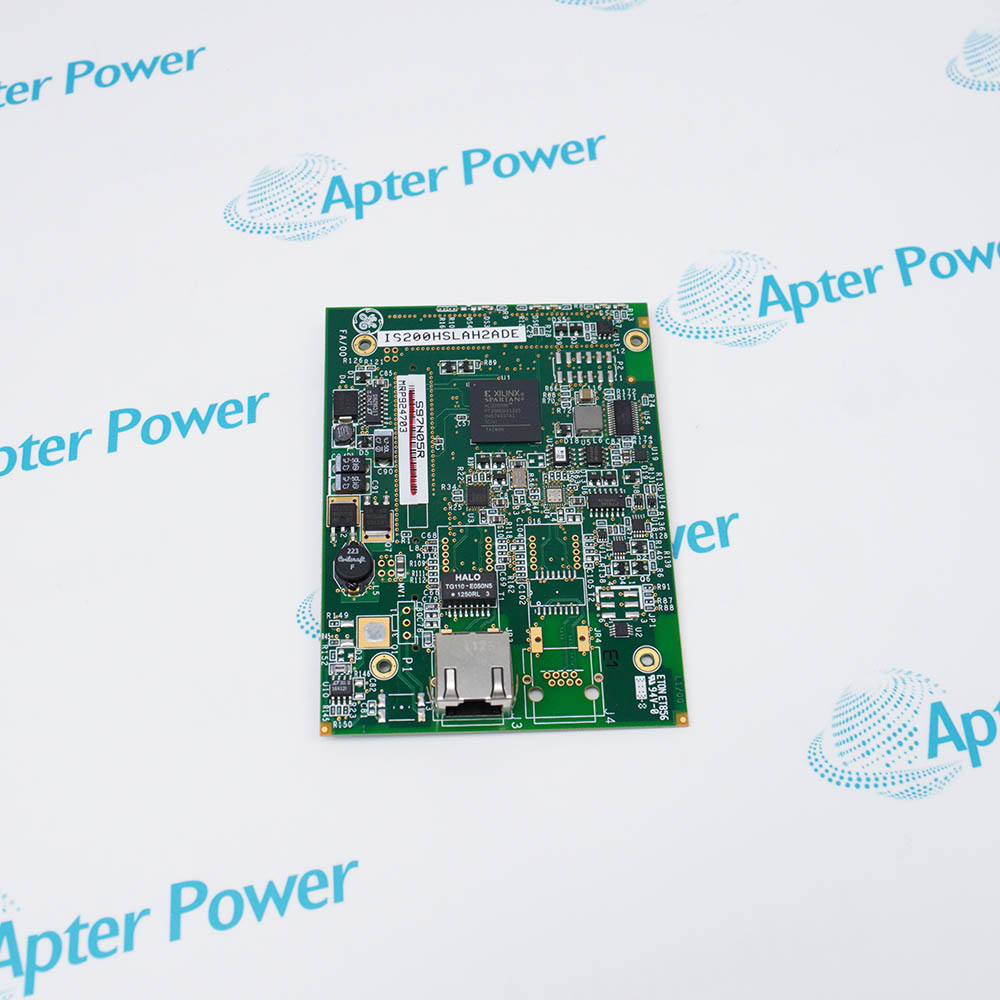

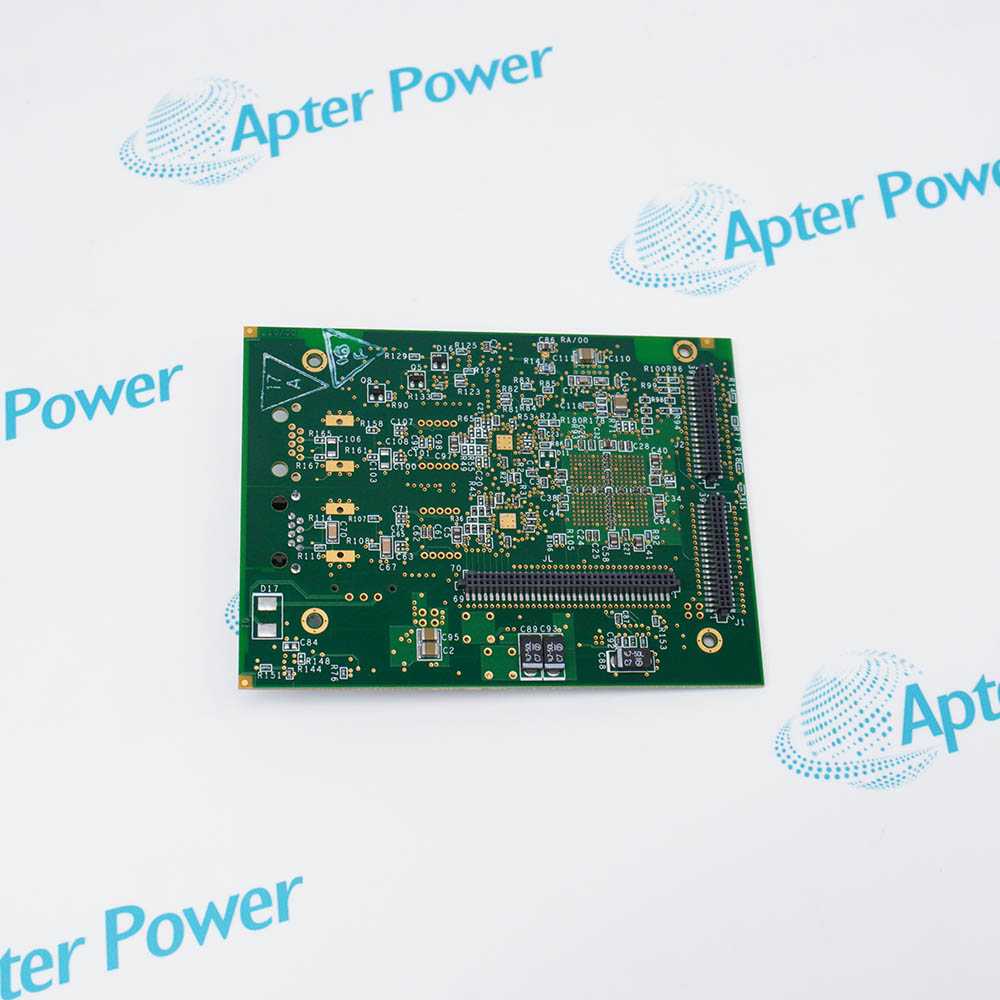

IS200HSLAH2A

FAQS

• What controller interface role does IS200HSLAH2A perform?
  The HSLA daughterboard provides the high-speed serial-link interface to a UCSx controller in the EX2100e architecture.
• What performs HSSL digital control logic on IS200HSLAH2A?
  The HSLA family uses a field-programmable gate array for its HSSL digital control logic.
• Can a different HSLA suffix be assumed to replace IS200HSLAH2A?
  Replacement selection must match the complete board identification and the installed equipment assembly records. A shared HSLA family name does not establish variant interchangeability.
• How should IS200HSLAH2A be identified before a service replacement?
  Match the complete IS200HSLAH2A marking to the installed controller assembly and bill of materials. Keep H2A intact; the HSLA family description does not decode that suffix.
• Which connection records are needed when installing IS200HSLAH2A?
  Use the installed assembly drawings for connector identification, cable routing and the configured serial-link arrangement. Family-level information does not establish the port configuration of this exact variant.
• Can IS200HSLAH2A be disconnected while the control assembly is energized?
  Isolate the control assembly under the equipment shutdown procedure before board service. Verify the safe state using the site procedure before disconnecting the installed board.
• How should IS200HSLAH2A be handled during inspection?
  Apply the installed-system electrostatic-discharge precautions and protect the board and connector contacts during handling. These are service checks, rather than a published electrical rating.
• What should be checked before returning IS200HSLAH2A to service?
  Check board seating, connector engagement and the documented cable arrangement, then complete the installed-system controller and link checks before the equipment returns to service.
