Match the complete marking
Include PR6423/010-010 and any revision or assembly number visible on the item. Keep the exact reference on your enquiry and quotation.
-
Check the offered item before ordering
Request current label and body and cable-connector photos. Have your maintenance team compare the offered PR6423/010-010 with the installed equipment and applicable Emerson documentation.
Technical specifications for PR6423/010-010
-

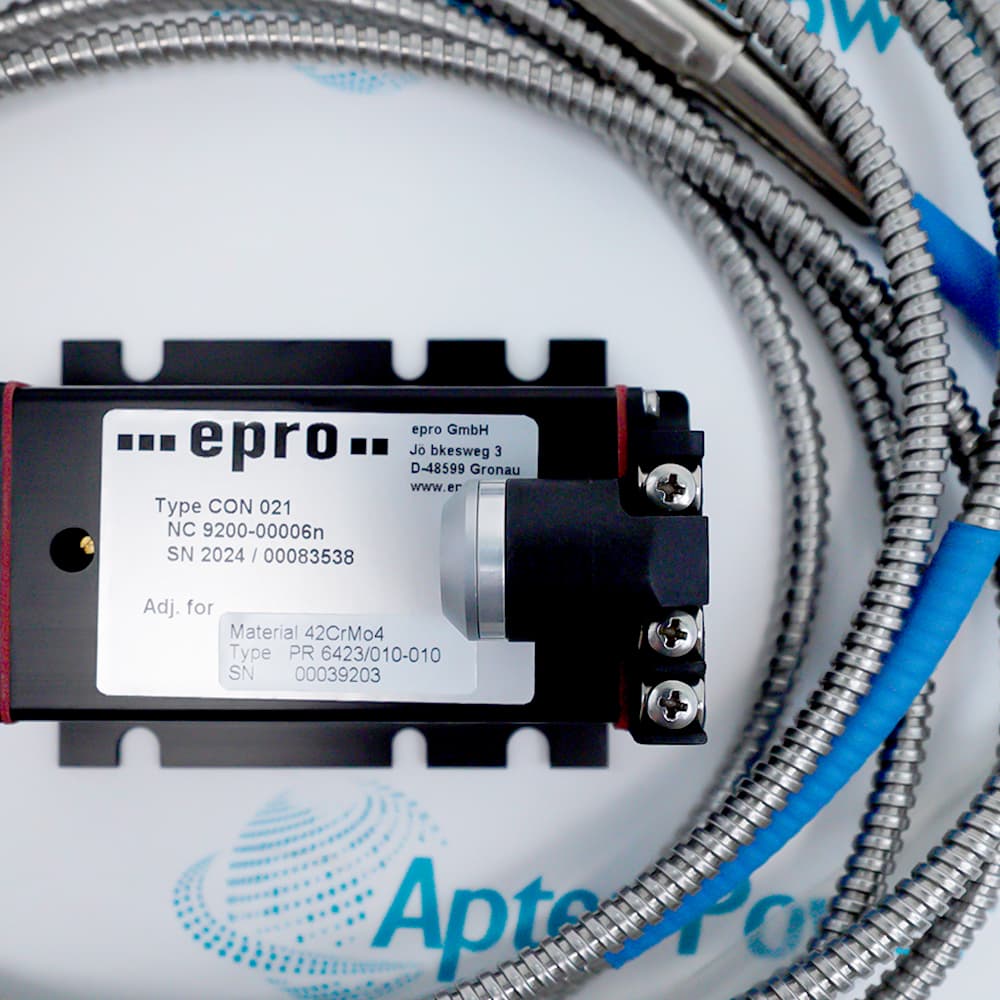

Manufacturer:Epro
-
Product Category:Machinery Monitoring Systems
-
Spare Part Number:PR6423/010-010
-
Weight:0.7 kg
-
Tariff Code:8537101190
-
Sensor family:PR6423, 8 mm eddy-current displacement sensor
-
Mounting thread:M10 × 1
-
Mounting arrangement:Standard mount
-
Cable construction:armored
-
Case configuration:25 mm case-length code
-

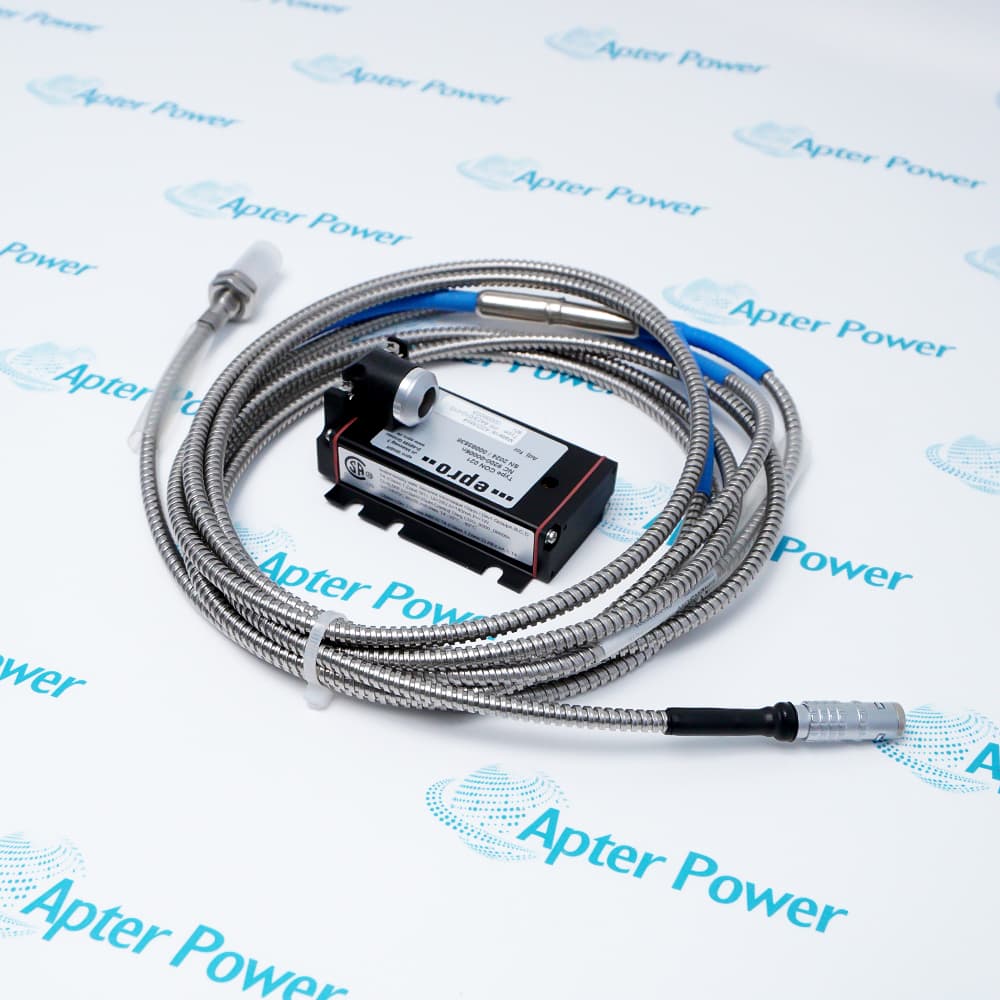

Cable arrangement:5 m total, with adapter plug; LEMO end
-
Linear measurement range:2 mm, PR6423 family
-
Nominal initial gap:0.5 mm, PR6423 family
-
Scale factor:8 V/mm ±5% at 0–45 °C, matched system
-
Protection:IP66, PR6423 family
Information
- The PR6423/010-010 probe is selected as part of a calibrated shaft-measurement chain; its installation geometry and cable route must suit the existing machine.
System dependency: Match converter and total cable chain
Installation decision: Use the selected mounting direction
A PR6423 probe forms one part of a matched proximity-measurement chain. The conditioned signal can support radial vibration, axial position or eccentricity monitoring when the converter, extension cable, target material and monitor input are selected together. The family range and scale factor belong to that calibrated chain.
For a service change, preserve the original probe position, target surface and cold gap. Route the cable within the documented bend limits, confirm the adapter and LEMO connection, and compare the restored signal with a known mechanical position before returning the channel to protection service.
-
Epro PR6423/010-010 technical reference
Apter Power technical reference - PDF, 2 pages. Product identity, verified interface data and applicability conditions. -
Epro PR6423/010-010 installation guide
Prepared by Apter Power - PDF, 1 page. Configuration review, safe installation and functional acceptance.
Compatibility scope: The probe, extension cable, converter, target material and monitor input form one calibrated chain; retain the offered mounting thread and cable execution.
Turbine shaft vibration
Monitor relative radial movement at a bearing when the chosen shaft target and proximity chain meet the project design.Axial position
Track thrust position with an approved axial target, probe holder and calibrated monitor channel.Runout and eccentricity
Observe slow-roll shaft geometry using an appropriate PR6423 measuring chain and machine reference.Compressor monitoring
Use a matched probe and converter to feed shaft-displacement information into a machinery-protection system.
Compare the complete PR6423/010-010 marking with the installed probe and converter documentation.
Keep the M10 × 1 engagement, probe position and intended standard mount arrangement.
Confirm the converter, extension cable, adapter and monitor input as one calibrated system.
Allow clearance for the armored construction and its minimum bending radius.
Adjust the probe-to-target position using the approved converter output and site procedure.
Compare the restored gap and dynamic response with the pre-service machine record.
Alternative Names
Technical notes
Technical basis: Emerson PR6423 Specifications Sheet, 8mm Eddy Current Sensor, December 2024.
Applicability: PR6423 electrical and environmental figures describe the matched 8 mm sensor family. Confirm converter and installation applicability to the offered complete order code.
Measurement relationship: A PR6423 displacement value depends on the probe, total cable, converter and shaft target as a calibrated chain. Interpret the quoted scale factor only with the matching converter and target material.
FAQ View All FAQ
-
How is the converter pairing verified for PR6423/010-010?Compare the installed converter and total cable arrangement with the approved PR6423 measurement-chain configuration; a matching tip alone is insufficient.
-
What target preparation matters before setting PR6423/010-010?Inspect the shaft surface and material at the selected track and remove burrs or deposits that alter the apparent gap.
-
Why can PR6423/010-010 give a changed baseline after replacement?Differences in cold gap, target track, cable chain or converter calibration can shift the steady output; compare all four with the service record.
-
How should cable routing be assessed for PR6423/010-010?Check mechanical clearance and the bend radius of the selected cable construction, especially at the casing exit and adapter.
-
Can PR6423/010-010 alone establish a protection trip?No. Trip behavior depends on the matched converter, monitor configuration, alarm limits and approved machine logic.
-
What is an appropriate commissioning check for PR6423/010-010?Record a stable cold-gap output, then compare the monitored displacement channel with a known machine condition under site controls.
-
How is a false intermittent reading from PR6423/010-010 isolated?Inspect connector seating, cable continuity, shielding, converter supply and target runout before attributing it to the probe.
-
What should be recorded before removing PR6423/010-010?Record the exact marking, mounted insertion position, target track, cable path and converter/channel identification.
