5X00481G04

OVATION Controller Model
In Stock

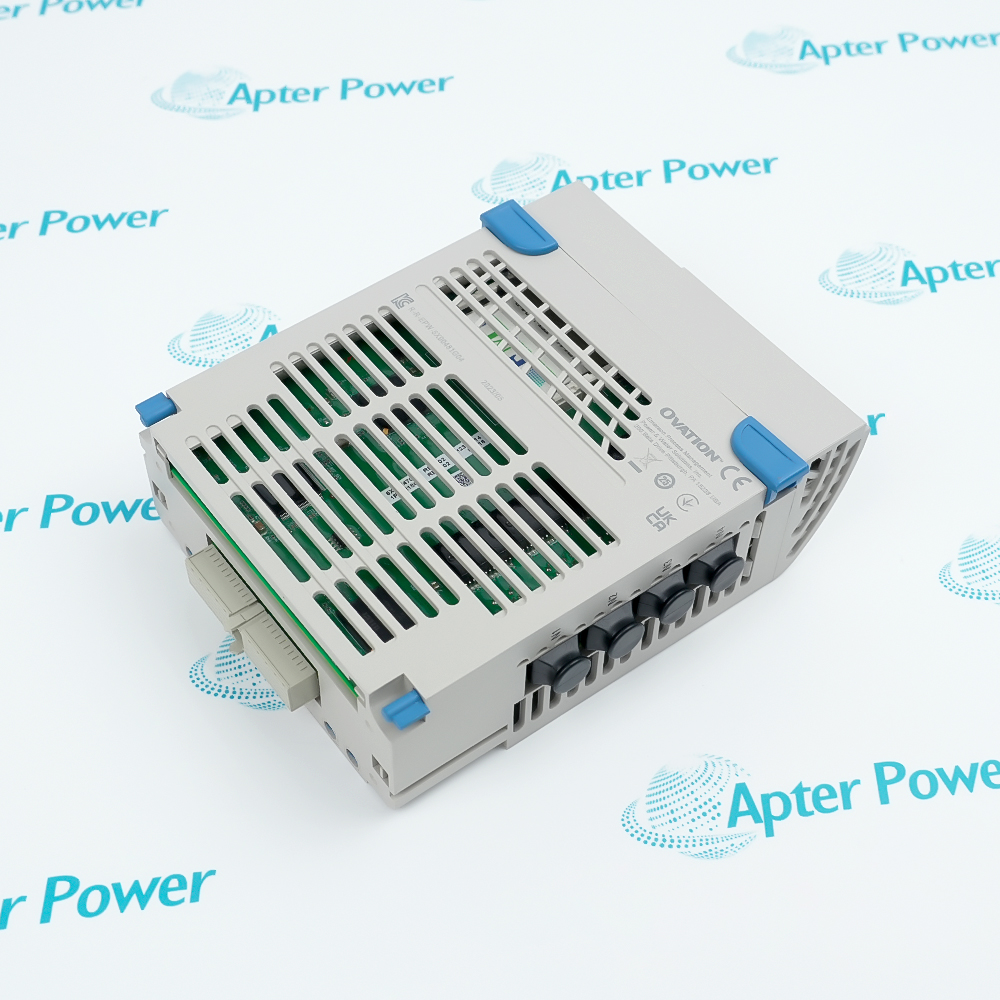

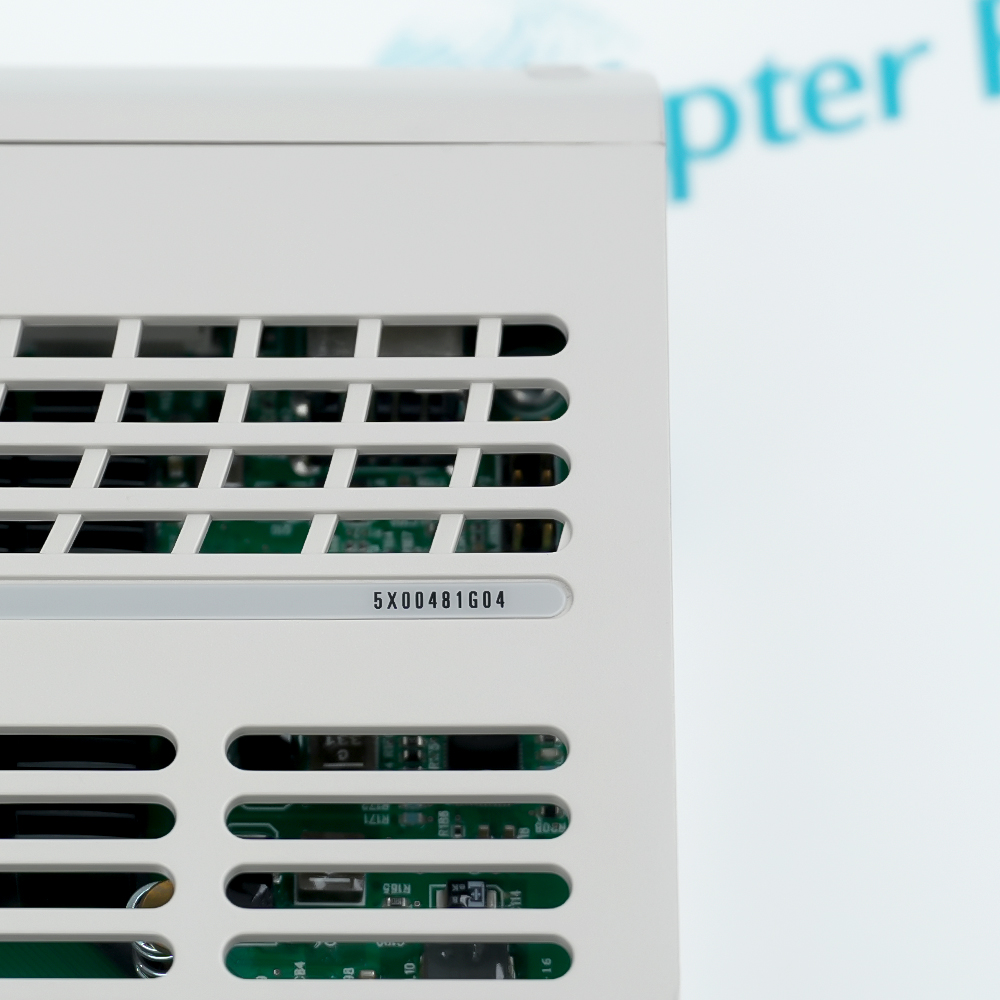

Emerson 5X00481G04
Emerson 5X00481G04
Emerson 5X00481G04
Emerson 5X00481G04
Emerson 5X00481G04
Emerson 5X00481G04
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

DISCONTINUED BY MANUFACTURER
OVATION Controller Model
Interfaces to Ovation and WDPF I/O
1 millisecond resolution
Meets IEC 61131-3 standards
Get a quick price for 5X00481G04
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 5X00481G04

  • Manufacturer:
    Emerson
  • Product Category:
    DCS Systems
  • Spare Part Number:
    5X00481G04
  • Estimated shipping dimensions:
    12.8x5.4x16.5cm
  • Weight:
    0.4 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Bus structure:
    CompactPCI standard CompactPCI
  • Originated points:
    Up to 32,000 points
  • Process control tasks:
    Up to 5 each with a different loop execution rate
  • Processor base frequency:
    1.1 GHz
  • Memory:
    1 Gb Flash & 256 Mb RAM
  • NIC ports:
    4 x 10/100 Mb Ethernet
  • Power:
    24 VDC, 40 W
  • Humidity:
    0–95% RH

Information

Overview Manuals Common Applications Alarm Processing
The 5X00481G04 is a distributed control system is renowned for delivering precision control with outstanding performance. That precision begins with the Ovation controller secure, mission-critical operations such as those of power generation, water and wastewater plants.
    • Bumpless Automatic Failover
    • Integrated Virtual I/O
    • Achilles Level 1 Certified
The OCR1100 model of the Ovation controller series executes simple or complex modulating and sequential control strategies, performs data acquisition functions and interfaces to the Ovation network and various I/O sub-systems. It has the capability to originate up to 32,000 points.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Westinghouse 5X00481G04 OVATION Controller Model Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Power Generation
Used for secure, mission-critical operations such as those of power generation.Supports control functions including continuous (PID) control, sequence control, and data acquisition for plant processes.

 Water Treatment
Applied in water and wastewater plants requiring continuous and reliable control.Performs functions such as process point alarm processing, limit checking, and data acquisition within plant systems.

 Wastewater Systems
Designed for water and wastewater industries with control strategies based on standard and advanced algorithms.Provides sequence-of-events processing and database handling for monitoring process changes.

 Process Industry
Designed to meet the demanding requirements of a wide range of process applications.Executes modulating and sequential control strategies and interfaces with I/O subsystems for process control

 Industrial Automation
Interfaces to Ovation network and various I/O sub-systems, supporting local and remote control structures.Provides data acquisition, logic control, and timing functions within distributed control systems.

 Control Systems
Part of the Ovation distributed control system delivering precision control with outstanding performance.Capable of executing multiple process control tasks with defined loop execution and control scheme processing.
The OCR1100 processes limits and alarms based on each process point’s database definition. These functions are performed regardless of whether the point is scanned for input to a control loop or for data acquisition separate from control functions. The alarm status of each point in the controller is updated with each scan.

Alarm reporting can be delayed on a per-point basis by a user-specified period.The workstation can sort and display alarms based on a user-selected alarm significance level.

FAQ View All FAQ

  • What is the primary function of the WESTINGHOUSE 5X00481G04 in an Ovation system?
    The 5X00481G04 is the Ovation Controller CPU Card that executes modulating and sequential control strategies, performs data acquisition functions, and interfaces to the Ovation network
  • What are the processor and memory specifications for the 5X00481G04 CPU card?
    The card features an Intel-based processor with a 1.1 GHz base frequency, supported by 256 Mb of RAM and 1 Gb of Flash memory for non-volatile storage.
  • How many process points can the 5X00481G04 controller model originate?
    The OCR1100 controller model (5X00481G04) has the capability to originate up to 32,000 points within the Ovation system.
  • How does the 5X00481G04 handle control task execution speeds?
    It can simultaneously execute up to five process control tasks at loop speeds ranging from 10 milliseconds to 30 seconds.
  • What redundancy features are supported by the 5X00481G04 CPU card?
    It provides
