Technical specifications for 330105-XX-XX-10-02-CN MOD:165931-01

  • Manufacturer:
    Bently Nevada
  • Product Category:
    Machinery Monitoring Systems
  • Spare Part Number:
    330105-XX-XX-10-02-CN MOD:165931-01
  • Estimated shipping dimensions:
    1.1x0.9x120cm
  • Weight:
    0.05 kg
  • Tariff Code:
    8537101101
  • Counliy of origin:
    United States
  • Product Type:
    3300 XL 8 mm reverse-mount proximity probe
  • Mounting Thread:
    3/8-24 UNF
  • Standard Public Case Format:
    330105-02-12
  • Requested Case Fields:
    XX-XX - verify nameplate and order drawing
  • Total Probe Length:
    1.0 m (3.3 ft)
  • Connector:
    Miniature ClickLoc coaxial connector
  • Special Code:
    CN - not publicly decoded
  • Modification Reference:
    165931-01 - not publicly decoded
  • Probe Tip Diameter:
    8.0 mm (0.31 in)
  • System Linear Range:
    2.0 mm (80 mil)
  • System Scale Factor:
    7.87 V/mm (200 mV/mil); tolerance depends on 1 m, 5 m, or 9 m system
  • Recommended Radial Gap:
    Approximately 1.27 mm (50 mil), -9 Vdc
  • Frequency Response:
    0 to 10 kHz, +0/-3 dB
  • Probe Tip Material:
    Polyphenylene sulfide (PPS)
  • Probe Case Material:
    AISI 303 or 304 stainless steel
  • Standard Probe Cable:
    75 ohm triaxial FEP-insulated cable
  • Probe Temperature:
    -52 C to +177 C (-62 F to +350 F)
  • Minimum Cable Bend Radius:
    25.4 mm (1.0 in)
  • Minimum Flat Target:
    15.2 mm (0.6 in) diameter
  • Weight:
    Exact weight cannot be confirmed because the model contains XX placeholders and MOD 165931-01. Verify the physical nameplate and the current Bently Nevada modification drawing before shipping.
  • Dimensions:
    Exact dimensions cannot be confirmed because the model contains XX placeholders and MOD 165931-01. Verify the physical nameplate and the current Bently Nevada modification drawing before mounting.

Information

Overview Manuals Common Applications Product Precautions

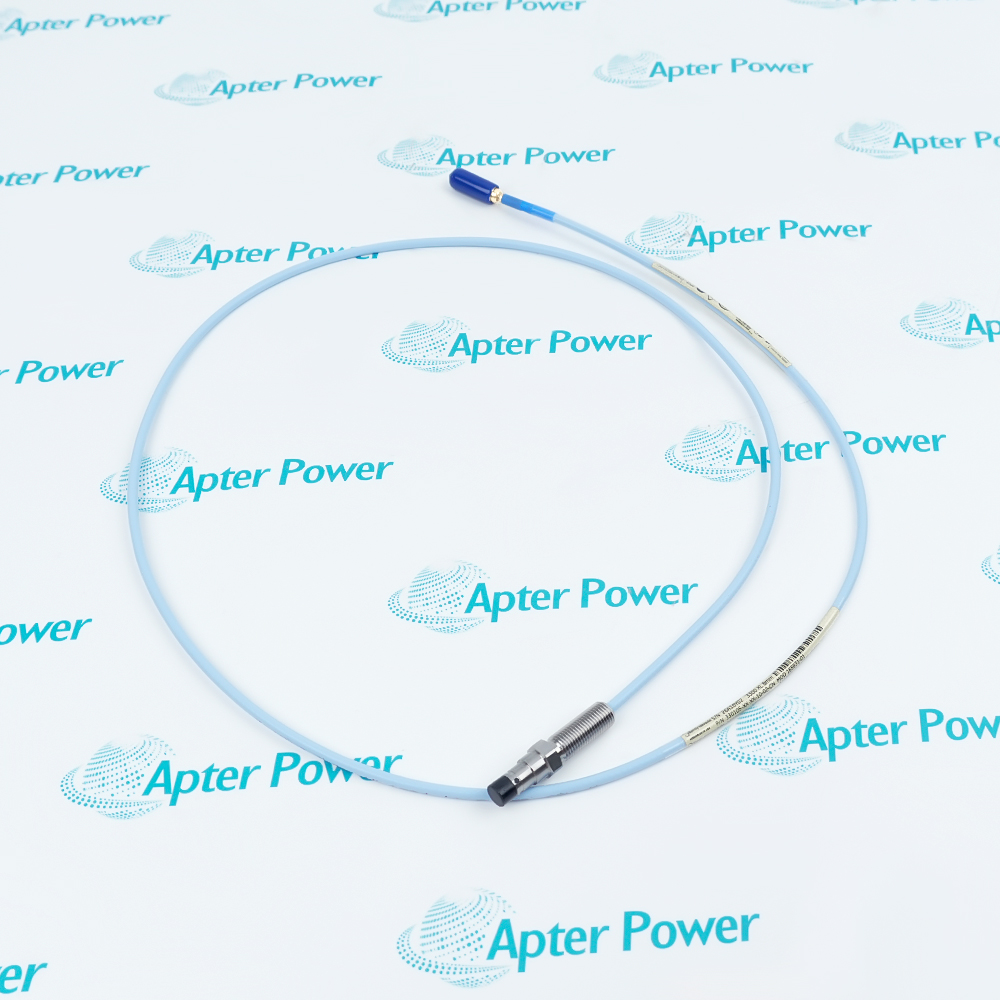

The 330105-XX-XX-10-02-CN MOD:165931-01 is identified as a Bently Nevada 3300 XL 8 mm reverse-mount proximity probe with 3/8-24 UNF threads, a 1.0 m total probe length, and a miniature ClickLoc coaxial connector. The current public standard ordering table fixes the 330105 case fields as 02-12; it does not decode XX-XX, CN, or modification 165931-01.
  • 3300 XL 8 mm reverse-mount proximity probe
  • 3/8-24 UNF
  • 330105-02-12
  • XX-XX - verify nameplate and order drawing

With a correctly matched 330130 extension cable and 3300 XL Proximitor Sensor, the probe senses distance to a conductive shaft or target and supports vibration, position, Keyphasor, and speed measurements. The special modification and country code must be confirmed from the physical nameplate and manufacturer order file before compatibility decisions. For dependable measurement, follow official system-matching, target, mounting, wiring, environmental, and approval instructions.

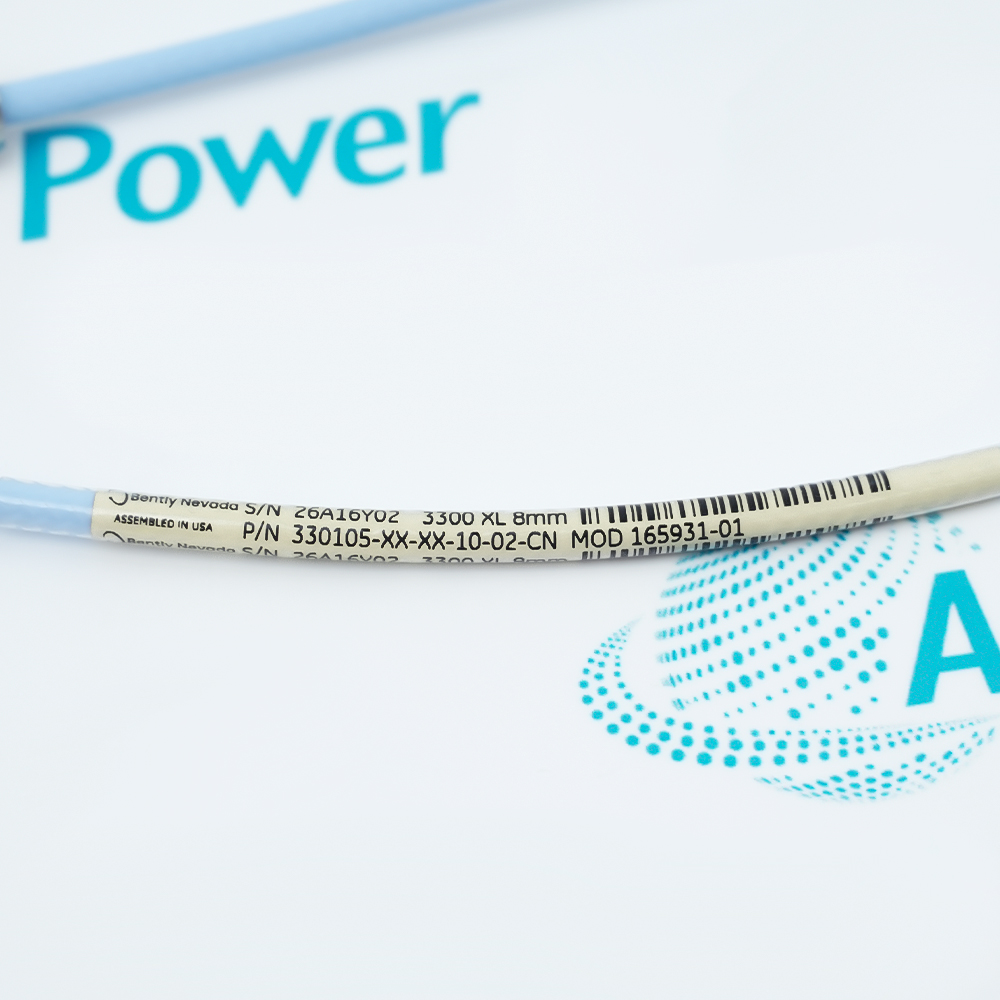

Important Notice: XX-XX, CN, and MOD:165931-01 are not publicly decoded. The nameplate and manufacturer modification drawing are mandatory for dimensional, approval, and compatibility verification.

Apter Power 330105-XX-XX-10-02-CN MOD:165931-01 Product Manual

Important Notice: This Apter Power manual is prepared from the manufacturer source identified on the product page. Confirm the physical nameplate, current original-manufacturer documents, and applicable certification before installation or replacement.

Fluid-Film-Bearing Machinery
Provides shaft vibration and position measurements at reverse-mount 3/8-24 UNF locations on rotating machinery.
Radial Shaft Vibration
Measures dynamic shaft motion relative to the probe mounting point.
Static Shaft Position
Measures the static distance between the probe tip and a conductive shaft or target.
Axial or Thrust Position
Supports axial displacement measurement when the target and mounting geometry meet official requirements.
Keyphasor Reference
Supports phase-reference measurement with the correct target geometry and monitoring input.
Speed Measurement
Supports rotational-speed measurement when the matched system and monitoring channel meet manufacturer requirements.
Read and follow Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM and the applicable installation instructions before use. Verify the exact ordering code from the physical nameplate.
1
Obtain the manufacturer drawing or order record for modification 165931-01 before dimensional substitution.
2
Do not replace XX-XX with standard 02-12 dimensions without nameplate and drawing confirmation.
3
Match the 1.0 m probe lead to the correct extension cable and Proximitor Sensor electrical length.
4
Maintain the 25.4 mm minimum bend radius and follow reverse-mount torque instructions.
5
Verify the CN code, approvals, barriers, and safe-use drawing from current manufacturer documents.

Alternative Names

330105 XX XX 10 02 CN MOD 165931 01 330105 special reverse mount probe 330105 MOD 165931-01

Technical notes

XX-XX, CN, and MOD:165931-01 are not publicly decoded. The nameplate and manufacturer modification drawing are mandatory for dimensional, approval, and compatibility verification.

FAQ View All FAQ

  • What is 330105-XX-XX-10-02-CN MOD:165931-01?
    It is identified as a special 3300 XL 8 mm 3/8-24 UNF reverse-mount probe with a 1.0 m lead and ClickLoc connector.
  • What does 330105 specify?
    The official datasheet defines 330105 as the 3/8-24 UNF reverse-mount 3300 XL 8 mm probe family.
  • What does XX-XX mean?
    The current public ordering table does not decode XX-XX; standard 330105 probes use fixed 02-12 fields, so the special drawing must be checked.
  • What does MOD:165931-01 change?
    The technical modification is not described in the public datasheet and must be confirmed from the manufacturer order file or drawing.
  • Which system length can use the 1.0 m probe?
    Subject to modification verification, a 4.0 m extension cable forms a 5 m system and an 8.0 m cable forms a 9 m system.
  • Which signals can the complete system measure?
    It supports shaft vibration, static or axial position, Keyphasor reference, and speed measurements.
  • Is the CN code an approval?
    The public ordering table does not define CN for this standard family; use the exact nameplate and current certificate.
  • What must be supplied for replacement verification?
    Provide clear nameplate photos and the manufacturer drawing or order document for modification 165931-01.
