Technical specifications for 330101-00-20-90-02-05

  • Manufacturer:
    Bently Nevada
  • Product Category:
    Machinery Monitoring Systems
  • Spare Part Number:
    330101-00-20-90-02-05
  • Estimated shipping dimensions:
    19x19x3cm
  • Weight:
    0.35 kg
  • Tariff Code:
    8537101101
  • Counliy of origin:
    United States
  • Product Type:
    3300 XL 8 mm unarmored proximity probe
  • Mounting Thread:
    3/8-24 UNF
  • Armor:
    None
  • Unthreaded Length:
    0.0 in
  • Overall Case Length:
    2.0 in
  • Total Probe Length:
    9.0 m (29.5 ft)
  • Connector and Cable:
    ClickLoc without protector; standard cable
  • Approval Option:
    05 - CSA, ATEX, IECEx
  • Probe Tip Diameter:
    8.0 mm (0.31 in)
  • System Linear Range:
    2.0 mm (80 mil)
  • System Scale Factor:
    7.87 V/mm (200 mV/mil); tolerance depends on 1 m, 5 m, or 9 m system
  • Recommended Radial Gap:
    Approximately 1.27 mm (50 mil), -9 Vdc
  • Frequency Response:
    0 to 10 kHz, +0/-3 dB
  • Probe Tip Material:
    Polyphenylene sulfide (PPS)
  • Probe Case Material:
    AISI 303 or 304 stainless steel
  • Standard Probe Cable:
    75 ohm triaxial FEP-insulated cable
  • Probe Temperature:
    -52 C to +177 C (-62 F to +350 F)
  • Minimum Cable Bend Radius:
    25.4 mm (1.0 in)
  • Minimum Flat Target:
    15.2 mm (0.6 in) diameter
  • Weight:
    Exact configured probe weight is not published in the reviewed Bently Nevada 3300 XL 8 mm official datasheet. Verify the physical unit before shipping.
  • Dimensions:
    Complete dimensions depend on the exact probe case, unthreaded length, and total lead-length options; use this complete ordering code with the official 3300 XL 8 mm probe drawing.

Information

Overview Manuals Common Applications Product Precautions

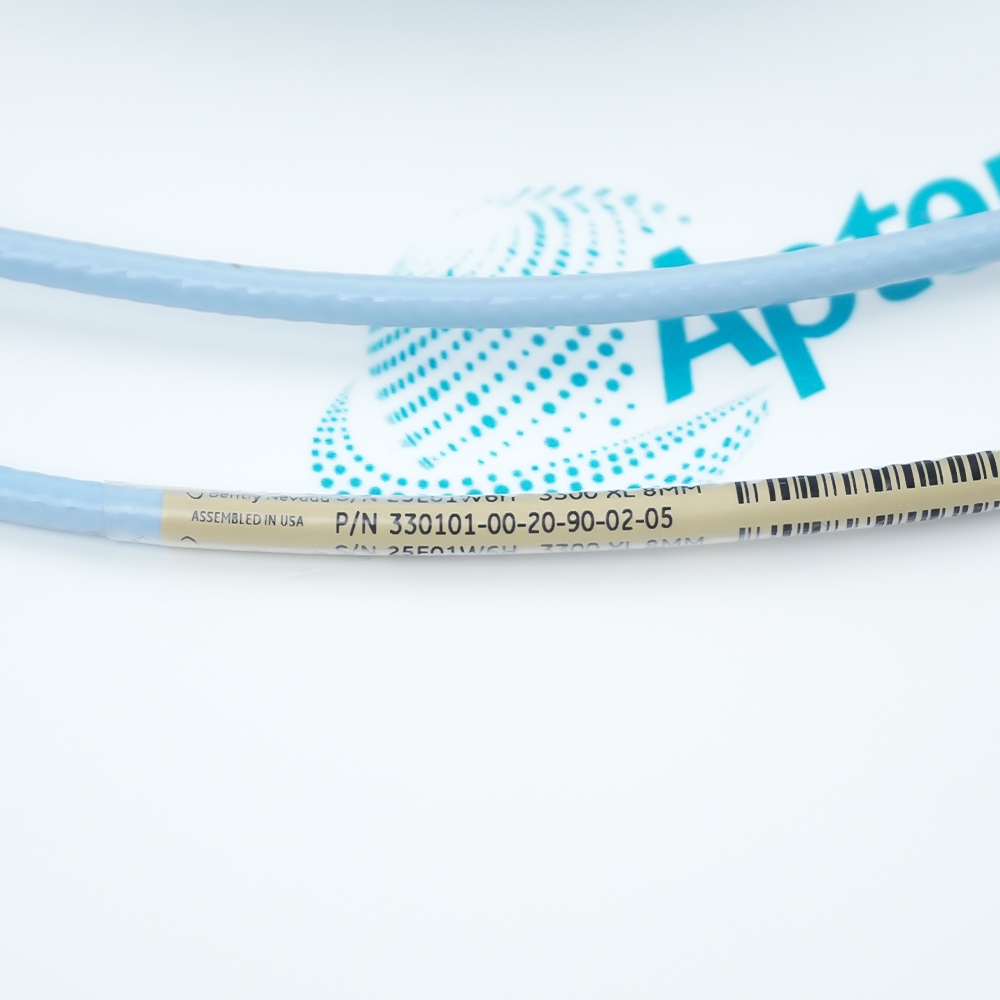

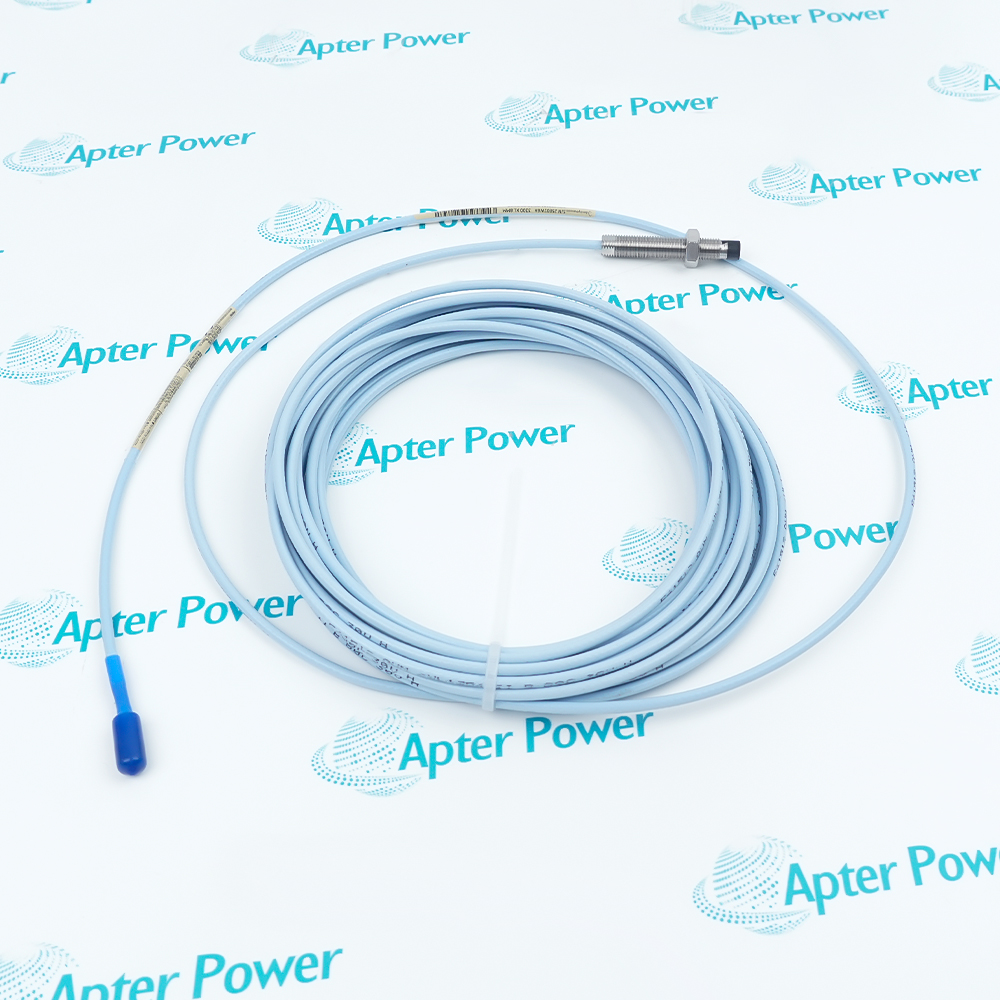

The 330101-00-20-90-02-05 is a Bently Nevada 3300 XL 8 mm non-contacting eddy-current probe with a 3/8-24 UNF threaded case, no armor, 0.0 in unthreaded length, 2.0 in overall case length, 9.0 m (29.5 ft) standard cable, a miniature ClickLoc connector without a protector, and the CSA, ATEX, and IECEx approvals option.
  • 3300 XL 8 mm unarmored proximity probe
  • 3/8-24 UNF
  • None
  • 0.0 in

With a correctly matched 330130 extension cable and 3300 XL Proximitor Sensor, it converts probe-to-target distance into a proportional voltage for shaft vibration, shaft position, Keyphasor, and speed measurement on fluid-film-bearing machinery. For dependable measurement, follow official system-matching, target, mounting, wiring, environmental, and approval instructions.

Important Notice: The probe length plus extension-cable length must equal the selected Proximitor Sensor system length. Verify the nameplate and current approval documents before use.

Apter Power 330101-00-20-90-02-05 Product Manual

Important Notice: This Apter Power manual is prepared from the manufacturer source identified on the product page. Confirm the physical nameplate, current original-manufacturer documents, and applicable certification before installation or replacement.

Fluid-Film-Bearing Machinery
Provides shaft vibration and position measurements at 3/8-24 UNF locations on rotating machinery.
Radial Shaft Vibration
Measures dynamic shaft motion relative to the probe mounting point.
Static Shaft Position
Measures the static distance between the probe tip and a conductive shaft or target.
Axial or Thrust Position
Supports axial displacement measurement when the target and mounting geometry meet official requirements.
Keyphasor Reference
Supports phase-reference measurement with the correct target geometry and monitoring input.
Speed Measurement
Supports rotational-speed measurement when the matched system and monitoring channel meet manufacturer requirements.
Read and follow Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM and the applicable installation instructions before use. Verify the exact ordering code from the physical nameplate.
1
Use no extension cable; connect the 9.0 m probe directly to a 9.0 m 3300 xl proximitor sensor.
2
Maintain the published 25.4 mm minimum cable bend radius and protect the unarmored lead.
3
Verify case insertion depth, side-view clearance, target size, and shaft diameter before mounting.
4
Set the final gap using the complete matched system and the actual target material.
5
Confirm the 05 approval marking and applicable installation drawing before hazardous-area use.

Alternative Names

330101 00 20 90 02 05 330101 0.0 in unthreaded probe 330101 9.0 m (29.5 ft) standard-cable probe

Technical notes

The probe length plus extension-cable length must equal the selected Proximitor Sensor system length. Verify the nameplate and current approval documents before use.

FAQ View All FAQ

  • What is the Bently Nevada 330101-00-20-90-02-05?
    It is an unarmored 3/8-24 UNF 3300 XL 8 mm proximity probe with a 2.0 in case and 9.0 m (29.5 ft) standard cable.
  • How is 330101-00-20-90-02-05 configured?
    The ordering code specifies 0.0 in unthreaded length, 2.0 in case length, 9.0 m (29.5 ft) probe length, standard cable without a connector protector, and approval option 05.
  • Which extension cable matches this probe?
    No extension cable; connect the 9.0 m probe directly to a 9.0 m 3300 XL Proximitor Sensor.
  • What does the complete system measure?
    It supports radial vibration, static or axial position, Keyphasor reference, and speed measurements.
  • Does option 02 include a connector protector?
    No. Option 02 is a miniature ClickLoc connector on standard cable without a protector.
  • What are the published system range and scale factor?
    The matched 3300 XL 8 mm system has a 2.0 mm range and nominal 7.87 V/mm scale factor under the manufacturer conditions.
  • Which installation limits matter?
    System length, bend radius, mounting geometry, target size, shaft diameter, final gap, and approval drawings all require verification.
  • What does final suffix 05 mean?
    It selects CSA, ATEX, and IECEx approvals; the physical marking and current certificate remain controlling.
