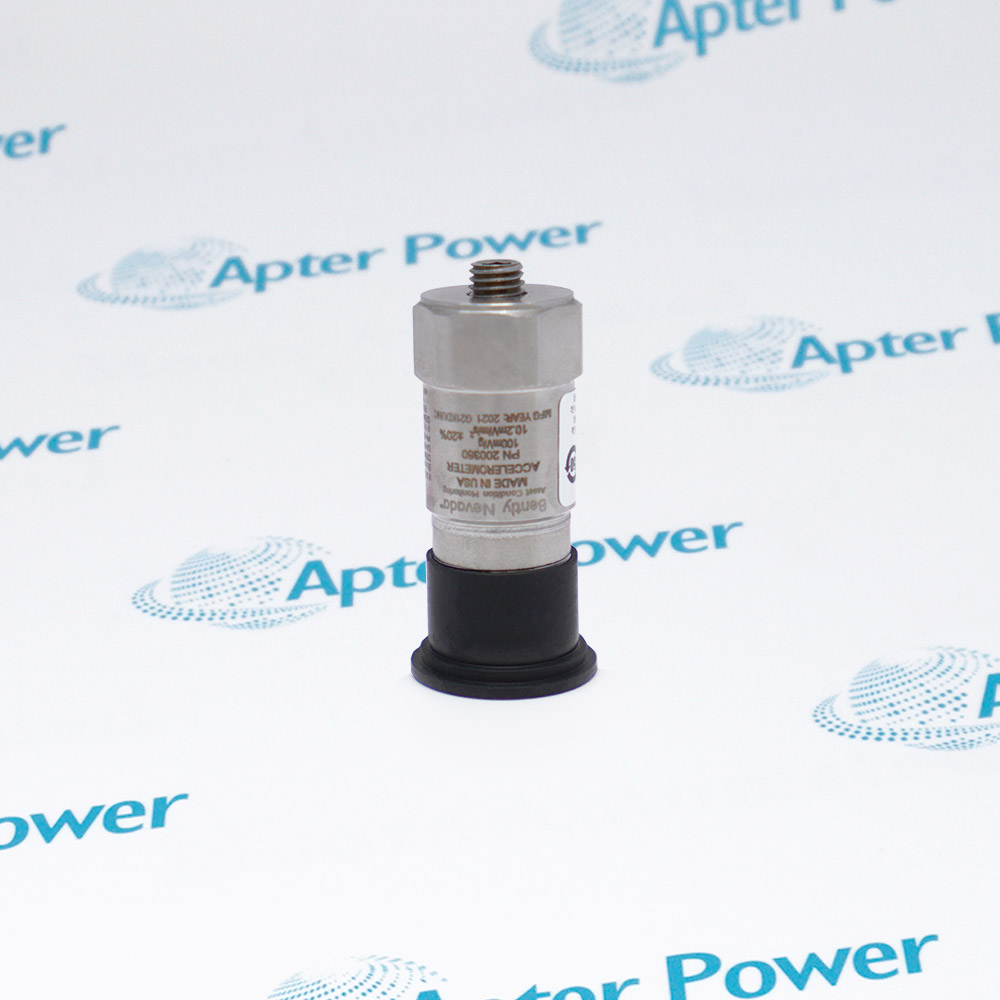

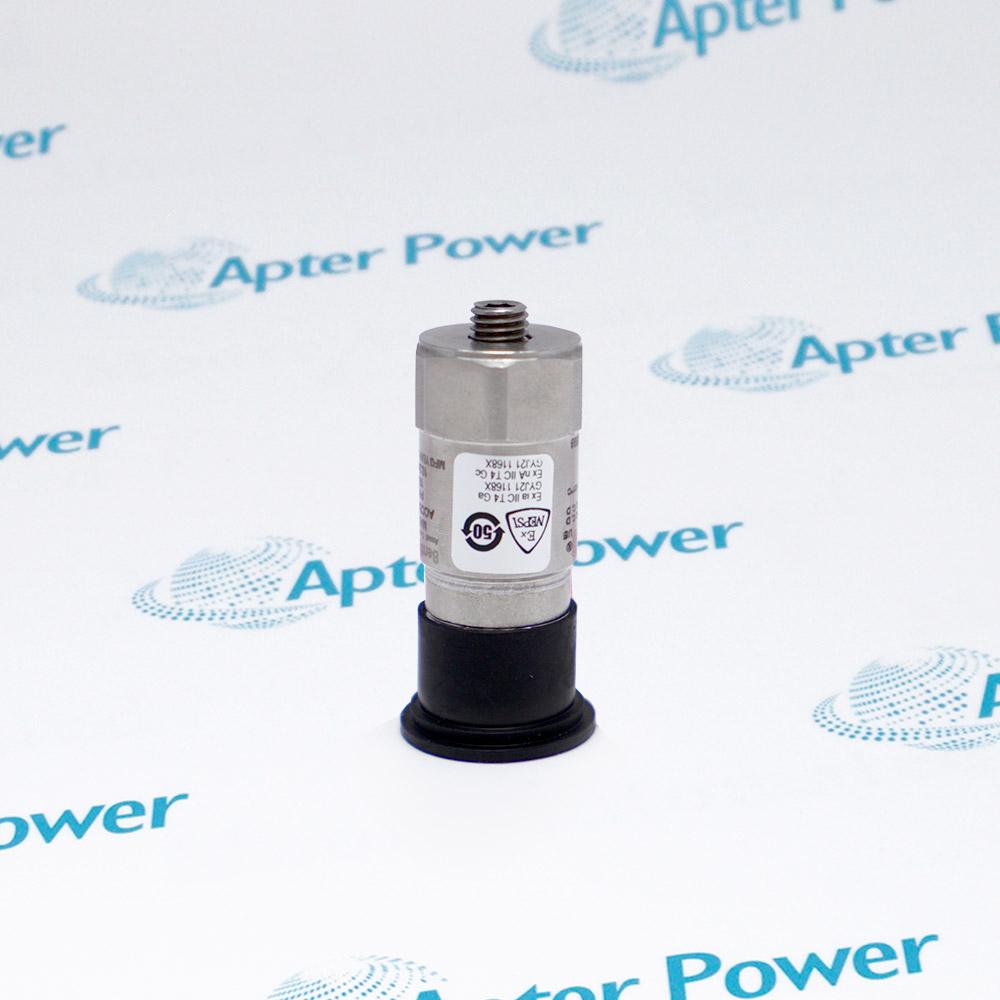

Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Describe:
Bently Nevada 200350-02-00-CN is a 200350-series case-mounted accelerometer with the documented 02 M8 x 1.25 mounting-stud option and 00 nominal 100 mV/g sensitivity tolerance. The final CN suffix is not decoded in the available 164804 ordering table; verify the physical nameplate and approval marking before specifying the complete variant.
Bently Nevada 200350-02-00-CN is a case-mounted piezoelectric accelerometer in the 200350 family. The 02 stud and 00 sensitivity options are decoded from the ordering table; CN requires separate order-record verification.
200350 machinery-casing accelerometer
02 mounting: 1/4-28 to M8 x 1.25 stainless-steel stud
00 sensitivity: 100 mV/g, ±20%
Frequency response: 0.5–10 kHz, ±3 dB
The sensor uses 18–28 V DC constant-current excitation at 2–20 mA and a top two-pin MIL-C-5015 connector. Match the stud, cable and monitor configuration to the installed design.
Important Notice: CN is retained in the exact model but is not decoded as an approval or interchangeability claim.
The first PDF records verified sensor and ordering data; the second provides separate mounting, wiring and controlled-acceptance checks.
Machinery casing vibrationThe 200350 sensor measures vibration at its documented casing mounting point.
Existing M8 mounting pointOption 02 uses the 1/4-28 to M8 x 1.25 stud when the installed mounting surface is approved.
Constant-current monitoring channelConnect to a monitor configured for 18–28 V DC, 2–20 mA excitation and 100 mV/g nominal sensitivity.
Controlled sensor replacementRetain the exact marking, cable arrangement and baseline channel response before acceptance.
Read the applicable 200350 accelerometer and host-monitor instructions before work. Verify the complete 200350-02-00-CN nameplate and installed configuration.
1
Verify the full 200350-02-00-CN marking, mount and order record.
2
Place the machine and vibration-monitoring channel in the approved maintenance state.
3
Record the existing cable, two-pin connector, orientation and baseline response.
4
Make wiring safe and identify conductors before removing the sensor.
5
Inspect the 1/4-28 to M8 x 1.25 stud and mounting surface.
6
Restore the matched cable and 18–28 V DC, 2–20 mA excitation.
7
Check the 100 mV/g channel setting, bias and diagnostics.
8
Functionally verify the vibration channel and record acceptance.
Technical notes
200350-02-00-CN should be checked against the physical nameplate before replacement: the 200350 series is a positive-excitation, case-mounted accelerometer, 02 identifies the M8 x 1.25 stainless-steel stud, and 00 identifies the 100 mV/g ±20% sensitivity option. The available 164804 ordering table does not decode CN; do not infer an approval, regional execution or interchangeability from that suffix. Match mounting torque, cable connector, current source and monitoring-card input to the recorded installation.
Which mounting stud is specified by 02 in 200350-02-00-CN?
The 02 option identifies a 1/4-28 to M8 x 1.25 stainless-steel mounting stud for the 200350 accelerometer.
What sensitivity tolerance is represented by 00 in 200350-02-00-CN?
For the 200350 family, 00 denotes 100 mV/g nominal sensitivity with a ±20% tolerance.
Can 200350-02-00-CN be powered from a negative excitation supply?
No. The 200350 sensor requires positive 18 to 28 VDC constant-current excitation of 2 to 20 mA; negative excitation is not specified for it.
Where should the 200350-02-00-CN sensor be mounted to measure machine vibration?
Mount the accelerometer on an approved bearing housing or machine casing position; a poor mounting location can distort the measured response.
What cable connector mates with 200350-02-00-CN?
The 200350 body uses a top-mounted 2-pin MIL-C-5015 connector. Match the cable assembly and wiring to the installed monitor.
Does the CN suffix on 200350-02-00-CN establish an approval rating?
The available 164804 ordering table lists 00 and 01 approval options but does not decode CN. Verify the complete physical marking and certificate before using a hazardous-area approval claim.
What frequency range applies to the 200350 family used by 200350-02-00-CN?
The 200350 accelerometer family has a 0.5 to 10,000 Hz frequency range at ±3 dB under its documented conditions.
