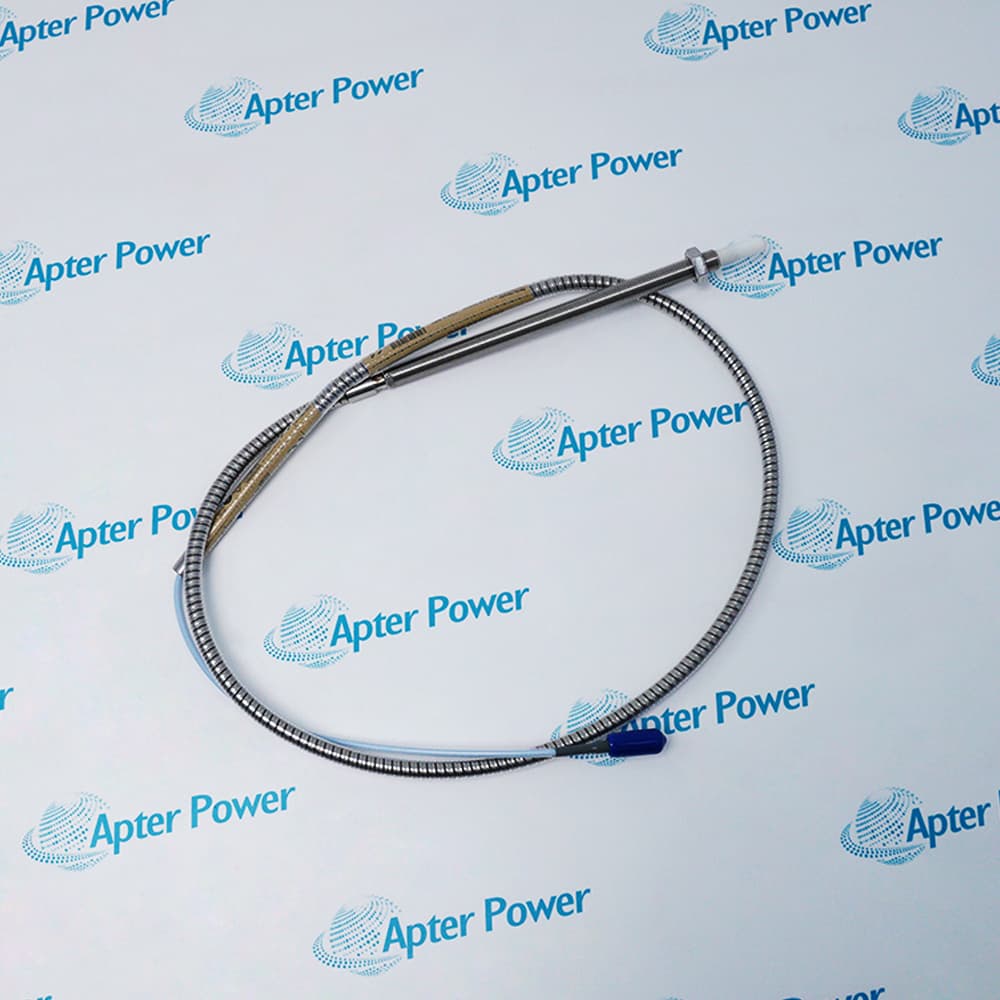

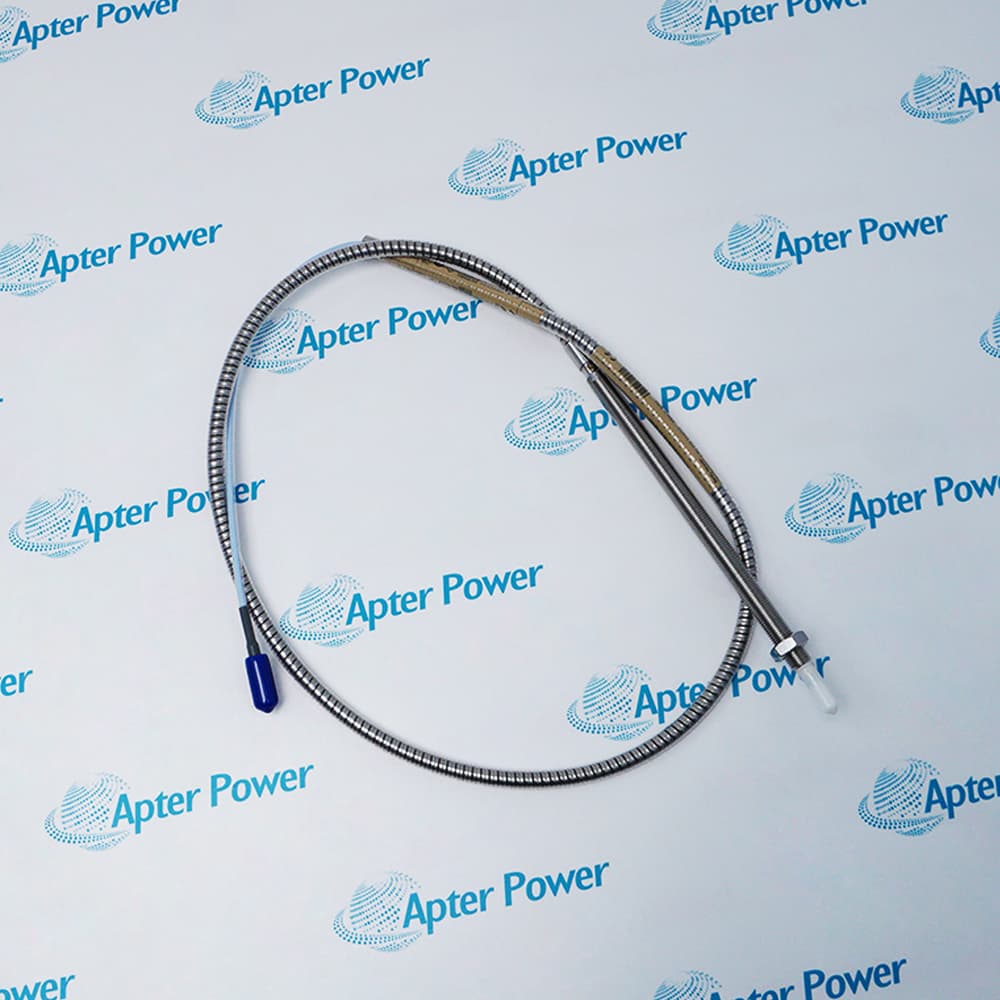

The 330909-00-60-10-02-05 is a passive non-contact eddy current proximity probe serving as the primary sensing element within a 3300 XL NSv transducer system. This specific hardware configuration features a 3/8-24 UNF threaded stainless steel case with an unthreaded length of 0.0 inches and an overall case length of 6.0 inches. The probe is built with an integral coaxial cable of a fixed 1.0-meter total length terminated with a miniature coaxial connector, and it carries multi-agency approvals for hazardous area deployment.
Axial (thrust) position measurements
Phase reference (Keyphasor signals)
Tachometer and zero speed measurements
Operating based on eddy current principles, the 330909 probe interacts with a companion 3300 XL NSv Proximitor Sensor to deliver an Average Scale Factor of 7.87 V/mm (200 mV/mil) across a 1.5 mm (60 mils) linear range when targeting metallic surfaces. Its narrow side-view characteristics reduce spatial clearance requirements while providing vibration and position measurements on small targets. For operational circuit completion and signal transmission to industrial monitoring modules like the 3500 series, this standalone probe component requires connection to a compatible 3300 XL NSv extension cable and Proximitor sensor .
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330909-00-60-10-02-05 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil and Gas Extraction Industry
Monitors small-target rotating shaft displacement in high-pressure multistage water injection pumps and oil-gas separation auxiliary machinery on offshore drilling platforms.
Petrochemical and Refining Industry
Serves as non-contact displacement signal extraction hardware on small centrifugal high-pressure pumps and high-speed agitators.
Thermal Power Generation Industry
Monitors the axial position of small and medium auxiliary rotating machinery in generator units, such as feedwater pumps and motorized valve drive mechanisms.
Hydroelectric Power Generation Industry
Measures the static absolute displacement of extremely small displacement targets, such as hydro-turbine high-pressure oil units and governing slide valves.
Mining and Mineral Processing Industry
Monitors axial mechanical displacement at large feeder variable-frequency drive main shafts and hydraulic crusher micro control valves.
Semiconductor and Microelectronics Manufacturing Industry
Monitors micron-level air bearing displacement on ultra-high-speed chemical mechanical planarization (CMP) equipment and precision wafer dicing spindles.
When physically installing the 330909-00-60-10-02-05 eddy current proximity probe, technicians must utilize its narrow side-view characteristics to strictly verify the side clearance against metal cross-interference and secure the stainless steel case using the officially recommended torque.
Because this specific configuration has an overall case thread length of 6.0 inches with 0.0 unthreaded length, the blind hole depth must be verified prior to insertion to prevent probe tip damage from incomplete seating.
During operation, the integral 1.0-meter unarmored coaxial cable and miniature connector must never be subjected to severe pulling, sharp bends must comply with minimum bend radius limits, and the entire measurement loop must maintain precise impedance and calibration matching with a compatible 3300 XL NSv extension cable and Proximitor to preserve 7.87 V/mm signal accuracy and validate its -05 Ex certification for hazardous areas.
Bently Nevada 330909-00-60-10-02-05 passive non-contact eddy current probe for 3300 XL NSv systems. Features a 3/8-24 UNF thread with 6.0-inch case length and 1.0-meter unarmored cable with miniature connector. Provides a 7.87 V/mm scale factor across a 1.5 mm linear range with multi-agency Ex certification for hazardous area deployment.
It is a 3300 NSv proximity eddy current probe manufactured by Bently Nevada. It is primarily used for non-contact measurement of micro-vibration or displacement inside the bearings of rotating machinery.
How does the 330909-00-60-10-02-05 operate?
The probe generates a high-frequency electromagnetic field through its tip coil. When a metallic shaft approaches, eddy currents are induced, altering the probe's impedance, which is then converted into precise gap distance and vibration signals.
How to properly install and use products like 330909-00-60-10-02-05?
Screw it into the 3/8-24 UNF threaded hole on the machine bearing housing. Monitor the initial gap voltage output from the proximitor (typically adjusted to around -10V) using a multimeter, then secure it with a locknut once the ideal physical gap is reached.
Why does the cable of 330909-00-60-10-02-05 have a metal armor?
The stainless steel armor provides high tensile strength and abrasion resistance, preventing the cable from being mechanically cut, scratched, or corroded by oils in harsh factory environments.
Can it be connected directly to a 3500 monitoring system?
No. The probe must first connect to a matching 3300 XL NSv Proximitor Sensor via a coaxial extension cable. The proximitor then sends the signal to the Bently Nevada 3500 rack.
