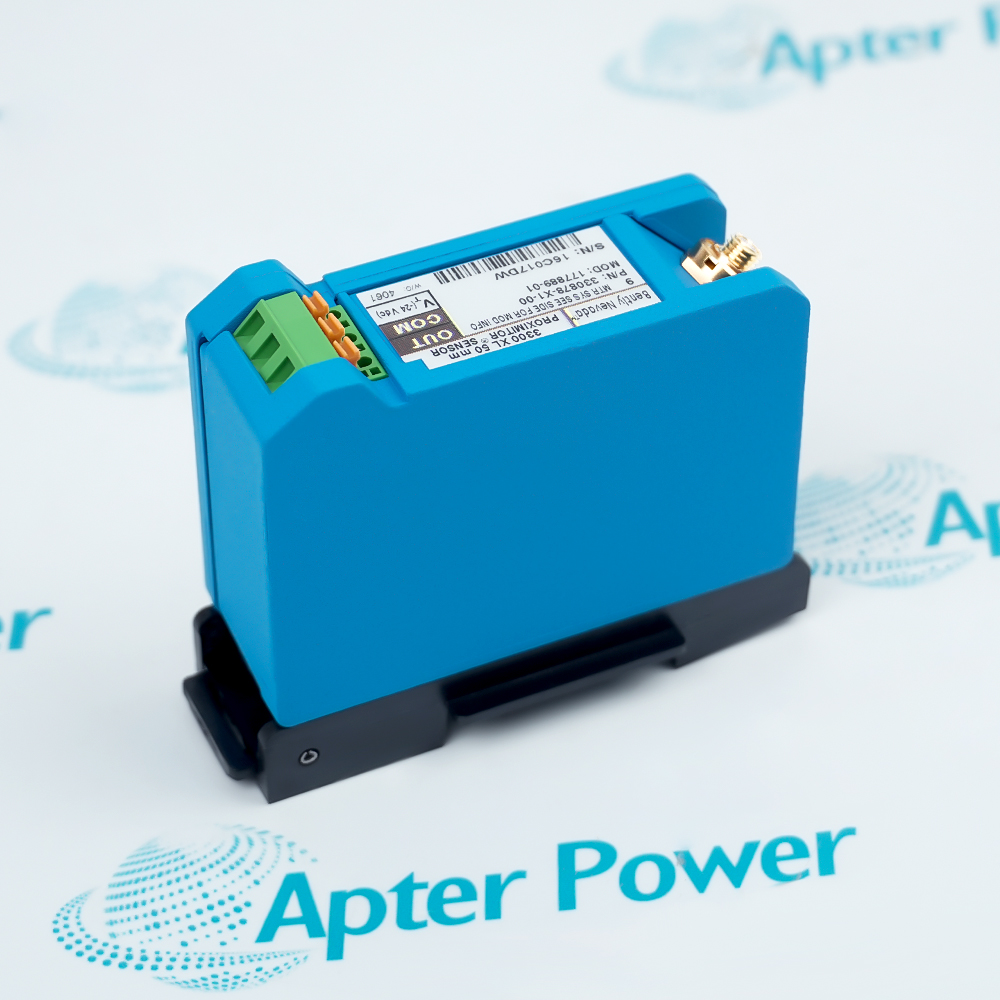

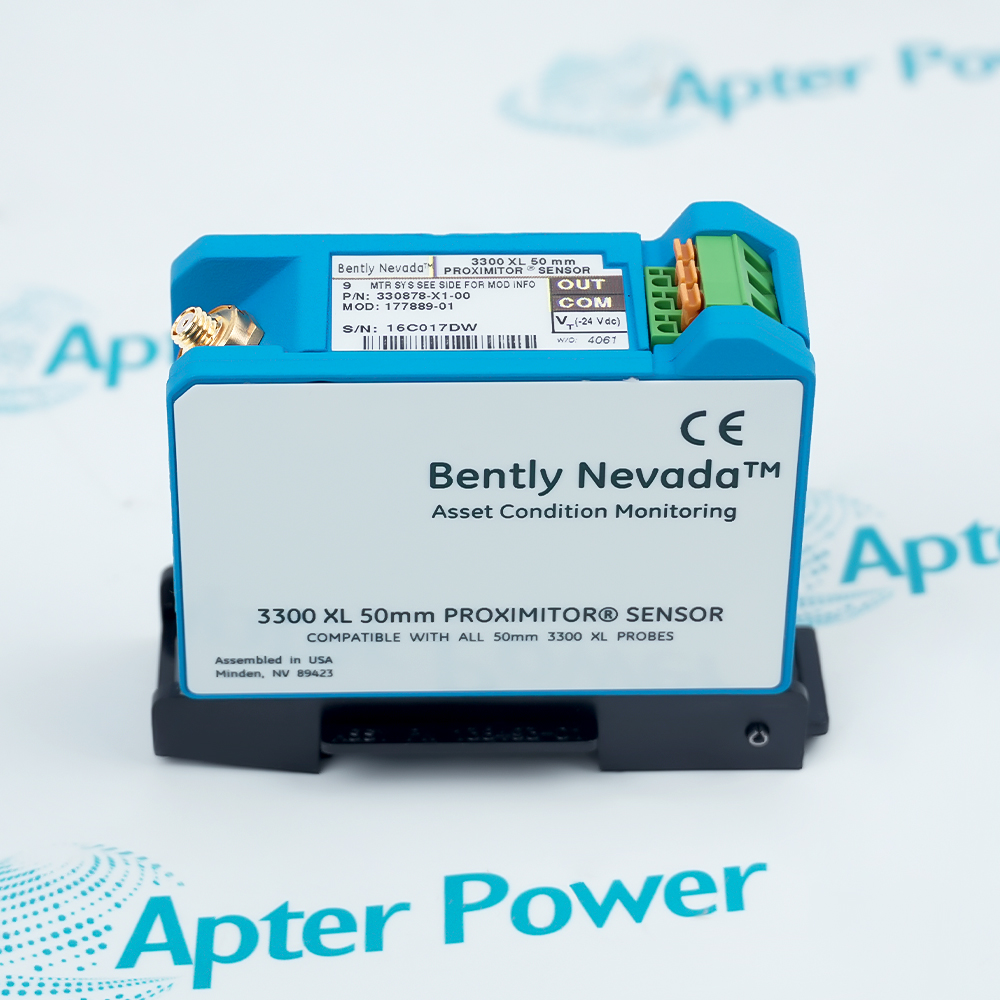

      Bently Nevada 330878-X1-00-MOD-177889-01
      Bently Nevada 330878-X1-00-MOD-177889-01
      Bently Nevada 330878-X1-00-MOD-177889-01
      Bently Nevada 330878-X1-00-MOD-177889-01
      Bently Nevada 330878-X1-00-MOD-177889-01
      Bently Nevada 330878-X1-00-MOD-177889-01
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330878-X1-00-MOD-177889-01

      Modified 3300 XL 50 mm Proximitor Sensor
      In Stock
      Ships by Wednesday, October 7
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330878-X1-00-MOD-177889-01 is a modification-controlled 3300 XL 50 mm Proximitor Sensor. The complete nameplate and factory modification record define its exact X1/MOD configuration.

      Ask our team:

      Get a quick price for： 330878-X1-00-MOD-177889-01
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330878-X1-00-MOD-177889-01

      Technical specifications for 330878-X1-00-MOD-177889-01

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330878-X1-00-MOD-177889-01
      • Estimated shipping dimensions:
        8.8x3.5x7cm
      • Weight:
        0.2 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Base product family:
        330878 3300 XL 50 mm Proximitor Sensor
      • Special execution:
        X1 / MOD 177889-01 - verify nameplate and factory record
      • Approval position:
        00
      • Accepted input:
        One 3300 XL 50 mm probe and extension cable
      • Nominal linear range:
        27.9 mm
      • Range interval:
        Approximately 1.3 to 29.2 mm from target
      • Average scale factor:
        394 mV/mm nominal
      • Supply without barriers:
        -17.5 to -26 Vdc, 12 mA maximum
      • Supply with barriers:
        -23 to -26 Vdc
      • Output resistance:
        50 ohm
      • Field wiring:
        16 to 24 AWG three-conductor shielded triad recommended
      • Minimum flat target:
        102 mm diameter
      • Factory target:
        AISI 4140 steel
      • System lengths in standard family:
        5 m or 9 m
      • Minimum bend radius:
        25.4 mm
      • Connector torque:
        Finger tight; 0.565 N m maximum
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      330878-X1-00-MOD-177889-01 provides modification-controlled signal conditioning for a matched 3300 XL 50 mm proximity-transducer chain.
      • 3300 XL 50 mm Proximitor family
      • 27.9 mm nominal linear range
      • 394 mV/mm nominal scale factor
      • Special X1 / MOD 177889-01 configuration

      The public family data defines the 330878 measurement performance, while the X1/MOD build remains controlled by the unit nameplate and manufacturer record. Commissioning therefore verifies every component, total length, mounting, calibration and monitor interface without inference.

      Important Notice: Confirm 330878-X1-00-MOD-177889-01 from the actual nameplate and factory modification record; verify total length, mounting, 50 mm probe and cable, target, gap, polarity, shielding, scaling and controlled full-range test evidence before commissioning.

      330878-X1-00-MOD-177889-01 Manuals & Downloads

      These are two different documents: the first consolidates verified technical and system data; the second provides installation checks, commissioning steps and acceptance records.

      Steam-turbine differential expansion
      Measures rotor/casing growth over a long range.
      Large-displacement monitoring
      Provides non-contact position measurement.
      Modification-controlled replacement
      Retains the complete X1/MOD identity.
      Matched 50 mm system service
      Preserves probe, cable, target and Proximitor matching.
      Read the applicable Bently Nevada installation instructions before work. Verify 330878-X1-00-MOD-177889-01, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm the complete 330878-X1-00-MOD-177889-01 nameplate and factory record.
      2
      Place the turbine and monitoring channel in the approved maintenance state.
      3
      Isolate monitor power and record bias, polarity, scaling and alarms.
      4
      Record the actual total system length, mounting and every matched component.
      5
      Protect ClickLoc connections and maintain the 25.4 mm bend radius.
      6
      Restore target geometry, calibration, shielding, grounding and monitor configuration.
      7
      Review live bias and diagnostics after controlled energization.
      8
      Traverse the documented range and record scale, polarity and alarm response before release.

      Technical notes

      Technical notes

      Treat X1 and MOD 177889-01 as a special configuration. Do not decode X1 as a standard 50/51/90/91 option or substitute a standard 330878. Confirm the complete nameplate, factory modification record, total electrical length, mounting, calibration target and monitor scaling.

      FAQS

      • How is the exact 330878-X1-00-MOD-177889-01 execution identified?
        Retain the full 330878-X1-00-MOD-177889-01 identity; X1 is modification-controlled.
      • What documented function does 330878-X1-00-MOD-177889-01 perform?
        It conditions one matched 3300 XL 50 mm probe and extension cable for long-range displacement measurement.
      • Which installed system must be matched before fitting 330878-X1-00-MOD-177889-01?
        Match the actual probe, extension cable, total electrical length, target and monitor channel.
      • Which interfaces must be recorded for 330878-X1-00-MOD-177889-01?
        Record mounting, MOD identity, polarity, shield, bias, scaling and alarms.
      • What handling controls apply to 330878-X1-00-MOD-177889-01?
        Isolate the monitor circuit, protect ClickLoc connectors and maintain bend radius.
      • What must be restored after installing 330878-X1-00-MOD-177889-01?
        Restore the factory MOD-controlled build, target geometry, gap and monitor configuration.
      • What evidence confirms 330878-X1-00-MOD-177889-01 is ready for service?
        Retain live bias, full-range traversal, scale-factor and alarm-test results.
      • Which manufacturer record supports the 330878-X1-00-MOD-177889-01 page?
        Bently Nevada publication 174014 Rev. L supports the 330878 family; the exact X1/MOD execution requires the unit's factory record.
