      330854-080-24-00

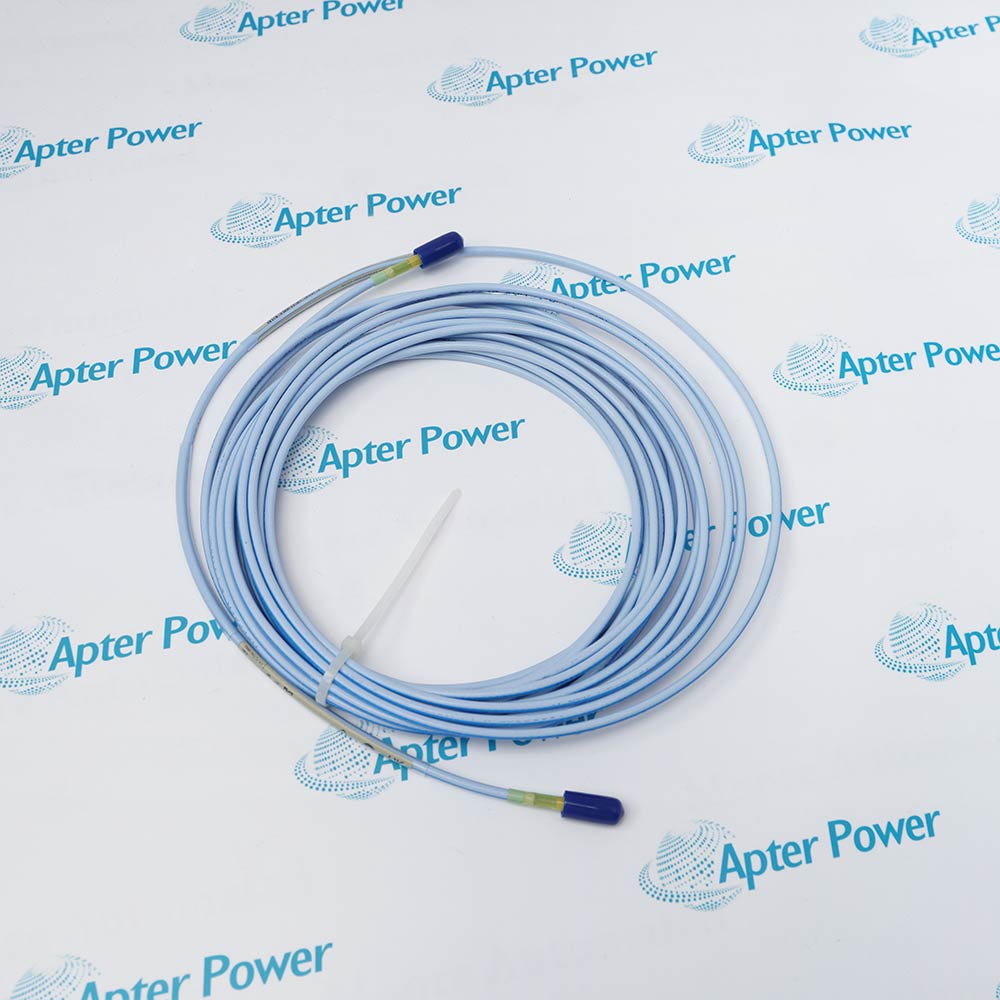

      3300 XL 25 mm High-Temperature FluidLoc Extension Cable
      In Stock
      Ships by Thursday, October 1
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330854-080-24-00 is an 8.0 m high-temperature FluidLoc extension cable for a matched 3300 XL 25 mm proximity transducer system. Its probe and extension-cable lengths must equal the selected Proximitor Sensor system length.

      Ask our team:

      Get a quick price for： 330854-080-24-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for 330854-080-24-00

      Technical specifications for 330854-080-24-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330854-080-24-00
      • Estimated shipping dimensions:
        20x20x2cm
      • Weight:
        0.28 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Extension cable model:
        330854
      • Cable length:
        8.0 m (26.2 ft)
      • Armor and cable option:
        High-temperature FluidLoc cable
      • Armor:
        Without stainless-steel armor
      • Agency approval option:
        No approvals
      • Cable construction:
        75 ohm triaxial PFA-insulated FluidLoc cable
      • Core resistance at 8.0 m:
        2.0 +/- 0.5 ohm
      • Coaxial resistance at 8.0 m:
        0.6 +/- 0.2 ohm
      • Typical capacitance:
        69.9 pF/m (21.3 pF/ft)
      • Connectors:
        Miniature male and female coaxial connectors
      • Matched system lengths:
        5 m or 9 m according to Proximitor Sensor
      • System linear range:
        12.7 mm (500 mil)
      • System average scale factor:
        0.787 V/mm (20 mV/mil)
      • System frequency response:
        0 to 2.7 kHz typical
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330854-080-24-00 is an 8.0 m high-temperature FluidLoc extension cable for a matched 3300 XL 25 mm proximity transducer system. Its probe and extension-cable lengths must equal the selected Proximitor Sensor system length.
      • Exact article identity 330854-080-24-00
      • 3300 XL 25 mm High-Temperature FluidLoc Extension Cable
      • Extension cable model: 330854
      • Cable length: 8.0 m (26.2 ft)
      • Armor and cable option: High-temperature FluidLoc cable

      Install 330854-080-24-00 only in the documented Bently Nevada 3300 XL 25 mm Proximity Transducer System position. Preserve exact mating interfaces and the as-found record, then verify diagnostics and high-temperature probe-to-Proximitor signal connection for extended-range differential-expansion measurement under controlled conditions.

      Important Notice: Confirm the exact 330854-080-24-00 identity, matched host, installed position, interfaces, configuration, diagnostics and controlled acceptance evidence before release.

      Bently Nevada 330854-080-24-00 Manuals & Downloads

      These documents are different: the first consolidates verified product and system data; the second provides installation checks, commissioning steps and acceptance records.

      Machinery-protection planned maintenance
      Restores the documented 3300 XL 25 mm High-Temperature FluidLoc Extension Cable function in the approved monitoring architecture.
      3300 XL 25 mm High-Temperature FluidLoc Extension Cable replacement
      Uses exact 330854-080-24-00 identity instead of an adjacent order-code execution.
      Monitoring-system refurbishment
      Preserves the installed host position, mating interfaces, wiring and approved configuration.
      Controlled recommissioning
      Confirms diagnostics and the affected measurement or communication function before operation.
      Read the applicable Bently Nevada installation instructions before work. Verify 330854-080-24-00, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm the complete 330854-080-24-00 marking, product role and documented installation position.
      2
      Place the machinery protection system and connected process in the approved maintenance state.
      3
      Isolate power and field circuits, prove the safe state and apply ESD controls where required.
      4
      Record every mating component, terminal, connector, shield, cable route and configuration assignment.
      5
      Verify all manufacturer-documented mechanical and electrical values for this exact execution.
      6
      Restore the matched host, interfaces, grounding, shielding and approved configuration.
      7
      Energize under control and review rack, channel or transducer-loop diagnostics.
      8
      Complete a controlled functional test of the documented product function before service release.

      Alternative Names

      Alternative Names

      330854 080 24 00

      Technical notes

      Technical notes

      Install 330854-080-24-00 only in the documented Bently Nevada 3300 XL 25 mm Proximity Transducer System position. Preserve exact mating interfaces and the as-found record, then verify diagnostics and high-temperature probe-to-Proximitor signal connection for extended-range differential-expansion measurement under controlled conditions.

      FAQS

      • How is 330854-080-24-00 identified before installation?
        Match the complete 330854-080-24-00 marking, the 3300 XL 25 mm High-Temperature FluidLoc Extension Cable designation and the documented host position; do not substitute a neighboring suffix.
      • What function is assigned to 330854-080-24-00?
        Bently Nevada documents it for high-temperature probe-to-Proximitor signal connection for extended-range differential-expansion measurement in the matched Bently Nevada 3300 XL 25 mm Proximity Transducer System.
      • What official cable length applies to 330854-080-24-00?
        The manufacturer record specifies 8.0 m (26.2 ft); verify the installed execution before work.
      • Which armor and cable option must be matched for 330854-080-24-00?
        The documented value is High-temperature FluidLoc cable. Preserve the associated mechanical, electrical and system interfaces.
      • How should the armor of 330854-080-24-00 be checked?
        Confirm armor as Without stainless-steel armor and compare it with the as-found installation record.
      • What must be recorded before replacing 330854-080-24-00?
        Record the exact identity, installed position, mating components, wiring or cable route, configuration, active diagnostics and baseline response before disconnection.
      • What connection checks apply to 330854-080-24-00?
        Keep every connector clean and correctly seated, preserve shields and grounding, observe documented torque or bend limits and restore the matched system arrangement.
      • How is 330854-080-24-00 accepted after installation?
        Restore the recorded interfaces and configuration, review diagnostics, then complete a controlled test of high-temperature probe-to-Proximitor signal connection for extended-range differential-expansion measurement before release.
