      Bently Nevada 330750-60-CN
      Bently Nevada 330750-60-CN
      Bently Nevada 330750-60-CN
      Bently Nevada 330750-60-CN
      Bently Nevada 330750-60-CN
      Bently Nevada 330750-60-CN
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330750-60-CN

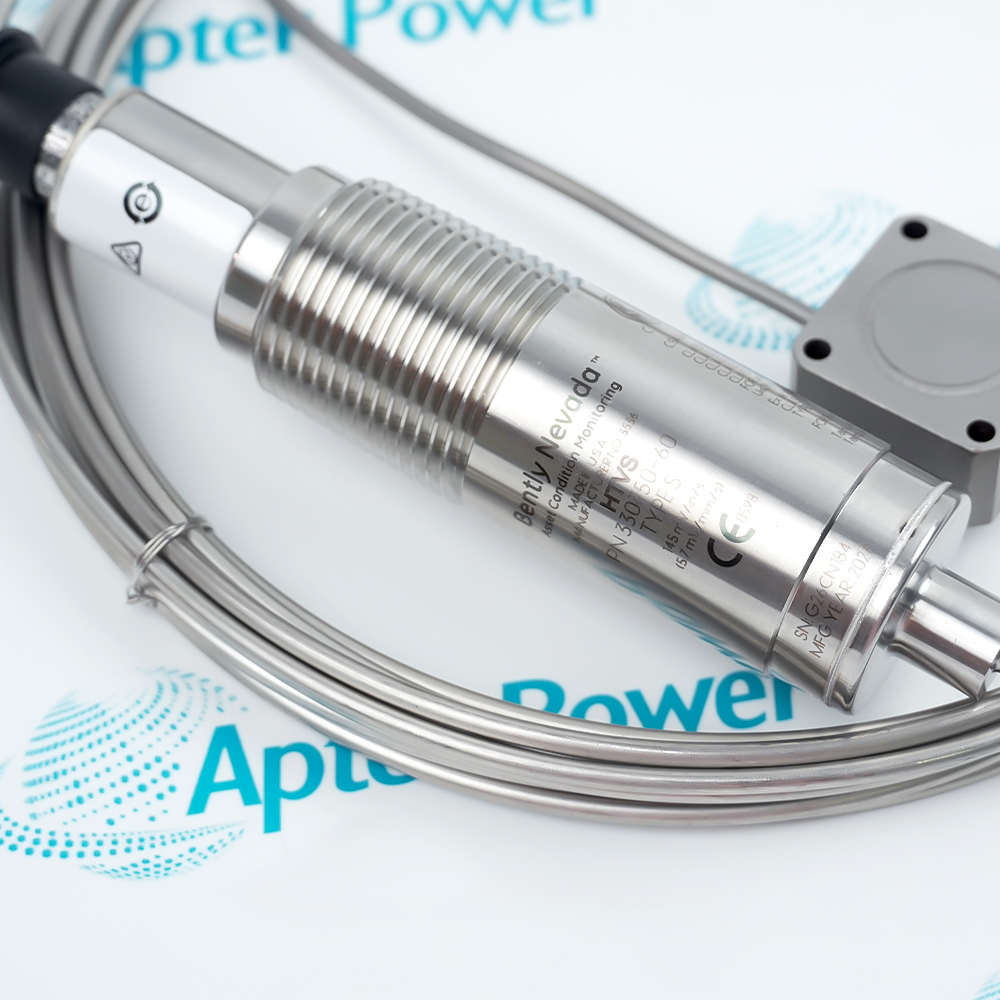

      330750 High Temperature Velomitor System, 6 m
      In Stock
      Ships by Wednesday, October 7
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330750-60-CN identifies a 330750 high-temperature Velomitor system with code 60 for a 6 m integral hardline cable. The CN suffix must be confirmed from the supplied item marking because the current public ordering table lists approval codes 00 and 05.

      Ask our team:

      Get a quick price for： 330750-60-CN
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for 330750-60-CN

      Technical specifications for 330750-60-CN

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330750-60-CN
      • Estimated shipping dimensions:
        22x20x4cm
      • Weight:
        0.7 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Product family:
        330750 High Temperature Velomitor
      • Length code 60:
        6 m integral hardline cable
      • Approval suffix:
        CN - verify supplied marking
      • Mounting form:
        330750 four-hole flange
      • Sensitivity:
        5.7 mV/mm/s (145 mV/in/s), +/-5%
      • Frequency response:
        15-2000 Hz +/-3 dB; 20-1000 Hz +/-0.9 dB
      • Amplitude range:
        635 mm/s peak below 680 Hz
      • Output bias:
        -12 +/-2.0 VDC
      • Grounding:
        Case isolated
      • Maximum cable length:
        305 m with no signal degradation
      • Sensor and cable temperature:
        -55 to +400 C
      • Electronics temperature:
        -55 to +121 C
      • Minimum bend radius:
        51 mm
      • Case:
        300 series stainless steel
      • Connector:
        2-pin Mil-C-5015, 304 stainless shell
      • Typical weight for 6 m:
        953 g
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      330750-60-CN provides a six-metre high-temperature velocity-sensing path for machinery casing vibration where the sensor head and integral cable can face elevated temperature.
      • Uses code 60 for a 6 m integral hardline cable
      • Separates the high-temperature sensing head from cooler electronics
      • Provides nominal 145 mV/in/s velocity sensitivity
      • Uses a four-hole flange associated with the 330750 system

      The sensing element is separated from the signal-conditioning electronics by the integral hardline cable. The exact CN marking, mounting flange, temperature zones, polarity and monitor input must be verified against the supplied item and plant records.

      Important Notice: Confirm 330750-60-CN on the supplied item, the CN approval marking, 330750 flange, 6 m integral cable, sensor/electronics temperature zones, 51 mm bend radius, polarity, grounding, monitor input, bias and controlled vibration-test evidence before commissioning.

      Apter Power 330750-60-CN Manuals and Guides

      The first document is the model-specific technical and system reference. The second is a distinct field workbook for installation, wiring, commissioning and acceptance records.

      Hot casing vibration monitoring
      Measures bearing or machine-casing velocity at elevated sensing-point temperature.
      Steam-turbine casing monitoring
      Supports documented velocity monitoring where the electronics remain in a cooler location.
      Gas-turbine auxiliary monitoring
      Routes the six-metre integral lead away from the hot mounting surface.
      High-temperature spare replacement
      Preserves flange, cable length, polarity and monitor-channel matching.
      Read the applicable Bently Nevada installation instructions before work. Verify 330750-60-CN, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm the complete 330750-60-CN label and supplied approval marking.
      2
      Place the machine and protection channel in the approved maintenance state.
      3
      Isolate the monitor circuit and record bias, polarity, alarm settings and baseline response.
      4
      Confirm the 330750 four-hole flange, 6 m integral cable and electronics location.
      5
      Protect the hardline cable and maintain at least the 51 mm minimum bend radius.
      6
      Use the documented two-conductor shielded cable and compatible monitor input.
      7
      Review live bias and diagnostics after controlled energization.
      8
      Apply a controlled vibration response and verify alarms before release.

      Alternative Names

      Alternative Names

      330750 60 CN; 330750 High Temperature Velomitor

      Technical notes

      Technical notes

      Confirm 330750-60-CN on the supplied label, the 330750 four-hole flange and the 6 m integral cable. Keep the electronics in its cooler permitted environment, maintain the 51 mm minimum bend radius, use the documented two-conductor shielded cable path and verify bias, polarity and velocity response before release.

      FAQS

      • How is the exact 330750-60-CN execution identified?
        Confirm the full label, code 60, CN suffix and four-hole 330750 flange.
      • What documented role does 330750-60-CN perform?
        It provides high-temperature velocity measurement with a separated sensing head and electronics.
      • Which installed host must be matched before fitting 330750-60-CN?
        Match the monitor input, cable path, temperature zones and the documented machine-casing location.
      • Which physical interfaces must be recorded for 330750-60-CN?
        Record the flange, 6 m integral lead, connector, polarity, shield, bias and monitor terminals.
      • What isolation or handling controls apply to 330750-60-CN?
        Isolate the monitor channel, protect the integral cable and maintain the 51 mm bend radius.
      • What must be restored after installing 330750-60-CN?
        Restore polarity, shielding, alarm settings, mounting and the cooler electronics location.
      • What evidence confirms 330750-60-CN is ready for service?
        Retain live bias, controlled vibration response and alarm-test results.
      • Which manufacturer record supports the 330750-60-CN page?
        Bently Nevada publication 141639 Rev. V supports the 330750 system data; CN remains subject to supplied-item marking verification.
