      Bently Nevada 330104-00-04-50-11-00
      Bently Nevada 330104-00-04-50-11-00
      Bently Nevada 330104-00-04-50-11-00
      Bently Nevada 330104-00-04-50-11-00
      Bently Nevada 330104-00-04-50-11-00
      Bently Nevada 330104-00-04-50-11-00
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      330104-00-04-50-11-00

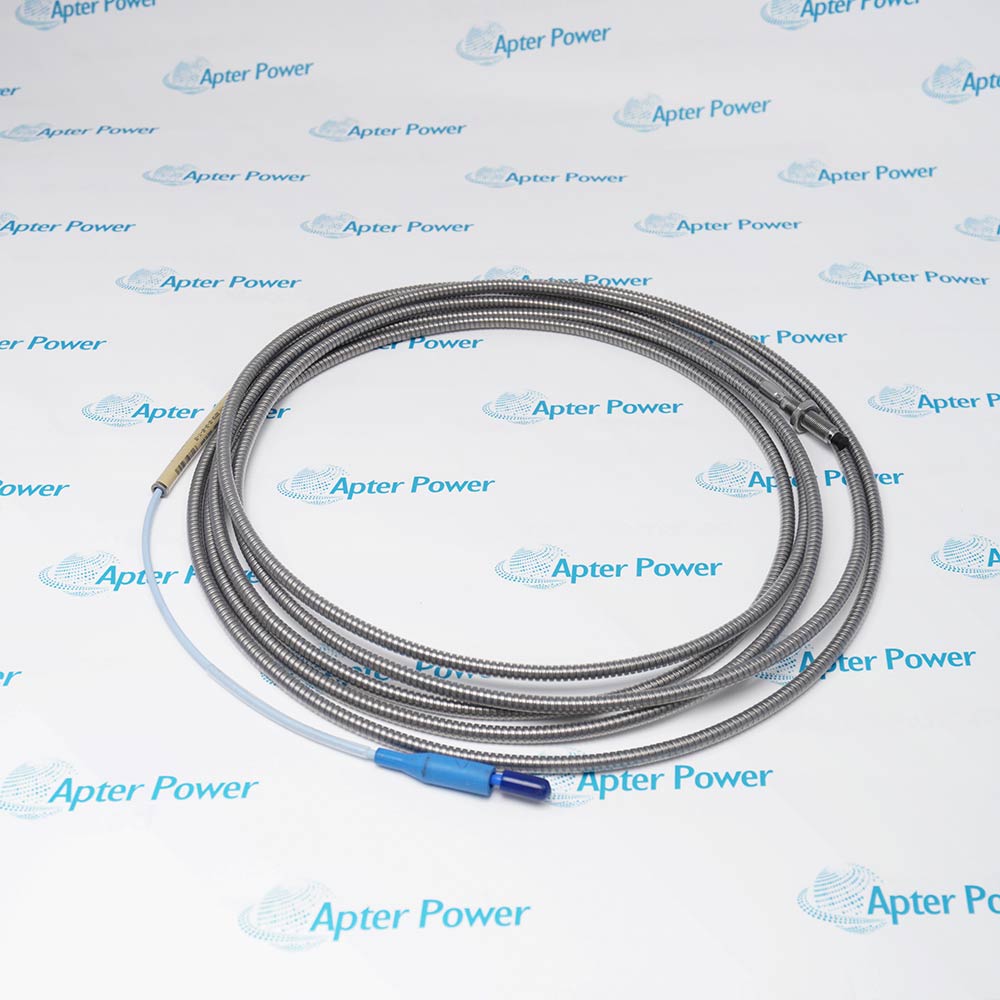

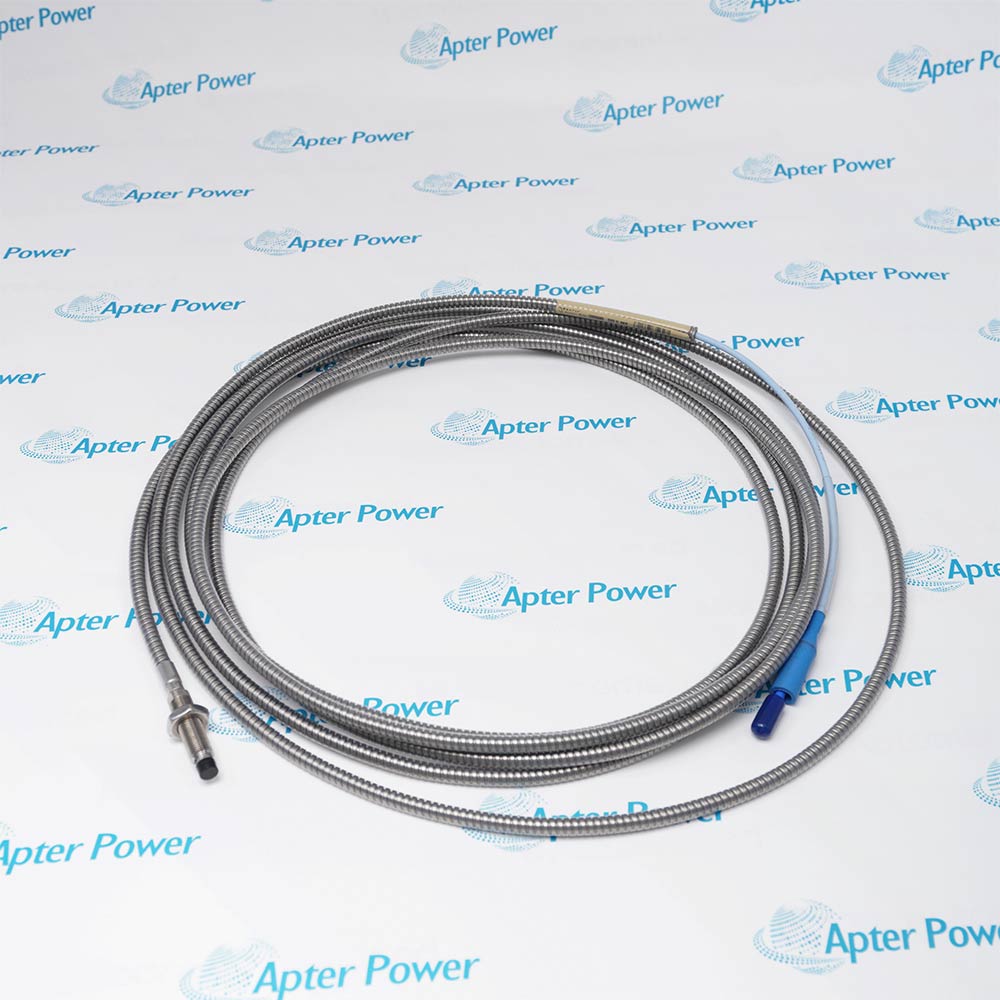

      3300 XL 8 mm Armored Metric FluidLoc Proximity Probe
      In Stock
      Ships by Monday, October 12
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330104-00-04-50-11-00 is an armored metric 3300 XL 8 mm FluidLoc proximity probe. It converts shaft displacement at the probe tip into an eddy-current signal for a matched five-metre 3300 XL 8 mm Proximitor Sensor and machinery-monitoring channel.

      Ask our team:

      Get a quick price for： 330104-00-04-50-11-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330104-00-04-50-11-00

      Technical specifications for 330104-00-04-50-11-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330104-00-04-50-11-00
      • Estimated shipping dimensions:
        33x33x3cm
      • Weight:
        0.58 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe construction:
        With armor
      • Thread:
        M10 x 1
      • Unthreaded length:
        0 mm
      • Case length:
        40 mm
      • Total probe length:
        5.0 m
      • Connector option:
        Miniature coaxial ClickLoc with connector protector
      • Probe-cable type:
        FluidLoc cable
      • Approval option:
        Not required
      • Probe-tip diameter:
        8.0 mm
      • System linear range:
        2.0 mm (80 mils)
      • Approximate linear-range limits:
        0.25 to 2.3 mm
      • Approximate output span:
        -1 to -17 V DC
      • Recommended gap:
        1.27 mm (50 mils)
      • Nominal output at recommended gap:
        -9 V DC
      • Incremental scale factor:
        7.87 V/mm (200 mV/mil)
      • Frequency response:
        0 to 10 kHz, +0/-3 dB
      • Minimum flat-target diameter:
        15.2 mm
      • Minimum shaft diameter:
        50.8 mm
      • Recommended shaft diameter:
        76.2 mm
      • Probe-cable impedance:
        75 ohm
      • Standard probe-cable temperature:
        -52 to +177 degC
      • Proximitor Sensor supply:
        -17.5 to -26 V DC
      • Proximitor Sensor current:
        12 mA maximum
      • Proximitor Sensor output resistance:
        50 ohm
      • Field-wiring conductor range:
        0.2 to 1.5 mm2 (16 to 24 AWG)
      • Maximum field-wiring length:
        305 m
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      3300 XL 8 mm Armored Metric FluidLoc Proximity Probe provides the documented interface for its installed Bently Nevada 3300 XL 8 mm Proximity Transducer System system.
      • Uses the with armor probe construction selected by 330104-00-04-50-11-00
      • Fits the documented M10 x 1 mounting thread
      • Carries the eddy-current signal through the selected fluidloc cable lead
      • Forms the sensing element of a matched 3300 XL 8 mm transducer system

      330104-00-04-50-11-00 senses shaft-to-bearing relative displacement without mechanical contact and passes the probe signal to a matched Proximitor Sensor for machinery-monitoring measurement. The installation uses the manufacturer-specified host position, companion hardware and field/control wiring for the intended industrial application.

      System commissioning includes identity checks, connection verification, controlled energization and functional diagnostics for 330104-00-04-50-11-00.

      Important Notice: Confirm the complete 330104-00-04-50-11-00 marking, approved system arrangement, connection records and controlled functional test before commissioning or replacement.

      Apter Power 330104-00-04-50-11-00 Manuals and Guides
      Apter Power 330104-00-04-50-11-00 Product Technical Reference PDFBently Nevada 330104-00-04-50-11-00 Official Product Datasheet PDF
      The first document organizes model-specific technical identity and engineering data. The second is the directly related Bently Nevada 3300 XL 8 mm manufacturer datasheet used for configuration and installation verification.
      Radial shaft-vibration measurement3300 XL 8 mm Proximitor Sensor supports the engineered 330104-00-04-50-11-00 arrangement.
      Axial position and thrust monitoringMatched 3300 XL extension cable when required supports the engineered 330104-00-04-50-11-00 arrangement.
      Machine shaft centerline observationAISI 4140 steel target or validated equivalent supports the engineered 330104-00-04-50-11-00 arrangement.
      Probe replacement in a matched 3300 XL 8 mm loopCompatible Bently Nevada monitor channel supports the engineered 330104-00-04-50-11-00 arrangement.
      Read the applicable Bently Nevada installation instructions before work. Verify 330104-00-04-50-11-00 and the installed-system configuration.
      1Verify the full 330104-00-04-50-11-00 marking and the 40 mm case length before disturbing the bracket.
      2Place the monitored machine and associated protection channel in the approved maintenance state.
      3Protect the 8 mm PPS probe tip and keep the M10 x 1 thread free from burrs and contamination.
      4Route the 5.0 m fluidloc cable probe lead without sharp bends, crushing or tensile loading.
      5Secure the miniature coaxial clickloc with connector protector connection and keep exposed coaxial interfaces clean and dry.
      6Confirm the installed Proximitor Sensor and total system length match the probe configuration.
      7Set the static gap within the documented linear region before enabling dynamic measurements.
      8Prove polarity, vibration response and alarm action before returning the protection channel to service.

      Technical notes

      Technical notes

      Match 330104-00-04-50-11-00 to a 3300 XL 8 mm Proximitor Sensor and the approved total system length. Set the static gap in the linear region, route the probe lead without tensile loading, and verify polarity and response before enabling protection logic.

      FAQS

      • What type of probe is 330104-00-04-50-11-00?
        330104-00-04-50-11-00 is a 3300 xl 8 mm armored metric fluidloc proximity probe with M10 x 1 mounting and with armor construction.
      • What mechanical configuration is encoded by 330104-00-04-50-11-00?
        The order code specifies 0 mm unthreaded length and 40 mm case length.
      • What probe-lead configuration is supplied with 330104-00-04-50-11-00?
        The order code specifies 5.0 m total probe length, miniature coaxial clickloc with connector protector, and fluidloc cable probe cable.
      • Which transducer system should be paired with 330104-00-04-50-11-00?
        Use a matched Bently Nevada 3300 XL 8 mm Proximitor Sensor and extension cable arrangement for the approved total system length.
      • What signal does 330104-00-04-50-11-00 measure?
        It senses shaft-to-bearing relative displacement using the 3300 XL 8 mm eddy-current proximity transducer principle.
      • How should the static gap be set for 330104-00-04-50-11-00?
        Set the installed probe in the documented linear region; the datasheet gives about 1.27 mm as the recommended gap for the standard 3300 XL 8 mm system.
      • How should the cable and connector of 330104-00-04-50-11-00 be handled?
        Protect the coaxial interface from contamination, avoid sharp bends and tensile loading, and retain the selected connector-protector arrangement.
      • What should be checked after replacing 330104-00-04-50-11-00?
        Verify model, system length, target material, static gap, polarity, dynamic response and the connected monitor channel under controlled conditions.
