      330103-00-12-10-02-00

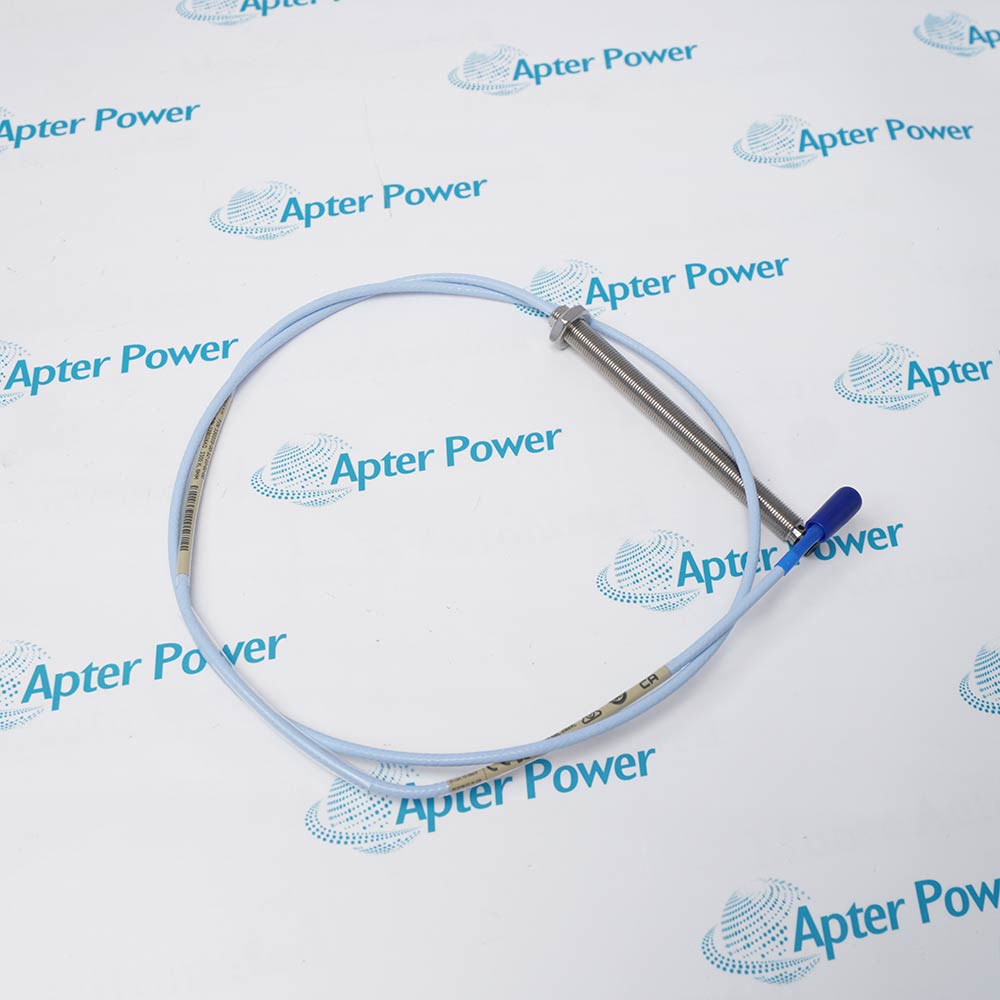

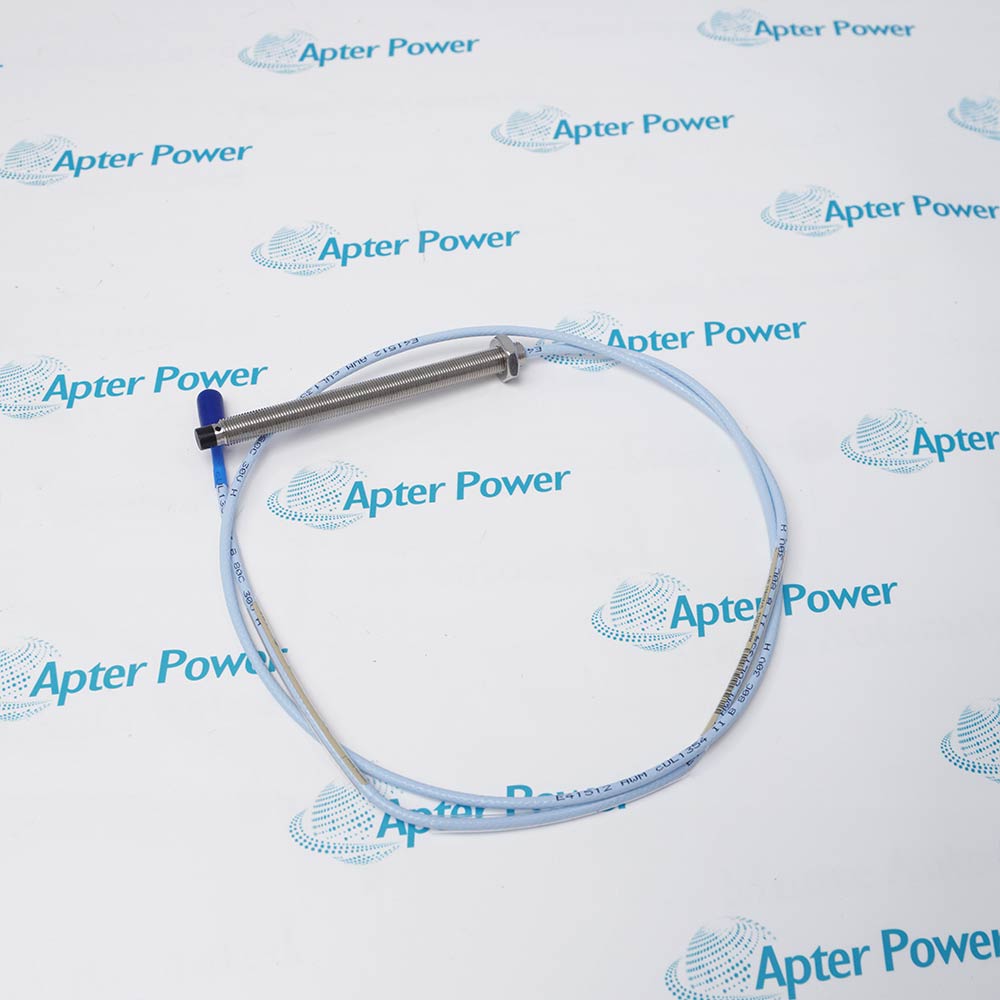

      3300 XL 8 mm Metric Proximity Probe
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Bently Nevada 330103-00-12-10-02-00 is a metric 3300 XL 8 mm eddy-current proximity probe with an M10 x 1 case. It senses shaft displacement for a matched Proximitor Sensor and machinery-monitoring channel.

      Ask our team:

      Get a quick price for： 330103-00-12-10-02-00
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330103-00-12-10-02-00

      Technical specifications for 330103-00-12-10-02-00

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330103-00-12-10-02-00
      • Estimated shipping dimensions:
        1.8x1.6x105cm
      • Weight:
        0.1 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Probe series:
        3300 XL 8 mm
      • Probe body thread:
        M10 x 1
      • Probe armor:
        Without armor
      • Unthreaded length:
        0 mm
      • Overall case length:
        120 mm
      • Total probe length:
        1.0 m
      • Connector:
        Miniature coaxial ClickLoc
      • Connector protector:
        Not included
      • Cable type:
        Standard 75 Ohm triaxial
      • Cable insulation:
        FEP
      • Agency approval option:
        Not required
      • Probe tip material:
        Polyphenylene sulfide (PPS)
      • Probe case material:
        AISI 303 or 304 stainless steel
      • Nominal probe DC resistance:
        7.59 +/- 0.50 Ohm
      • Probe case-to-lead tensile rating:
        330 N maximum
      • Lead-to-extension connector tensile rating:
        270 N maximum
      • Minimum cable bend radius:
        25.4 mm
      • Maximum forward-mount torque:
        33.9 N m
      • Recommended forward-mount torque:
        11.2 N m
      • Standard probe temperature:
        -52 to +177 degC
      • Matched-system linear range:
        2 mm
      • Matched-system incremental scale factor:
        7.87 V/mm nominal
      • Matched-system frequency response:
        0 to 10 kHz, +0/-3 dB
      • Minimum flat target diameter:
        15.2 mm
      • Minimum shaft diameter:
        50.8 mm
      • Recommended shaft diameter:
        76.2 mm
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330103-00-12-10-02-00 is a metric 3300 XL 8 mm eddy-current proximity probe with an M10 x 1 case. It senses shaft displacement for a matched Proximitor Sensor and machinery-monitoring channel.
      • Detects shaft-to-bearing relative position without mechanical contact
      • Forms the sensing element of a matched 3300 XL 8 mm transducer system
      • Carries the eddy-current probe signal through a standard FEP-insulated triaxial lead
      • Extended-reach probe mounting with a 120 mm overall case

      330103-00-12-10-02-00 installs with 3300 XL 8 mm Proximitor Sensor, matched 3300 XL extension cable when required, AISI 4140 steel target, compatible Bently Nevada monitor channel in an engineered 3300 XL 8 mm Proximity Transducer System configuration.

      The commissioning workflow covers installed-hardware matching, controlled start-up and functional verification for this 3300 xl 8 mm metric proximity probe.

      Important Notice: Confirm the complete 330103-00-12-10-02-00 marking, installed-system configuration, field connections and controlled functional test before commissioning or replacement.

      Apter Power 330103-00-12-10-02-00 Manuals and Guides
      Apter Power 330103-00-12-10-02-00 Product Technical Reference PDFBently Nevada 330103-00-12-10-02-00 Official Manual PDF
      The first document is an Apter Power model-specific technical reference. The second supports model-specific installation, configuration and engineering verification.
      Radial shaft-vibration measurementDetects shaft-to-bearing relative position without mechanical contact
      Axial position and thrust monitoringForms the sensing element of a matched 3300 XL 8 mm transducer system
      Machine shaft centerline observationCarries the eddy-current probe signal through a standard FEP-insulated triaxial lead
      Extended-reach probe mounting with a 120 mm overall caseExtended-reach probe mounting with a 120 mm overall case
      Read the applicable Bently Nevada installation instructions before work. Verify 330103-00-12-10-02-00 and the installed 3300 XL 8 mm Proximity Transducer System configuration.
      1Match 330103-00-12-10-02-00 to the drawing that specifies the 120 mm overall case.
      2Measure available insertion depth and prevent the probe tip from contacting the shaft during installation.
      3Limit thread engagement to the approved mounting arrangement and avoid binding the M10 x 1 body.
      4Use the recommended probe-case torque rather than loading the lead or connector.
      5Maintain the 25.4 mm minimum bend radius along the integral 1.0 m cable.
      6Secure the lead against vibration while leaving service access to the ClickLoc connector.
      7Verify static position, scale factor and polarity at the connected monitor channel.
      8Document final insertion depth, gap voltage and controlled alarm-test results.

      Technical notes

      Technical notes

      Confirm that the 120 mm case provides the required insertion depth without excessive thread engagement. Support the 1.0 m lead, establish the operating gap and verify the complete 3300 XL loop before commissioning.

      FAQS

      • Why is the 120 mm case important when replacing 330103-00-12-10-02-00?
        The case length sets the available insertion reach; match the mounting drawing so the probe can be gapped without contacting the shaft.
      • What is the unthreaded length of 330103-00-12-10-02-00?
        Its AA code is 00, corresponding to 0 mm unthreaded length.
      • Which lead and connector arrangement is supplied on 330103-00-12-10-02-00?
        It has a 1.0 m standard FEP-insulated triaxial lead and an unprotected miniature coaxial ClickLoc connector.
      • What torque practice applies to 330103-00-12-10-02-00?
        For a standard forward-mounted probe, the published recommended case torque is 11.2 N m; use the machine-builder procedure where it is more restrictive.
      • How should the long body of 330103-00-12-10-02-00 be secured?
        Use the approved bracket and thread engagement, prevent binding and support the lead so machine vibration does not load the probe body.
      • How is 330103-00-12-10-02-00 checked electrically before start-up?
        Confirm loop continuity, expected probe resistance, Proximitor supply and a stable gap voltage before accepting dynamic data.
      • What target geometry supports published performance for 330103-00-12-10-02-00?
        The published matched-system values use an AISI 4140 steel target with a minimum flat target diameter of 15.2 mm.
      • What records should be retained after installing 330103-00-12-10-02-00?
        Record case insertion, thread engagement, gap voltage, system components, cable routing and final vibration and alarm-test results.
