With more than 30.000 high-quality spare parts, they can be sold immediately. Our large inventory allows us to quickly meet customer needs, thereby reducing downtime and protecting production schedules. Our timely delivery time provides you with security and save money.

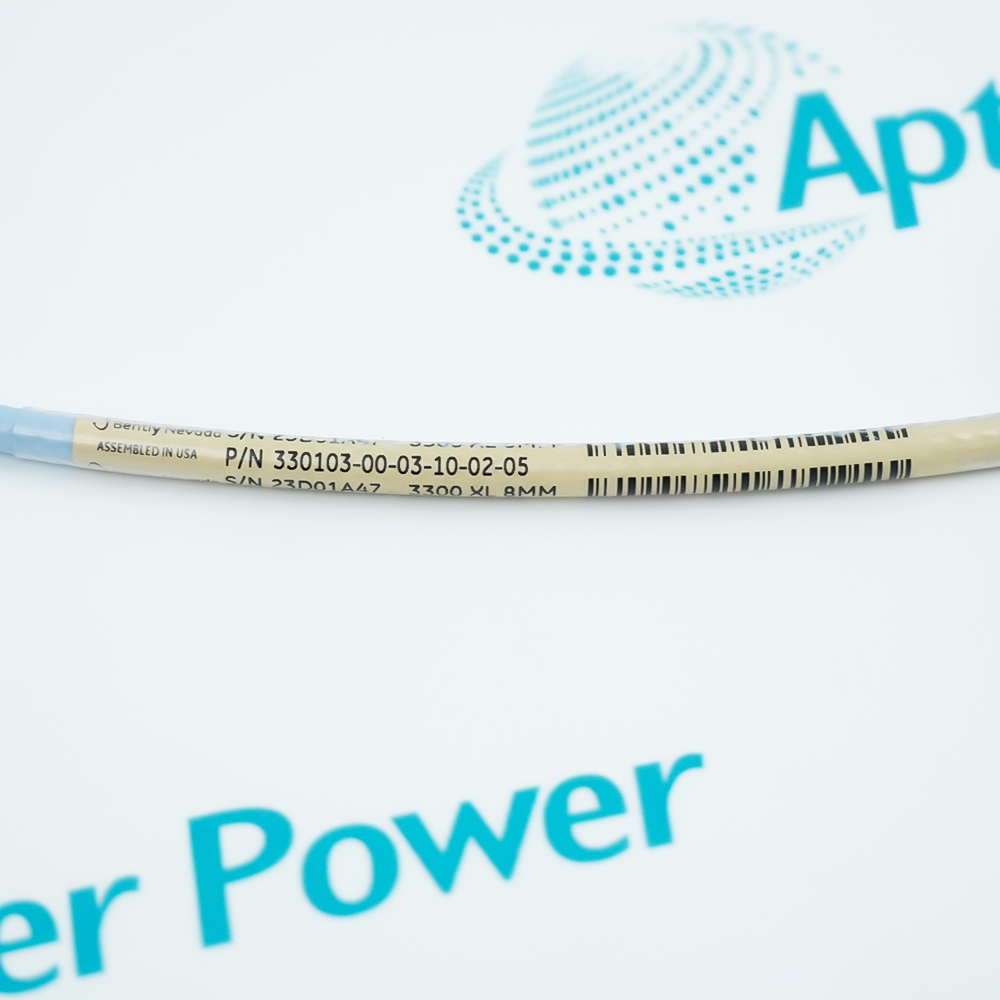

The 330103-00-03-10-02-05 is delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
Complete System Interchangeability
Superior Temperature Stability
Robust Fluid Sealing
All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330103-00-03-10-02-05 3300 XL 8 mm Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power Generation
Used for monitoring vibration and axial position in steam and gas turbines. It provides critical radial and thrust measurements to protect large utility-scale generators from catastrophic mechanical failure.
Oil and Gas
Applied in centrifugal compressors and pumps within refineries and offshore platforms. The system’s high-pressure sealing and fluid resistance ensure reliable operation in harsh hydrocarbon processing environments.
Petrochemical Processing
Implemented in high-speed expansion turbines and agitators. The probe maintains high-accuracy measurements across an extended temperature range, essential for stable performance in volatile chemical reactors.
Water Treatment
Utilized for shaft vibration monitoring in large-scale vertical pumps and cooling tower fans. The robust transducer design resists moisture and corrosive conditions common in municipal and industrial water facilities.
Mining and Cement
Deployed in heavy-duty gearboxes, crushers, and kilns. The 3300 XL system provides superior mechanical robustness, tracking shaft displacement under high-vibration and dust-heavy industrial conditions.
Marine Propulsion
Used to monitor main propulsion shafts and auxiliary engine bearings in commercial and naval vessels. It supports predictive maintenance by detecting early signs of bearing wear or shaft misalignment in maritime environments.
The 3300 XL Proximitor Sensor incorporates numerous improvements over previous designs. Its physical packaging allows you to use it in high-density DIN-rail installations. You can also mount the sensor in a traditional panel mount configuration, where it shares an identical 4-hole mounting “footprint” with older Proximitor Sensor designs. The mounting base for either option provides electrical isolation and eliminates the need for separate isolator plates. The 3300 XL Proximitor Sensor is highly immune to radio frequency interference, allowing you to install it in fiberglass housings without adverse effects from nearby radio frequency signals. The 3300 XL Proximitor Sensor’s improved RFI/EMI immunity satisfies European CE mark approvals without requiring special shielded conduit or metallic housings, resulting in lower installation costs and complexity.
What are the specific configuration parameters for the Bently Nevada 330103-00-03-10-02-05 probe?
This model features a 3/8-24 UNF thread, 0.0 mm unthreaded length, 30 mm overall case length, 0.5 meter total length, and no connector protector or armor.
What is the standard linear range and Scale Factor for the 330103-00-03-10-02-05 system?
The system provides a 2.0 mm (80 mil) linear range with a nominal Average Scale Factor (ASF) of 7.87 V/mm (200 mV/mil) when using 4140 steel target.
What are the temperature limits for the 330103-00-03-10-02-05 probe and cable?
The probe and extension cable have an operating temperature range of -52°C to +177°C (-62°F to +351°F) according to official specifications.
How does the "0.5 meter" total length of 330103-00-03-10-02-05 affect the system installation?
With a 0.5 meter probe length, it must be paired with a 0.5 meter extension cable to achieve the required 1.0 meter total system length for the Proximitor Sensor.
What is the Interchangeability specification for the 330103-00-03-10-02-05 system components?
All 3300 XL 8mm components are fully interchangeable without requiring individual calibration, maintaining system accuracy within the specified error bands.
