      330101-XX-XX-20-02-05 MOD:147773-00-12

      Proximity Probe
      In Stock
      Ships by Wednesday, October 7
      Fast Shipping Available

      Product Describe：

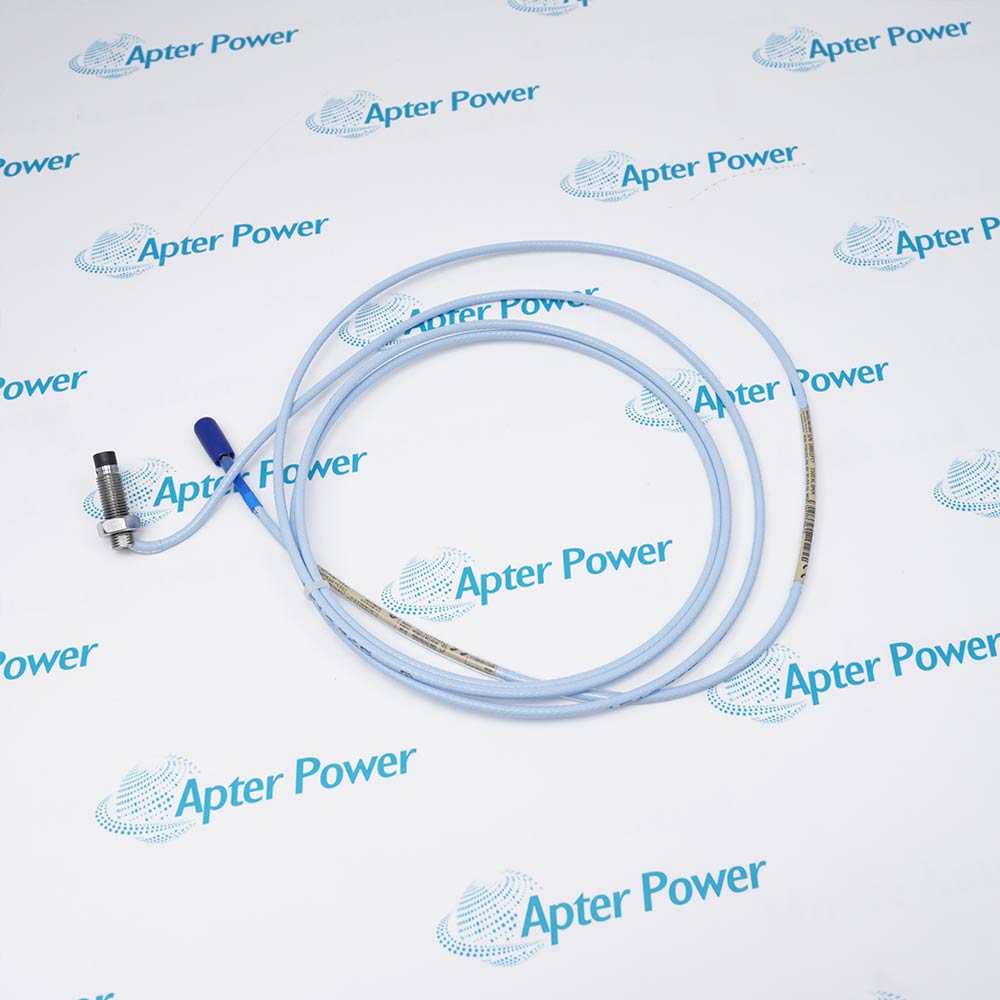

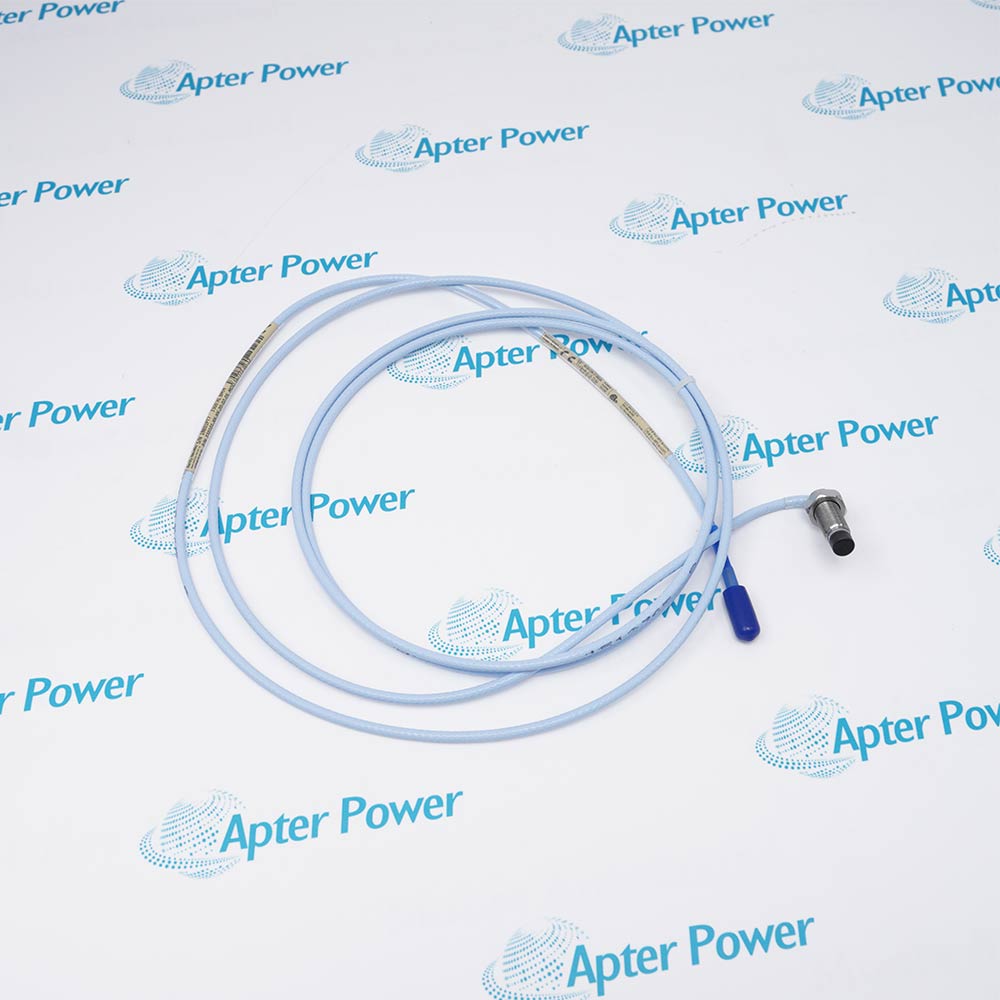

      Bently Nevada 330101-XX-XX-20-02-05 MOD:147773-00-12 is an unarmored 3/8-24 UNF 3300 XL 8 mm proximity probe with Custom XX option case identity, 2.0 m probe lead and miniature clickloc coaxial connector with standard cable.

      Ask our team:

      Get a quick price for： 330101-XX-XX-20-02-05 MOD:147773-00-12
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 330101-XX-XX-20-02-05 MOD:147773-00-12

      Technical specifications for 330101-XX-XX-20-02-05 MOD:147773-00-12

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        330101-XX-XX-20-02-05 MOD:147773-00-12
      • Estimated shipping dimensions:
        1.6x1.4x114cm
      • Weight:
        0.1 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • probe family:
        3300 XL 8 mm
      • mounting thread:
        3/8-24 UNF
      • cable protection:
        Unarmored
      • unthreaded length code:
        Custom XX option
      • overall case-length code:
        Custom XX option
      • total probe-lead length:
        2.0 m
      • connector and cable option:
        miniature ClickLoc coaxial connector with standard cable
      • agency-approval option:
        CSA, ATEX and IECEx
      • linear measurement range:
        2.0 mm (80 mils)
      • incremental scale factor:
        7.87 V/mm (200 mV/mil)
      • frequency response:
        0 to 10 kHz, +0/-3 dB
      • recommended gap:
        approximately 1.27 mm (50 mils) at -9 V DC
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 330101-XX-XX-20-02-05 MOD:147773-00-12 is an unarmored 3/8-24 UNF 3300 XL 8 mm proximity probe with Custom XX option case identity, 2.0 m probe lead and miniature clickloc coaxial connector with standard cable.
      • Uses the 3300 XL 8 mm transducer architecture
      • Provides the documented 3/8-24 UNF mounting identity
      • Retains the 2.0 m probe-lead option
      • Uses the miniature clickloc coaxial connector with standard cable connection option

      330101-XX-XX-20-02-05 MOD:147773-00-12 operates with matched 3300 XL 8 mm extension cable, compatible 3300 XL Proximitor Sensor, approved target surface, configured monitor channel.

      Engineered applications include Radial shaft vibration, Axial position monitoring, Phase reference measurement, Exact probe replacement.

      Important Notice: The XX length fields and MOD:147773-00-12 are custom identities not decoded by the standard table; preserve both exactly and verify the controlled drawing before installation.

      330101-XX-XX-20-02-05 MOD:147773-00-12 Manuals & Downloads
      330101-XX-XX-20-02-05 MOD:147773-00-12 Technical Reference (PDF)330101-XX-XX-20-02-05 MOD:147773-00-12 Installation & Commissioning Guide (PDF)

      The first document presents exact-model technical and engineering data. The second provides a separate installation, connection, commissioning and acceptance workflow.

      Radial shaft vibration
      Measures non-contacting radial shaft motion in the matched loop.
      Axial position monitoring
      Tracks documented axial displacement with the configured monitor channel.
      Phase reference measurement
      Provides a phase-reference signal where the machine design assigns this probe.
      Exact probe replacement
      Restores the exact threaded case, lead and connector identity without changing system calibration.
      Read the applicable Bently Nevada instructions before work. Verify 330101-XX-XX-20-02-05 MOD:147773-00-12, the installed system and every configured interface before isolation, wiring or commissioning.
      1
      Verify the complete 330101-XX-XX-20-02-05 MOD:147773-00-12 marking and its assigned 3300 XL 8 mm Proximity Transducer System position before work.
      2
      Place the connected radial shaft vibration process in the approved maintenance state.
      3
      Isolate the documented power, signal and stored-energy sources before disconnecting the transducer or module.
      4
      Record every connector, cable route, shield, polarity, channel assignment and host configuration before removal.
      5
      Use ESD-safe handling and protect coaxial, terminal and keyed interfaces from contamination or mechanical damage.
      6
      Confirm the installed matched 3300 XL 8 mm extension cable and compatible 3300 XL Proximitor Sensor against the approved project record.
      7
      Restore power in a controlled sequence and review transducer, monitor and host diagnostics.
      8
      Prove the intended axial position monitoring function and retain the final controlled acceptance result.

      Technical notes

      Technical notes

      The XX length fields and MOD:147773-00-12 are custom identities not decoded by the standard table; preserve both exactly and verify the controlled drawing before installation.

      FAQS

      • Which probe family identifies Bently Nevada 330101-XX-XX-20-02-05 MOD:147773-00-12?
        330101-XX-XX-20-02-05 MOD:147773-00-12 belongs to the 3300 XL 8 mm product family. Use that family identity when selecting its matched cable, sensor or host module.
      • What mounting thread is published for Bently Nevada 330101-XX-XX-20-02-05 MOD:147773-00-12?
        330101-XX-XX-20-02-05 MOD:147773-00-12 uses 3/8-24 UNF for its mounting thread. Confirm the installed mounting interface before removing or fitting the article.
      • How must the cable protection of Bently Nevada 330101-XX-XX-20-02-05 MOD:147773-00-12 be matched?
        The documented cable protection for 330101-XX-XX-20-02-05 MOD:147773-00-12 is Unarmored. Preserve that construction so the replacement does not change routing or mechanical protection.
      • Which unthreaded length code must technicians retain for Bently Nevada 330101-XX-XX-20-02-05 MOD:147773-00-12?
        330101-XX-XX-20-02-05 MOD:147773-00-12 specifies Custom XX option for the unthreaded length code. Retain this exact order-code position rather than substituting a nearby geometry.
      • What does the official record state for the overall case-length code of Bently Nevada 330101-XX-XX-20-02-05 MOD:147773-00-12?
        The confirmed overall case-length code for 330101-XX-XX-20-02-05 MOD:147773-00-12 is Custom XX option. Compare the physical article and available clearance with this value before installation.
      • How should the total probe-lead length be verified on Bently Nevada 330101-XX-XX-20-02-05 MOD:147773-00-12?
        For 330101-XX-XX-20-02-05 MOD:147773-00-12, the total probe-lead length is 2.0 m. Keep this value consistent with the matched transducer or system-length record during commissioning.
      • Which exact connector and cable option distinguishes Bently Nevada 330101-XX-XX-20-02-05 MOD:147773-00-12?
        330101-XX-XX-20-02-05 MOD:147773-00-12 uses miniature ClickLoc coaxial connector with standard cable as its connector and cable option. Record this connection identity before disconnection and restore the same interface afterward.
      • What agency-approval option is used when commissioning Bently Nevada 330101-XX-XX-20-02-05 MOD:147773-00-12?
        The agency-approval option assigned to 330101-XX-XX-20-02-05 MOD:147773-00-12 is CSA, ATEX and IECEx. Apply only the published option and confirm the complete nameplate before service release.
