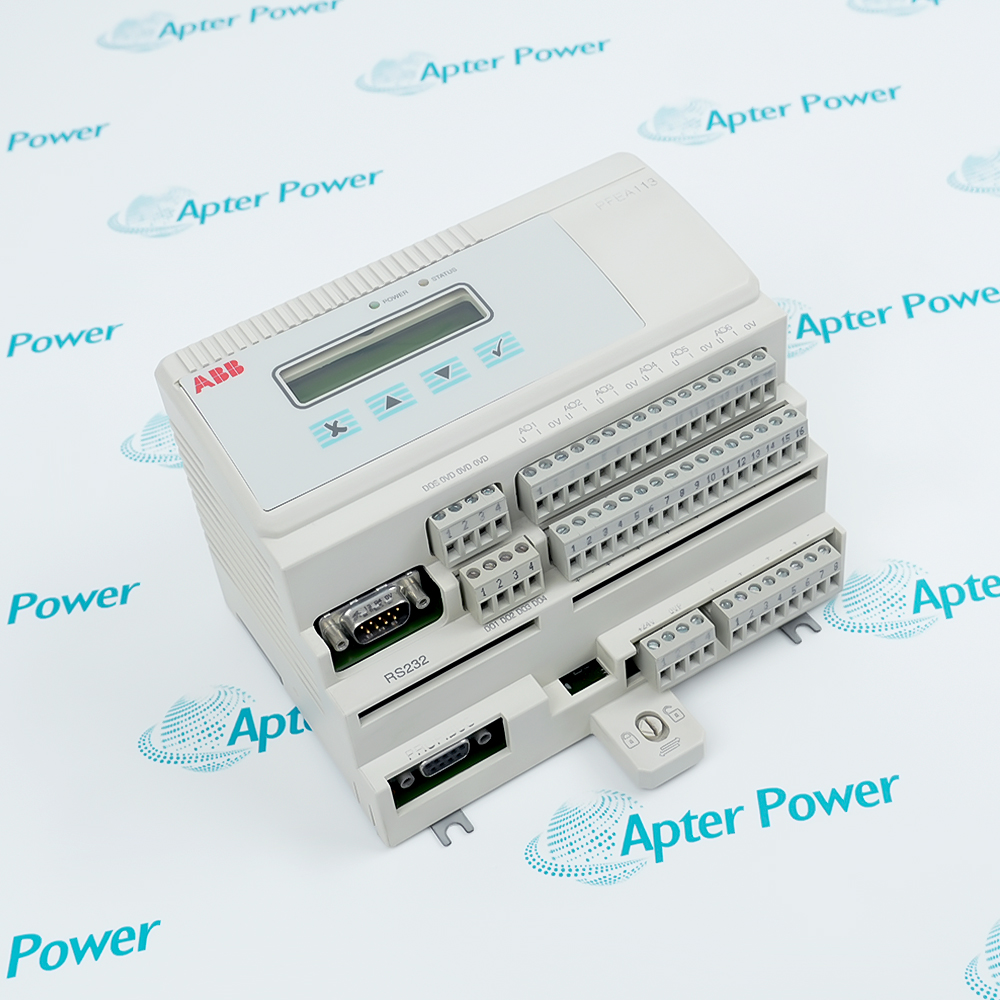

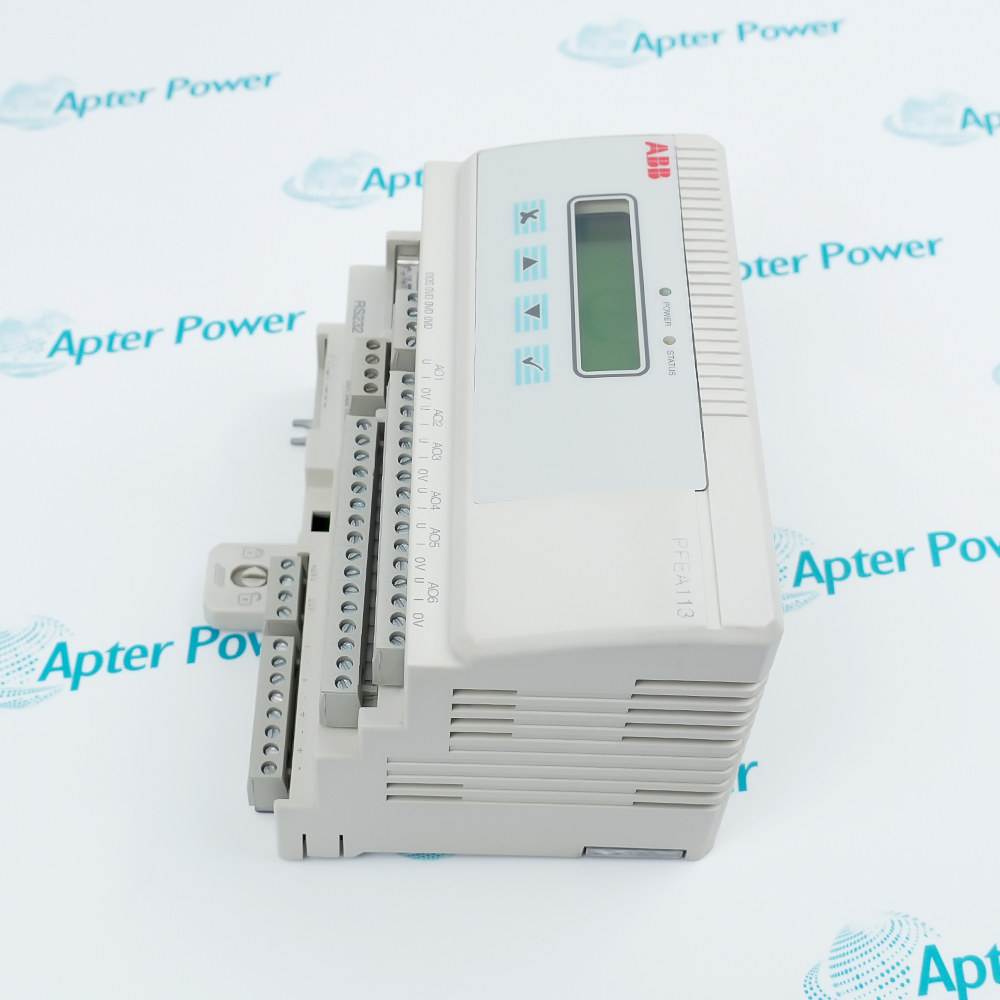

The PFEA113 3BSE028144R0020 is a dedicated web tension control electronics unit belonging to the ABB Advant OCS / 800xA series, designed for precise tension measurement and control in web processing applications.
High Precision
Configurable Output
Certified Safety
This unit provides high-precision signal processing with ±0.5% FS measuring accuracy, supports configurable analog output, and carries UL, CSA, CE and EAC certifications for reliable operation in industrial environments.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB PFEA113 3BSE028144R0020 LOAD CELL TENSION CONTROL MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Printing Industry
Ensures constant web tension for high-speed printing presses, preventing misalignment and material waste. Maintains precision in commercial, newspaper and packaging printing processes.
Paper Manufacturing
Applied in paper machines, coaters and winders to control web tension, avoiding breaks and wrinkles. Ensures uniform paper quality throughout production.
Plastic & Film
Optimizes production of blown and cast film lines. Controls tension during extrusion, coating and slitting to maintain consistent film thickness and quality.
Textile Industry
Used for nonwovens production and textile finishing. Controls tension in bleaching, dyeing and winding processes to reduce yarn breakage.
Metal Processing
Regulates tension in cold rolling mills for steel and aluminum foil. Ensures precise thickness and flatness of thin metal strips during processing.
Battery Production
Delivers high-precision tension control for lithium electrode coating. Maintains constant tension to ensure coating uniformity and electrode quality.
This module shall only be installed and commissioned by qualified technical personnel in accordance with official industrial standards and system specifications; all electrical connections must be completed in a de‑energized state to prevent electrical damage and signal interference, and the unit must be mounted in a closed control cabinet under IP20 environmental protection, operated within the specified temperature range of -10 °C to +55 °C and 24 VDC ±10% supply voltage to maintain full compliance with UL, CSA, CE and EAC certification requirements and ensure long‑term stable and safe performance in continuous industrial web tension control applications.
What is the supply voltage of ABB PFEA113 3BSE028144R0020?
ABB PFEA113 3BSE028144R0020 uses 24 VDC ±10% as its standard power supply. It is designed for stable operation in industrial control environments with dedicated power wiring requirements.
What safety certifications does ABB PFEA113 3BSE028144R0020 have?
ABB PFEA113 3BSE028144R0020 holds UL 61010-1, CSA C22.2 No.1010-1, CE and EAC certifications. It meets global industrial safety and electromagnetic compatibility standards.
What is the operating temperature range of ABB PFEA113 3BSE028144R0020?
ABB PFEA113 3BSE028144R0020 can work normally in the range of -10 °C to +55 °C. It adapts to most industrial site temperature environments without additional cooling.
What is the measurement accuracy of ABB PFEA113 3BSE028144R0020?
The measurement accuracy of ABB PFEA113 3BSE028144R0020 is ±0.5% FS. It ensures high-precision tension signal acquisition and closed-loop control stability.
What is the protection degree of ABB PFEA113 3BSE028144R0020?
The protection class of ABB PFEA113 3BSE028144R0020 is IP20. It is suitable for installation in closed industrial control cabinets to ensure safe operation.
