Technical specifications for 3BHL000391P0101 5SHX1445H0001
-
Manufacturer:ABB
-
Product Category:DCS Systems
-
Spare Part Number:3BHL000391P0101 5SHX1445H0001
-
Estimated shipping dimensions:29x34x5.7cm
-
Weight:1.6 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Rated voltage:4500V
-
Rated current:1400A
-
Conducting voltage drop:≤ 2.8V
-
Connection time:≤ 2 μ s
-
Off time:≤ 2 μ s
-
Maximum switching frequency:500Hz
-
Gate driving voltage:± 15V
-
Peak gate current:800A
-
Maximum junction temperature:125 ° C
-
Thermal resistance (junction box):0.015 ° C/W
-
Installation method:Bolt type radiator installation
-
Compression force:15kN (recommended)
-
Driver power supply:24VDC ± 10%
-
Driver power consumption:≤ 30W
Information
Overview
Manuals
Internal Device Protection
Core functionality

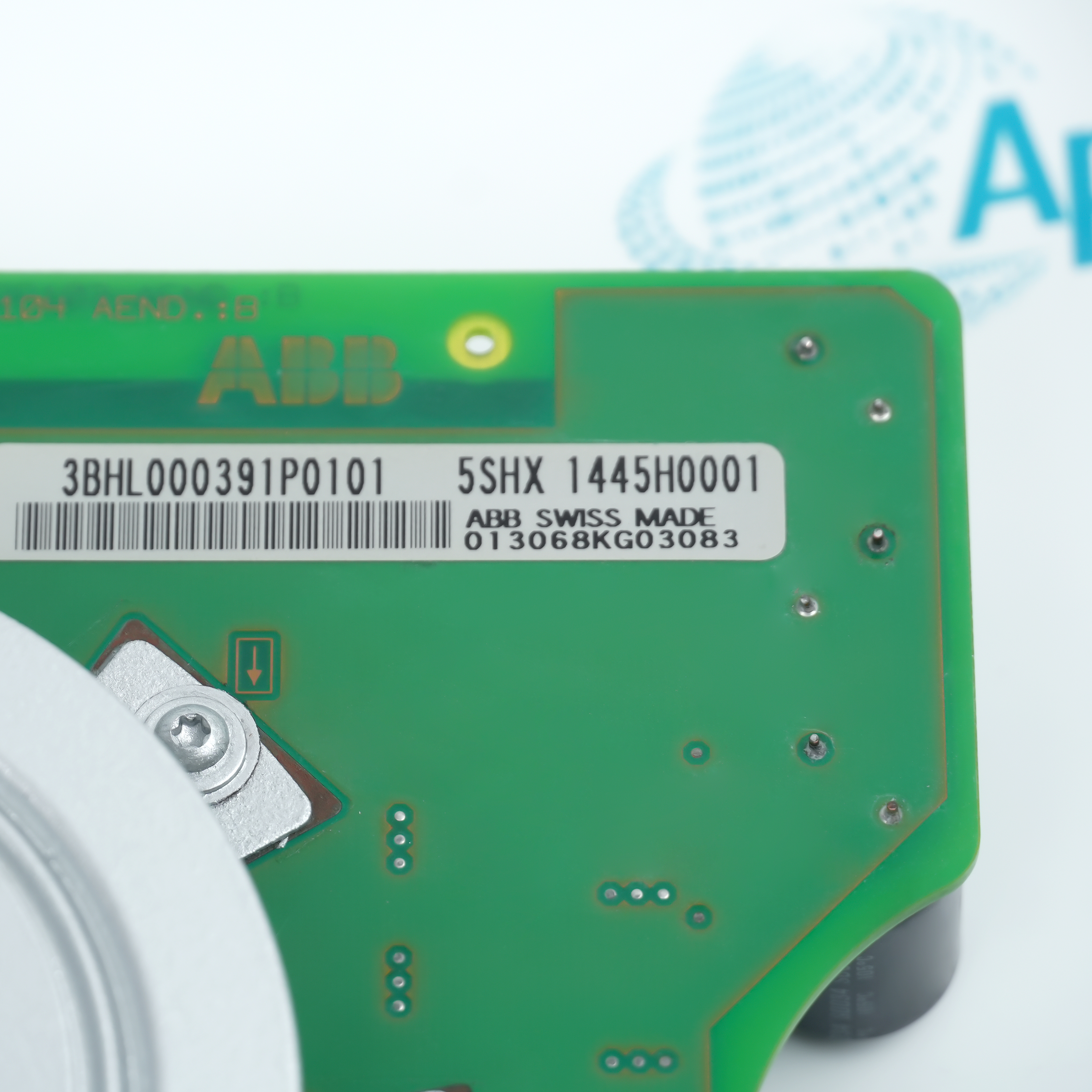

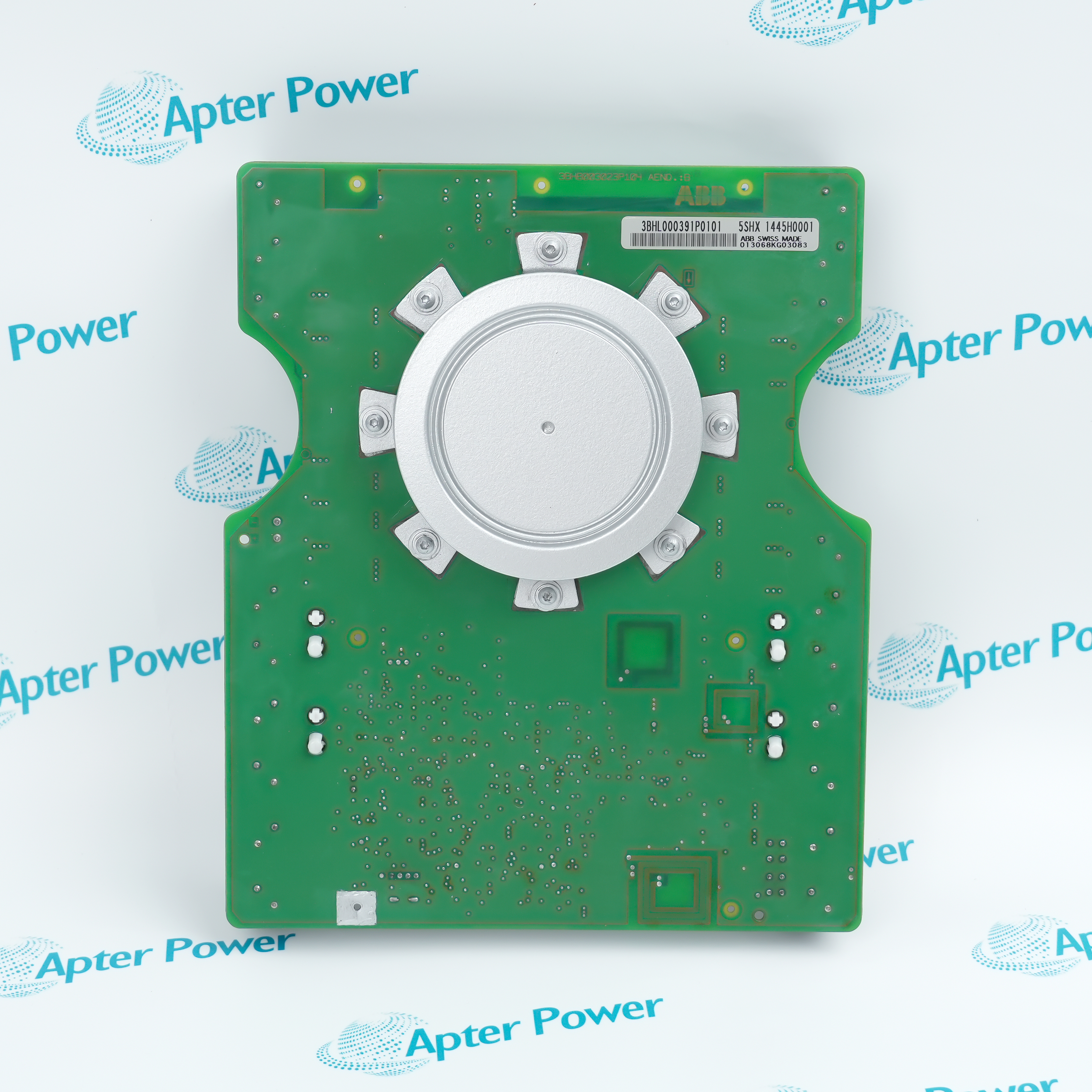

The ABB 3BHL000391P0101 5SHX1445H000 is a high-voltage Integrated Gate-Commutated Thyristor (IGCT) module, specifically designed for ABB’s high-power frequency converter systems and industrial power electronic applications.
- High integration power control
- Millisecond level internal protection
- Fiber optic isolation and anti-interference
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
ABB 3BHL000391P0101 5SHX1445H0001 board module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
This module has internal device protection function, integrating overcurrent and overvoltage protection mechanisms to ensure rapid power cut-off under extreme electrical conditions to prevent damage.
In terms of technical parameters, it has a rated voltage of 4.5 kV and a rated current of 200 A. It has low loss and extremely fast switching speed, and is widely used in power electronic control fields such as Flexible AC Transmission (FACTS), Static Var Compensation (SVC), and renewable energy systems that require high reliability.
In terms of technical parameters, it has a rated voltage of 4.5 kV and a rated current of 200 A. It has low loss and extremely fast switching speed, and is widely used in power electronic control fields such as Flexible AC Transmission (FACTS), Static Var Compensation (SVC), and renewable energy systems that require high reliability.
High precision gate trigger control: As a key component of IGCT (Integrated Gate Reversing Thyristor), this module is responsible for receiving logic signals transmitted through optical fibers and converting them into high current trigger pulses, achieving fast and precise on/off control of power semiconductors.
Internal Device Protection: Built in rapid monitoring mechanism that can sense abnormal states such as overcurrent, undervoltage, or overheating in real time. Within microseconds of detecting a fault, the module will automatically perform hardware lockout to prevent current surges from damaging expensive power devices.
High voltage electrical isolation and communication: Fiber optic interfaces are used to communicate with the main control level of the system, providing extremely high immunity to electromagnetic interference (EMI) and achieving physical isolation between the control circuit and the high-voltage main circuit, ensuring the safe and stable operation of the entire high-power drive system.
Internal Device Protection: Built in rapid monitoring mechanism that can sense abnormal states such as overcurrent, undervoltage, or overheating in real time. Within microseconds of detecting a fault, the module will automatically perform hardware lockout to prevent current surges from damaging expensive power devices.
High voltage electrical isolation and communication: Fiber optic interfaces are used to communicate with the main control level of the system, providing extremely high immunity to electromagnetic interference (EMI) and achieving physical isolation between the control circuit and the high-voltage main circuit, ensuring the safe and stable operation of the entire high-power drive system.
FAQ View All FAQ
-
What is 3BHL000391P0101 5SHX1445H0001?3BHL000391P0101 5SHX1445H0001 is a board module
-
What are the rated parameters of module 3BHL000391P0101 5SHX1445H0001?Voltage/current: The rated voltage is 4.5 kV, and the maximum switchable current is usually marked as 2100 A or rated operating 200 A. Operating temperature: The operating range is -40 ° C to+125 ° C. Which frequency converters use this module? Mainly used as the core power spare part for ABB ACS1000 series medium voltage drives.
-
How to identify faults?Fault code: Common associated faults on PCS 6000 or ACS1000 panels include
-
What is the difference between 3BHL000391P0101 and 5SHX1445H0001?3BHL000391P0101 is the product ID (part number), while 5SHX1445H0001 is ABB's type designation (model), both referring to the same physical unit.
-
Is there any requirement for clamping force when installing the IGCT module?Yes, it is. As a crimped power semiconductor, it must be installed in the heat sink component and subjected to precise clamping force. If the pressure is insufficient, the contact resistance increases, leading to overheating; Excessive pressure may damage the internal silicon wafer. Specific values should refer to the
-
What is the function of an optical interface?The fiber optic interface at the top of the module is used to receive trigger signals from the controller. The use of optical fibers is to achieve high voltage isolation and resistance to electromagnetic interference (EMI). Ensure that the fiber optic head is clean and free of creases during installation.
