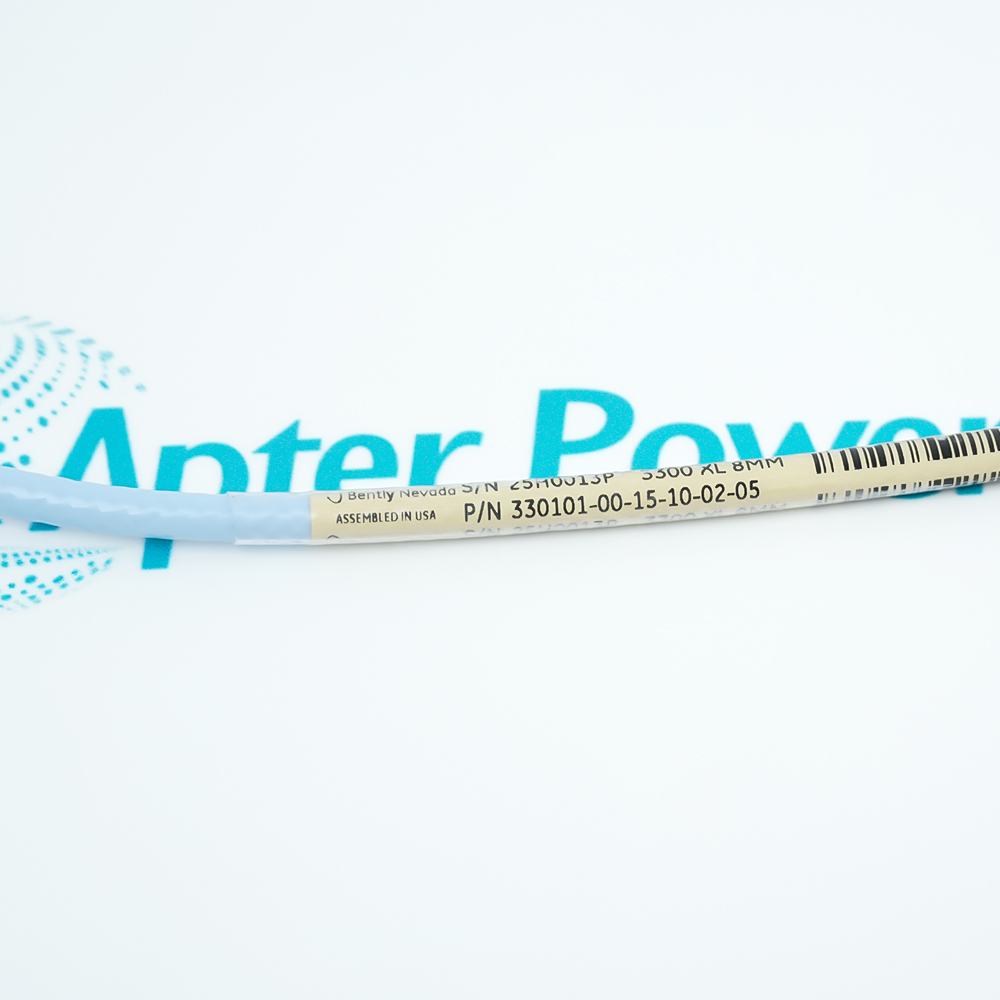

The 330101-00-15-10-02-05 proximity probe belongs to the 3300 XL 8mm sensor series, which is used for vibration and displacement monitoring of rotating machinery. In terms of hardware structure, the probe utilizes a patented TipLoc molding method, establishing a high-strength physical bond between the polyphenylene sulfide plastic encapsulation at the tip and the metal body to withstand pressure and corrosion in industrial environments.
One 3300 XL 8 mm probe
One 3300 XL extension cable
One 3300 XL Proximitor Sensor
The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non XL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
The 330101-00-15-10-02-05 proximity probe features a stainless steel threaded case with a 3/8-24 UNF thread specification, 0 inches of unthreaded length, and a 1.5-inch overall case length. It includes a stainless steel metal armor layer to enhance the mechanical wear resistance and crush protection of the 1.0-meter integrated cable. For the electrical interface, the probe end is equipped with a gold-plated ClickLoc locking coaxial connector and a connector protector. This connector features a mechanical locking mechanism that requires no special tools, locking in place with a clicking sound when finger-tightened to prevent loosening from machinery vibration.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Bently Nevada 330101-00-15-10-02-05 Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Thermal Power Generation
Monitors the radial vibration of steam turbine generator main shafts.
Hydraulic Power Generation
Measures the axial displacement of large hydro-turbine main shafts.
Nuclear Power Generation
Monitors the dynamic swing of reactor main feedwater pump shafts.
Natural Gas Pipelines
Measures the eccentricity of gas turbine-driven compressor units on long-distance pipelines.
Petroleum Refining
Monitors bearing clearances of centrifugal compressors in hydrotreating units.
Chemical Industry
Provides speed and Keyphasor references for critical compressor trains in large ethylene plants.
During installation, strictly control the gap to ensure the initial voltage centers within the linear range. Match the probe with an extension cable and Proximitor sensor for a total system length of 5m or 9m, avoiding any manual trimming of the armored cable. Connect cables with proper handling to prevent connector damage, and ensure the metal armor is reliably grounded.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Yes. We ship globally, and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (DHL). We can also ship through FedEx, UPS, and TNT. We can also use your account.
How many parts do you have in stock?
We have an extensive stock base consisting of ten thousands of new and discontinued automation parts including those from leading manufacturers such as: Control Systems(DCS ,PLC ,CNC),Panel Controllers, HMI and Display Panels, Drives, Encoders and Resolvers, Power Supplies. If you are unable to find what you are looking for then don’t panic.
What type of product is 330101-00-15-10-02-05?
It is a 3300 XL 8 mm eddy current proximity probe manufactured.
What components make up the eddy current transducer system to which 330101-00-15-10-02-05 belongs?
The system consists of one 3300 XL 8 mm probe, one 3300 XL extension cable, and one 3300 XL Proximitor Sensor.
What is the core operating principle of 330101-00-15-10-02-05?
It operates on the eddy current principle, providing dynamic or static voltage signals directly proportional to the distance between the probe tip and the observed metal surface.
