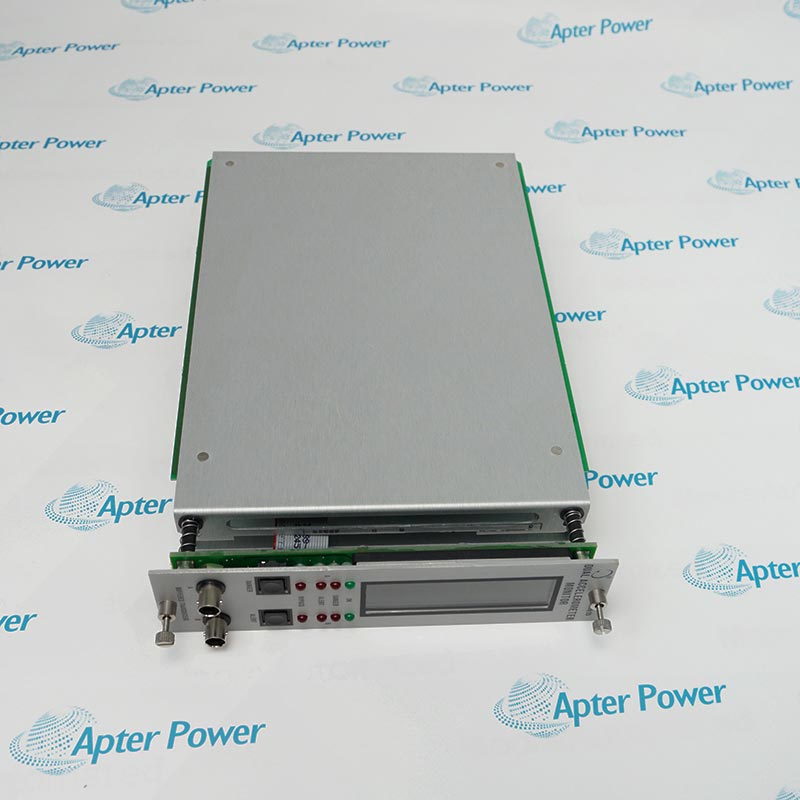

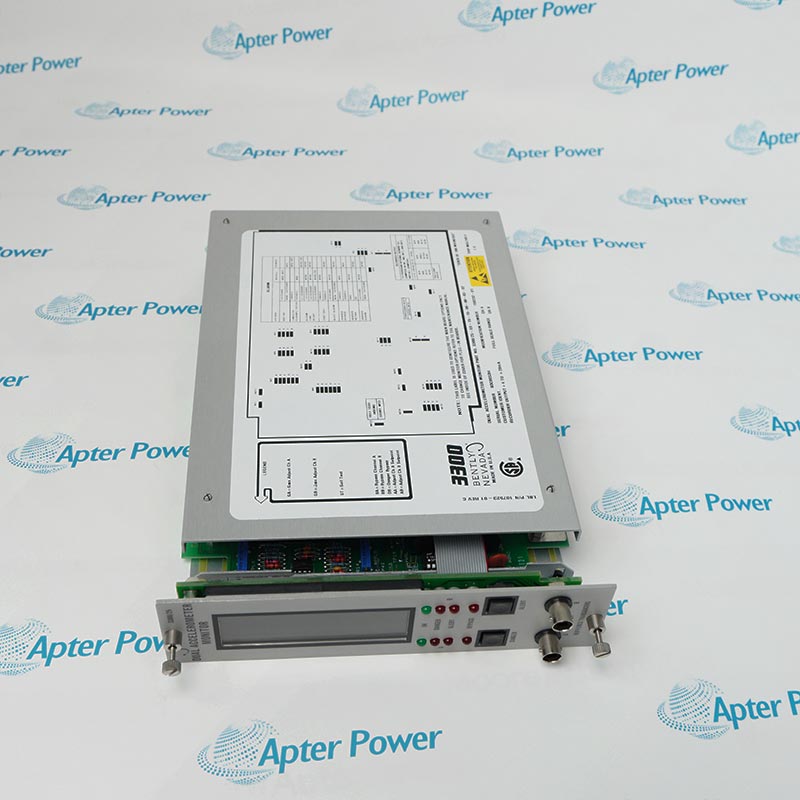

      Bently Nevada 3300/25-XX-15-15-00-00-03-02
      Bently Nevada 3300/25-XX-15-15-00-00-03-02
      Bently Nevada 3300/25-XX-15-15-00-00-03-02
      Bently Nevada 3300/25-XX-15-15-00-00-03-02
      Bently Nevada 3300/25-XX-15-15-00-00-03-02
      Bently Nevada 3300/25-XX-15-15-00-00-03-02
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      3300/25-XX-15-15-00-00-03-02

      3300/25 Dual Accelerometer Monitor
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Bently Nevada 3300/25-XX-15-15-00-00-03-02 is a dual accelerometer monitor for absolute machine-housing or structural vibration.

      Ask our team:

      Get a quick price for： 3300/25-XX-15-15-00-00-03-02
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for 3300/25-XX-15-15-00-00-03-02

      Technical specifications for 3300/25-XX-15-15-00-00-03-02

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        3300/25-XX-15-15-00-00-03-02
      • Estimated shipping dimensions:
        5.1x32x20.4cm
      • Weight:
        1.18 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Monitor type:
        3300/25 dual accelerometer monitor
      • Measurement:
        Absolute housing or structural vibration relative to free space
      • Channels:
        2 independent online vibration channels
      • Transducer/channel-units option:
        XX: Must be confirmed from installed marking
      • Channel A range option:
        15: 0-25 mm/s peak
      • Channel B range option:
        15: 0-25 mm/s peak
      • Agency approval option:
        00: Not required
      • Safety barrier option:
        00: None
      • Alarm relay option:
        03: Quad relays, epoxy-sealed
      • Trip Multiply option:
        02: 3X
      • Filter combinations:
        More than 10,000 high-pass/low-pass combinations
      • High-pass range:
        3.7-3008 Hz selectable
      • Low-pass range:
        24-22372 Hz selectable
      • Power consumption:
        10.5 W nominal
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 3300/25-XX-15-15-00-00-03-02 provides two-channel absolute housing-vibration monitoring with 0-25 mm/s ranges, quad relays and 3X Trip Multiply in a documented Bently Nevada 3300 Monitoring System installation.
      • 3300/25 Dual Accelerometer Monitor
      • Absolute housing or structural vibration relative to free space
      • 2 independent online vibration channels
      • Two-channel absolute housing-vibration monitoring with 0-25 mm/s ranges, quad relays and 3x trip multiply

      The component remains matched to its documented rack position, mating hardware, wiring and approved configuration. Commissioning preserves that architecture and verifies the protection function under controlled conditions.

      Important Notice: Confirm 3300/25-XX-15-15-00-00-03-02, its exact Bently Nevada 3300 Monitoring System host, installed position, mating hardware, wiring, alarm logic, configuration, diagnostics and controlled acceptance evidence before release.

      3300/25-XX-15-15-00-00-03-02 Manuals & Downloads

      These documents are different: the first consolidates verified product and system data; the second provides installation checks, commissioning steps and acceptance records.

      Matched 3300/3500 rack service
      Restores two-channel absolute housing-vibration monitoring with 0-25 mm/s ranges, quad relays and 3X Trip Multiply in the documented machinery-monitoring architecture.
      Exact-execution replacement
      Uses the complete 3300/25-XX-15-15-00-00-03-02 identity instead of a neighboring option or revision.
      Machinery-protection refurbishment
      Preserves the installed host position, connectors, alarm logic and approved configuration.
      Controlled recommissioning
      Confirms hardware identity, diagnostics and the affected protection function before return to operation.
      Read the applicable Bently Nevada installation instructions before work. Verify 3300/25-XX-15-15-00-00-03-02, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm the complete 3300/25-XX-15-15-00-00-03-02 marking and the documented 3300/25 Dual Accelerometer Monitor execution.
      2
      Place the machinery-protection system and connected process in the approved maintenance state.
      3
      Isolate rack power and field circuits, prove the safe state and apply ESD controls.
      4
      Record the rack position, mating hardware, connectors, alarm wiring and as-found configuration.
      5
      Verify every option and limit against the exact manufacturer ordering or spare-parts record.
      6
      Restore grounding, shielding, wiring, relay logic and the approved monitor configuration.
      7
      Energize under control and review rack, channel and alarm diagnostics.
      8
      Complete a controlled functional test of two-channel absolute housing-vibration monitoring with 0-25 mm/s ranges, quad relays and 3X Trip Multiply before service release.

      Alternative Names

      Alternative Names

      3300 25 XX 15 15 00 00 03 02

      Technical notes

      Technical notes

      Install 3300/25-XX-15-15-00-00-03-02 only in the documented Bently Nevada 3300 Monitoring System position. Preserve the exact mating interfaces and option settings, then verify diagnostics and two-channel absolute housing-vibration monitoring with 0-25 mm/s ranges, quad relays and 3X Trip Multiply under controlled conditions.

      FAQS

      • 3300/25-XX-15-15-00-00-03-02: What vibration quantity is monitored by the 3300/25?
        The monitor measures absolute machine-housing or structural vibration relative to free space and supplies two independent online channels.
      • 3300/25-XX-15-15-00-00-03-02: Why must the XX field be checked on this exact catalog number?
        The first option defines transducer input and channel units. Because the supplied identity retains XX, the installed marking and channel configuration must be recorded rather than inferred.
      • 3300/25-XX-15-15-00-00-03-02: What ranges do both 15 option fields select?
        The B15 and C15 fields set Channels A and B to 0-25 mm/s peak.
      • 3300/25-XX-15-15-00-00-03-02: Which approval and barrier selections are ordered?
        Both fields are 00, specifying no ordered agency approval and no safety barrier.
      • 3300/25-XX-15-15-00-00-03-02: How is the alarm relay execution configured?
        Option F03 specifies quad epoxy-sealed relays. Internal AND voting is unavailable for this execution and external series wiring is required when AND logic is needed.
      • 3300/25-XX-15-15-00-00-03-02: What does the final 02 option do?
        Option G02 selects 3X Trip Multiply; the bypass indication flashes while Trip Multiply is active.
      • 3300/25-XX-15-15-00-00-03-02: How should the high-pass and low-pass filters be selected?
        The high-pass corner is selectable from 3.7 to 3008 Hz and the low-pass corner from 24 to 22372 Hz; the document recommends at least two octaves of separation.
      • 3300/25-XX-15-15-00-00-03-02: What transducer-installation issue must be checked before acceptance?
        Housing vibration reaches the sensor only through the mounting location, so installation must preserve the transducer’s amplitude and frequency response and avoid signals unrelated to machine vibration.
