      Bently Nevada 3300/16-15-01-03-00-00-02
      Bently Nevada 3300/16-15-01-03-00-00-02
      Bently Nevada 3300/16-15-01-03-00-00-02
      Bently Nevada 3300/16-15-01-03-00-00-02
      Bently Nevada 3300/16-15-01-03-00-00-02
      Bently Nevada 3300/16-15-01-03-00-00-02

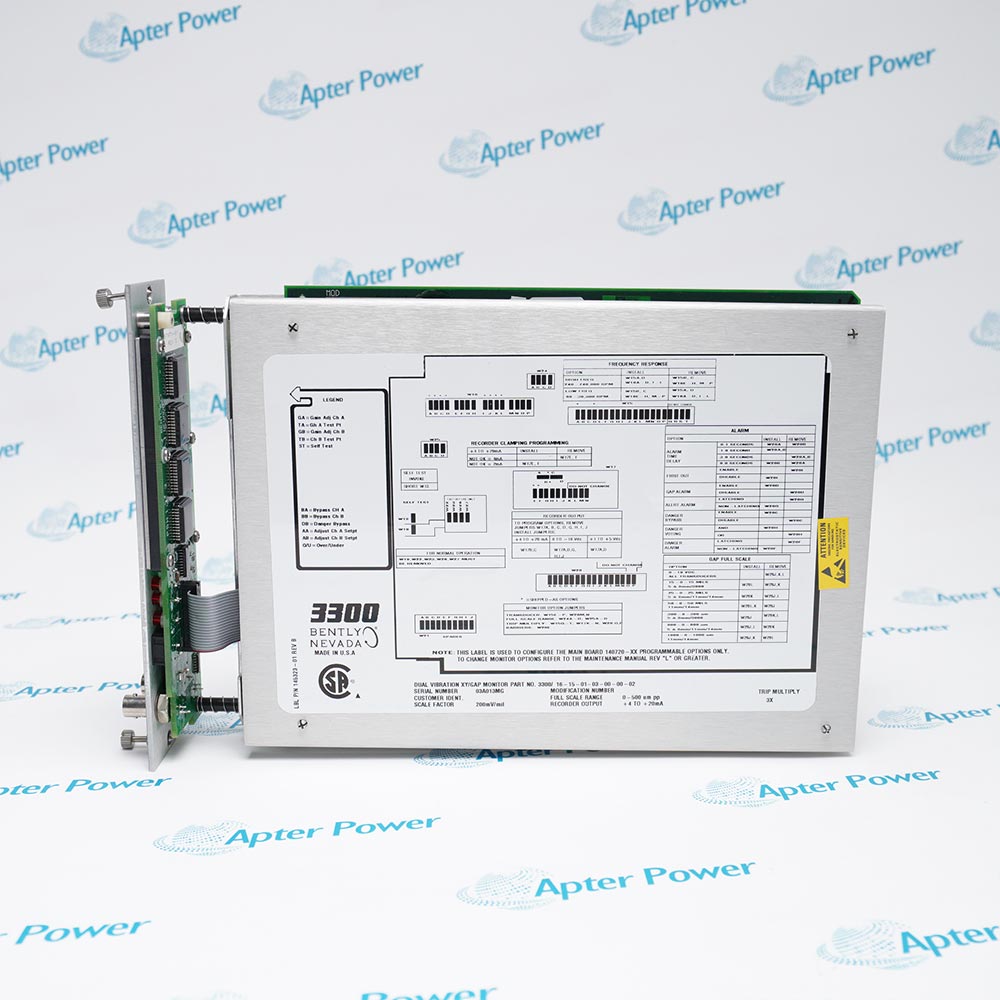

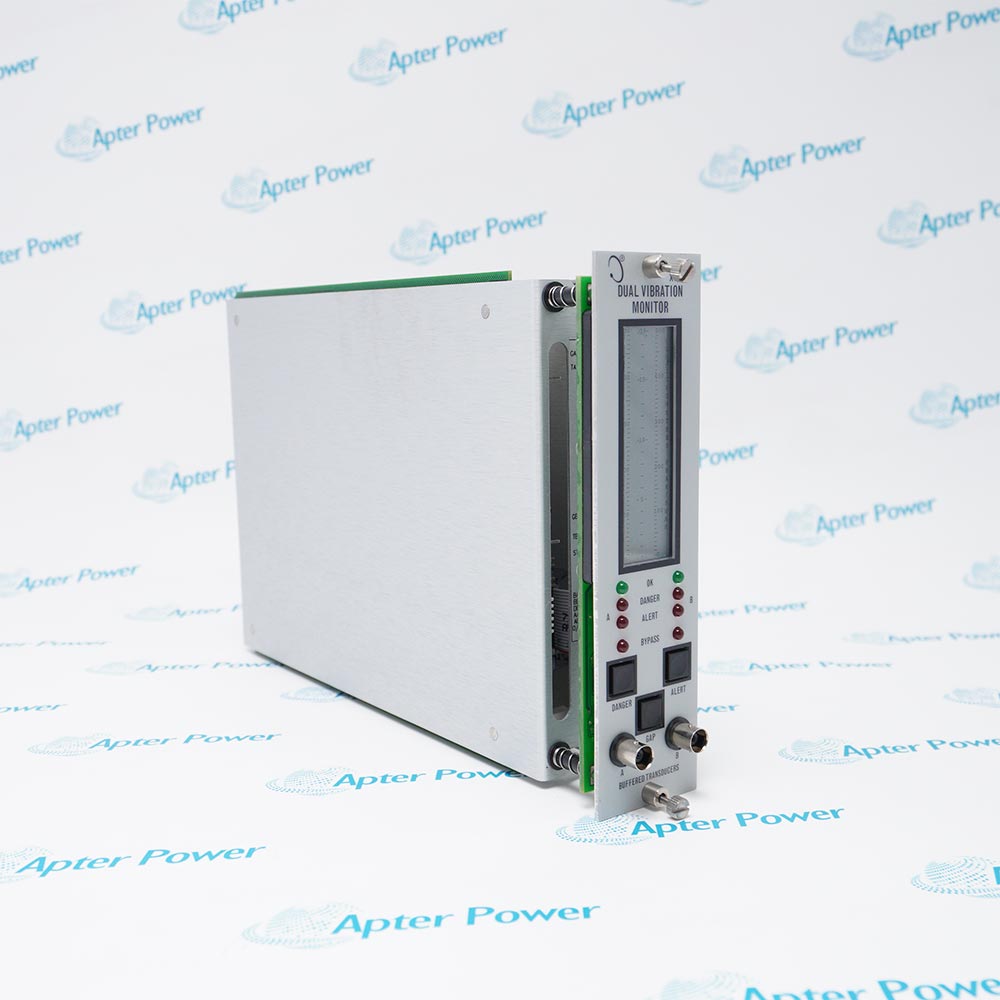

      Product image is representative; revision or series may vary. Contact us to request a specific version.

      3300/16-15-01-03-00-00-02

      3300/16 XY/Gap Dual Vibration Monitor
      In Stock
      Ships by Wednesday, October 14
      Fast Shipping Available

      Product Describe：

      Bently Nevada 3300/16-15-01-03-00-00-02 is a 3300/16 XY/Gap dual vibration monitor configured for two proximity-transducer channels, 0-500 micrometre peak-to-peak range, quad relays and 3X Trip Multiply.

      Ask our team:

      Get a quick price for： 3300/16-15-01-03-00-00-02
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for 3300/16-15-01-03-00-00-02

      Technical specifications for 3300/16-15-01-03-00-00-02

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        3300/16-15-01-03-00-00-02
      • Estimated shipping dimensions:
        5x32.7x20.3cm
      • Weight:
        0.98 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Monitor type:
        3300/16 XY/Gap dual vibration monitor
      • Measurement channels:
        2 independent proximity-transducer channels
      • Measured variables:
        Radial vibration and average shaft position (gap)
      • Full-scale range option:
        15: 0-500 micrometre peak-to-peak
      • Transducer input option:
        01: 3300/3300 XL 8 mm or 7200 5/8 mm, 200 mV/mil
      • Alarm relay option:
        03: Quad relays, epoxy-sealed
      • Agency approval option:
        00: Not required
      • Safety barrier option:
        00: None
      • Trip Multiply option:
        02: 3X
      • Input impedance:
        10 kilohm
      • Frequency response choices:
        4-4000 Hz or 1-600 Hz, nominal -3 dB
      • Recorder output choices:
        +4 to +20 mA, 0 to -10 Vdc, or +1 to +5 Vdc
      • Power consumption:
        2 W nominal
      • Rack position:
        One slot except positions 1 and 2
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 3300/16-15-01-03-00-00-02 provides two-channel radial-vibration and average-shaft-position monitoring with quad alarm relays in a documented Bently Nevada 3300 Monitoring System installation.
      • 3300/16 XY/Gap Dual Vibration Monitor
      • 2 independent proximity-transducer channels
      • Radial vibration and average shaft position (gap)
      • Two-channel radial-vibration and average-shaft-position monitoring with quad alarm relays

      The component remains matched to its documented rack position, mating hardware, wiring and approved configuration. Commissioning preserves that architecture and verifies the protection function under controlled conditions.

      Important Notice: Confirm 3300/16-15-01-03-00-00-02, its exact Bently Nevada 3300 Monitoring System host, installed position, mating hardware, wiring, alarm logic, configuration, diagnostics and controlled acceptance evidence before release.

      3300/16-15-01-03-00-00-02 Manuals & Downloads

      These documents are different: the first consolidates verified product and system data; the second provides installation checks, commissioning steps and acceptance records.

      Matched 3300/3500 rack service
      Restores two-channel radial-vibration and average-shaft-position monitoring with quad alarm relays in the documented machinery-monitoring architecture.
      Exact-execution replacement
      Uses the complete 3300/16-15-01-03-00-00-02 identity instead of a neighboring option or revision.
      Machinery-protection refurbishment
      Preserves the installed host position, connectors, alarm logic and approved configuration.
      Controlled recommissioning
      Confirms hardware identity, diagnostics and the affected protection function before return to operation.
      Read the applicable Bently Nevada installation instructions before work. Verify 3300/16-15-01-03-00-00-02, the installed host system and all configured field interfaces before isolation, wiring or commissioning.
      1
      Confirm the complete 3300/16-15-01-03-00-00-02 marking and the documented 3300/16 XY/Gap Dual Vibration Monitor execution.
      2
      Place the machinery-protection system and connected process in the approved maintenance state.
      3
      Isolate rack power and field circuits, prove the safe state and apply ESD controls.
      4
      Record the rack position, mating hardware, connectors, alarm wiring and as-found configuration.
      5
      Verify every option and limit against the exact manufacturer ordering or spare-parts record.
      6
      Restore grounding, shielding, wiring, relay logic and the approved monitor configuration.
      7
      Energize under control and review rack, channel and alarm diagnostics.
      8
      Complete a controlled functional test of two-channel radial-vibration and average-shaft-position monitoring with quad alarm relays before service release.

      Alternative Names

      Alternative Names

      3300 16 15 01 03 00 00 02

      Technical notes

      Technical notes

      Install 3300/16-15-01-03-00-00-02 only in the documented Bently Nevada 3300 Monitoring System position. Preserve the exact mating interfaces and option settings, then verify diagnostics and two-channel radial-vibration and average-shaft-position monitoring with quad alarm relays under controlled conditions.

      FAQS

      • 3300/16-15-01-03-00-00-02: Which measurements does the configured 3300/16 monitor provide?
        It continuously measures two independent radial-vibration channels and their average shaft position (gap) from proximity-transducer inputs.
      • What does ordering option 15 set on 3300/16-15-01-03-00-00-02?
        Option 15 selects a 0-500 micrometre peak-to-peak full-scale vibration range.
      • 3300/16-15-01-03-00-00-02: Which proximity systems match transducer option 01?
        Option 01 is for 3300 or 3300 XL 8 mm, or 7200 5 mm and 8 mm Proximitor Sensor systems with 200 mV/mil sensitivity.
      • 3300/16-15-01-03-00-00-02: How is the relay hardware configured for this catalog number?
        Relay option 03 specifies the quad-relay, epoxy-sealed execution; AND voting must be implemented externally by wiring contacts in series.
      • 3300/16-15-01-03-00-00-02: Does this execution include an approval or safety barrier option?
        No. The two 00 fields specify no ordered agency approval and no safety barrier.
      • 3300/16-15-01-03-00-00-02: What Trip Multiply setting is supplied by option 02?
        Option 02 selects 3X Trip Multiply, and the bypass LEDs flash while Trip Multiply is active.
      • 3300/16-15-01-03-00-00-02: Which frequency-response selections are available during commissioning?
        The monitor can be programmed for 4-4000 Hz or 1-600 Hz nominal -3 dB response; the low-frequency option needs care during rapid starts and coastdowns.
      • 3300/16-15-01-03-00-00-02: Which recorder outputs must be matched before replacing the monitor?
        Verify the field-programmed output before replacement because the monitor supports +4 to +20 mA, 0 to -10 Vdc, or +1 to +5 Vdc recorder output.
