      Bently Nevada 200350-12-00-CN
      Bently Nevada 200350-12-00-CN
      Bently Nevada 200350-12-00-CN
      Bently Nevada 200350-12-00-CN
      Bently Nevada 200350-12-00-CN
      Bently Nevada 200350-12-00-CN

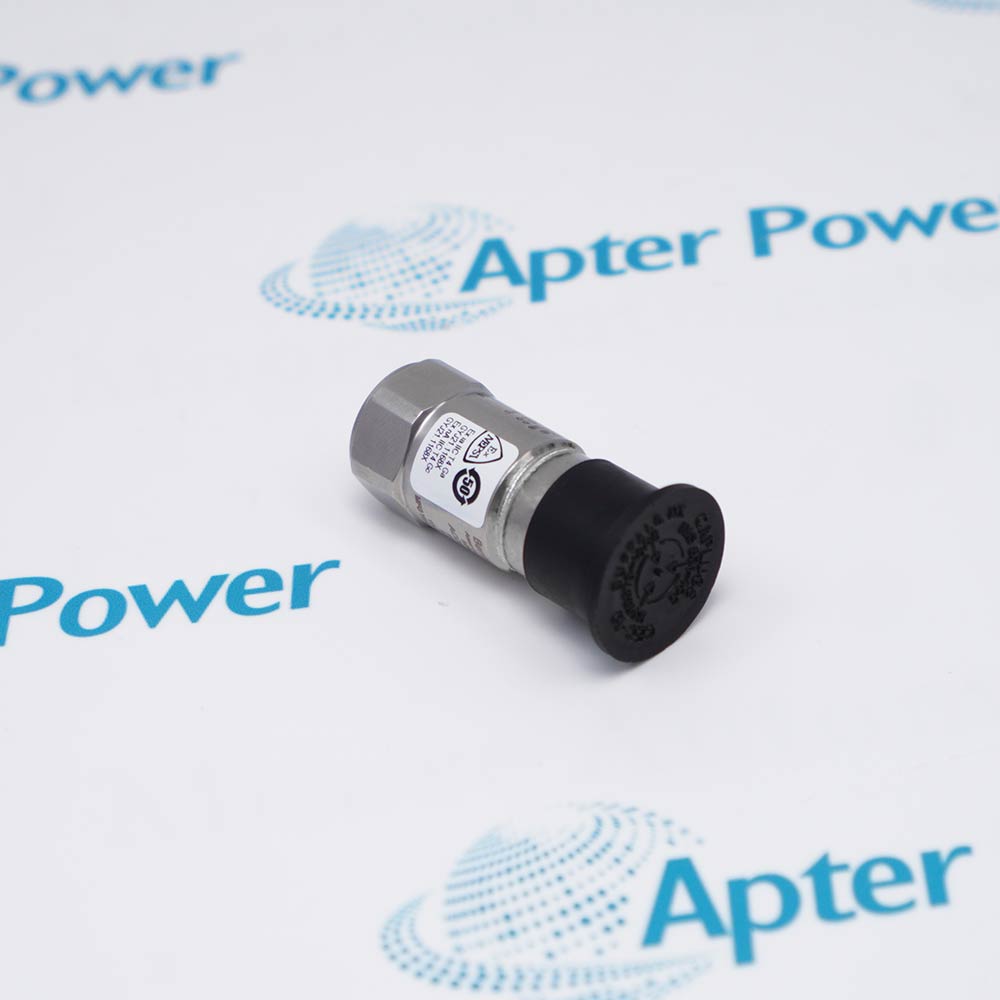

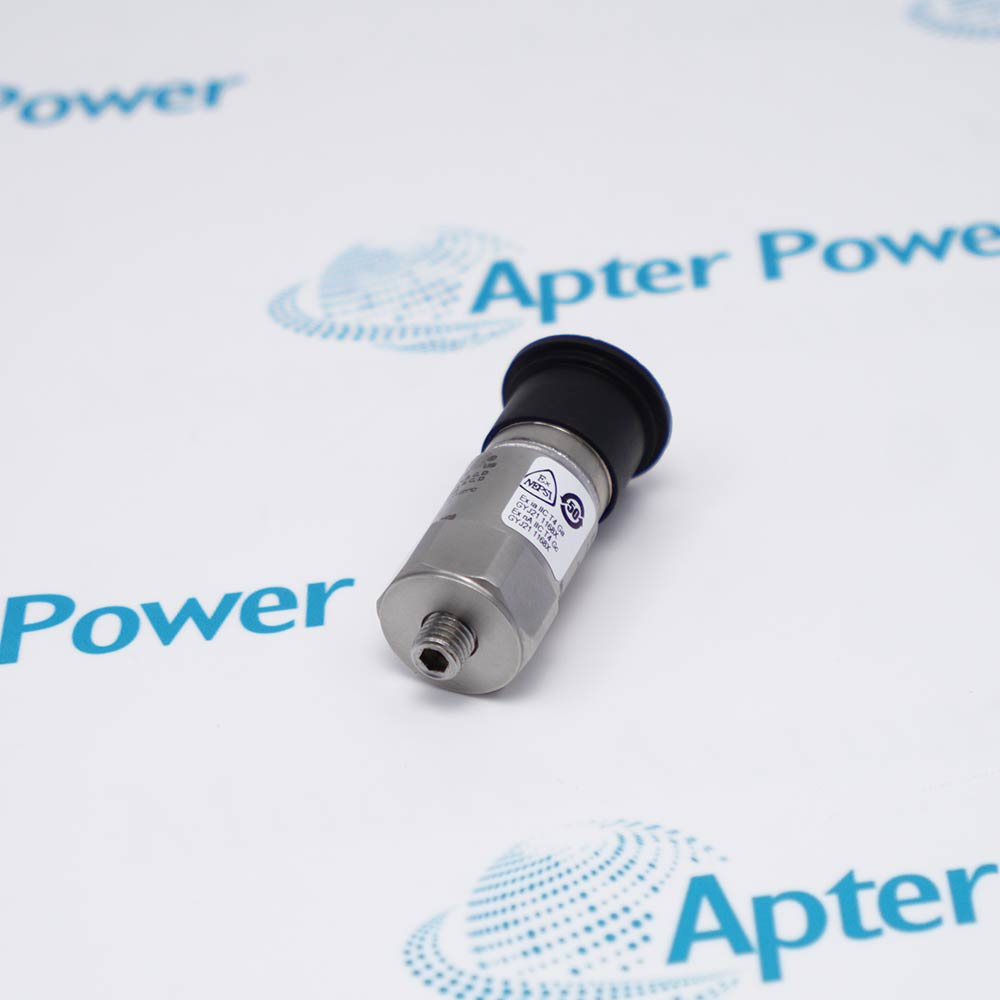

      Product image is representative; revision or series may vary. Contact us to request a specific version.

      200350-12-00-CN

      200350 general-purpose case-mounted accelerometer
      In Stock
      Ships by Wednesday, October 7
      Fast Shipping Available

      Product Describe：

      This is a 200350 general-purpose case-mounted accelerometer with the M8 x 1.25 adhesive-stud option and 100 mV/g sensitivity selection.

      It produces an acceleration-proportional voltage for monitoring vibration on machine casings, bearing housings and other rotating-equipment structures.

      The sensor is fitted at the machine measurement point and connected to the compatible monitoring input through its specified signal connection and mounting method.

      It is suitable for machinery-condition monitoring duties on pumps, motors, fans, compressors and similar equipment.

      Ask our team:

      Get a quick price for： 200350-12-00-CN
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 200350-12-00-CN

      Technical specifications for 200350-12-00-CN

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        200350-12-00-CN
      • Estimated shipping dimensions:
        5.1x2x2cm
      • Weight:
        0.05 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Accelerometer family:
        200350 case-mounted piezoelectric
      • Mounting stud:
        M8 x 1.25 adhesive stud
      • Sensitivity tolerance:
        100 mV/g +/-20%
      • Order-code suffix:
        CN
      • Frequency response:
        0.5 to 10,000 Hz
      • Acceleration range:
        +/-50 g peak
      • Excitation:
        18 to 28 V DC; 2 to 20 mA
      • Output bias:
        8 to 12 V DC
      • Output impedance:
        Less than 150 ohm
      • Operating temperature:
        -54 to +121 C
      • Enclosure rating:
        IP68
      • Mounting thread:
        1/4-28 female
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Bently Nevada 200350-12-00-CN is a 200350 general-purpose accelerometer configured for sensitivity 100 mV/g +/-20% and frequency range 0.5 to 10000 Hz.
      • Sensitivity: 100 mV/g +/-20%
      • Frequency range: 0.5 to 10000 Hz
      • Operating temperature: -54 to +121 C
      • Ingress protection: IP68

      Mounted on the machine case or bearing housing, the piezoelectric element converts structural acceleration along its sensitive axis into the electrical input used for vibration trending and assessment.

      Configuration control: Match the complete 200350-12-00-CN code, sensitivity 100 mV/g +/-20%, frequency range 0.5 to 10000 Hz and mating hardware before mounting or wiring.

      Apter Power 200350-12-00-CN Manuals and Guides

      The first link is the Apter Power product reference. The second link opens the manufacturer-published Bently Nevada datasheet for the applicable product family. Confirm the complete part number and installed configuration before use.

      0.5 to 10000 Hz vibration band
      200350-12-00-CN supplies a casing-acceleration signal across the documented frequency range.
      IP68 mounting interface
      The selected mounting option couples the sensing base to the machine measurement surface.
      Bearing-housing response
      Captures structural vibration on pumps, motors, fans, compressors or other rotating equipment.
      Condition-monitoring input
      Feeds the compatible Trendmaster, 1900-series or applicable acceleration-monitoring channel.
      Before installing 200350-12-00-CN, confirm the complete catalog code, physical nameplate and selected monitoring-channel configuration.
      1
      Sensitivity: 100 mV/g +/-20% is the exact selection for 200350-12-00-CN
      2
      Frequency range: Match 0.5 to 10000 Hz to the mating mechanical or electrical interface
      3
      Operating temperature: Retain -54 to +121 C when selecting the associated system components
      4
      Ingress protection: Verify IP68 before final routing, mounting or commissioning
      5
      Mounting stud: Record M8 x 1.25 adhesive in the channel and installation data for this model

      Technical notes

      Technical notes

      Allow the adhesive mounting system to cure according to the mounting procedure before relying on the measurement point.

      FAQS

      • What engineering function does 200350-12-00-CN perform in its monitoring loop?
        200350-12-00-CN converts machine-case acceleration along its sensitive axis into an electrical signal. The monitoring channel uses this signal to trend casing vibration and machine structural response.
      • Which sensitivity applies to 200350-12-00-CN?
        The configured sensitivity for 200350-12-00-CN is 100 mV/g +/-20%.
      • What frequency range must be checked when specifying 200350-12-00-CN?
        Use 0.5 to 10000 Hz for the frequency range when reviewing this complete model.
      • How does the operating temperature selection affect 200350-12-00-CN?
        This configuration identifies operating temperature as -54 to +121 C; include that value in the installation record.
      • Which ingress protection is associated with 200350-12-00-CN?
        The technical value is IP68 for the ingress protection of this model.
      • What companion hardware should be confirmed for 200350-12-00-CN?
        Confirm specified mounting stud or adhesive interface, compatible accelerometer signal cable, acceleration or acceleration-to-velocity monitor input.
      • What is the first commissioning check for 200350-12-00-CN?
        Allow the adhesive mounting system to cure according to the mounting procedure before relying on the measurement point.
      • Where is 200350-12-00-CN applied and what signal behavior should the engineer verify?
        It is suitable for machinery-condition monitoring duties on pumps, motors, fans, compressors and similar equipment. Verify a stable response at the configured monitoring input before releasing the channel.
