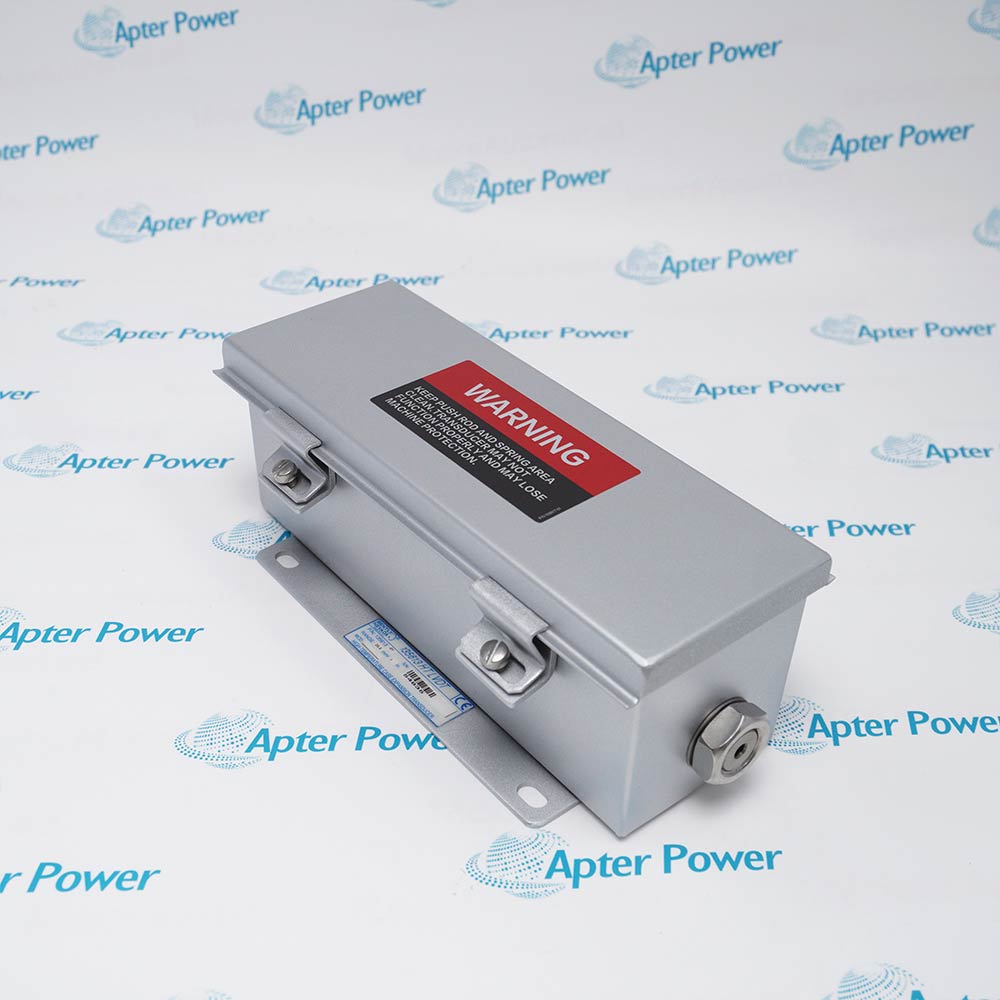

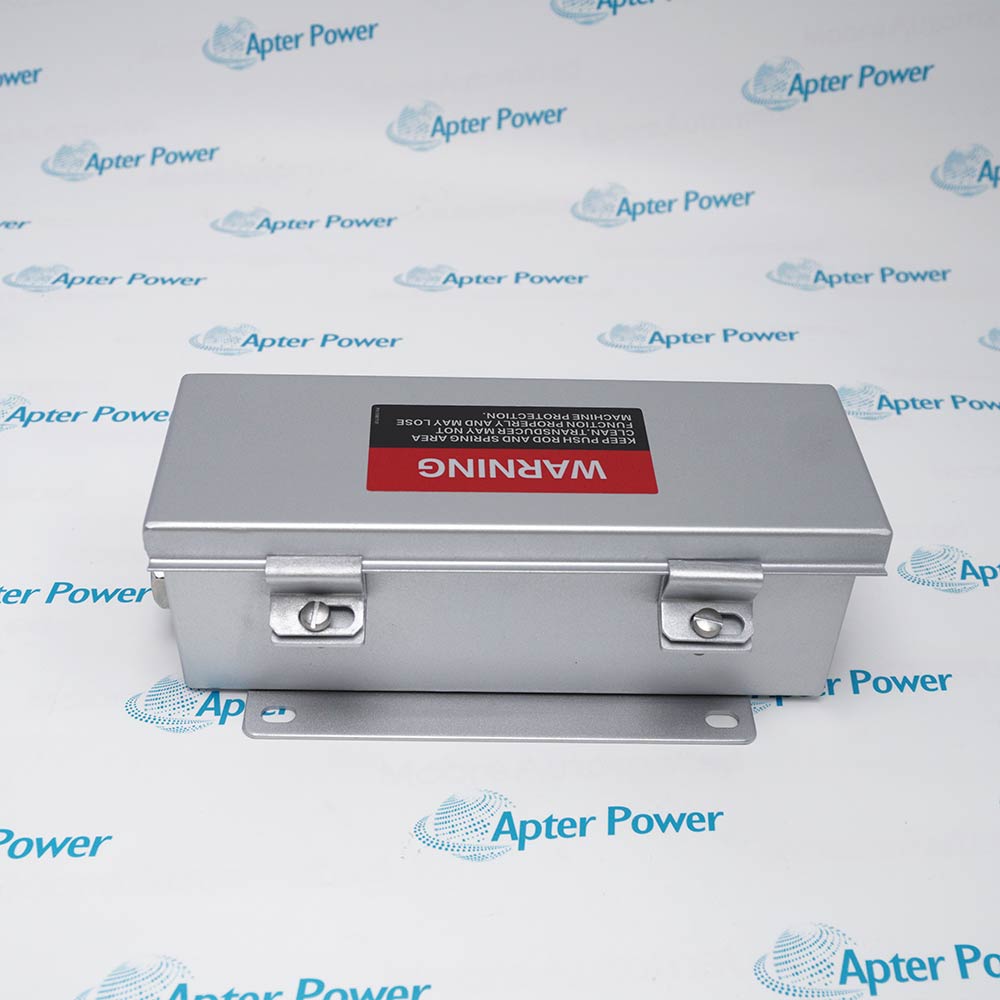

      Bently Nevada 135613-01
      Bently Nevada 135613-01
      Bently Nevada 135613-01
      Bently Nevada 135613-01
      Bently Nevada 135613-01
      Bently Nevada 135613-01
      Product image is representative; revision or series may vary. Contact us to request a specific version.

      135613-01

      High-Temperature Case Expansion Transducer
      In Stock
      Ships by Wednesday, October 7
      Fast Shipping Available

      Product Describe：

      Bently Nevada 135613-01 is the 25.4 mm range version of the high-temperature dc LVDT case-expansion transducer system. It measures turbine-casing thermal growth and interfaces with the documented 3500/45 position-monitoring arrangement.

      Ask our team:

      Get a quick price for： 135613-01
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Technical notes FAQ

      Technical specifications for 135613-01

      Technical specifications for 135613-01

      • Manufacturer:
        Bently Nevada
      • Product Category:
        Machinery Monitoring System
      • Spare Part Number:
        135613-01
      • Estimated shipping dimensions:
        26.2x11.8x9cm
      • Weight:
        1.74 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Transducer type:
        High-temperature dc LVDT
      • Input power:
        +13.5 to +26 Vdc, 30 mA minimum
      • Output:
        +1 to +6 Vdc
      • Scale factor:
        0.20 V/mm (5.0 V/in)
      • Linear range:
        25.4 mm (1.0 in)
      • Rod length option:
        127 mm (5.0 in)
      • -3 dB frequency:
        200 Hz typical
      • Stability:
        0.125% full-scale
      • Non-linearity:
        <0.25% full-scale
      • Operating temperature:
        -25 to 85 deg C
      • Housing design:
        NEMA 4
      • Compatible position monitor:
        3500/45
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      Built for the documented elevated-temperature case-expansion arrangement, this transducer supports continuous observation of turbine-casing growth and movement symmetry.
      • Extends case-expansion measurement into the documented high-temperature environment
      • Provides a conditioned voltage proportional to LVDT rod movement
      • Uses a weatherproof NEMA 4 housing arrangement
      • Supports dual-channel evaluation of turbine sliding-foot movement

      Install 135613-01 in the approved high-temperature case-expansion housing and route the transducer wiring to minimize RF coupling; CE installations require the documented ferrite bead at the transducer end. Verify the 3500/45 scale, rod geometry and dual-channel direction before startup trending.

      Important Notice: Confirm 135613-01, the 25.4 mm range and 127 mm rod, NEMA 4 housing, 3500/45 channel assignment, mounting geometry, supply and output polarity, CE ferrite bead, zero, direction and dual-channel startup trend.

      Apter Power 135613-01 Manuals and Guides

      The first document is a model-specific engineering data reference. The second is a distinct installation and commissioning workbook with field checks and acceptance records.

      High-temperature turbine case growth
      Tracks casing expansion during startup and online thermal operation.
      3500/45 position monitoring
      Feeds the compatible position monitor used for the high-temperature dual-transducer arrangement.
      Thermal growth differential review
      Supports comparison of casing movement with rotor growth to identify rub risk.
      Sliding-foot condition trending
      Helps identify unequal motion that may indicate an obstructed turbine casing foot.
      Read the applicable Bently Nevada installation information before work. Verify 135613-01 and the installed High-Temperature Case Expansion Transducer configuration before isolation, wiring or commissioning.
      1
      Confirm the complete 135613-01 marking and 25.4 mm range option.
      2
      Place the 3500/45 channel and turbine in the approved maintenance state.
      3
      Inspect the NEMA 4 housing, rod, conduit fitting and mounting hardware.
      4
      Align the extension rod with the casing movement and preserve full usable travel.
      5
      Verify +13.5 to +26 Vdc supply polarity and the +1 to +6 Vdc output path.
      6
      Install the specified ferrite bead at the transducer end for CE wiring.
      7
      Configure scale, zero and direction independently for both expansion channels.
      8
      Trend a controlled startup and verify consistent dual-channel movement before acceptance.

      Technical notes

      Technical notes

      Install 135613-01 in the approved high-temperature case-expansion housing and route the transducer wiring to minimize RF coupling; CE installations require the documented ferrite bead at the transducer end. Verify the 3500/45 scale, rod geometry and dual-channel direction before startup trending.

      FAQS

      • What measurement range is associated with 135613-01?
        The official table assigns 25.4 mm, or 1.0 in, to the -01 range option.
      • Which monitor is specified for the high-temperature dual arrangement using 135613-01?
        The datasheet identifies the 3500/45 Position Monitor.
      • What output is produced by 135613-01?
        The high-temperature dc LVDT system provides a conditioned +1 to +6 Vdc output.
      • Why is a ferrite bead relevant to 135613-01?
        The official datasheet requires a ferrite bead at the transducer end of field wiring for CE installations.
      • How should the extension rod of 135613-01 be installed?
        Align it with casing travel, avoid side load and confirm sufficient movement in both thermal-growth directions.
      • What housing protection is documented for 135613-01?
        The high-temperature LVDT housing assembly is identified as NEMA 4.
      • Why should two channels be trended with 135613-01?
        Comparing both sliding-foot positions can reveal unequal movement or obstruction that could distort the casing.
      • What replacement validation is required for 135613-01?
        Verify supply, output range, scale, zero, direction, ferrite placement and dual-channel startup trend.
