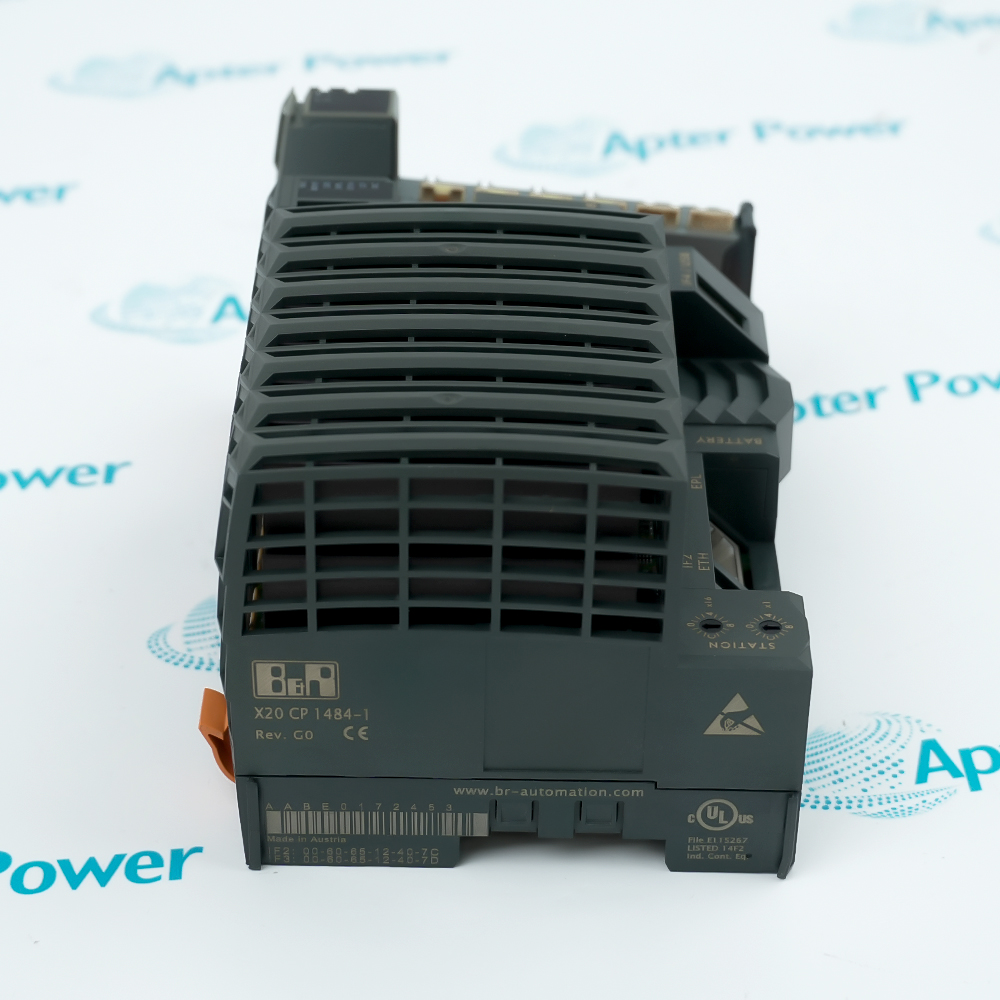

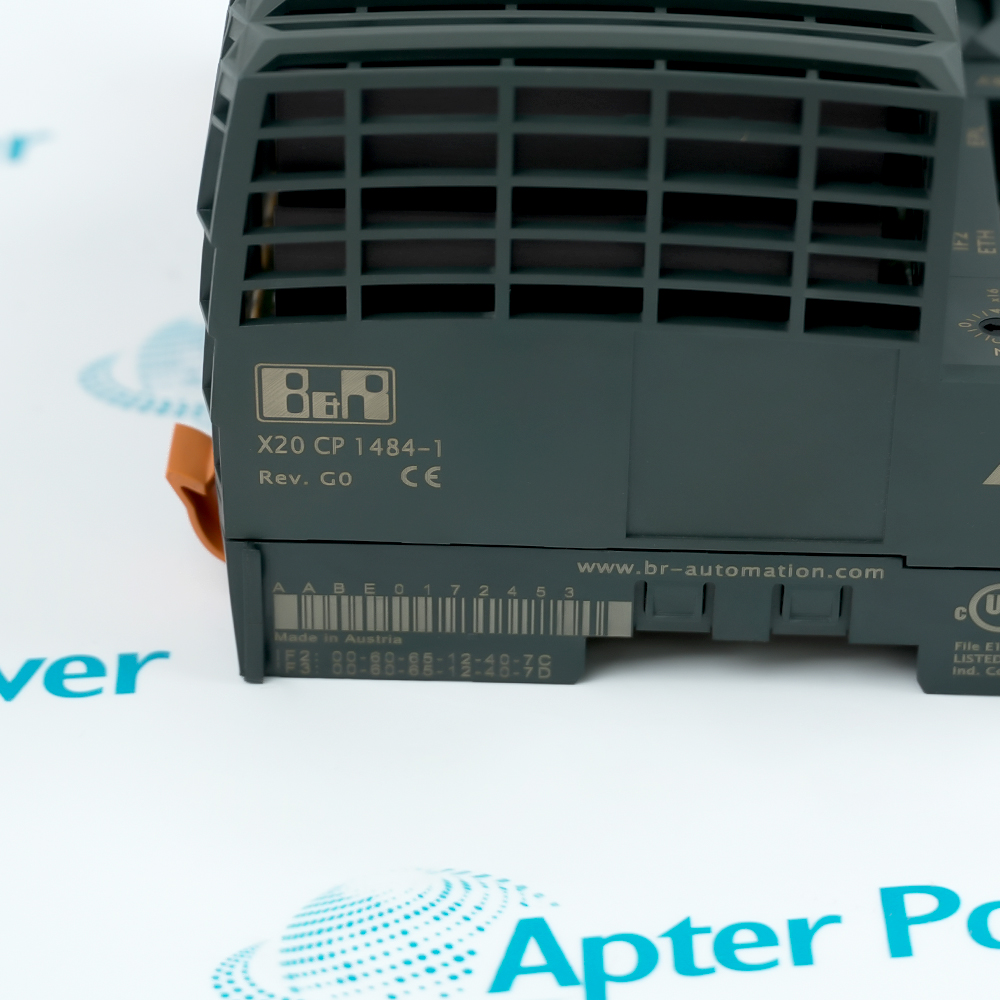

The X20CP1484-1 is an industrial central processing unit module belonging to B&R's X20 system distributed control and I/O series. Serving as the control core, this module features a built-in Intel x86-compatible 400 MHz processor, 256 MB DDR3 SDRAM system memory, and 32 kB non-volatile NVRAM storage space. Its physical interfaces include 1 standard Ethernet port (10/100/1000 Base-T), 1 real-time Ethernet POWERLINK port, 1 USB 2.0 port, and 1 vertical slot for inserting an additional communication interface card.
Fanless passive cooling architecture
256 MB DDR3 SDRAM system memory
Built-in 32 kB non-volatile NVRAM
The X20CP1484-1 physical entity and associated structures, when fully installed and operational, include the controller body, a plastic snap-on housing, a built-in replaceable lithium battery for the real-time clock (RTC), and a fanless passive heatsink structure for circuit board protection. Its data storage relies on an externally inserted CFast flash card to persistently store the operating system and user programs. For electrical connections, it includes a bus module connector linked to the X20 rail system and an external power supply input terminal block.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
B&R X20CP1484-1 CPU Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Plastics & Rubber Machinery
Controlling the multi-axis synchronous servo motion of injection, clamping, and ejecting in large all-electric injection molding machines.
Food & Beverage Packaging
Managing the rotary cutter axes and web tension of high-speed aseptic liquid filling machines or continuous flow wrappers.
Pharmaceutical Machinery
Serving as the central control core for fully automatic high-speed capsule filling machines or tablet presses.
Printing & Paper Processing
Controlling the electronic shaftless drive and high-precision color registration synchronization of multi-color high-speed flexographic printing presses.
Machine Tools & Metal Processing
Operating as the high-speed motion sequence and logic controller for precision CNC pipe bending machines and sheet metal press brakes.
Semiconductor Backend Packaging Equipment
Serving as the computing core for pneumatic and motion collaboration systems in high-speed fully automatic die bonders or sorters.
During operation, ensure the contacts of the external CFast flash card are not deformed before insertion, and never hot-plug the flash card, communication modules, or terminal blocks while the system is powered. The controller must be mounted vertically or in standard horizontal DIN-rail orientations to maintain fanless passive cooling efficiency, prevent electrode short circuits when replacing the RTC lithium battery, and ensure the 24 VDC external power supply ripple complies with B&R official standards.
The X20CP1484-1 CPU module utilizes a fully fanless passive cooling architecture, eliminating hardware failures caused by mechanical fan wear or dust clogging, significantly enhancing the Mean Time Between Failures (MTBF).
It is a compact embedded controller (CPU module) belonging to the B&R X20 system.
