8V1022.001-2

ACOPOS servo drive
In Stock
Ships by Saturday, November 21
Fast Shipping Available

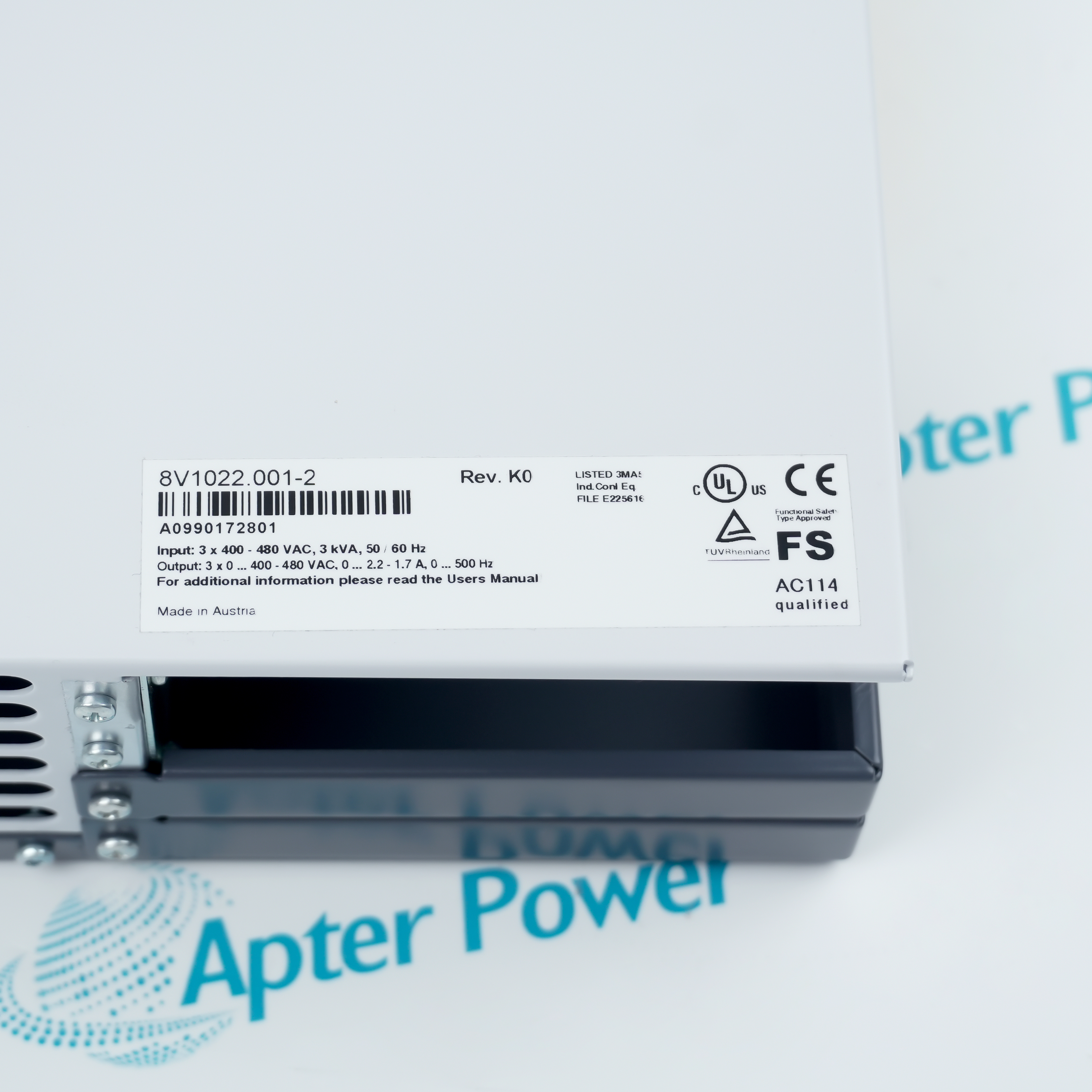

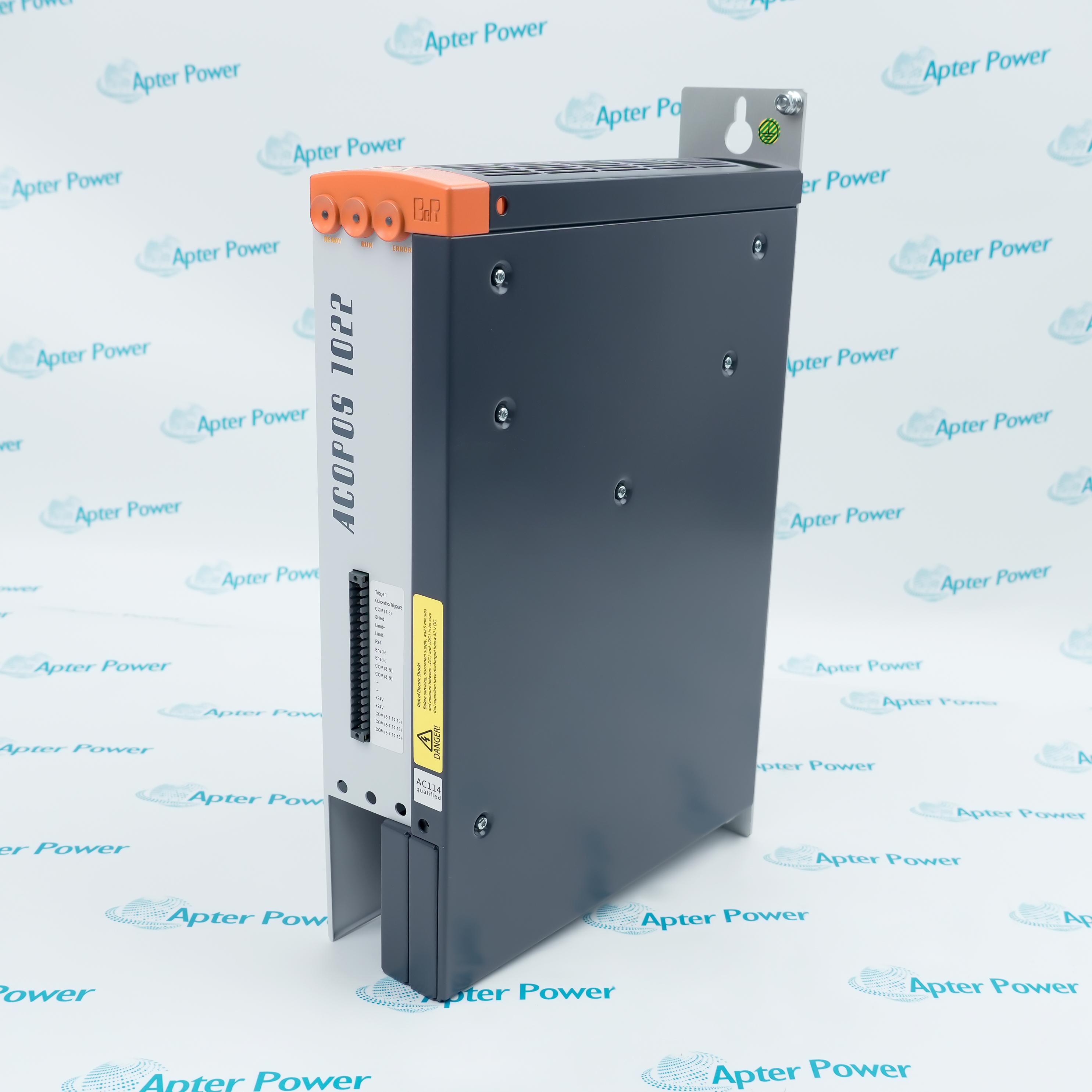

B&R 8V1022.001-2
B&R 8V1022.001-2
B&R 8V1022.001-2
B&R 8V1022.001-2
B&R 8V1022.001-2
B&R 8V1022.001-2
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

ACOPOS servo drive, 3x 400-480 V
2.2 A, 1 kW, coated, inte grated line filter
braking resistor and electronic
safe restart in terlock
Get a quick price for 8V1022.001-2
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 8V1022.001-2

  • Manufacturer:
    B&R
  • Product Category:
    General Automation
  • Spare Part Number:
    8V1022.001-2
  • Estimated shipping dimensions:
    7x25x42cm
  • Weight:
    4.06 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    Austria
  • Permissible network configurations:
    TT, TN
  • Mains input voltage:
    3x 400 VAC to 480 VAC ±10% 3x 230 VAC ±10%
  • Frequency:
    50 / 60 Hz ±4%
  • Installed load:
    Max. 3 kVA
  • Inrush current at 400 VAC:
    4 A
  • Switch-on interval:
    >10 s
  • DC bus capacitance:
    235 µF
  • Input voltage:
    24 VDC ±25%
  • Input capacitance:
    8200 µF
  • Nominal switching frequency:
    20 kHz
  • Possible switching frequencies:
    5 / 10 / 20 kHz
  • Max. motor cable length:
    25 m
  • Peak power output:
    3.5 kW
  • Continuous power:
    130 W

Information

Overview Manuals Common Applications Product Precautions
The 8V1022.001-2 is a member of B&R's modular ACOPOS family, primarily used to execute motion trajectories and position allocation within various automated multi-axis linkage systems. This drive integrates a line filter and an internal braking resistor directly within the hardware.
    • Modular mechanical design using plug-in modules
    • All connections are made using plug-in connectors
    • Partially-coated circuit boards - more robust in regard to environmental influences
This drive integrates a line filter and an internal braking resistor directly within the hardware. This integrated hardware setup eliminates the need to install additional external filtering units and separate resistors inside the electrical control cabinet, reducing the occupied space within the control box and simplifying harness layout and wiring during assembly. For high-density machine tool control panels, this compact hardware framework lowers the overall Bill of Materials cost and decreases potential failure risks caused by loose external wiring, keeping the machine operational under varying load conditions.

The 8V1022.001-2 features four dedicated hardware plug-in slots on its front panel. Without replacing the main drive controller unit, the drive becomes compatible with CAN bus interfaces, the POWERLINK real-time Ethernet protocol, or specific high-resolution encoder feedback signals simply by inserting the corresponding functional expansion modules based on the specific machine architecture. This hardware adaptability provides the necessary conditions for long-term equipment rotation and on-site retrofitting.

Concurrently, the drive incorporates built-in fault monitoring and indication features. When electrical noise, transient disturbances, or line abnormalities occur on the external power grid, status prompts and online code feedback allow maintenance personnel to lock onto the affected channels, thereby reducing troubleshooting time.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 B&R 8V1022.001-2 ACOPOS servo drive Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Packaging Machinery Industry
Used in flow wrappers, 3D packaging machines, and labeling machines to control the high-speed synchronous operation of feed, cutter, and film-feeding axes, ensuring precise material cutting and labeling.

Lithium Battery Manufacturing Industry
Precisely controlled constant tension of main winding spindles and synchronous cutting at cutter stations in electrode coiling machines, stacking machines, and winding modules, preventing electrode stretching or wrinkling.

Papermaking & Paper Product Processing
Controlled line-speed synchronization between cutting tool shafts and continuously moving paper rolls in corrugated cardboard slitter-scorers, rewinders, and flying shears, enabling non-stop rotary shears.

Semiconductor Wafer Handling
Drives high-sensitivity servo motors in wafer front opening unified pods (FOUPs/AMHS), die attachers, and wire bonders to achieve micron-level precise positioning.

Smart Factory Industrial Robots
Acts as an external axis drive or a servo amplifier inside the control cabinets of 4-axis/6-axis articulated robots (such as palletizing and sorting robots) to deliver heavy-current power output.

Wind Turbine Blade Pitch Control
Installed in pitch control boxes inside the wind turbine hub to control the blade pitch angle, with its coated circuit board effectively resisting northern cold and southern humid environments.
 During the use of 8V1022.001-2, it must be mounted vertically with sufficient top and bottom clearances reserved for heat dissipation. After power-off, wait a few minutes until the DC bus capacitors have fully discharged before touching or removing the unit, and always perform any plug-in module insertion or extraction under complete power-down conditions.

Additionally, regularly clean the control cabinet ventilation safeguards to ensure the main supply stays within the specified three-phase 400-480V AC range, preventing faults caused by electrical overloads or localized heat accumulation inside the enclosure.

Alternative Names

8V1022.00I-2 8V1022.OO1-2 8V1O22.001-2 8VI022.001-2 8VIO22.OOI-2 8V10220012 8V102200I2 8V10220O12 8V1022O012 8V1O220012 8VI0220012 8VIO22OOI2

Technical notes

8V1022.001-2 is natively integrated into the Automation Studio platform, achieving high-precision speed, position, and torque control via plug-in fieldbus and encoder modules to guarantee rapid dynamic response and stability under continuous heavy loads.

FAQ View All FAQ

  • What is the B&R 8V1022.001-2 device?
    The 8V1022.001-2 is an industrial servo drive from B&R's ACOPOS 1022 series, primarily used to control three-phase AC servo motors to achieve high-precision speed, position, and torque control.
  • What are the main industrial application industries for the 8V1022.001-2?
    It is widely applied in packaging machinery, printing equipment, textile machinery, plastics injection molding, and various automated assembly and material handling lines.
  • How to use a drive like the 8V1022.001-2 in an industrial system?
    Mount it on the control cabinet rail, connect the three-phase AC main power and 24V DC control power, plug in the servo motor's power and encoder cables, and finally connect it to the master PLC via the network bus.
  • What software does the 8V1022.001-2 rely on for configuration and programming?
    It is fully integrated into B&R's Automation Studio software platform, which is used for motion control logic programming, parameter tuning, and fault diagnostics.
  • What built-in safety protection functions does the 8V1022.001-2 have?
    It features overcurrent protection, overvoltage/undervoltage protection, drive and motor overheat monitoring, ground fault detection, and short-circuit protection to ensure hardware system safety.
