1756-OF4

ControlLogix Analog Output Module
In Stock
Ships by Saturday, November 21
Fast Shipping Available

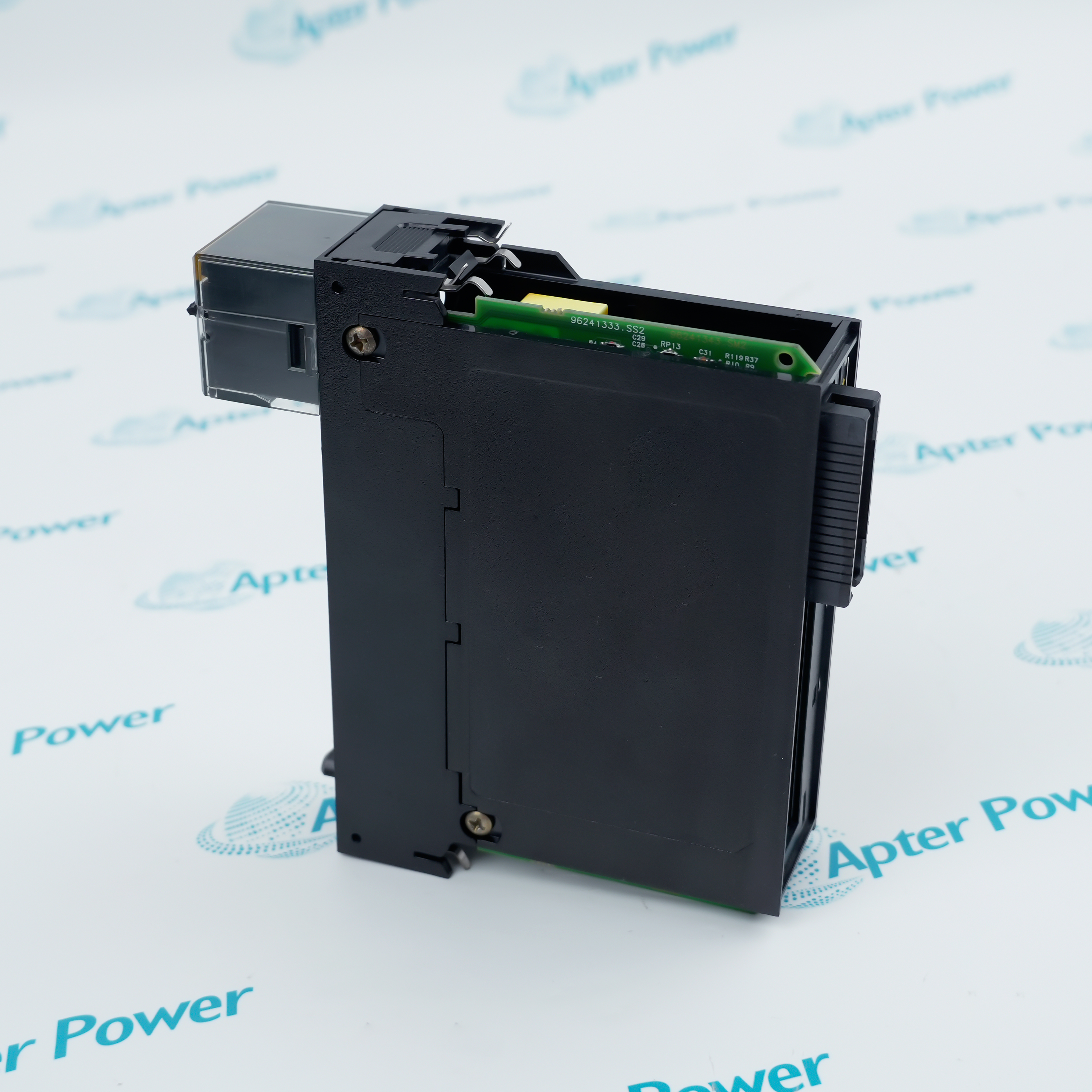

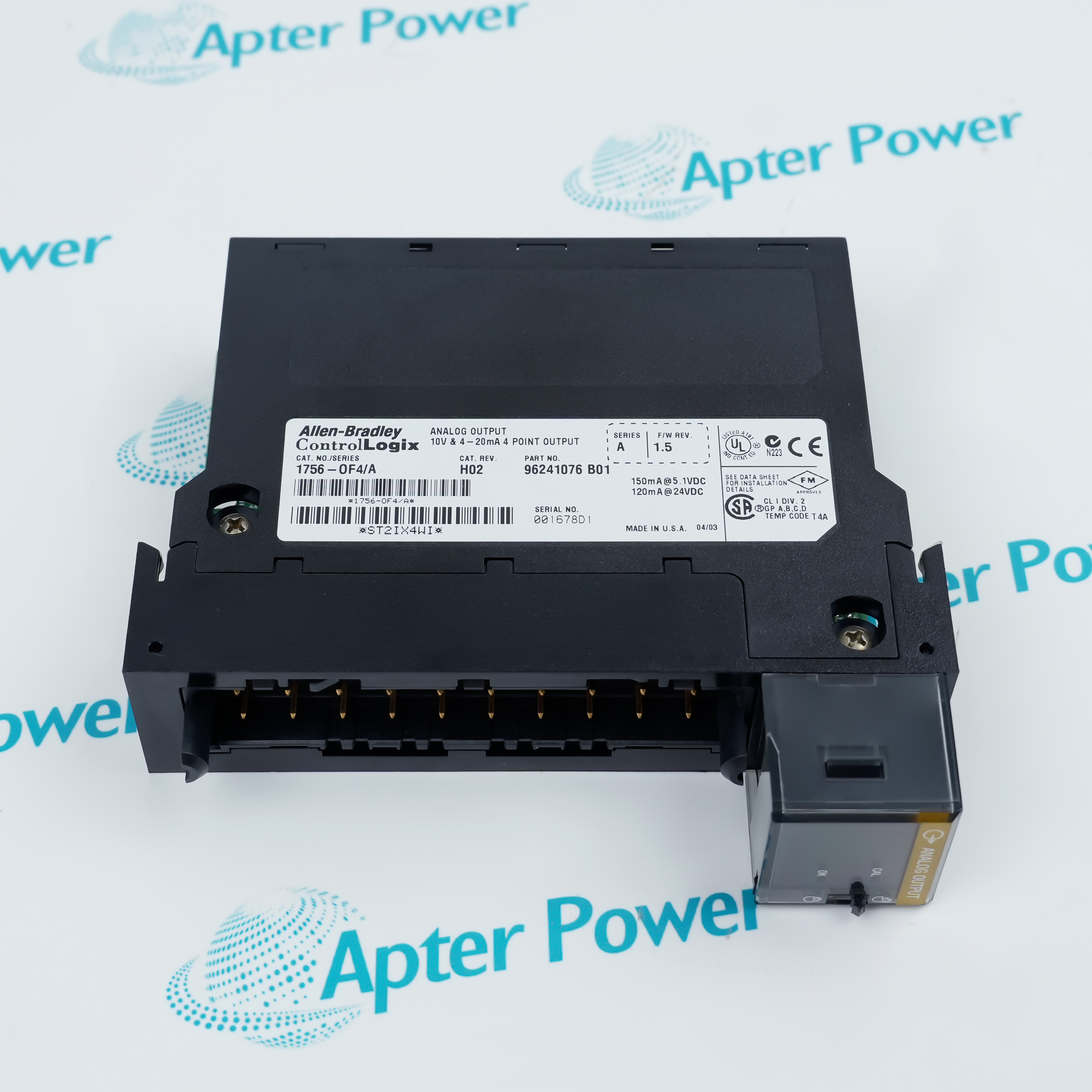

Allen-Bradley 1756-OF4
Allen-Bradley 1756-OF4
Allen-Bradley 1756-OF4
Allen-Bradley 1756-OF4
Allen-Bradley 1756-OF4
Allen-Bradley 1756-OF4
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

ControlLogix Analog Output Module
Analog Output - Current/Voltage 4 Pts (20 Pin)
ControlLogix voltage/current output
analog module, 4 voltage or current outputs
Get a quick price for 1756-OF4
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1756-OF4

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1756-OF4
  • Estimated shipping dimensions:
    2.5x15.2x12.7cm
  • Weight:
    0.3 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Outputs:
    4 Current-Voltage
  • Output Voltage Range:
    ±10V
  • Output Current Range:
    4…20 mA
  • Output Voltage Resolution:
    15 bits across 10.5V, 320 µV/bit O
  • Output Current Resolution:
    15 bits across 21 mA, 650 nA/bit
  • Number of Outputs:
    4 Outputs
  • Output Voltage Range:
    -10 to 10 Volts
  • Output Current Range:
    4 to 20 mA
  • Thermal Dissipation:
    10.91 BTU per Hour
  • Slot Width:
    1 Slot
  • Enclosure:
    None (Open-Style)
  • Wiring Category:
    Category 1 on the signal ports
  • Operating Temperature:
    0 to 60 degrees Celsius

Information

Overview Manuals Common Applications Product Precautions
The 1756-OF4 is a four-channel analog output module. It delivers versatile voltage and current drive capabilities across multiple calibrated ranges, ensuring seamless integration with various industrial field devices.
    • Input, output, and combination modules
    • Thermocouple and RTD modules
    • Electronic module keying, software configurable
This versatile Analog Output - Current/Voltage 4 Pts (20 Pin) module offers independent channel configuration to match varying field instrument requirements. It supports double-polarity voltage signals ranging from -10 to +10 Volts, as well as industry-standard 4 to 20 mA current loops. This wide compatibility allows the module to directly drive proportional valves, variable frequency drives (VFDs), actuators, and chart recorders without the need for external signal converters.

Operating within a compact 1-slot width, the 1756-OF4 features an open-style enclosure that fits into standard ControlLogix chassis such as the 1756-A10. Its power metrics suit high-density control cabinets. Built for 24/7 manufacturing environments, the module operates across a temperature range of 0 to 60 degrees Celsius.

It supports Removal and Insertion Under Power (RIUP), allowing module replacement while the chassis remains energized and other system processes continue. This function reduces repair times and downtime losses in sectors such as water treatment, power generation, oil and gas, and automotive assembly.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1756-OF4 ControlLogix Analog Output Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas Refining
Sending a 1-5V or 4-20 mA command to an electro-pneumatic positioner on a refinery distillation column feed valve.

Thermal Power Generation
Regulating the actuator of a main boiler feed water control valve based on steam demand.

Chemical & Petrochemical Industry
Driving a control signal to a steam jacket valve to regulate the exothermic reaction temperature in a batch reactor.

Metallurgy & Steel Mills
Providing a precise voltage reference signal (0-10V) to main drive motor controllers to ensure consistent steel sheet thickness.

Pharmaceuticals & Biotechnology
Sending an analog signal to an acid/base pump drive to maintain strict pH levels inside a fermentation bioreactor.

Automotive Manufacturing
Adjusting the fan speeds and air dampers in a robotic painting booth via precise analog speed references.
 When using the Allen-Bradley 1756-OF4 module, ensure it is installed in a protected enclosure to shield its open-style structure, and pair it with a 20-pin removable terminal block (RTB) wired according to Category 1 specifications.

Verify that backplane power draws do not exceed 150 mA at 5.1V DC or 210 mA at 24V DC, maintain ambient operating temperatures between 0 and 60°C, and fully utilize its RIUP capability for seamless online hot-swapping.

Revisions

Revision Part #

Also known as

1756-OF4 Ser A
1756-OF4/A, Series A, Rev A

Alternative Names

1756-0F4 1756-OFA 17560F4 1756OF4 1756OFA I756-0FA I756-OF4 I7560FA I756OF4

Technical notes

The Allen-Bradley 1756-OF4 is a 4-channel, industrial-grade analog output module designed specifically for ControlLogix systems. Each channel can be independently configured via software for voltage (e.g., ±10V) or current (e.g., 4-20mA) signals, offering a high 15-bit digital-to-analog resolution to control regulating valves and variable frequency drives with high precision. It fully supports removal and insertion under power (RIUP) and features built-in open-loop and short-circuit diagnostics, along with configurable fault-state presets. With its exceptional isolation and low latency, this module serves as a highly reliable core execution component in continuous process industries such as petrochemicals and power generation.

FAQ View All FAQ

  • What is the Allen-Bradley 1756-OF4?
    It is a 4-channel non-isolated analog output module for the ControlLogix platform, used to control field field devices.
  • What is the primary function of the 1756-OF4?
    It converts digital signals from the controller into precise analog voltage or current signals to drive actuators.
  • What signal ranges does the 1756-OF4 support?
    It supports voltage outputs of ±10V and current outputs of 0 to 20 mA or 4 to 20 mA.
  • Is the 1756-OF4 an isolated or non-isolated module?
    It is a non-isolated module, meaning its four output channels share a common electrical return path.
  • How to install the 1756-OF4 module?
    It slides directly into any available slot of a standard 1756 ControlLogix chassis and clicks securely into place.
