1756-L83E

ControlLogix 10MB controller
In Stock
Ships by Saturday, November 21
Fast Shipping Available

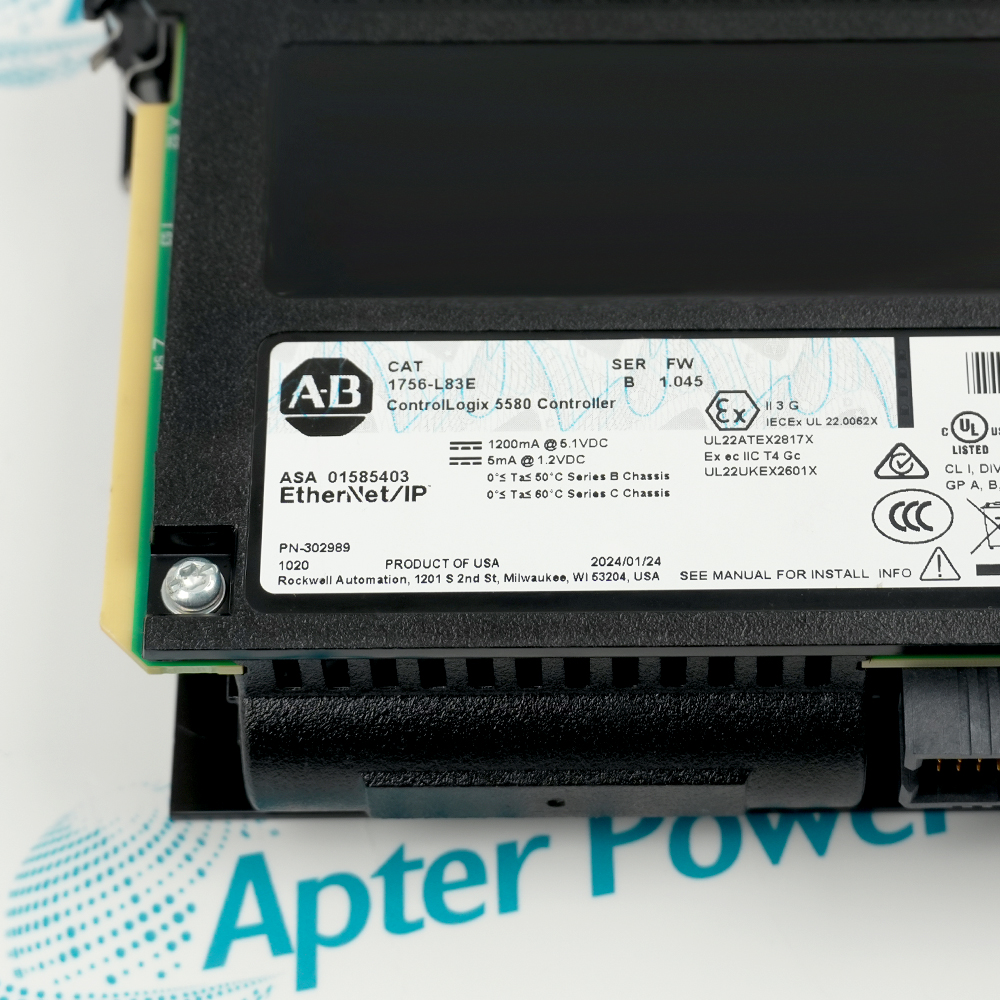

Allen-Bradley 1756-L83E
Allen-Bradley 1756-L83E
Allen-Bradley 1756-L83E
Allen-Bradley 1756-L83E
Allen-Bradley 1756-L83E
Allen-Bradley 1756-L83E
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

USB Communication Speed:12 Mbps
Current Draw (5.1 Volts):1.2 amps
Discrete I/O:128,000
Analog I/O:4,000
Get a quick price for 1756-L83E
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1756-L83E

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1756-L83E
  • Estimated shipping dimensions:
    3.5x14x14.5cm
  • Weight:
    0.4 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Memory Card Type:
    SD
  • Memory Card, Installed:
    2 GB
  • Memory Card Option:
    SD Card
  • Communications Ports (On Board):
    USB (programming only) RJ-45
  • Maximum Digital I/O:
    128000
  • Thermal Dissipation:
    21.2 BTU-hour
  • Maximum Analogue I/O:
    4000
  • Power Dissipation, Max:
    6.2 W
  • Operating Temperature, Max:
    60 °C max
  • Operating Temperature, Min:
    0 °C min
  • Storage Temperature, Max:
    85 °C max
  • Storage Temperature, Min:
    -40 °C min
  • Relative Humidity, Max:
    95 %RH
  • Vibration Acceleration (Max.):
    2 m/s²

Information

Overview Manuals Common Applications Product Precautions
The 1756-L83E is a programmable automation controller module within the Allen-Bradley ControlLogix 5580 series by Rockwell Automation. This product includes 10 MB of user memory, one 1 Gbps embedded Ethernet port, one USB 2.0 port, as well as a factory-included 2 GB SD memory card, a built-in energy storage module, and a status display screen, designed to be installed in a 1756 chassis to function as the core processing unit of the system.
    • Provides up to 45% more capacity over previous controller generations
    • Provides up to 45% more capacity over previous controller generations
    • Controller functions optimized for maximum system performance
The 1756-L83E supports a maximum capacity of 128,000 discrete I/O points and 4,000 analog I/O points, allowing for up to 32 controller tasks with 1,000 programs per task. Operating over EtherNet/IP, the module can connect up to 100 Ethernet network devices. In terms of physical and electrical specifications, the unit draws 1.2 Amperes of current at 5.1 Volts DC from the backplane and has a maximum thermal dissipation rating of 21.2 BTU per hour (equivalent to 6.2 Watts of power dissipation).

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1756-L83E ControlLogix 10MB controller Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Automotive Manufacturing Industry
Coordinating high-speed robotic welding lines and assembly line synchronization using integrated CIP Motion control.

Oil & Gas Refining Industry
Executing complex process loops, emergency shutdown logic, and monitoring fluid custody transfer stations.

Chemical Processing Industry
Managing precise temperature, pressure, and ingredient mixing ratios in continuous batch reactors.

Food and Beverage Industry
Handling multi-recipe routing, automated high-speed bottling lines, and CIP (Clean-in-Place) sanitation sequences.

Pharmaceutical Manufacturing Industry
Implementing strict batch control and tracking changes via controller-based logging to meet regulatory validation standards.

Power Generation Industry
Regulating auxiliary boiler controls, cooling tower synchronization, and data acquisition from multi-node electrical systems.
 Ensure firmware and Studio 5000 version compatibility (minimum V28), strictly limit the network load to under 100 Ethernet nodes, and verify the Energy Storage Module (ESM) status before power-down to guarantee proper data backup.

Revisions

Revision Part #

Also known as

1756-L83E Ser A
1756-L83E/A, Series A, Rev A
1756-L83E Ser B
1756-L83E/B, Series B, Rev B

Alternative Names

1756-LB3E 1756L83E 1756LB3E I756-L83E I756-LB3E I756L83E I756LB3E

Technical notes

The 1756-L83E supports up to 128,000 discrete I/O, 4,000 analog I/O, and high-speed CIP Motion control. Equipped with hardware-level secure firmware and a battery-less energy storage module, it is widely utilized for complex process control in medium-to-large industrial automation systems.
