1756-BA1

ControlLogix FlexLogix Battery
In Stock
Fast Shipping Available
Allen-Bradley 1756-BA1
Allen-Bradley 1756-BA1
Allen-Bradley 1756-BA1
Allen-Bradley 1756-BA1
Allen-Bradley 1756-BA1
Allen-Bradley 1756-BA1
Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe:

A continuous operation backup
power component for ControlLogix
A-Series 1756-L6X controllers
in industrial automation
Get a quick price for 1756-BA1
E-mail *
Mobile
Company
Content *
Quantity *
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

  • 1

    Requirement review

    We review the part number, quantity and delivery requirements and ask for any missing details.
  • 2

    Quotation and availability

    We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
  • 3

    Order confirmation and dispatch

    Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for 1756-BA1

  • Manufacturer:
    Allen-Bradley
  • Product Category:
    PLC Systems
  • Spare Part Number:
    1756BA1 1756-BA1/A
  • Estimated shipping dimensions:
    2.5x2.5x5.1cm
  • Weight:
    0.1 kg
  • Tariff Code:
    8537101190
  • Counliy of origin:
    USA
  • Category:
    PLCs/Machine Control
  • Subcategory:
    PLC Battery/Cable/Accessory
  • Slots:
    7
  • Stock:
    5
  • Product Type:
    Lithium Battery
  • Input Current:
    25 mA per channel
  • Operating Temperature:
    -40°C to +85°C
  • Backplane Current (5 Volts DC):
    10 amps
  • Backplane Current (24 Volts DC):
    2.8 Amps
  • Power Dissipation (Max):
    4.5 Watts

Information

Overview Manuals Common Applications Product Precautions

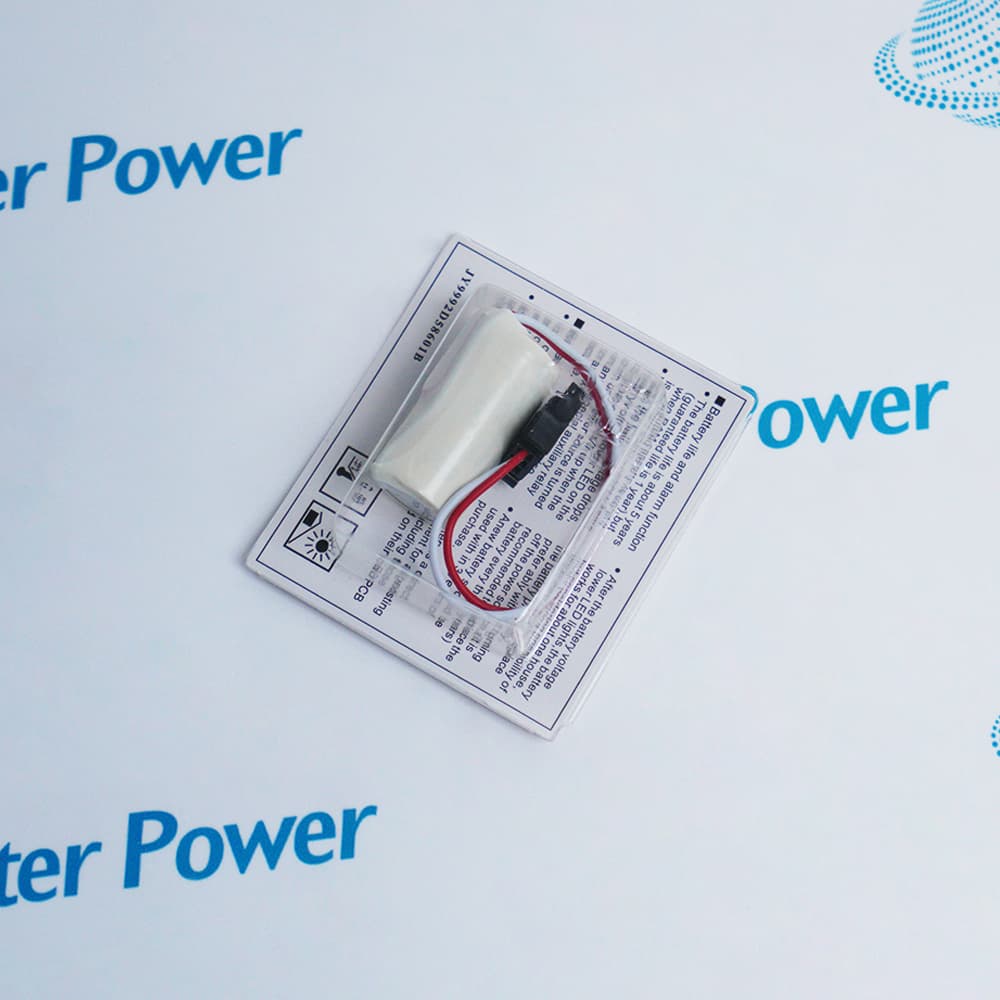

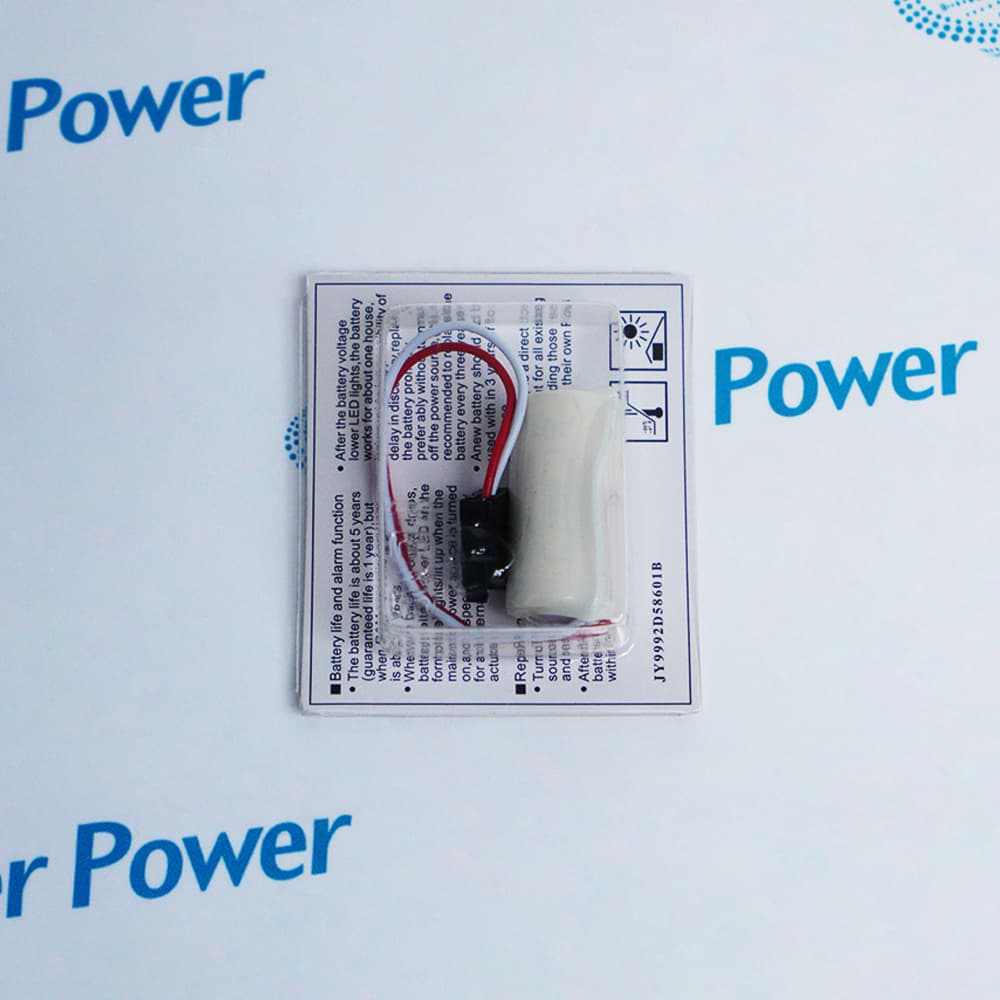

The 1756-BA1 ControlLogix/FlexLogix Battery Assembly by Allen-Bradley is an industrial-grade lithium battery assembly fabricated exclusively for deployment within Allen-Bradley 1756-L55, 1756-L61, 1756-L62, 1756-L63, and 1794-L33 controllers.
    • High performance in an easy-to-use environment
    • Perform standard and safety control in the same chassis for a truly integrated system
    • Leverage the high-availability and extreme environment capabilities to meet your application needs
The 1756-BA1 utilizes a Sanyo Lithium Cylindrical SE Type Cell as its core energy storage mechanism. The electrical rating profile of this component features a 3V DC nominal terminal voltage alongside a 1800mAh nominal battery capacity. Containing metallic lithium elements within its chemistry, the assembly is configured with an integrated lead wire connector terminal to establish a direct, plug-in connection with the controller's internal circuit board. From an environmental and operational perspective, the 1756-BA1 functions across a temperature range from -40°C to 60°C.

For inventory preservation, the assembly requires warehouse storage maintained near 30°C. In live field installations, the maintenance interval is directly determined by localized thermal conditions. Specifically, if the temperature of the machinery structure located exactly 1 inch below the 1756-BA1 chassis exceeds 30°C, a mandatory replacement must be executed within 3 years. Because elevated heat accelerates internal chemical depletion, higher surrounding temperatures shorten the operational lifespan, necessitating earlier replacement to prevent data loss in the volatile memory.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
 Allen Bradley 1756-BA1 ControlLogix FlexLogix Battery Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Power & Energy Industry
Secures logic interlock control programs within the 1756-L6X controller during power generator operations, preventing core control parameter loss during main power failures.

Oil & Gas Extraction
Continuously maintains PID tuning parameters in the memory at remote drilling rigs or pipeline pumping stations, ensuring immediate monitoring recovery after unplanned power outages.

Petrochemical & Refining
Protects recipe data within complex cracking reactor process flows, ensuring the controller's historical register data remains intact during plant-wide maintenance shutdowns.

Automotive Manufacturing
Retains multi-axis coordinated position coordinates on body stamping and robotic welding assembly lines, preventing mechanical arm origin loss and line downtime caused by power loss.

Steel & Metallurgy
Locks emergency safety shutdown trigger procedures in blast furnace ironmaking and continuous casting control systems, safeguarding low-level hardware safety interlocks under extreme power loss.

Pharmaceutical Industry
Completely preserves continuous process batch records in GMP-compliant sterile compounding and fermentation control systems, preventing batch audit trail failures caused by power loss.
 When replacing the battery, the PLC controller must remain powered up in the chassis, otherwise unplugging the old battery will instantly clear the memory programs and data. Verify the keyed plug orientation before connecting the new battery; forcing the connection, recharging, short-circuiting, or exposing this primary lithium battery to high heat is strictly prohibited. Additionally, field replacement must be performed promptly once the BATT light turns red (low battery) or within two years of operation to secure the continuity of the backup power pathway.

Revisions

Revision Part #

Also known as

1756-BA1 Ser A
1756-BA1/A, Series A, Rev A

Alternative Names

1756-8A1 1756-BAI 17568A1 1756BA1 1756BAI I756-8AI I756-BA1 I756-BAI I7568AI I756BA1 I756BAI

Technical notes

The 1756-BA1 is a 3V DC lithium battery cell with a keyed wire connector for Logix5555/563 processors. It backs up volatile RAM data during power outages within an operating range of -40°C to 60°C.

FAQ View All FAQ

  • What is the 1756-BA1?
    The 1756-BA1 is a 3.0V industrial lithium battery (with lead wire and connector) manufactured by Rockwell Allen-Bradley.
  • Which system uses the 1756-BA1?
    It is used for early Rockwell ControlLogix 1756 series PLC processors (including 5550, 5553, 5555, and 1756-L6x Series A) as well as FlexLogix 1794-L33 controllers.
  • What role does the 1756-BA1 play in the controller?
    During site power outages, it provides backup power to the controller's volatile memory (RAM) to prevent the loss of user programs and internal data.
  • How to install the 1756-BA1 on a PLC module?
    Open the front cover of the controller, place the battery into the dedicated slot, and press the harness plug into the controller's battery interface until locked.
  • What precautions are needed when replacing the 1756-BA1?
    The chassis backplane must remain powered up during replacement. If the battery is disconnected while the main system power is off, the volatile memory will clear instantly.
