What is the CM15/000S0E0/STD?

This is a 1/8 DIN universal process indicator manufactured by ABB.

How to use a product like the CM15/000S0E0/STD?

To use it, you install it on a control cabinet panel and connect the input signals from external sensors (such as thermocouples or pressure transmitters). Through the panel buttons or the front infrared interface, engineers can set ranges, alarm points, and display modes to intuitively read real-time data on the screen.

What types of sensor inputs does the CM15/000S0E0/STD support?

It supports a highly broad range of universal inputs, including various types of thermocouples (T/C), resistance temperature detectors (RTD), standard DC voltages (mV/V), DC currents (mA, such as 4-20mA), and frequency signals.

What is the protection rating of the CM15/000S0E0/STD, and can it be used in harsh environments?

Its front panel features a high protection rating of IP66 and NEMA 4X, which effectively prevents the ingress of dust, moisture, or low-pressure water jets, making it highly suitable for panel installation on humid or dusty industrial sites.

After buying the CM15/000S0E0/STD, will I need to change the battery in a few years?

No. It operates by being connected directly to the factory's 220V power supply, and it does not contain a consumable large battery that needs periodic replacement like a mobile phone or a watch.

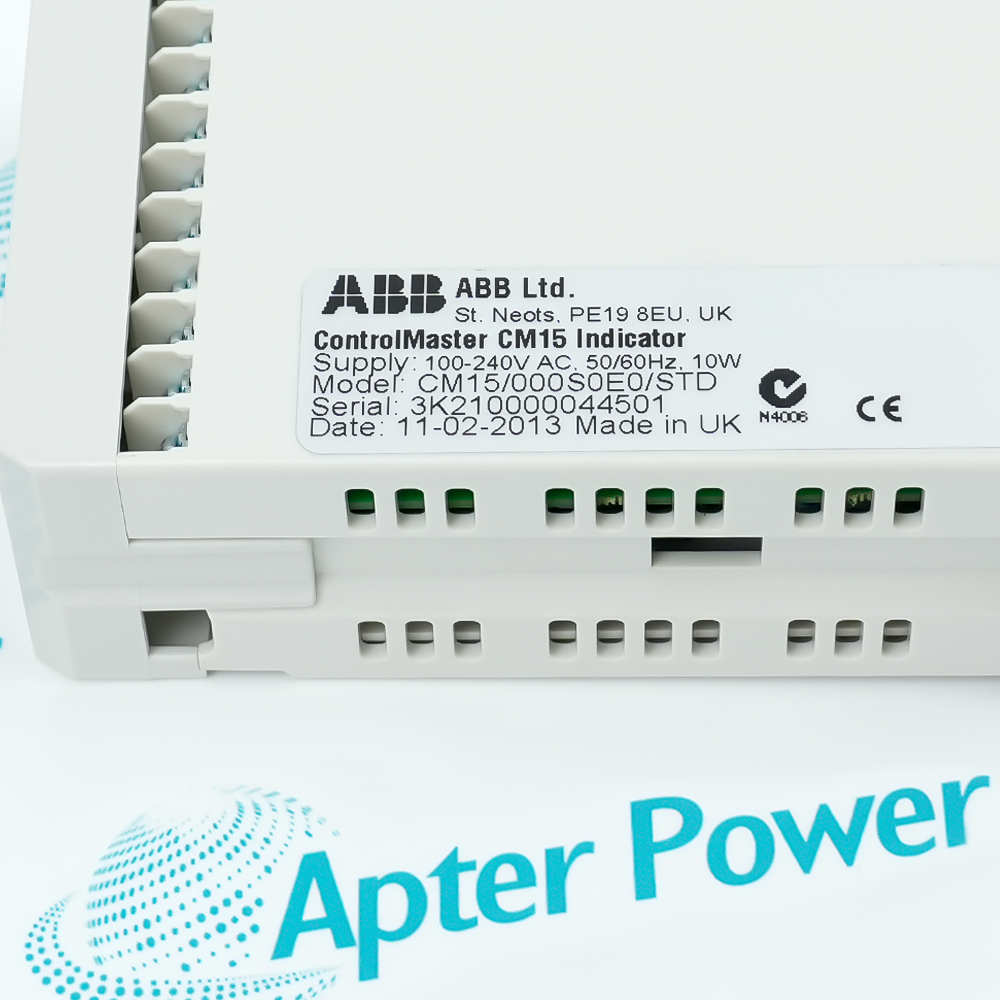

CM15/000S0E0/STD

Name: CM15/000S0E0/STD
Brand: ABB
SKU: CM15/000S0E0/STD

Universal process indicator, 1/8 DIN

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Describe：

Universal process

indicator, 1/8 DIN

Color, 1/4 VGA TFT, liquid crystal

display (LCD) with

built-in backlight

Ask our team:

Phone: +86 180 3023 5313 E-Mail: sales13@apterpower.com

Dispatch Planning
Confirm stock and lead time with our team.

Dedicated Manager
Personalized one-to-one VIP service

ISO 9001:2015 Certified
Trusted quality management

Get a quick price for CM15/000S0E0/STD

E-mail *

Mobile *

Company

Content *

Quantity *

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Apterpower please read our privacy policy

What happens after you enquire

1

Requirement review

We review the part number, quantity and delivery requirements and ask for any missing details.
2

Quotation and availability

We confirm the proposed item, condition, availability, price and estimated lead time in the quotation.
3

Order confirmation and dispatch

Once the quotation and purchasing details are agreed, your contact will coordinate the order and available dispatch information.

Technical specifications for CM15/000S0E0/STD

Manufacturer:

ABB
Product Category:

DCS Systems
Spare Part Number:

CM15/000S0E0/STD
Estimated shipping dimensions:

14.1×9.7×5.0cm
Weight:

0.38 kg
Tariff Code:

8537101190
Counliy of origin:

SWEDEN
Update rate:

125 ms
Common mode noise rejection:

> 120 dB at 50 / 60 Hz with 300  imbalance resistance
Normal (series) mode noise rejection:

> 60 dB at 50 / 60 Hz
CJC rejection ratio:

0.05 °C/°C change in ambient temperature
Temperature stability:

0.02 %/°C or 2 µV/°C (1 µV/°F)
Long term (input) drift:

< 0.1 % of reading or 10 µV annually
Input impedance:

> 10 M (mV input) 10 (mA input)
Relays:

4 (1 standard, 3 optional)
Relay 1 contact rating:

5 A, 240 V
Input:

Volt-free or 24 V DC 1-signal 15 to 30 V 0-signal 3 to 5 V Conforms to IEC 61131-2
Output:

Open collector output 30 V, 100 mA max. switched Conforms to IEC 61131-2

Ask for Quote

Information

Overview Manuals Common Applications Product precautions

The CM15/000S0E0/STD is a feature-rich, panel-mounted 1/8 DIN universal process instrument designed for industrial data monitoring. Equipped with a full-color TFT display, it supports dual analog inputs, relay outputs, and has an IP66 protection rating, making it suitable for basic applications such as flow accumulation and alarm processes.

Clear display and easy operation
Comprehensive I/O & Frequency Input
Rugged Protection & High Functionality

The ControlMaster CM15 is a feature-packed, 1/8 DIN, universal process indicator. A crystal-clear, full-color, TFT display shows operators exactly the information they need to know and provides operation and configuration menus in full text making the CM15 intuitive to use and very quick to install and commission. Available as a basic indication-only model, or enhanced through plug and play function keys and I/O modules, the CM15 offers totalization, level, math, logic, counter and alarm functions making it extremely flexible and able to solve many demanding application requirements.

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

ABB CM15/000S0E0/STD Universal process indicator, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.

Food & Beverage

Used to precisely regulate the temperature in autoclaves or heat exchangers to ensure food safety and extend shelf life.

Pharmaceuticals & Biotechnology

In the production of vaccines or pharmaceuticals, the temperature and pH value inside the reactor are strictly controlled (through process variable inputs).

Heat Treatment & Metals

The multi-segment program setting function of CM15 is used to control the temperature control curve of metal parts during heating and cooling cycles.

Plastics & Rubber

Ensure that the temperature of each section of the extruder is constant to prevent quality defects in the plastic melt caused by temperature fluctuations.

Pulp & Paper

During the paper drying stage, monitor and adjust the temperature of the drying cylinder to prevent the paper from becoming brittle.

HVAC & Building Automation

In data centers or cleanrooms, humidification or dehumidification systems are adjusted based on sensor feedback.

When installing and operating the CM15/000S0E0/STD controller, it is crucial to strictly adhere to electrical safety regulations and ensure correct wiring to prevent damage to the sensitive TFT display and internal circuitry. Given its IP66/NEMA 4X rating, the sealing gasket must be properly seated during panel mounting to maintain its water and dust protection. During the commissioning phase, PID parameters should be precisely configured based on the controlled variable (such as temperature, pressure, or flow), and the built-in Autotune function should be utilized to optimize control accuracy. Furthermore, as this is a standard configuration (000/STD), always verify that the input/output signals (e.g., Thermocouples, RTDs, or 4-20mA) are compatible with your field sensors and actuators before power-up.

FAQ View All FAQ

What is the CM15/000S0E0/STD?

This is a 1/8 DIN universal process indicator manufactured by ABB.
How to use a product like the CM15/000S0E0/STD?

To use it, you install it on a control cabinet panel and connect the input signals from external sensors (such as thermocouples or pressure transmitters). Through the panel buttons or the front infrared interface, engineers can set ranges, alarm points, and display modes to intuitively read real-time data on the screen.
What types of sensor inputs does the CM15/000S0E0/STD support?

It supports a highly broad range of universal inputs, including various types of thermocouples (T/C), resistance temperature detectors (RTD), standard DC voltages (mV/V), DC currents (mA, such as 4-20mA), and frequency signals.

What is the protection rating of the CM15/000S0E0/STD, and can it be used in harsh environments?

Its front panel features a high protection rating of IP66 and NEMA 4X, which effectively prevents the ingress of dust, moisture, or low-pressure water jets, making it highly suitable for panel installation on humid or dusty industrial sites.
After buying the CM15/000S0E0/STD, will I need to change the battery in a few years?

No. It operates by being connected directly to the factory's 220V power supply, and it does not contain a consumable large battery that needs periodic replacement like a mobile phone or a watch.
