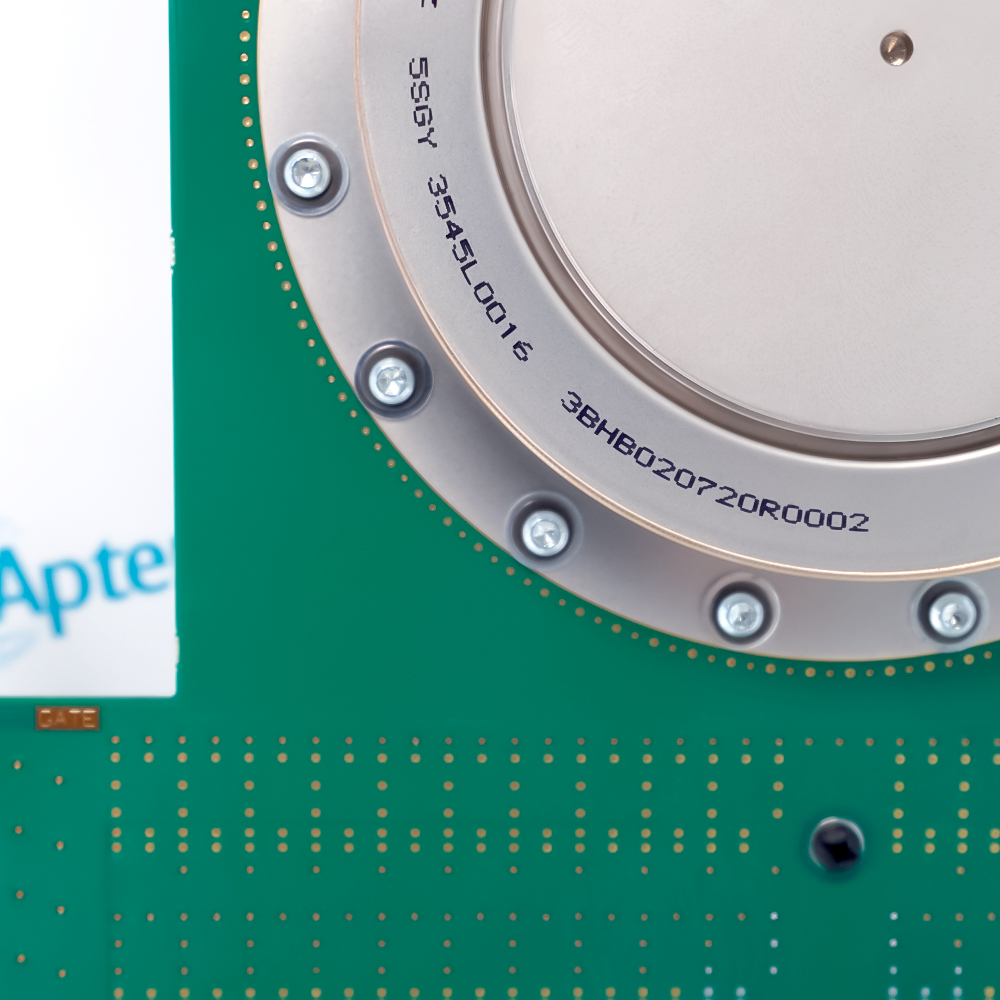

3BHB020720R0002-5SHY3545L0016 is an ABB integrated gate-commutated thyristor identified in the PCS6000 service manual as the old-type 4500 V, 91 mm IGCT. It is a serialized power semiconductor used in the converter power section.
- ABB
- IGCT, old type
- 4500 V
- 91 mm
The IGCT switches high converter current under gate-unit control to form the commanded power-conversion waveform; correct clamping, cooling, gate connection, insulation, and serialization records are essential to safe converter operation.
Important Notice: Use the complete 3BHB020720R0002-5SHY3545L0016 code and verify the physical nameplate and current ABB documentation before installation or replacement.
Apter Power 3BHB020720R0002-5SHY3545L0016 Manuals and Guides
Important Notice: These are two separate Apter Power documents with distinct layouts and model-specific content, prepared from the manufacturer-published ABB information named in each document. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.
ABB PCS6000 power conversion
Maintains the documented serialized high-power semiconductor replacement role in a correctly matched installation.
Process and machine automation
Supports the control, communication, power, safety, measurement, or protection duty stated in the official source for this exact or verified family identity.
Lifecycle-controlled maintenance
Requires complete-code, nameplate, host-system, and project verification before replacement or recommissioning.
Read and follow the exact ABB documentation and host-equipment instructions before use. Verify 3BHB020720R0002-5SHY3545L0016 from the physical nameplate.
Check 1
Match every character of 3BHB020720R0002-5SHY3545L0016 to the physical nameplate before work.
Check 2
Use the exact ABB manual, wiring drawing, and safety instructions for the installed revision.
Check 3
De-energize and apply the required lockout, discharge, ESD, and stored-energy controls before removal.
Check 4
Back up firmware, parameters, controller project, calibration, and network settings where applicable.
Check 5
Verify supply, signal type, polarity, grounding, shielding, connector pinout, load, and environmental limits.
Check 6
Commission with the manufacturer test procedure and record results before returning equipment to service.
