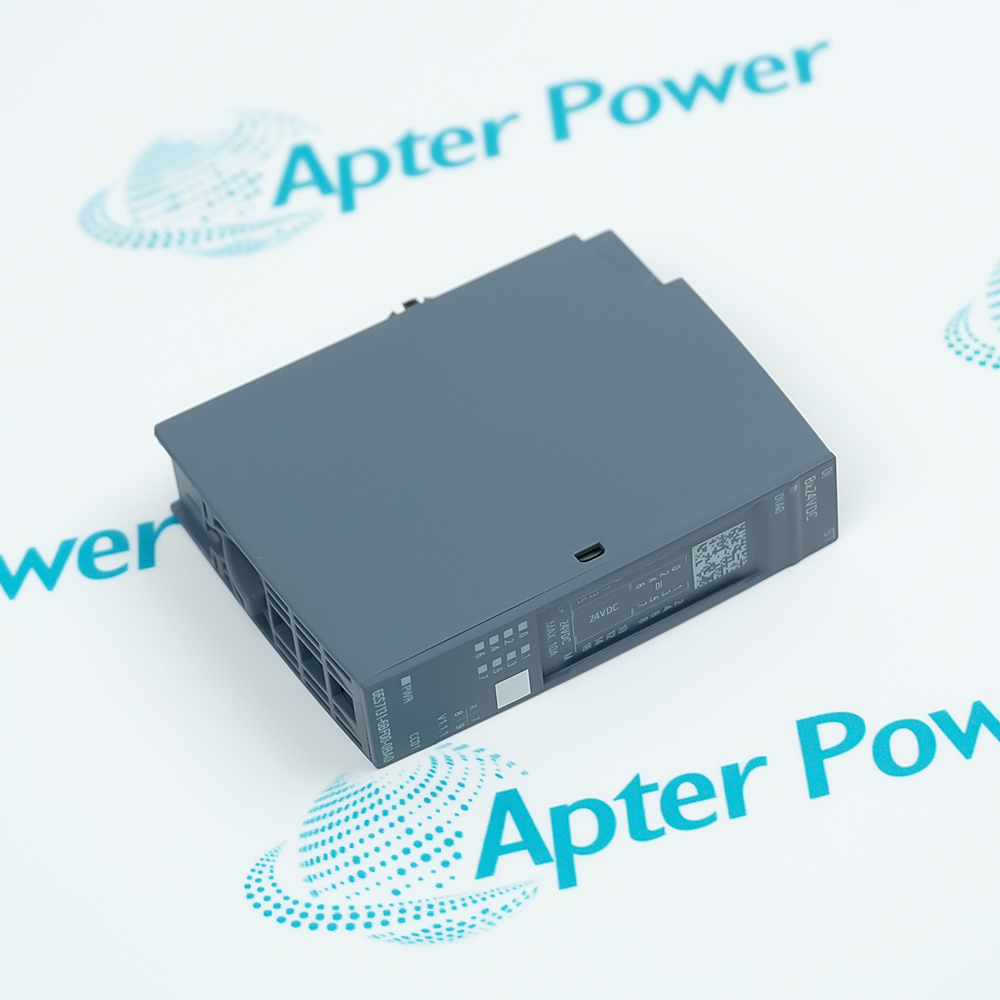

6ES7131-6BF00-0BA0 is a Siemens SIMATIC ET 200SP standard digital input module with eight 24 V DC inputs. It mounts on a BaseUnit type A0, uses color code CC01, and provides module diagnostics for distributed machine and process signal acquisition.
- Siemens
- DI 8x24VDC ST
- 8
- 24 V DC
The module senses eight 24 V DC field states from switches, proximity sensors, contacts, and interlocks, converts them into process input bits, and transfers the data and module diagnostics through the ET 200SP backplane to the controller.
Important Notice: Use the complete 6ES7131-6BF00-0BA0 code and verify the physical nameplate and current Siemens documentation before installation or replacement.
Apter Power 6ES7131-6BF00-0BA0 Manuals and Guides
Important Notice: These are two separate Apter Power documents with distinct layouts and model-specific content, prepared from the manufacturer-published Siemens information named in each document. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.
SIMATIC ET 200SP distributed I/O
Maintains the documented eight-channel digital acquisition and successor planning role in a correctly matched installation.
Process and machine automation
Supports the control, communication, power, safety, measurement, or protection duty stated in the official source for this exact or verified family identity.
Lifecycle-controlled maintenance
Requires complete-code, nameplate, host-system, and project verification before replacement or recommissioning.
Read and follow the exact Siemens documentation and host-equipment instructions before use. Verify 6ES7131-6BF00-0BA0 from the physical nameplate.
Check 1

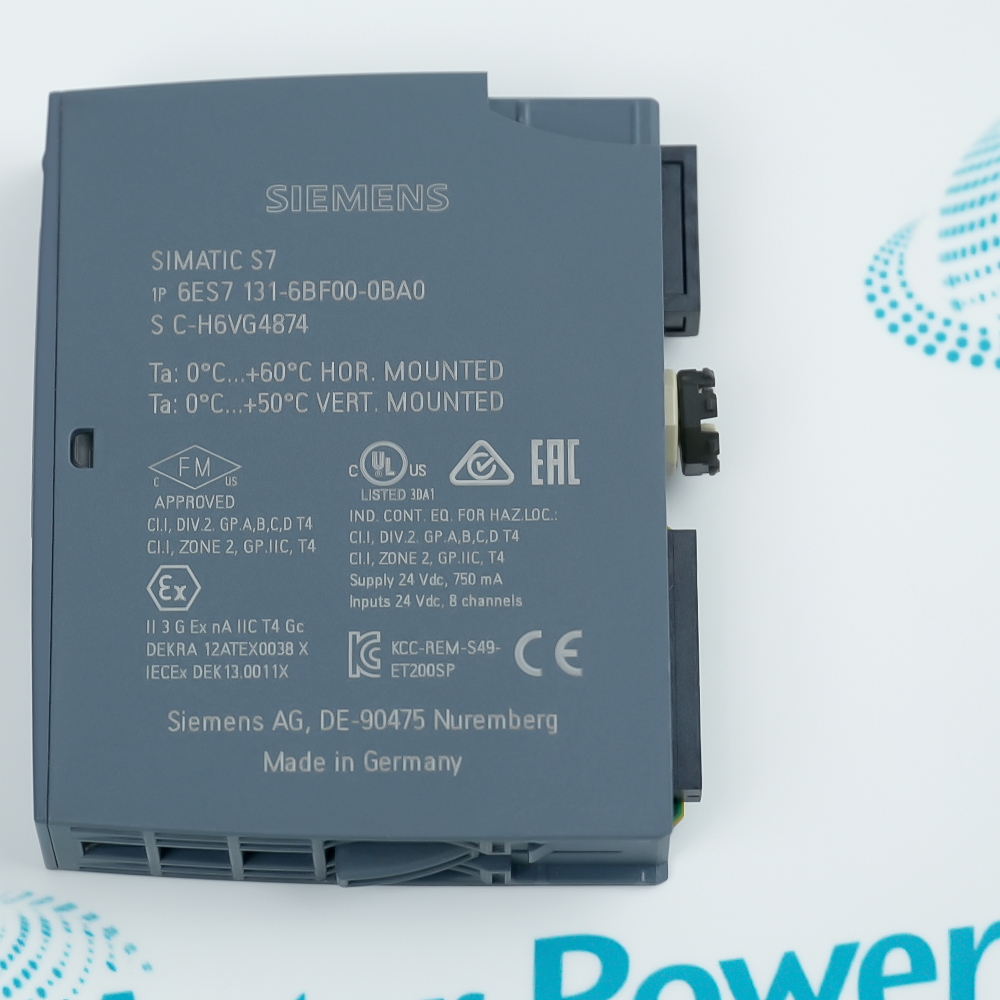

Match every character of 6ES7131-6BF00-0BA0 to the physical nameplate before work.
Check 2
Use the exact Siemens manual, wiring drawing, and safety instructions for the installed revision.
Check 3
De-energize and apply the required lockout, discharge, ESD, and stored-energy controls before removal.
Check 4
Back up firmware, parameters, controller project, calibration, and network settings where applicable.
Check 5
Verify supply, signal type, polarity, grounding, shielding, connector pinout, load, and environmental limits.
Check 6
Commission with the manufacturer test procedure and record results before returning equipment to service.
