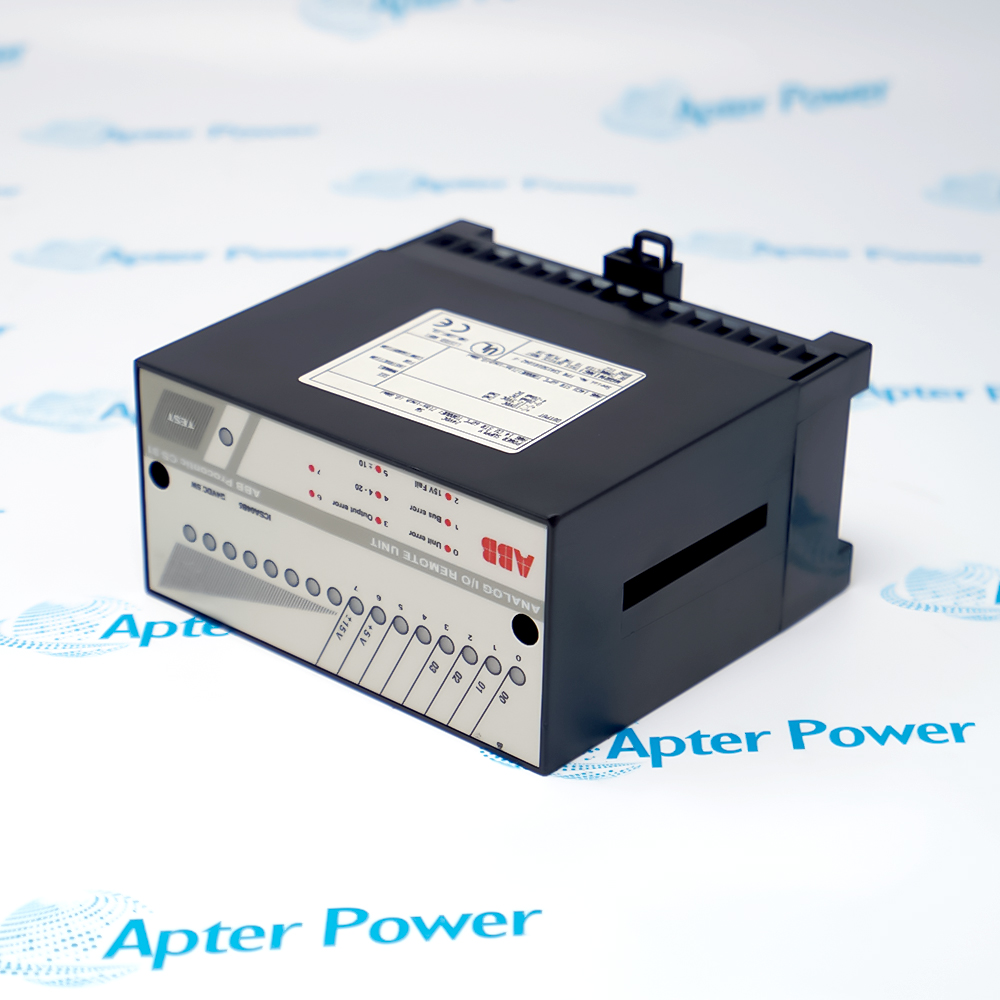

ICSA04B5-FPR3341501R1042 is an ABB AC31-series analog output module. ABB's official product page identifies the complete article as an analog output module with 12-bit conversion; exact channel ranges and loading must be taken from the matching AC31 technical documentation.
- ABB
- ICSA04B5
- FPR3341501R1042
- Analog output
The module converts controller output values into analog field signals for continuous-control devices such as positioners, converters, and recorders, with range selection, common reference, load, and wiring governed by the exact module manual.

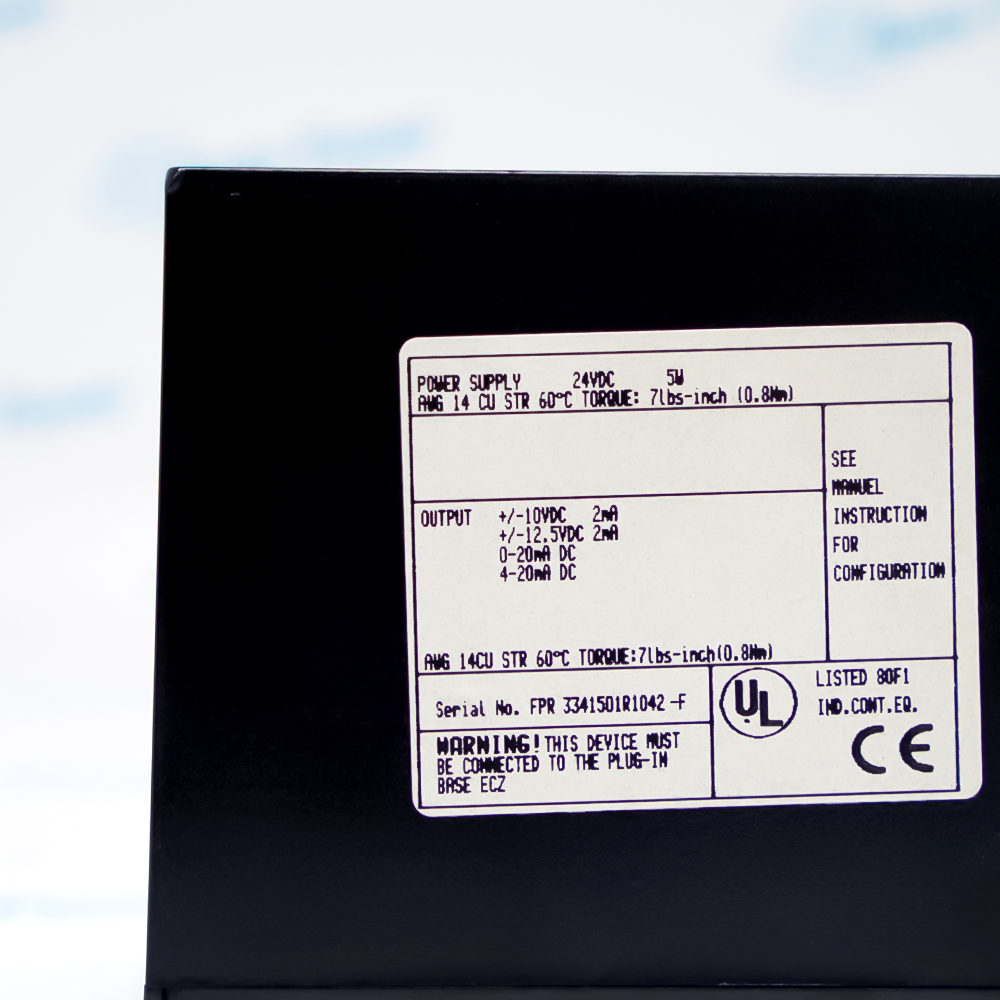

Important Notice: Use the complete ICSA04B5-FPR3341501R1042 code and verify the physical nameplate and current ABB documentation before installation or replacement.
Apter Power ICSA04B5-FPR3341501R1042 Manuals and Guides
Important Notice: These are two separate Apter Power documents with distinct layouts and model-specific content, prepared from the manufacturer-published ABB information named in each document. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.
ABB AC31 / CS31 I/O
Maintains the documented 12-bit analog conversion and load matching role in a correctly matched installation.
Process and machine automation
Supports the control, communication, power, safety, measurement, or protection duty stated in the official source for this exact or verified family identity.
Lifecycle-controlled maintenance
Requires complete-code, nameplate, host-system, and project verification before replacement or recommissioning.
Read and follow the exact ABB documentation and host-equipment instructions before use. Verify ICSA04B5-FPR3341501R1042 from the physical nameplate.
Check 1
Match every character of ICSA04B5-FPR3341501R1042 to the physical nameplate before work.
Check 2
Use the exact ABB manual, wiring drawing, and safety instructions for the installed revision.
Check 3
De-energize and apply the required lockout, discharge, ESD, and stored-energy controls before removal.
Check 4
Back up firmware, parameters, controller project, calibration, and network settings where applicable.
Check 5
Verify supply, signal type, polarity, grounding, shielding, connector pinout, load, and environmental limits.
Check 6
Commission with the manufacturer test procedure and record results before returning equipment to service.
