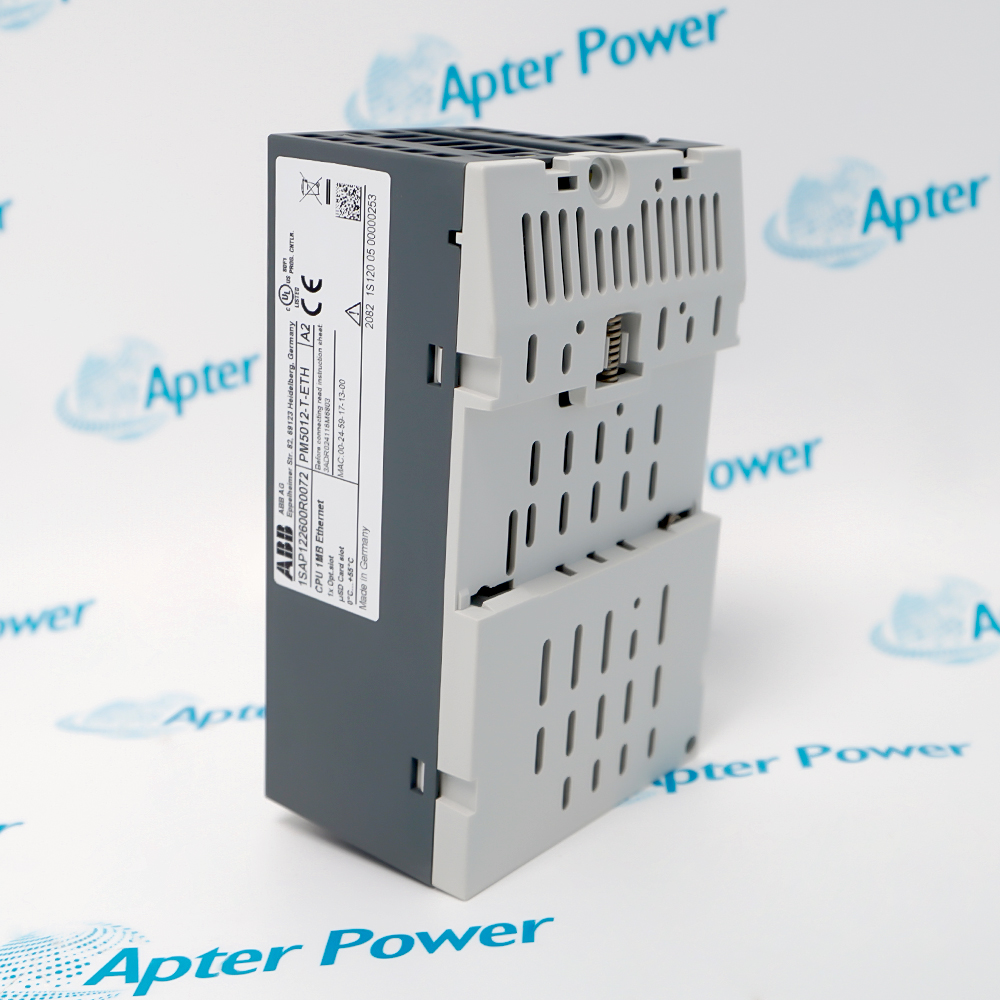

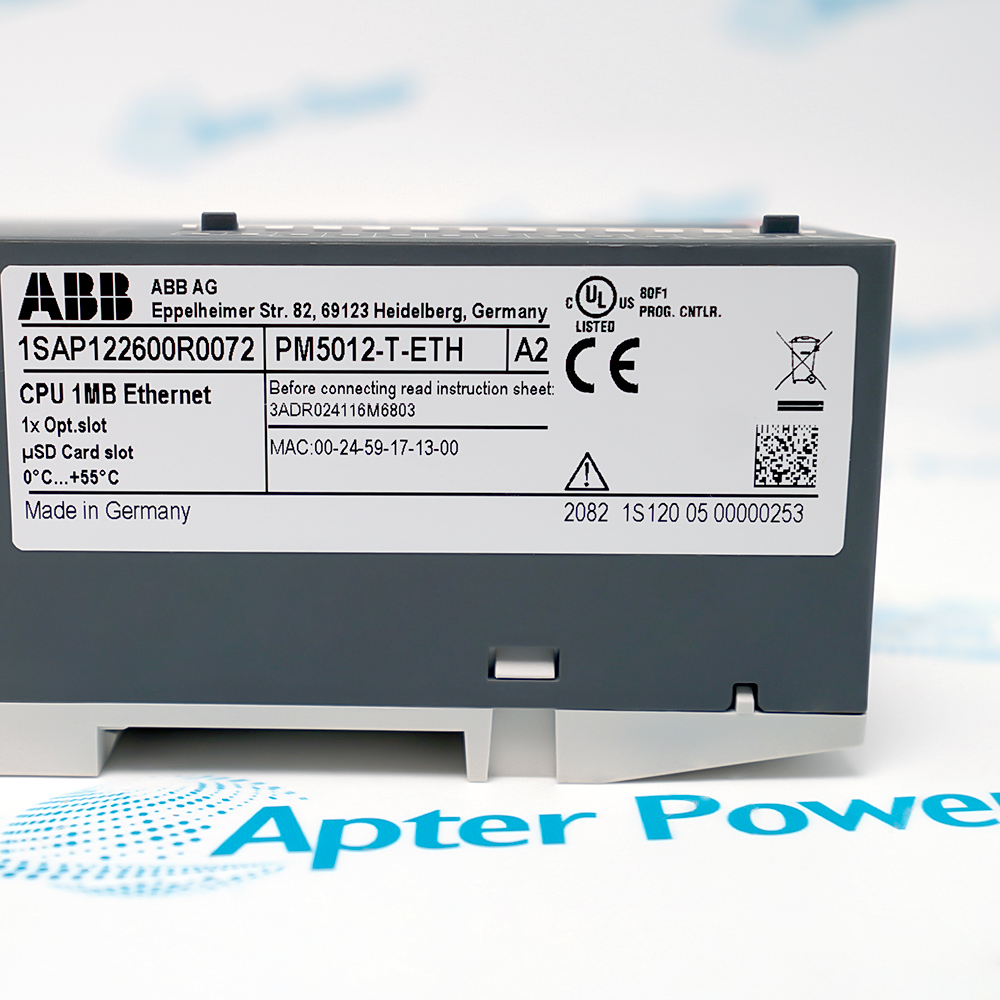

      1SAP122600R0072 PM5012-T-ETH

      ABB AC500-eCo V3 Basic PLC CPU
      In Stock
      Ships by Friday, August 21
      Fast Shipping Available

      Product Describe：

      ABB 1SAP122600R0072 PM5012-T-ETH is a revision-0 AC500-eCo V3 basic PLC CPU for compact industrial automation.

      Ask our team:

      Get a quick price for： 1SAP122600R0072 PM5012-T-ETH
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information Alternative names Technical notes FAQ

      Technical specifications for 1SAP122600R0072 PM5012-T-ETH

      Technical specifications for 1SAP122600R0072 PM5012-T-ETH

      • Manufacturer:
        ABB
      • Product Category:
        PLC Systems
      • Spare Part Number:
        PM5012-T-ETH
      • Estimated shipping dimensions:
        14.1x8.1x5.5cm
      • Weight:
        0.2 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        Sweden
      • Processor Revision:
        Revision 0
      • Supply:
        24 V DC, -15%/+20%
      • Memory:
        128 MB DRAM; 1 MB maximum application size
      • Digital Inputs:
        6 x 24 V DC; 2 counters to 5 kHz; 4 interrupt-capable
      • Transistor Outputs:
        4 x 24 V DC, 0.5 A resistive; PWM to 5 kHz
      • Ethernet:
        1 x RJ45 with Modbus TCP client/server
      • Option-board Slots:
        1
      • Local I/O-bus Modules:
        0
      • Protection:
        IP20 with required modules, options and terminals installed
      View as PDF Ask for Quote

      Information

      Information

      Overview Manuals Common Applications Product Precautions
      ABB 1SAP122600R0072 PM5012-T-ETH is a revision-0 AC500-eCo V3 basic PLC CPU for compact industrial automation.
      • 24 V DC supply with -15 percent to +20 percent tolerance
      • Six 24 V DC inputs and four 24 V DC, 0.5 A transistor outputs
      • Counter and PWM functions up to 5 kHz
      • One RJ45 Ethernet port with Modbus TCP client and server

      It executes an IEC 61131-3 control program, reads discrete or counter signals, drives standard or PWM outputs, and exchanges programming or Modbus TCP data for compact machines and small automation subsystems, with one supported option-board slot for added functions.

      Important Notice: Exact order code R0072 is processor revision 0 in Classic lifecycle; ABB lists revision-1 order code R0172 as the active replacement with specified migration requirements.

      Apter Power 1SAP122600R0072 PM5012-T-ETH Manuals and Guides

      Important Notice: The first link is the product-parameters PDF prepared only from the cited manufacturer information; the second link is the Apter Power product manual. Confirm the physical nameplate, current manufacturer documents, and host-system requirements before installation or replacement.

      Compact machinery control
      Controls a small number of 24 V DC sensors and transistor-driven actuators.
      Ethernet automation cells
      Supports programming and Modbus TCP client or server communication through one RJ45 port.
      Counter and PWM tasks
      Uses documented 5 kHz counter inputs and PWM-capable transistor outputs.
      Distributed control panels
      Uses supported serial or Ethernet communication where no local AC500 I/O-bus expansion is required.
      Follow the revision-0 PM5012-T-ETH instructions and verify supply, wiring, mounting and lifecycle requirements before commissioning or migration.
      1
      Keep the 24 V DC supply within ABB's -15 percent to +20 percent tolerance.
      2
      Use the specified conductor type, wire size and temperature classification to prevent terminal or module damage.
      3
      De-energize the controller and field circuits before wiring, inserting an option board or servicing the installation.
      4
      Observe horizontal and vertical mounting temperature limits and the 50 percent output-load reduction required for vertical mounting of revision 0.
      5
      Maintain IP20 only with the required modules, options and terminal blocks installed, and use a suitable industrial enclosure where required.

      Alternative Names

      Alternative Names

      ABB PM5012-T-ETH ABB 1SAP122600R0072 PM5012-T-ETH AC500-eCo V3 CPU 1SAP122600R0072 Basic PLC CPU

      Technical notes

      Technical notes

      This exact R0072 processor revision 0 is in Classic lifecycle; do not transfer the Active status of R0172 to it. ABB lists revision 1 order code 1SAP122600R0172 as the Active replacement, with firmware 3.6.x and Automation Builder 2.6 or later migration requirements. ABB documents no onboard analog I/O and no local AC500 I/O-bus expansion modules for PM5012. Country of origin, tariff code and dimensions were not published in the cited ABB sources. Do not add OPC UA, MQTT, HTTPS/WebVisu, FTP, safety-PLC functions or multiple Ethernet ports without model-specific ABB evidence.

      FAQS

      • What is ABB PM5012-T-ETH 1SAP122600R0072?
        It is revision 0 of an AC500-eCo V3 basic PLC CPU with onboard digital I/O and one Ethernet port for compact automation.
      • What is the life-cycle status of order code 1SAP122600R0072?
        ABB's current model-specific data sheet classifies revision 0, order code R0072, as Classic and says it is not recommended for planning and commissioning new installations.
      • What is ABB's active replacement?
        ABB lists processor revision 1, order code 1SAP122600R0172, as the Active replacement with the same PM5012-T-ETH feature/function position. Migration requirements still apply.
      • How many onboard inputs and outputs does PM5012-T-ETH have?
        It has six 24 V DC digital inputs and four 24 V DC transistor outputs. It has no onboard analog I/O.
      • Which high-speed I/O functions are available?
        Two inputs support counter operation up to 5 kHz, four inputs support interrupts, and the four transistor outputs support standard or PWM operation up to 5 kHz.
      • Which Ethernet functions does the model-specific data sheet support?
        Programming, TCP/IP, UDP/IP, DHCP, PING, network variables and Modbus TCP client/server over one RJ45 port. The PM5012 row does not support copying advanced features from higher CPUs.
      • Can local AC500 I/O-bus modules be attached to PM5012-T-ETH?
        No. ABB's data sheet lists zero local I/O-bus modules for PM5012. It provides onboard I/O and one option-board slot; additional distributed I/O requires a supported communications design.
      • Can the CPU accept an analog-I/O option?
        Yes. ABB lists compatible option boards such as TA5120-2AI-UI, TA5122-2AI-TC, TA5123-2AI-RTD, TA5126-2AO-UI and TA5128-2AI1AO, one board at a time in the single slot.
