The 8280-192 functions as a 701A digital speed control unit, serving industrial installations to regulate prime movers, such as reciprocating engines and steam turbines, managing machinery velocity through magnetic pickup inputs, proportional actuator currents, and adjustable acceleration or deceleration ramp rates.
Tachometer or load-signal output
Enhanced steady state dynamics
Adaptive (learning) speed sensing algorithm
The Woodward 701A Digital Speed Control offers improved speed control with models designed specifically for low speed to high-speed diesel, gas, or pilot fuel engines (one actuator moving two sets of linkages to the gas fuel valve and the diesel injection system). The 701A control uses a 16-bit microprocessor for all control functions. The control has enhanced control dynamics that give smooth steady-state operation, yet the control retains fast response to engine speed and load changes. An external contact input allows switching between two independent sets of automatic variable dynamics. This is especially useful for engine systems with different operation conditions, such as open or closed clutches or pilot-fuel engines. The contact could also be wired to change dynamics based on utility tie breaker status.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
WOODWARD 8280-192 Digital Speed Control Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Oil & Gas
Drives and regulates gas engines at pipeline boosting stations, controlling compressor speeds to maintain stable natural gas transmission pressure.
Chemical Plants & Refineries
Governs the speed of industrial steam turbines serving as prime movers to drive large critical circulation fans, pumps, or process compressors.
Metallurgical & Steel Mills
Controls industrial steam turbines or gas generators used for blast furnace blowers, keeping a constant volume of high-pressure air supply during the smelting process.
Offshore Engineering
Manages the rotational speed of primary diesel power modules and fire pump drivers on drilling platforms, supplying continuous power in harsh marine environments.
Metallurgical Industry
Controls industrial steam turbines or gas generators used for blast furnace blowers, keeping a constant air supply volume during the smelting process.
Ensure the power supply is a stable 24V DC with correct wiring polarity to avoid heavy voltage fluctuations before operation. Wiring for the magnetic pickup (MPU) and actuator must utilize separate shielded twisted-pair cables with single-point grounding to prevent speed instability caused by high-frequency electromagnetic interference. Never connect, disconnect, or modify core configuration parameters via the hand-held programmer while the engine is running. Disconnect the tuning terminals promptly once calibration is complete.

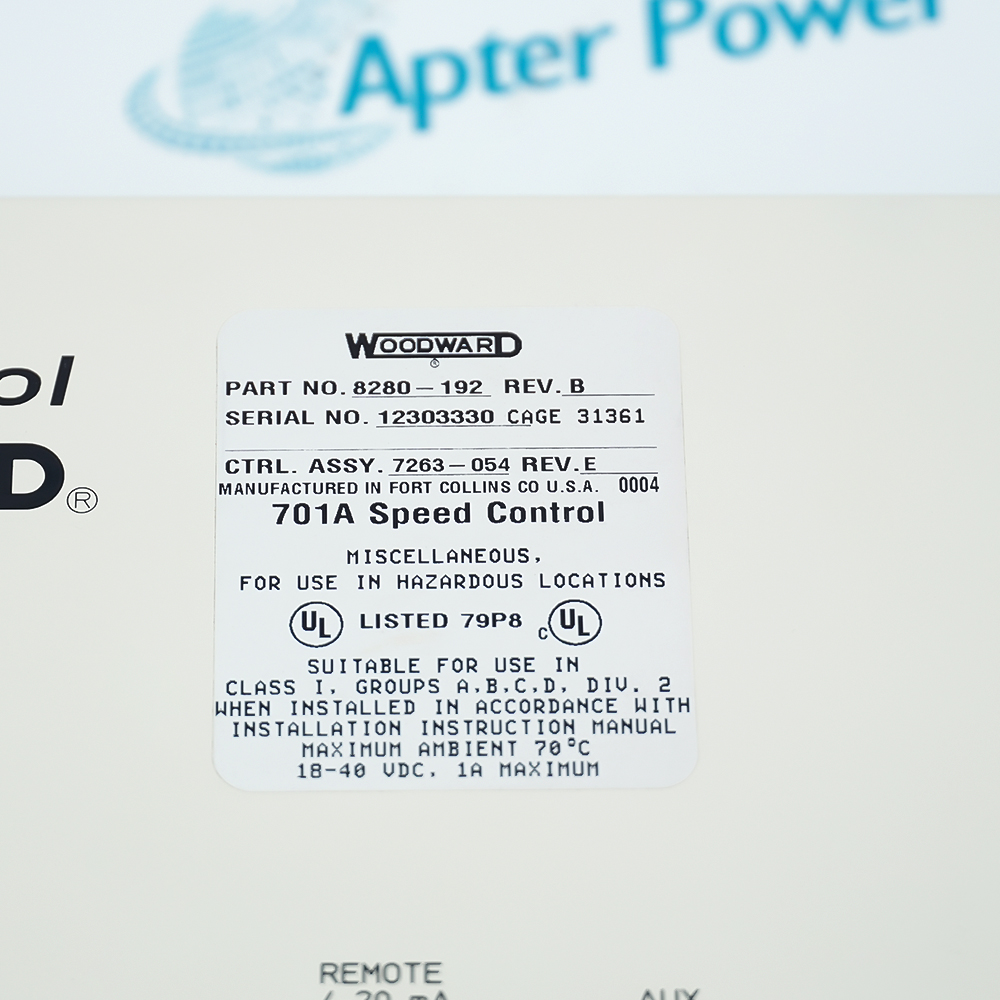

The 8280-192 is a 701A series digital speed control manufactured by Woodward. It is an industrial-grade electronic governor used to regulate the speed of diesel, gas, or dual-fuel engines, as well as steam turbines.
How do you use the 8280-192? What is its basic operational logic?
The controller reads real-time speed signals from a magnetic pickup (MPU) mounted near the flywheel, compares the actual speed with the setpoint, and outputs a proportional current signal to the actuator to adjust fuel metering and maintain a stable speed.
Does the 8280-192 support the Droop function for parallel operations?
Yes. The controller features an adjustable speed droop function, allowing generator sets to operate in parallel with other generators or the utility grid while maintaining proportional load sharing.
What critical data should be recorded when removing and replacing an 8280-192?
Before powering down and removing the old unit, use a handheld programmer to thoroughly back up all PID parameters, rated speed setpoints, idle settings, and actuator current limits to ensure quick data entry into the replacement unit.
What basic protection and monitoring functions does the 8280-192 provide?
The controller features built-in protection against speed sensor signal loss (MPU failure), configurable overspeed shutdown or alarm outputs, and internal system status diagnostics.
