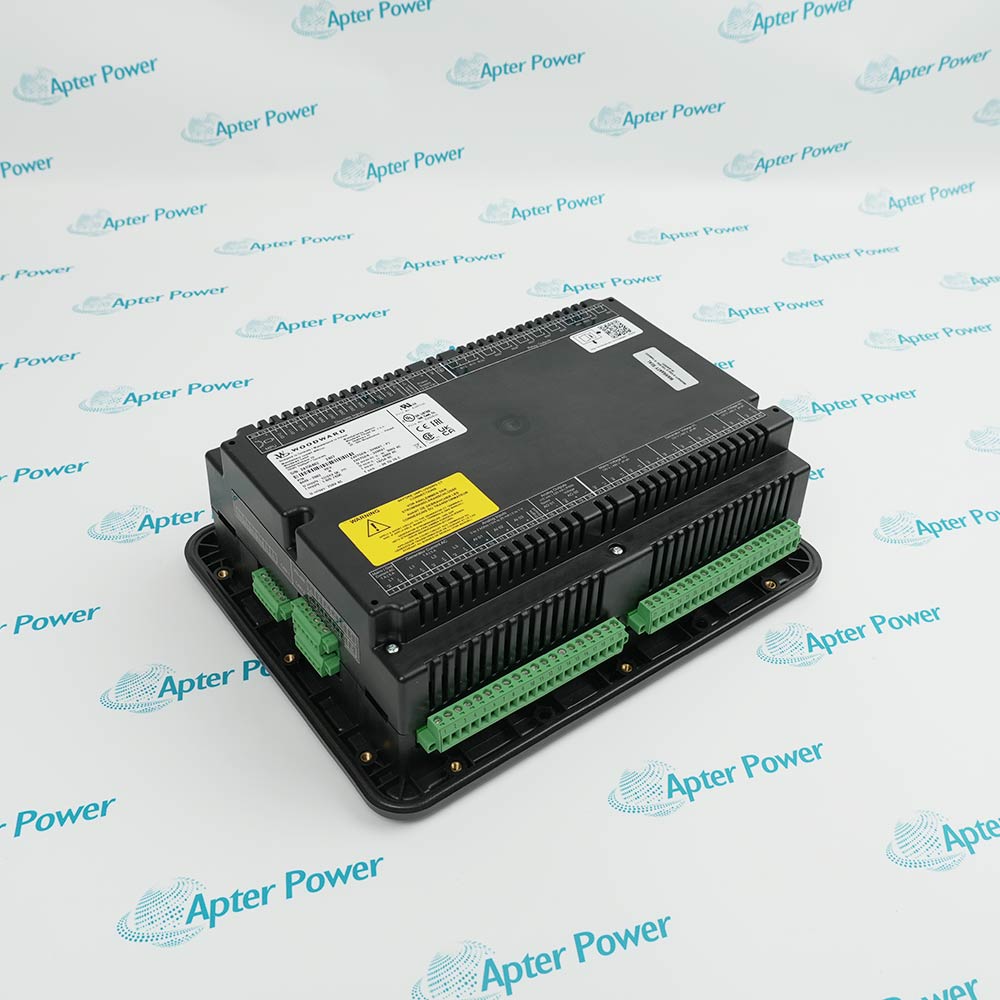

Technical specifications for EASYGEN-3500XT-P1 8440-2082
-
Manufacturer:WOODWARD
-
Product Category:DCS Systems
-
Spare Part Number:8440-2082
-
Estimated shipping dimensions:16×13×7cm
-
Weight:0.4 kg
-
Tariff Code:8537101190
-
Counliy of origin:USA
-
Power supply:12/24 VDC
-
Intrinsic consumption:max. 14 W
-
Ambient temperature (operation):-20 to 70 °C
-
Ambient temperature (storage):-30 to 80 °C / -22 to 176 °F
-
Working power supply:12/24 VDC
-
Power consumption:Approximately 20 W
-
Generator voltage:Three phase 100/120 VAC or 400/480 VAC
-
CT input:default 1A (configurable 5A)
-
Generator current:three-phase measurement
-
Grounding current:single channel measurement
-
Frequency:50/60 Hz
-
Discrete input:12 channels
-
Relay output:12 channels
-
Analog input:3 channels
-
Analog output:2 channels
Information
Overview
Manuals
Core strengths
Woodward Genset Controller easYgen-3500XT-P1 features cylinder temperature monitoring as well as auto, stop, load/no load, and manual operation modes. This model will typically run on a power supply of 12/24 VDC but will be in the range of 8/40 VDC.
- Frequency
- Voltage/span>
- Generator Controller
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
WOODWARD EASYGEN-3500XT-P1 8440-2082 Generator Controller Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
Flexibility: The built-in LogicsManager makes it not just a controller, but also a small PLC that can solve complex on-site interlocking logic.
Compatibility: Supports almost all mainstream engine ECUs (via J1939), such as Caterpillar, Cummins, MTU, etc.
FAQ View All FAQ
-
Why is my controller labeled 3500XT, but the order number is 8440-2082?This is a common confusion. Woodward's 8440-2082 is a 3200XT-P1 (plastic shell version). The actual order number for 3500XT-P1 is usually 8440-2085 (metal shell version). Please make sure to configure the parameters based on the Part Number (P/N) on the equipment nameplate.
-
What is the difference between 8440-2082 and 8440-2083?The suffixes are different. 2082 is the standard operating temperature (-20 ° C to+70 ° C), while 2083 is the - LT (Low Temperature) low-temperature version that supports working in environments as low as -40 ° C.
-
What software do I need to configure 8440-2082?We need to use the free ToolKit software provided by Woodward. It can be connected through the USB interface on the front of the controller or the Ethernet interface on the back.
-
What software do I need to configure 8440-2082?We need to use the free ToolKit software provided by Woodward. It can be connected through the USB interface on the front of the controller or the Ethernet interface on the back.
-
What should I do if there is a "Phase Rotation Mismatch" alarm?Check if the phase sequence of the generator and busbar (or mains) is consistent (L1-L2-L3). If it is a new installation, it may be necessary to swap the two-phase wiring or change the phase sequence settings in the software.
-
Is the controller unable to recognize engine ECU data?Check the baud rate setting of CAN # 1 (usually 250kbps) and confirm if the J1939 protocol selection matches your engine brand (such as Cummins, Volvo, MTU, etc.).
-
How many generators can 8440-2082 control in parallel?Supports up to 32 units.
