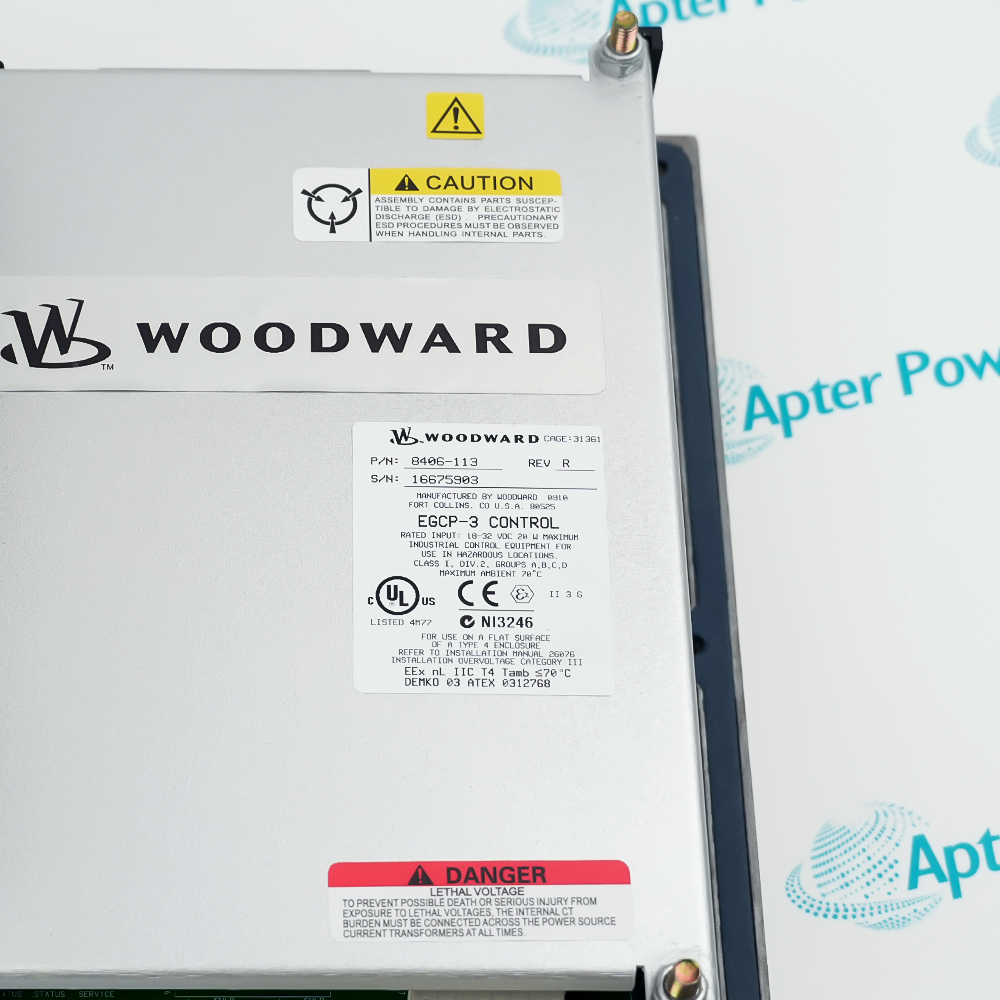

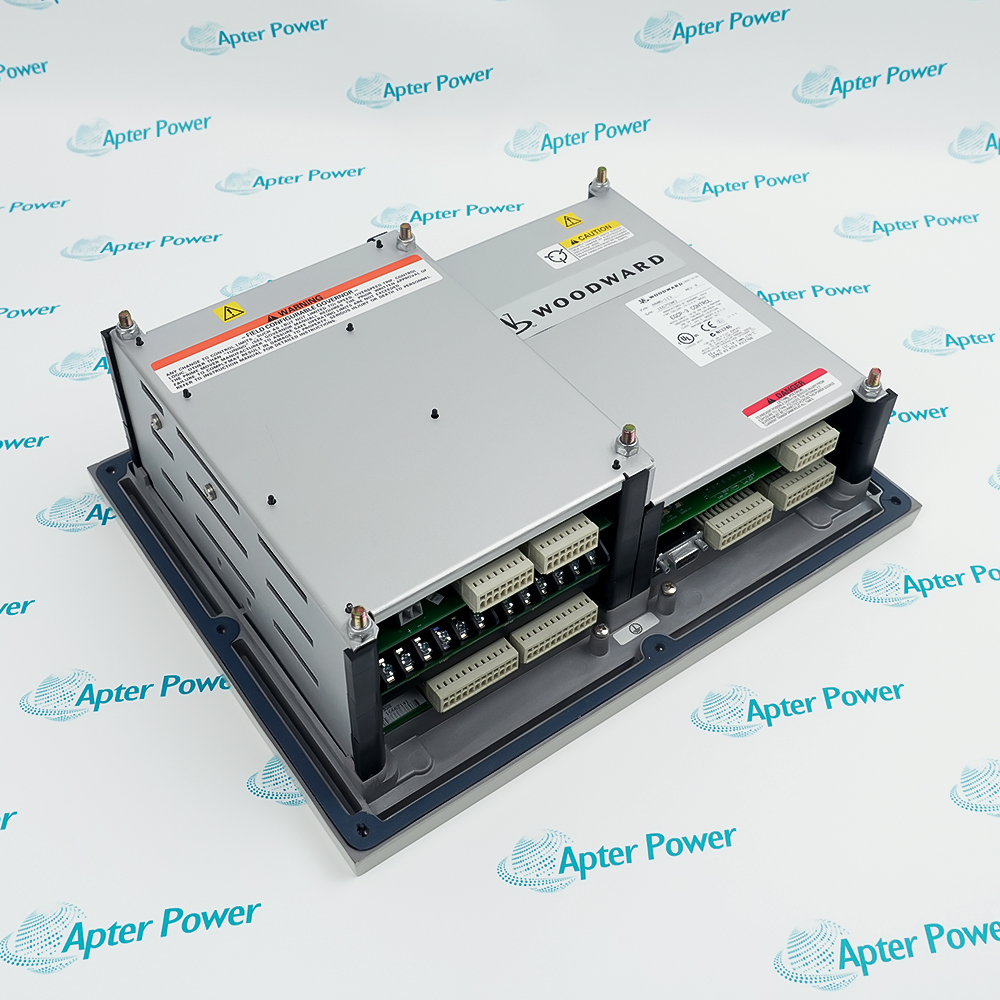

      8406-113

      OPERATOR INTERFACE
      In Stock

      Product Describe：

      OPERATOR INTERFACE
      EGCP-3 CONTROL
      20 W
      18-32 VDC

      Ask our team:

      Get a quick price for： 8406-113
      Quantity*
      Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Apterpower please read our privacy policy.
      Technical specifications Information FAQ More Details

      Technical specifications for 8406-113

      Technical specifications for 8406-113

      • Manufacturer:
        WOODWARD
      • Product Category:
        PLC Systems
      • Spare Part Number:
        8406-113
      • Estimated shipping dimensions:
        35.8x28.2x13.5cm
      • Weight:
        4.28 kg
      • Tariff Code:
        8537101190
      • Counliy of origin:
        USA
      • Power Consumption:
        20 W
      • Power Supply:
        18-32 VDC
      • Speed Bias:
        4-20 mA, 0-5 V, PWM, or +3 V output
      • Operating Temperature:
        -20 to +70 °C
      • Storage Temperature:
        -30 to +80 °C
      • Category:
        HMI / MMI / OIT
      • Subcategory:
        Operator Interface
      • Speed deviation output:
        4-20 mA, 0-5 V, PWM, or ± 3 V
      • Weight approximately:
        9.5 lbs
      Ask for Quote

      Information

      Information

      Overview Manuals Core functions and features
      The Woodward 8406-113 is a dual-display operator interface panel designed for the EGCP-3 (Engine Generator Control Package) series.
        • EGCP-3 Engine Generator Control Package
        • Load Sharing (LS) model series
        • Display/Keypad Interface
      This interface has powerful signal processing capabilities and supports various speed bias and voltage bias outputs such as 4-20 mA, 0-5 V, PWM, etc. It can accurately adapt to mainstream speed controllers and voltage regulators (AVRs) on the market. Its internal logic covers functions ranging from automatic synchronization, active/reactive load distribution to complex incoming/bus monitoring.
      Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      WOODWARD 8406-113 OPERATOR INTERFACE Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description.
      Load distribution and control: Supports load distribution for up to 16 generator units, with multiple modes including equal load distribution, percentage load distribution, and master-slave load distribution. Voltage and power factor control: Maintaining a constant reactive power (VAR) or power factor (PF) by adjusting the generator voltage. Dual display operation interface: equipped with two backlit LCD screens and buttons, capable of simultaneously monitoring 8 lines of status information, configuration parameters, or alarm logs. Synchronization and management: Supports isolated bus or parallel application of public utilities (power grid), and can execute engine start/stop timing control. Communication capability: Equipped with 3 built-in serial ports and supporting Modbus protocol, it is convenient to integrate with SCADA systems for remote monitoring.

      FAQS

      • What is the function of the 8406-113 Operator Interface?
        It provides a user interface for monitoring, configuration, and control of connected industrial control or governor systems.
      • What systems can the 8406-113 Operator Interface be used with?
        It is designed to operate with compatible control and governor systems to provide local operation and parameter adjustment.
      • What type of display does the 8406-113 Operator Interface use?
        The interface typically includes an integrated display and keypad that allow operators to view system status and configure operating parameters.
      • What communication capabilities does the 8406-113 support?
        The unit supports industrial communication interfaces for data exchange between the operator panel and the connected control system.
      • What are the typical operating environmental conditions for the 8406-113?
        It is designed for industrial environments with an operating temperature range of approximately 0°C to +60°C and standard humidity conditions.
